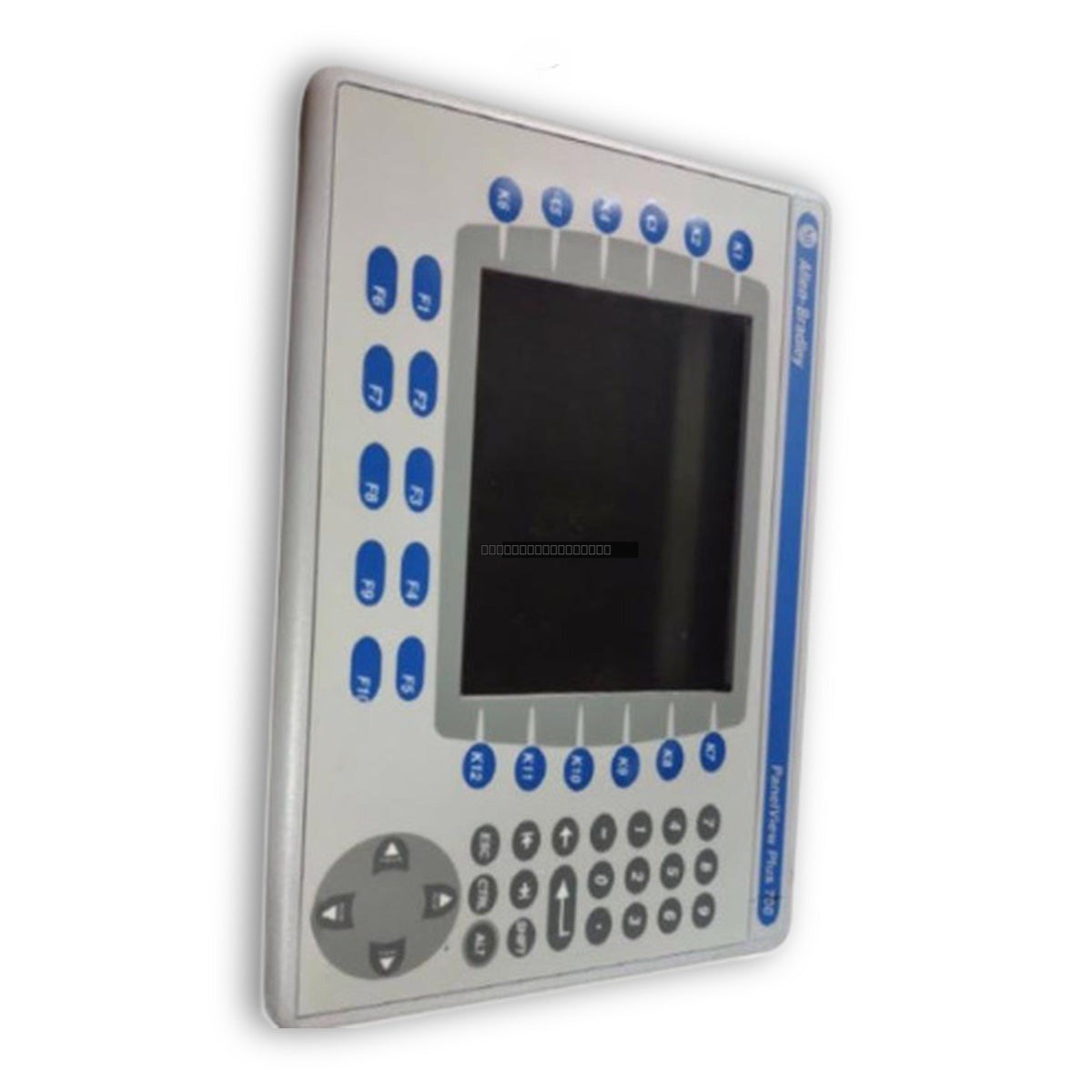

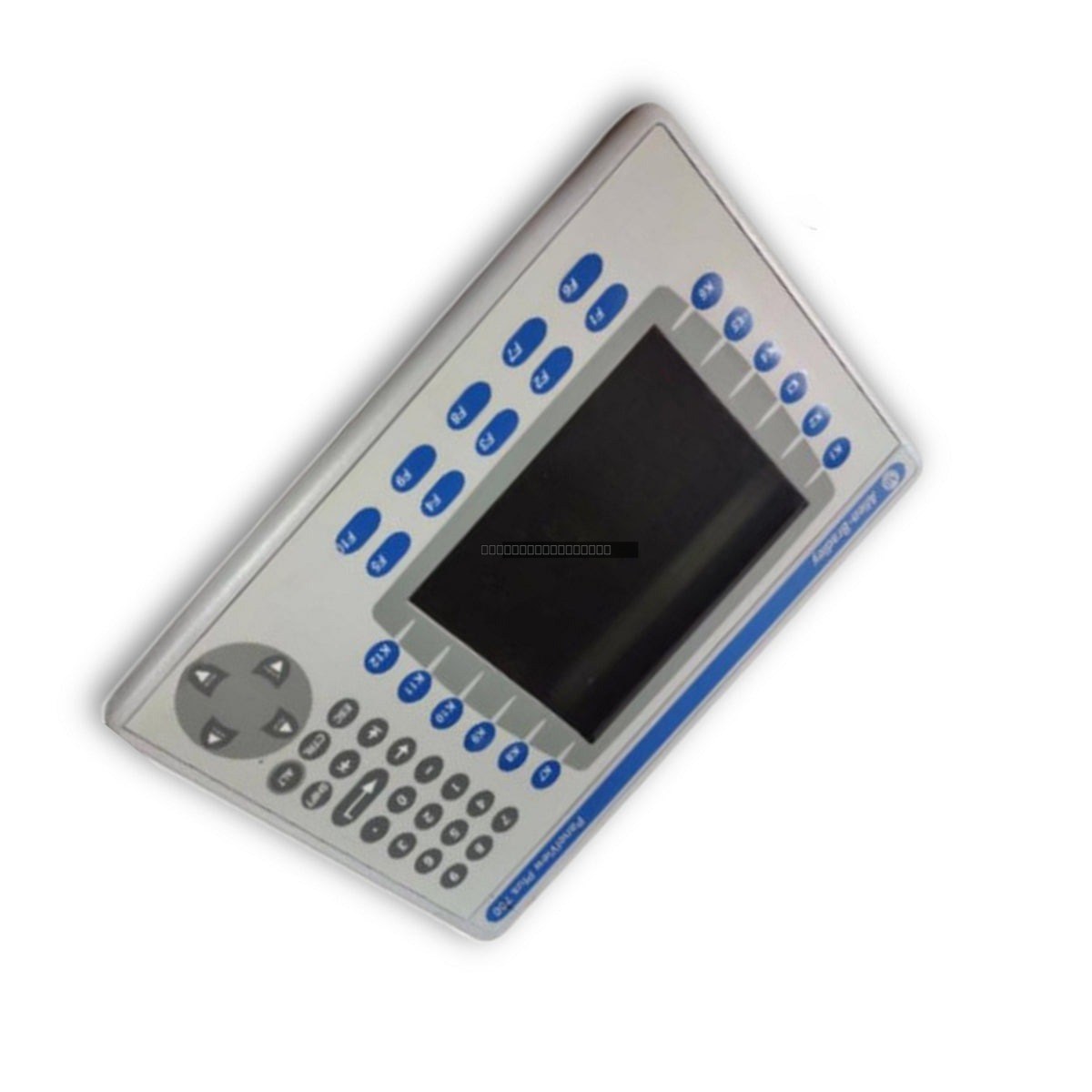

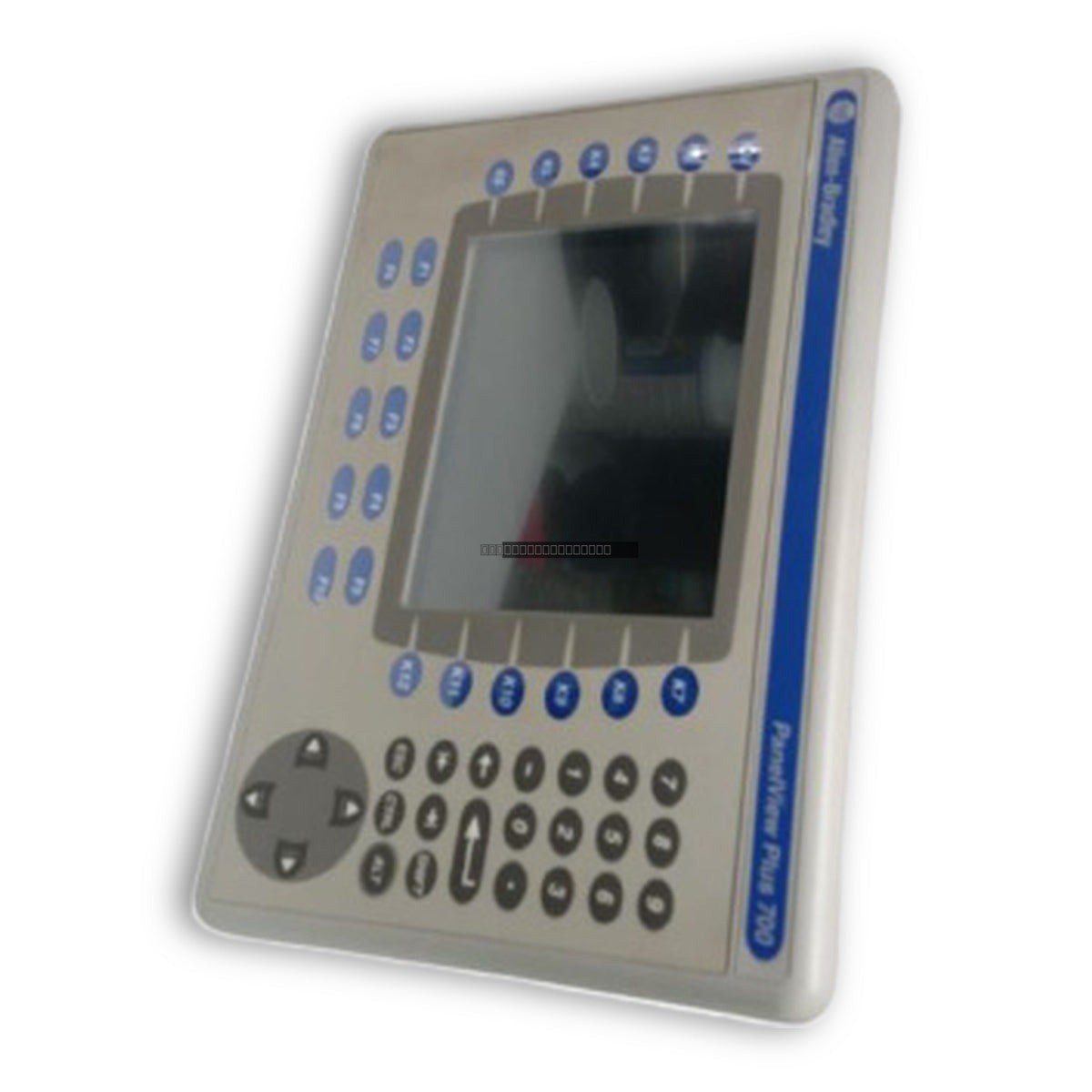

Allen-Bradley 2711P-K10C15D2 PanelView Plus 1000 Operator Interface

Allen-Bradley 2711P-K10C15D2 PanelView Plus 1000 Operator Interface

The Allen-Bradley 2711P-K10C15D2 is a high-performance operator interface terminal from the PanelView Plus 1000 series, engineered for robust process visualization and supervisory control in demanding industrial environments. This unit provides...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: 2711P-K10C15D2
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711P-K10C15D2 is a high-performance operator interface terminal from the PanelView Plus 1000 series, engineered for robust process visualization and supervisory control in demanding industrial environments. This unit provides a reliable interface for programmable automation controllers, enabling operators to manage graphical control logic, alarm monitoring, and data logging directly from the factory floor.

Features

  • 10.4-inch active-matrix color TFT LCD display with 640 x 480 VGA resolution.
  • Tactile keypad assembly for precise operator input in industrial settings.
  • Equipped with 128 MB of logic memory to support complex graphical applications.
  • Integrated communication suite including ControlNet, Ethernet, and RS-232 ports.
  • USB host port for convenient connection of external peripherals.
  • Designed for installation in NEMA-rated enclosures for protection against harsh conditions.

Applications

This operator terminal is widely utilized in continuous process industries, including power generation, chemical processing, and discrete manufacturing. It serves as a centralized point for machine control, status monitoring, and diagnostic reporting within automated production lines.

Technical Specifications

Model 2711P-K10C15D2
Display Size 10.4 inch
Display Type Color TFT LCD
Resolution 640 x 480 pixels
Input Method Keypad
Input Voltage 24 VDC (18 to 32 VDC range)
Power Consumption 70 W max
Memory 128 MB Logic Module
Communication ControlNet, Ethernet, RS-232, USB
Operating Temperature 0 to 55 deg C
Enclosure Rating NEMA 12, 13, 4X (Indoor), IP66

Installation Guidelines

  • Ensure the panel is mounted in a NEMA-rated enclosure to maintain the specified IP66/4X protection rating.
  • Verify that the power supply provides a stable 24 VDC (18-32 VDC) and is properly grounded.
  • Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating.
  • Always disconnect power before installing or removing communication cables or peripheral devices.
  • Route communication cables away from high-voltage lines and high-EMI sources to prevent signal interference.

FAQ

What is the primary input method for this terminal?
This model features a tactile keypad assembly designed for reliable operator input in industrial environments.

Can this unit be used in outdoor environments?
The unit is rated for NEMA 4X indoor use only. It should be installed within a suitable protective enclosure if exposed to external elements.

What communication protocols are supported?
The 2711P-K10C15D2 supports ControlNet, Ethernet, and RS-232, providing flexible connectivity options for various industrial automation networks.
