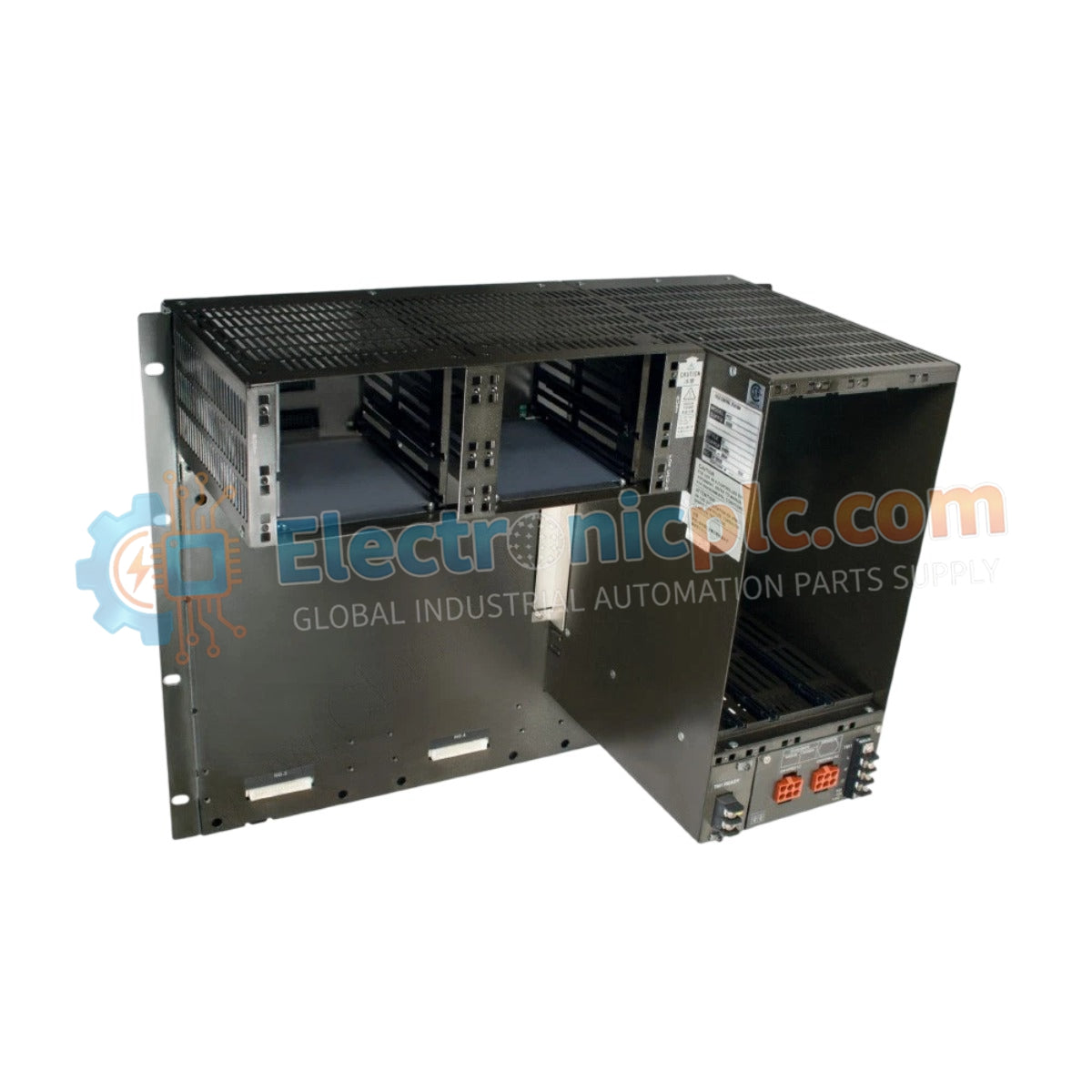

The Yokogawa PFCD-S5520/2-TE (PFCD Field Control Station) serves as the primary PFCD digital controller utilized to execute process logic and V-net/RIO communication across Centum VP and CS 3000 platform networks.

Suffix Breakdown & Model Matrix

The PFCD-S5520/2-TE identifier denotes the specific control station hardware configuration:

• PFCD: Base model designation for the Field Control Station controller.
• S5520: Specifies the processing power, firmware capability, and supported backplane architecture for V-net integration.
• /2: Indicates the duplexed (redundant) hardware configuration, enabling seamless failover between primary and standby processors.
• TE: Denotes the specific environmental or regional hardware variant, ensuring compatibility with standard industrial operating requirements.

Hardware Specifications

Process Control and Network Communication

The PFCD-S5520/2-TE acts as the brain of the Field Control Station, managing real-time process execution and I/O scan cycles. The duplexed architecture ensures continuous operation by synchronizing control logic and state data between the redundant processors over a dedicated high-speed link. This design prevents single-point failure in critical process applications, maintaining V-net integrity and deterministic RIO bus communication.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the duplexed configuration in the PFCD-S5520/2-TE?

A: The duplexed configuration provides hardware-level redundancy. If the primary processor detects an internal fault, the standby unit assumes control within one scan cycle, ensuring no interruption to the output signals or process control loops.

Q: Is this controller compatible with legacy Centum CS field I/O?

A: Yes, the PFCD-S5520/2-TE is engineered for backward compatibility within established V-net/RIO infrastructures, allowing for the replacement of legacy controllers without requiring extensive field-side rewiring.

Field Installation Guidelines

• Ensure the controller is inserted into a rack designated for duplexed operation, verifying that the backplane correctly supports redundant communication bus paths.
• Perform a "primary-to-standby" switchover test during a scheduled maintenance period to verify that the redundant logic is functioning correctly before putting the controller into active service.
• Tighten all mounting screws on the controller chassis to minimize physical vibration, which can lead to intermittent backplane contact.
• Check that firmware versions on both the primary and standby modules are synchronized; mismatching firmware can cause unpredictable behavior during master/standby arbitration.
