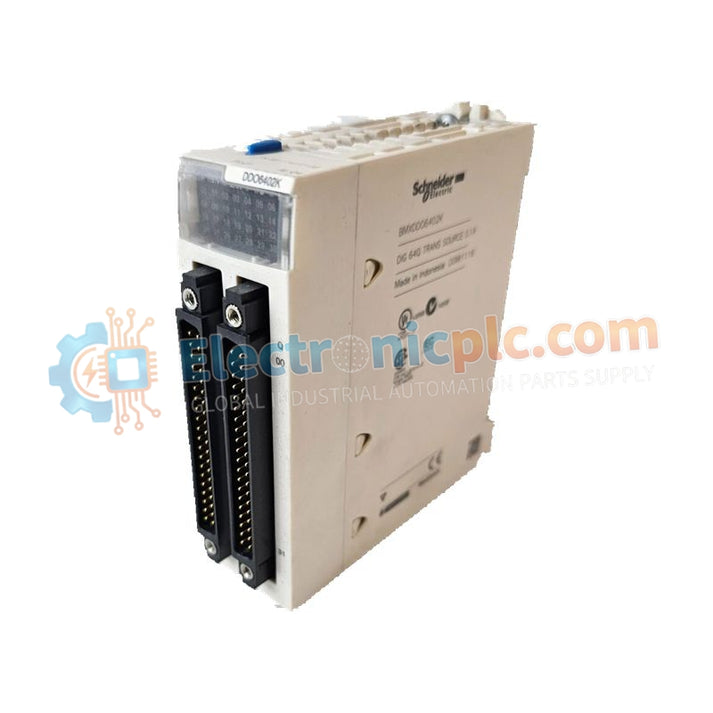

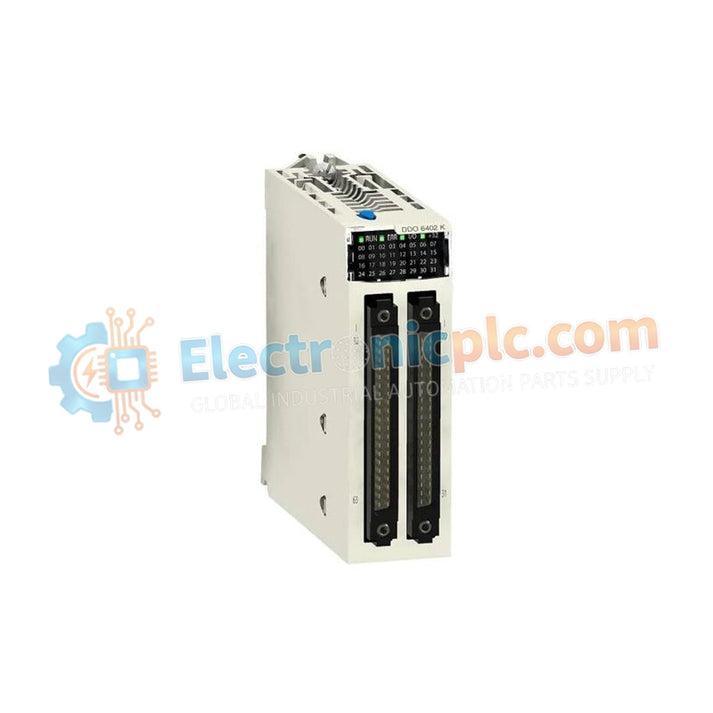

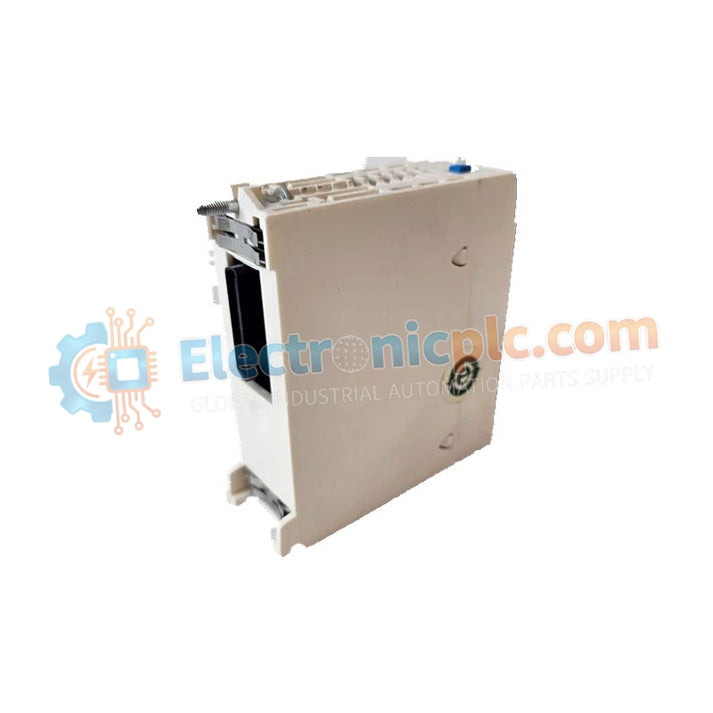

PLC Discrete Output Module BMXDDO6402K Schneider Electric

PLC Discrete Output Module BMXDDO6402K Schneider Electric

Product Description

The BMXDDO6402K (BMX-DDO-6402-K) is a high-density 64-channel discrete output module for the Schneider Electric Modicon M340 and M580 platforms. Designed for large-scale automation, it delivers reliable 24V DC transistor outputs to...

26 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXDDO6402K
Vendor: Schneider
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The BMXDDO6402K (BMX-DDO-6402-K) is a high-density 64-channel discrete output module for the Schneider Electric Modicon M340 and M580 platforms. Designed for large-scale automation, it delivers reliable 24V DC transistor outputs to drive solenoids, relays, indicators, and other low-power actuators. Its single-slot design maximizes control cabinet space while maintaining fast and precise switching performance.

Featuring internal short-circuit and overvoltage protection per output group, this module ensures long-term reliability in demanding industrial environments. The "K" revision meets modern EMC and vibration standards, making it suitable for 24/7 manufacturing operations. The BMXDDO6402K interfaces via two 40-pin HE10 connectors, typically paired with Telefast pre-wired cabling, allowing organized, error-free wiring for high-density applications.

Technical Specifications

Parameter Specification
Model Number BMXDDO6402K
Number of Outputs 64 Channels
Output Type Discrete Transistor (Source/Positive Logic)
Nominal Voltage 24V DC
Voltage Limits 19V – 30V DC
Current per Channel 0.1 A Maximum
Total Module Current 3.2 A (all channels simultaneously)
Response Time < 1.2 ms (Turn on/off)
Protection Features Short-circuit and overvoltage per group
Module Weight 0.145 kg

Installation and High-Density Management

  • Compatible with BMXFTW pre-formed cables or Telefast ABE7 wiring systems.

  • HE10 connectors translate to labeled screw-terminal strips for fast and accurate field wiring.

  • LED indicators provide real-time status feedback for diagnostics and maintenance.

Technical FAQ

How is the 0.1A per channel limit managed?
The BMXDDO6402K is intended for low-power signaling. For larger actuators or high-power loads, use interposing 24V DC relays to prevent exceeding the transistor output rating.

Can this module be hot-swapped in an M340 or M580 rack?
Yes. The module supports online replacement, provided the PLC configuration in the software allows it. This enables safe replacement without shutting down the entire rack.
