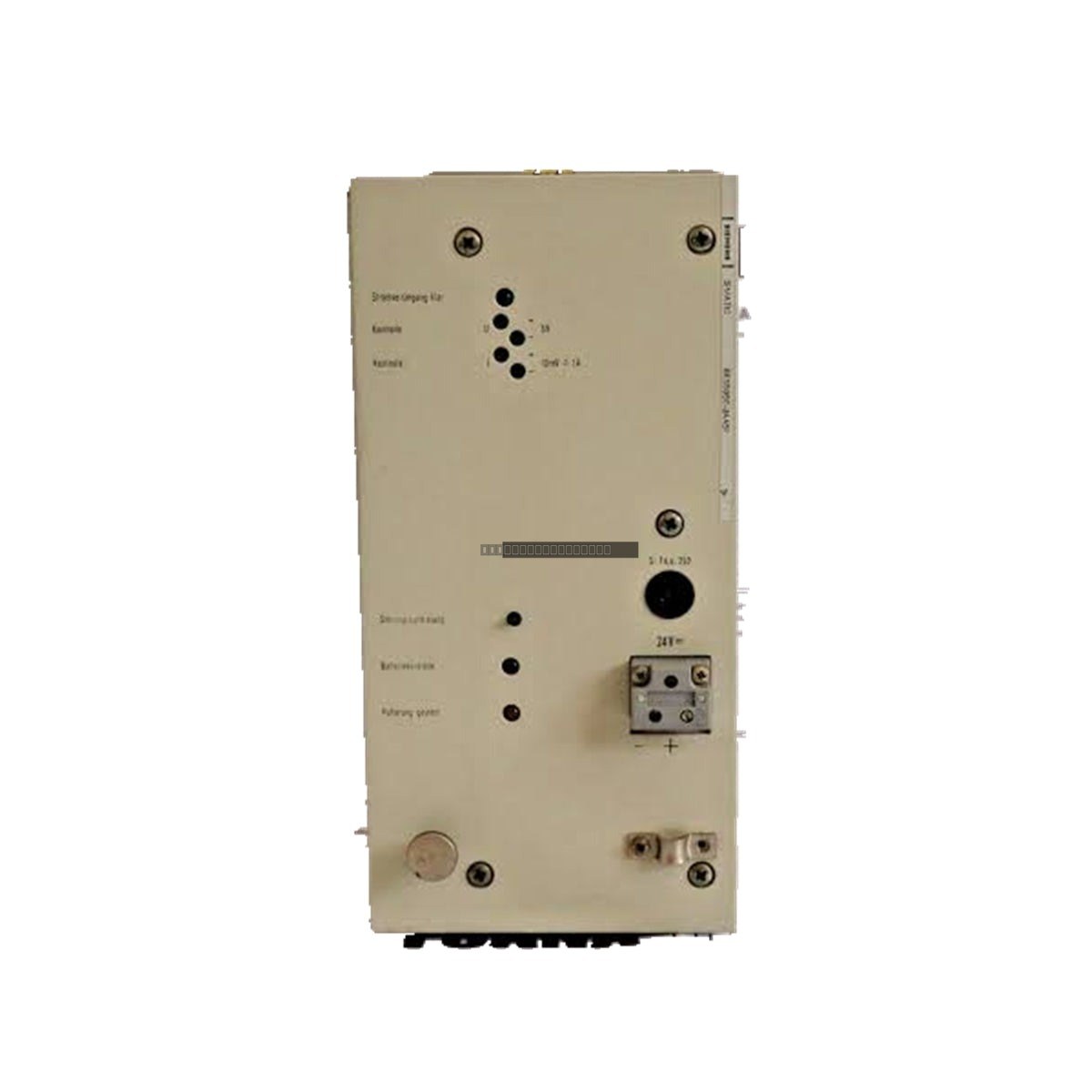

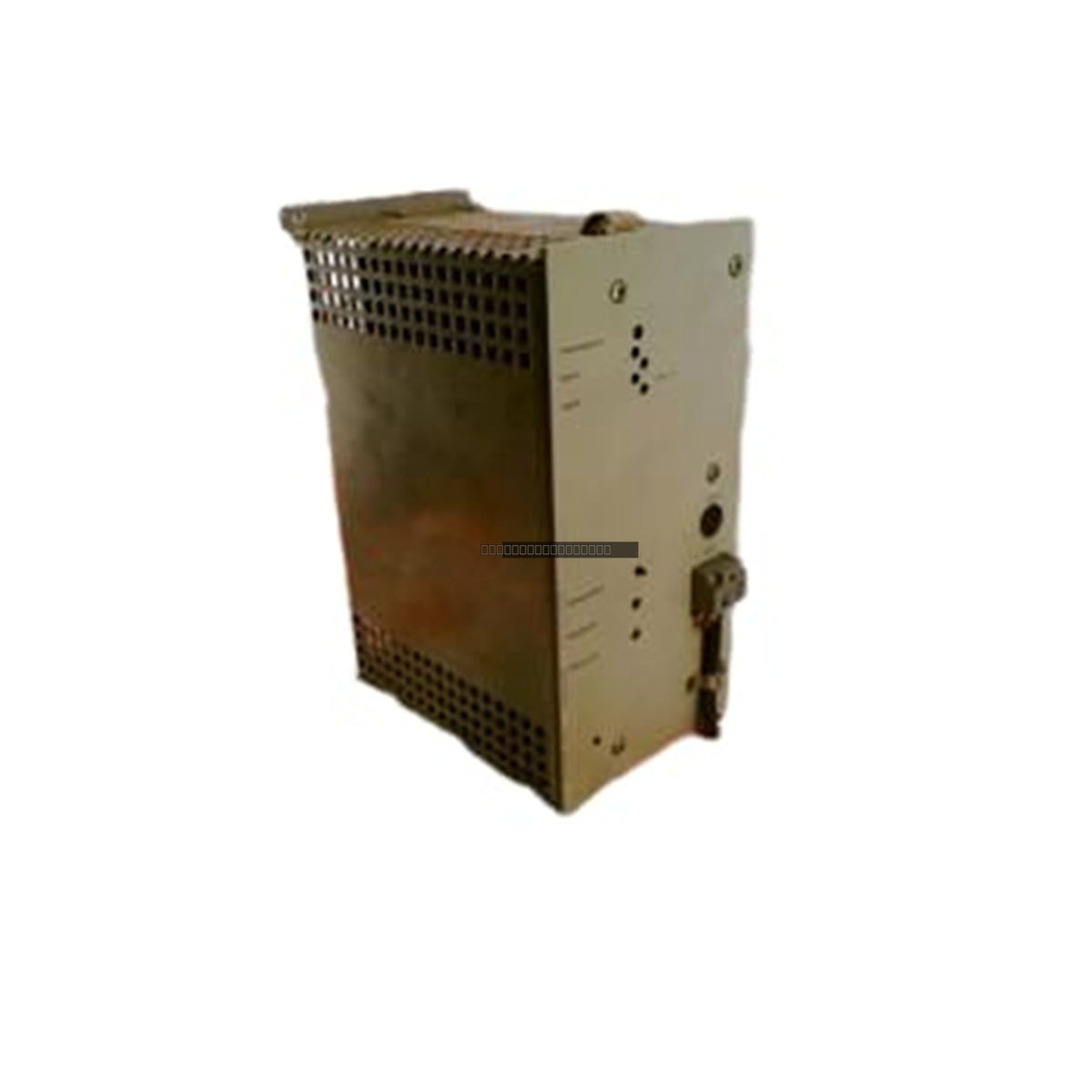

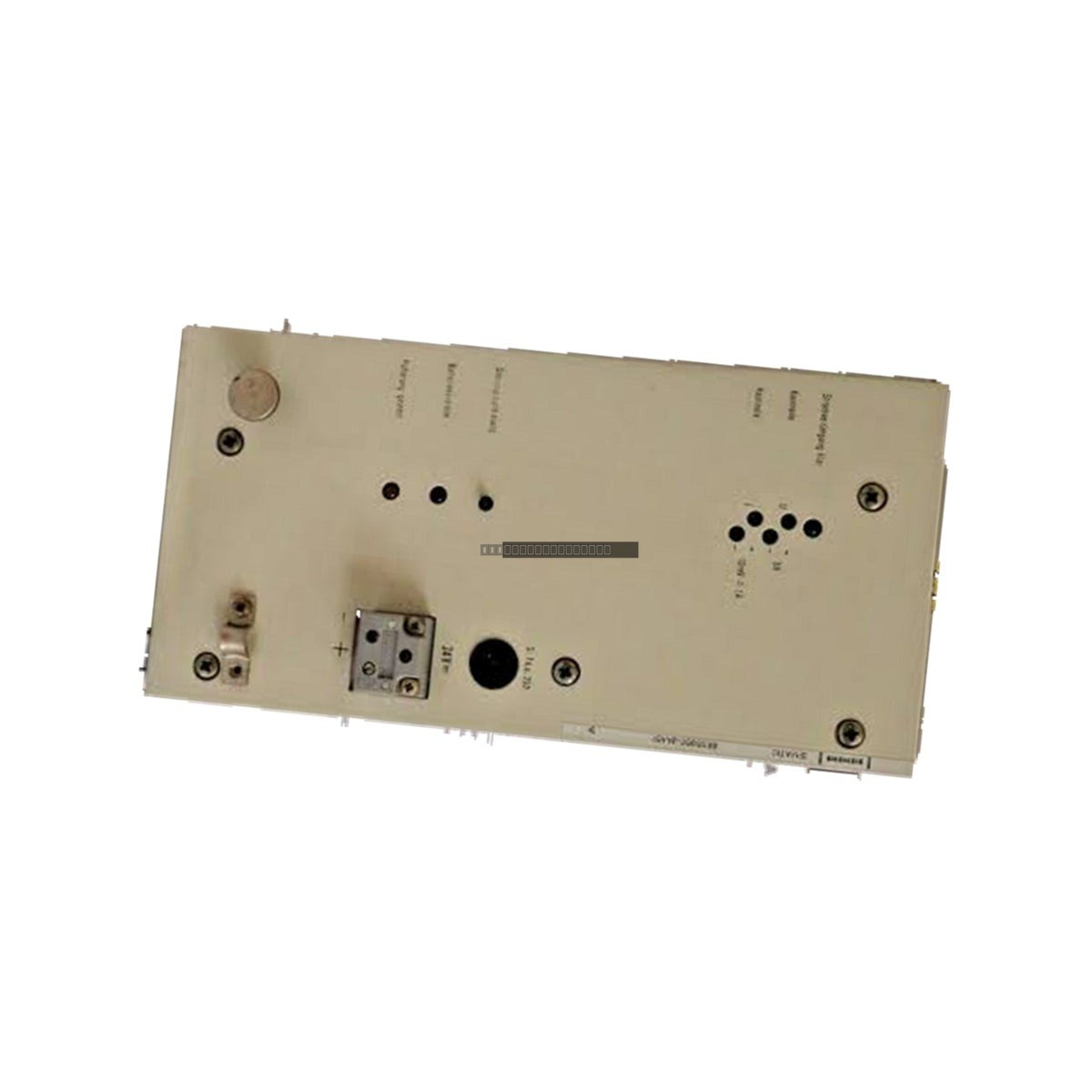

Siemens 6ES5950-3AA51 Simatic S5 PS 950 Power Supply Module

Siemens 6ES5950-3AA51 Simatic S5 PS 950 Power Supply Module

Description

The Siemens PS 950 (6ES5950-3AA51) is a specialized power supply module engineered for the Simatic S5-135U and S5-155U automation systems. This unit provides reliable, regulated DC power to the PLC...

23 people are viewing this right now

Availability: Low stock: 9 left

SKU: 6ES5950-3AA51
Vendor: Siemens
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens PS 950 (6ES5950-3AA51) is a specialized power supply module engineered for the Simatic S5-135U and S5-155U automation systems. This unit provides reliable, regulated DC power to the PLC backplane, ensuring stable operation of the CPU and associated I/O modules. Designed for demanding industrial environments, the PS 950 effectively manages line fluctuations and provides robust protection against electrical disturbances, which is critical for maintaining process continuity in manufacturing and power generation applications.

Features

  • Designed for seamless integration with S5-135U and S5-155U chassis architectures.
  • Selectable input voltage range (120 VAC / 230 VAC) for global compatibility.
  • Integrated overvoltage protection (OVP) with electronic crowbar circuitry to safeguard backplane components.
  • Passive cooling design utilizing high-efficiency heat sinks to eliminate reliance on mechanical fans.
  • Front-panel LED indicators for real-time monitoring of input power and secondary output status.

Technical Specifications

Model 6ES5950-3AA51
Input Voltage 120 VAC / 230 VAC (selectable)
Frequency 50-60 Hz
Output Voltages 5 VDC, 24 VDC
Max Output Current 10 A at 5 VDC
Max Power Capacity 120 W
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Cooling Method Natural convection

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the PS 950 module.
  • Verify that the input voltage selector switch matches the local supply voltage before applying power.
  • Install in a location that allows for adequate vertical clearance to facilitate natural convection cooling.
  • Ensure the module is fully seated in the dedicated S5 rack slot and secured to prevent vibration-induced disconnection.
  • Maintain a clean environment to prevent dust accumulation on the heat sinks, which could impede thermal dissipation.

FAQ

Is this module compatible with S5-115U systems?
No, the PS 950 is specifically designed for the S5-135U and S5-155U rack systems. It is not physically or electrically compatible with the S5-115U series.

Does this unit require external cooling fans?
No, the PS 950 utilizes a passive cooling design with integrated heat sinks. It is designed to operate via natural convection, provided the installation guidelines regarding clearance are followed.
