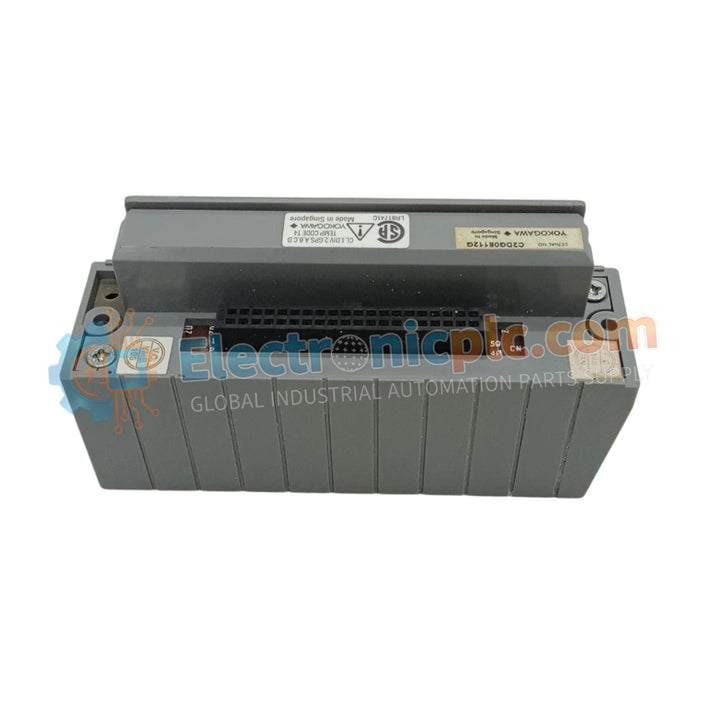

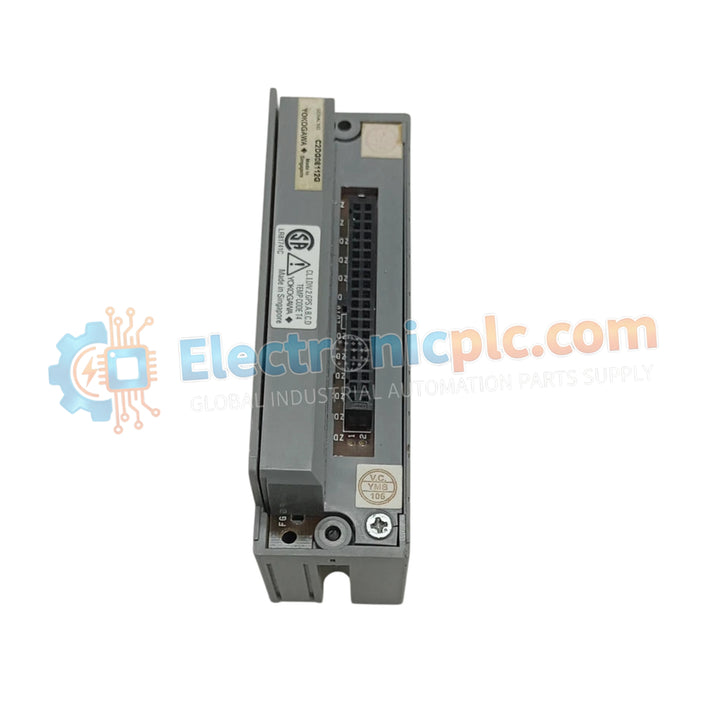

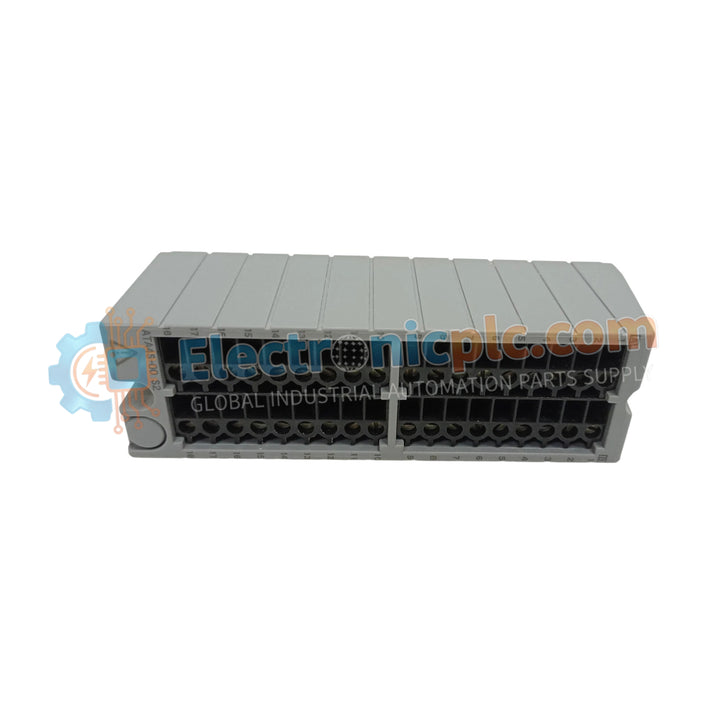

The YOKOGAWA ATA4S-10 S2, also cataloged as the ATA4S-10 Terminal Block, operates as a dedicated hardware component for secure field wiring termination and signal distribution within CENTUM process control network platforms.

Hardware Specifications

DCS Process Loop Connectivity

The ATA4S-10 S2 module serves as a passive interface assembly designed to maintain signal integrity between field-side sensors and the DCS I/O subsystem. The pressure clamp design ensures consistent mechanical pressure on conductors, mitigating the risk of high-resistance connections that can introduce signal noise or intermittent contact in 4-20 mA HART loop protocol environments. The assembly facilitates efficient field wiring organization while maintaining the required electrical isolation characteristics for standard DCS process loop configurations.

Frequently Asked Questions (FAQ)

Q: What gauge of wire is compatible with the pressure clamp terminals?

A: The terminals are engineered to accommodate standard industrial wire sizes. Always use appropriate ferrules for stranded conductors to ensure uniform contact pressure across the clamp surface and to prevent individual strand breakage.

Q: Is this terminal block compatible with high-vibration cabinet environments?

A: Yes, the pressure clamp mechanism provides superior vibration resistance compared to standard screw-type terminals. Ensure the unit is securely mounted to a DIN rail or cabinet panel to minimize mechanical stress on the termination points.

Field Installation Guidelines

• Mounting: Install the ATA4S-10 S2 on a standard industrial DIN rail or directly to a backplane mounting surface. Ensure the surface is clean and level to prevent twisting of the terminal block frame.
• Wiring: Strip wires to the manufacturer-specified length. Insert the conductor into the pressure clamp and actuate the clamp according to the terminal configuration to ensure a gas-tight electrical connection.
• Shielding: Maintain shield continuity by utilizing the integrated grounding features where applicable. Ensure that all shield drain wires are terminated securely to the common grounding bar provided in the cabinet.
• Inspection: Periodically verify the tightness of the pressure clamp connections during scheduled maintenance, especially in environments subject to frequent thermal cycling.
