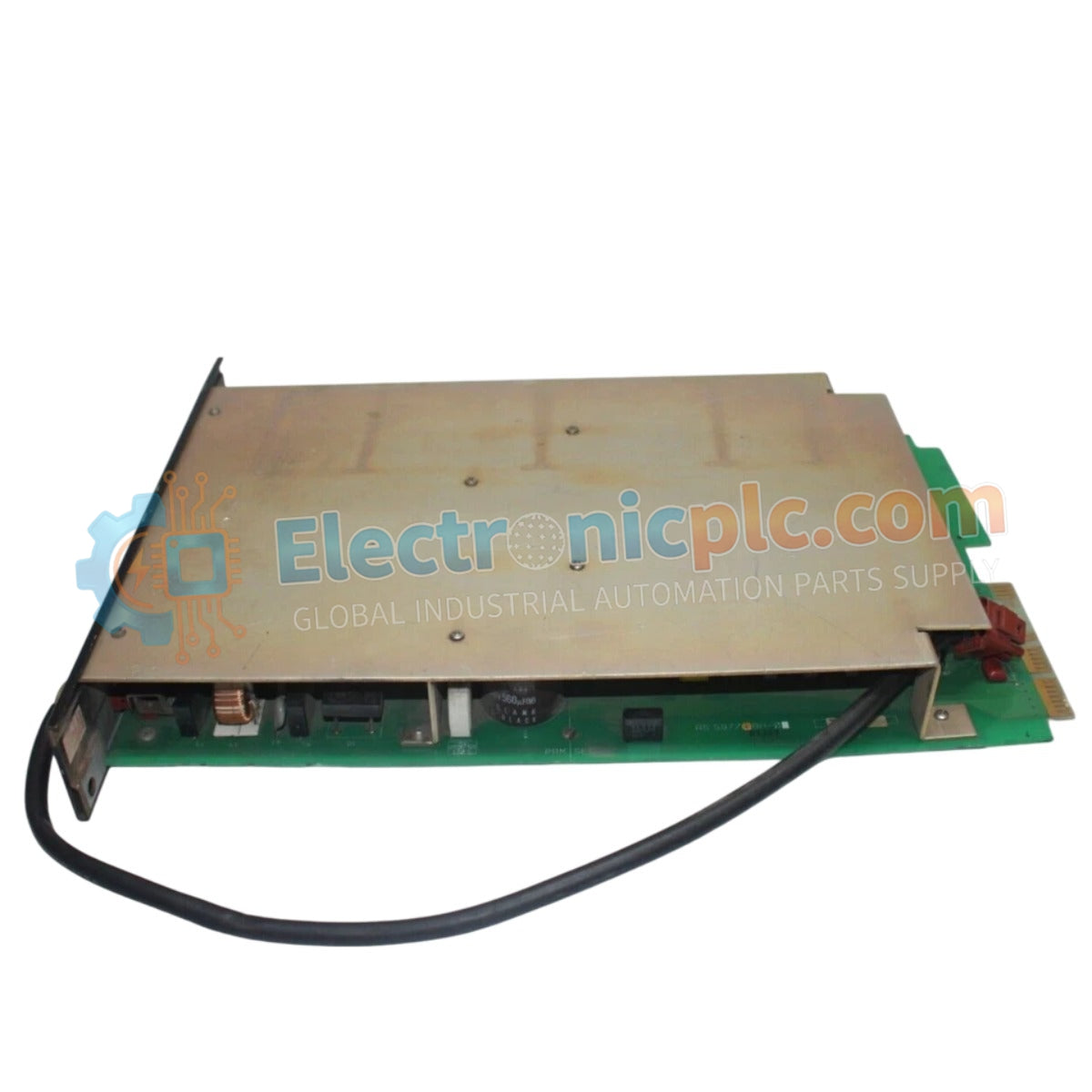

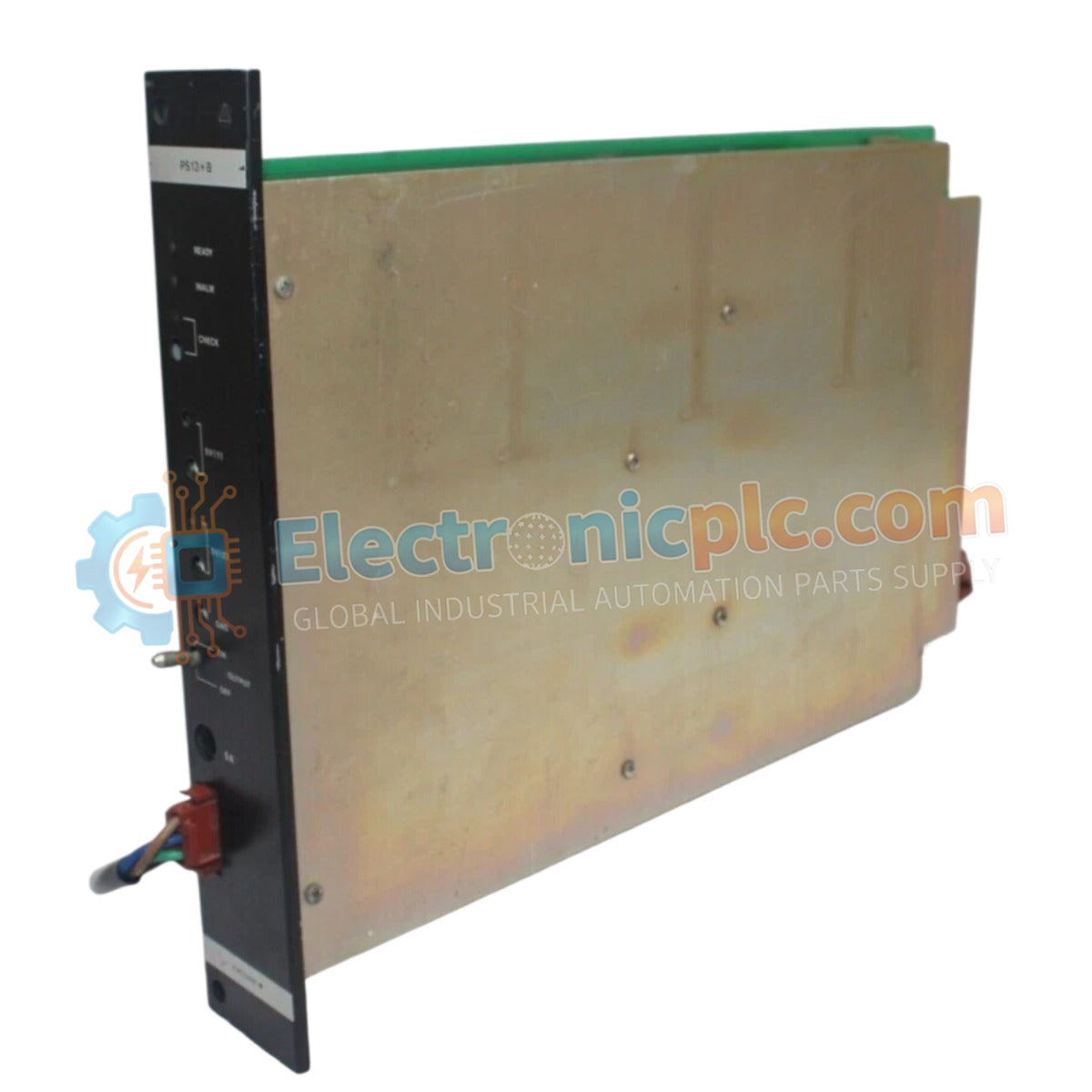

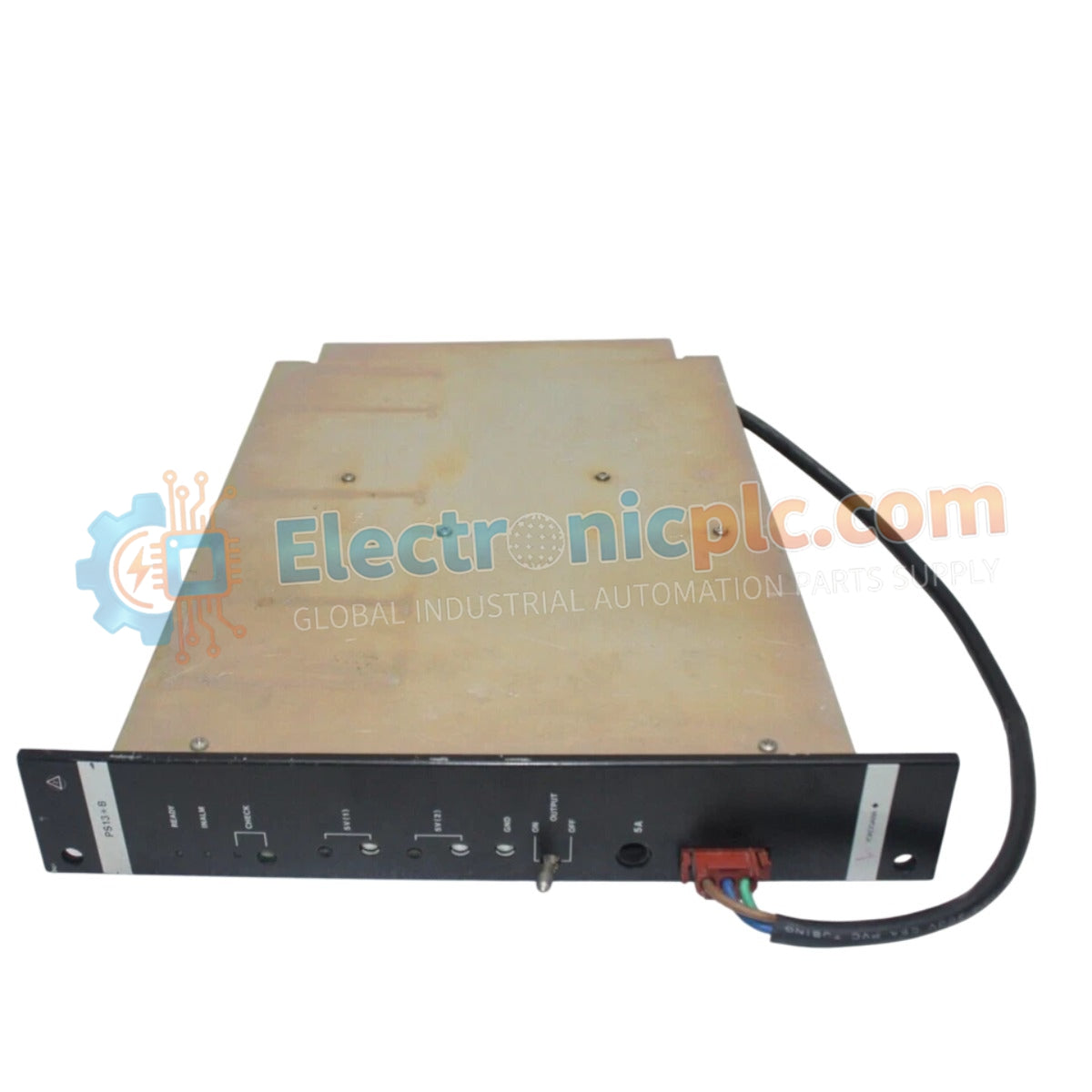

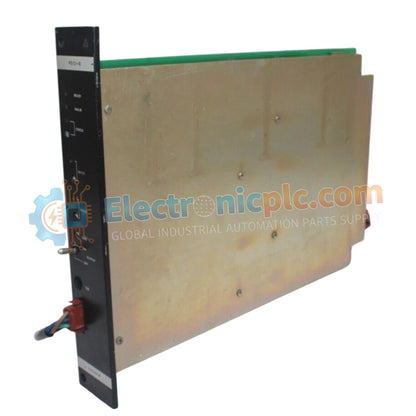

Configured for power distribution and backplane support in CENTUM CS 1000 and CENTUM VP platforms, the Yokogawa PRK71 S1 (PRK71 Power Distribution Module) provides direct physical/electrical execution for system module integration. This unit functions as the primary baseplate infrastructure, ensuring stable voltage delivery and mechanical mounting for I/O and communication card arrays within the DCS cabinet environment.

Hardware Specifications

DCS Power Management & Connectivity

The PRK71 S1 maintains strict electrical compliance within the CENTUM architecture, ensuring that channel-to-channel isolation is preserved across the backplane interface. The module utilizes regulated power distribution to mitigate voltage fluctuations, which is essential for the stability of sensitive analog input channels. Cold junction compensation (CJC) logic is supported by the baseplate’s signal routing, allowing connected temperature input modules to maintain accurate thermal readings. Furthermore, the design incorporates overcurrent and short-circuit protection, isolating faults at the module level to prevent cascading power failures across the communication bus.

Frequently Asked Questions

Q: Can the PRK71 S1 baseplate support hot-swapping of I/O modules while the system is under load?

A: Yes, the system design allows for the insertion and removal of compatible I/O modules on the powered backplane; however, care must be taken to ensure seating is aligned to prevent bus contact damage.

Q: How should ground shielding be managed on this baseplate?

A: Cable shields must be terminated at the designated cabinet grounding rail or the baseplate ground lug to reduce electromagnetic interference and maintain signal integrity.

Field Installation Guidelines

• Mounting: Secure the PRK71 S1 baseplate using all available rack mounting holes to ensure structural rigidity against mechanical vibration.
• Wiring: Maintain a minimum clearance of 50 mm from high-voltage AC cables to prevent induced noise on the 24 VDC distribution paths.
• Power Connections: Ensure the 24 VDC input supply is properly fused according to the total power draw of all installed modules to comply with safety requirements.
• Thermal Management: Orient the rack to ensure vertical airflow passes unimpeded over the module surface to maintain operating conditions within the -20 deg C to 60 deg C range.
