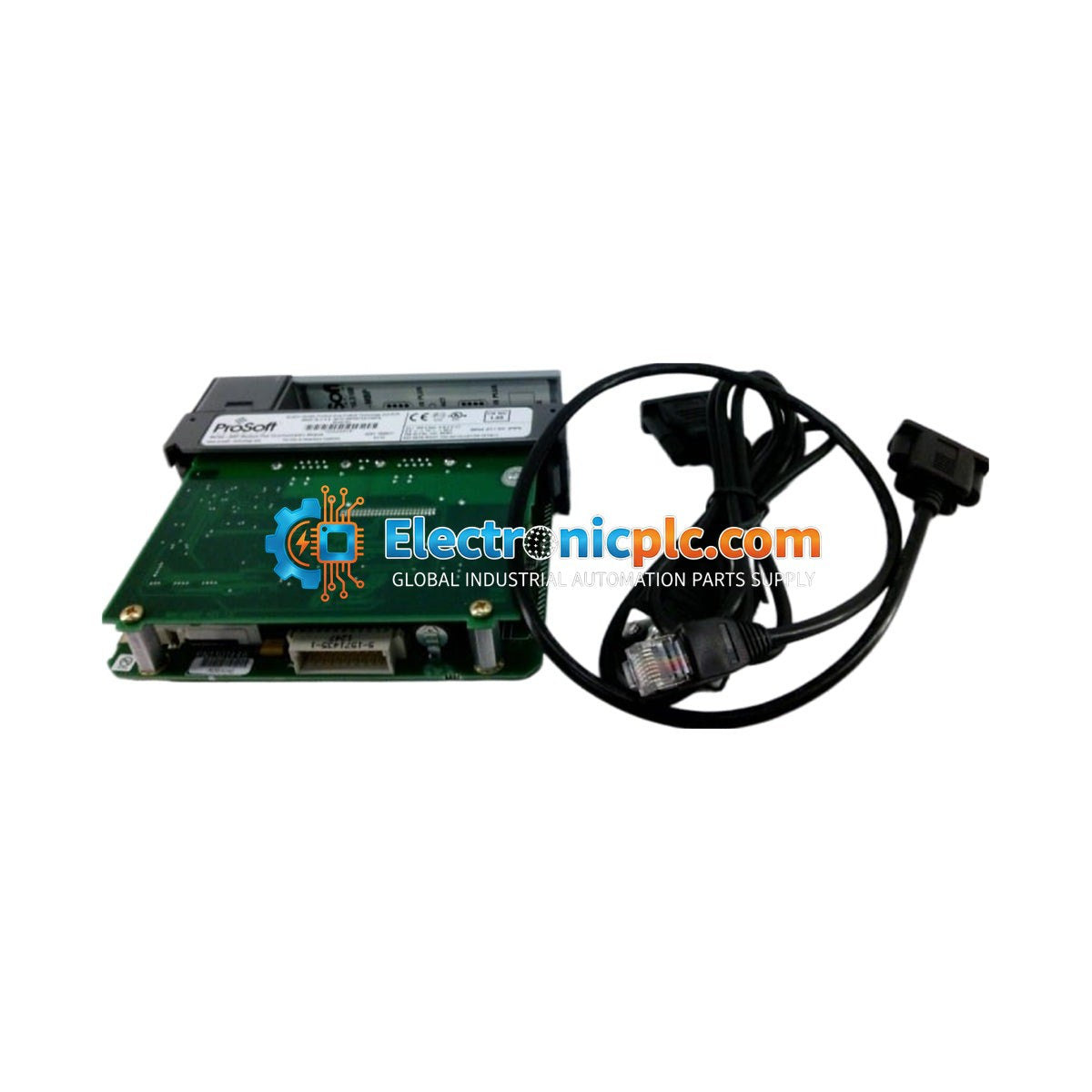

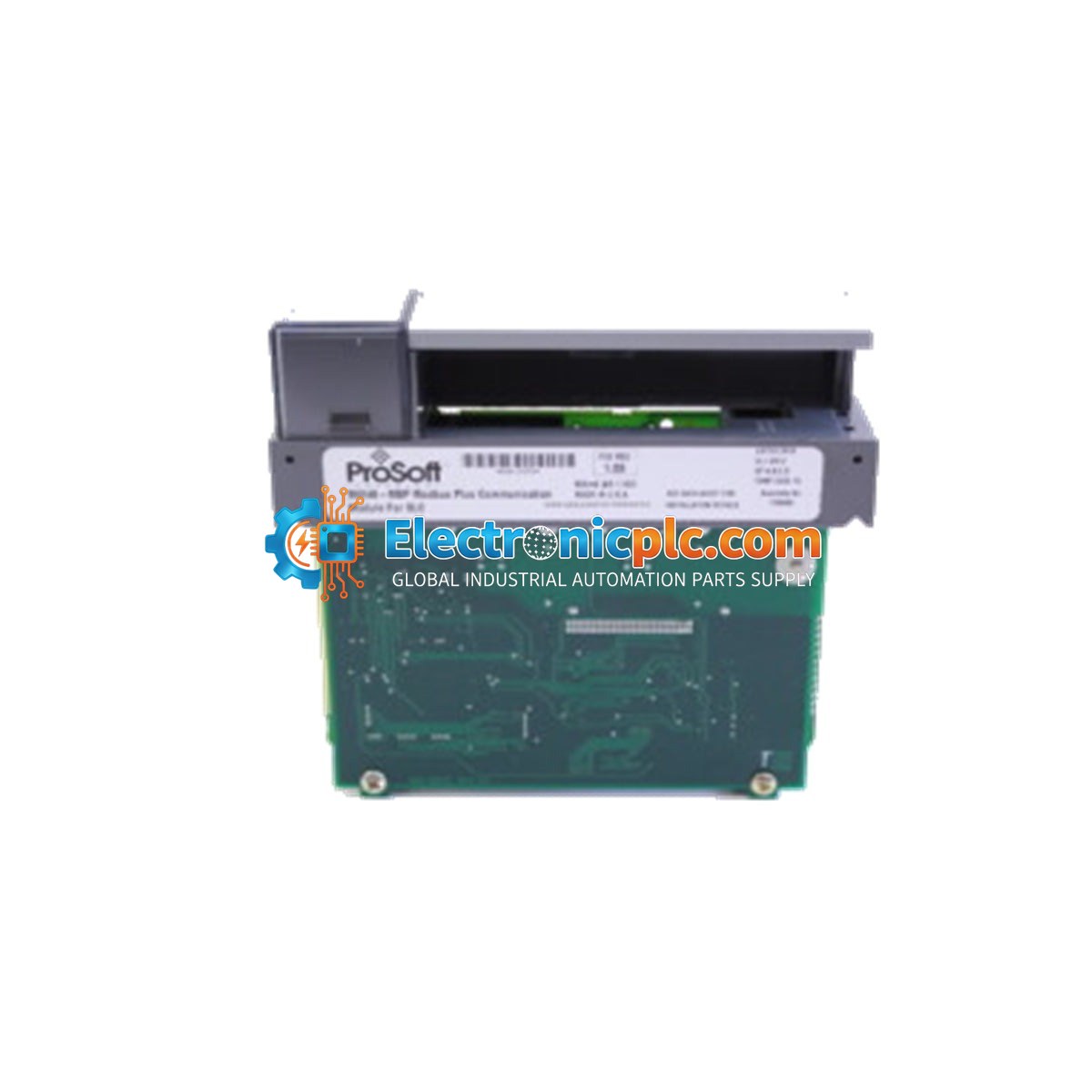

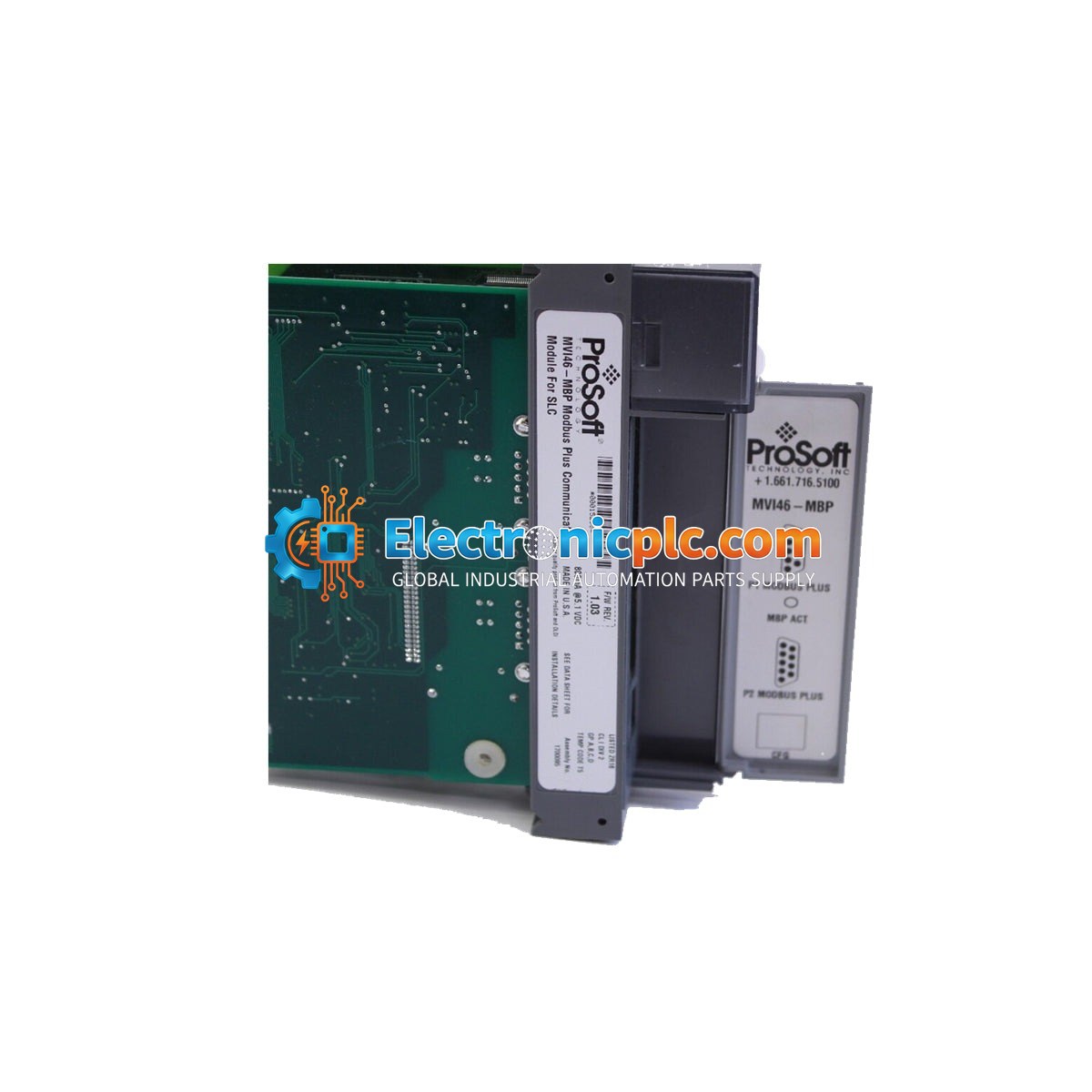

ProSoft MVI46-MBP Modbus Plus Communication Module for SLC 500

ProSoft MVI46-MBP Modbus Plus Communication Module for SLC 500

Description

The ProSoft MVI46-MBP is a high-performance Modbus Plus communication module specifically engineered for seamless integration with Allen-Bradley SLC 500 platform backplanes. This module acts as a bridge, enabling SLC processors...

29 people are viewing this right now

Availability: Low stock: 4 left

SKU: MVI46-MBP
Vendor: Prosoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI46-MBP is a high-performance Modbus Plus communication module specifically engineered for seamless integration with Allen-Bradley SLC 500 platform backplanes. This module acts as a bridge, enabling SLC processors to communicate with Modbus Plus networks via two dedicated ports. It is designed to facilitate deterministic data exchange, supporting both master and slave operations to ensure reliable connectivity in demanding industrial environments, including oil and gas, chemical processing, and large-scale manufacturing.

Features

  • Dual-port Modbus Plus interface for high-speed, deterministic data delivery.
  • Supports global database and peer-to-peer communication protocols.
  • Single-slot module design for efficient SLC 500 chassis utilization.
  • Internal backplane power consumption: 800 mA at 5 VDC.
  • Robust architecture suitable for critical automation and process control applications.

Applications

The MVI46-MBP is ideal for industrial automation systems requiring integration between legacy Modbus Plus networks and modern SLC 500 control architectures. It is commonly deployed in distributed control systems (DCS), remote terminal units (RTU), and complex industrial grids where high-speed data transfer and network redundancy are required.

Technical Specifications

Model MVI46-MBP
Brand ProSoft Technology
Platform Compatibility SLC 500 Series
Ports Dual Modbus Plus
Power Requirements 800 mA at 5 VDC (Backplane)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
  • Slide the module into any available single-slot position on the SLC 500 backplane and secure it using the integrated locking mechanism.
  • Use shielded twisted-pair cabling for Modbus Plus connections to minimize EMI interference.
  • Verify that the module is properly seated to ensure reliable backplane communication.
  • Maintain adequate ventilation around the chassis to keep ambient temperatures within the 0 to 60 deg C operating range.

FAQ

Does the MVI46-MBP require external power?

No, the module is powered directly through the SLC 500 backplane, drawing 800 mA at 5 VDC.

Can this module function as a Modbus Plus Master?

Yes, the MVI46-MBP supports both master and slave configurations, allowing for flexible network topology and data exchange.
