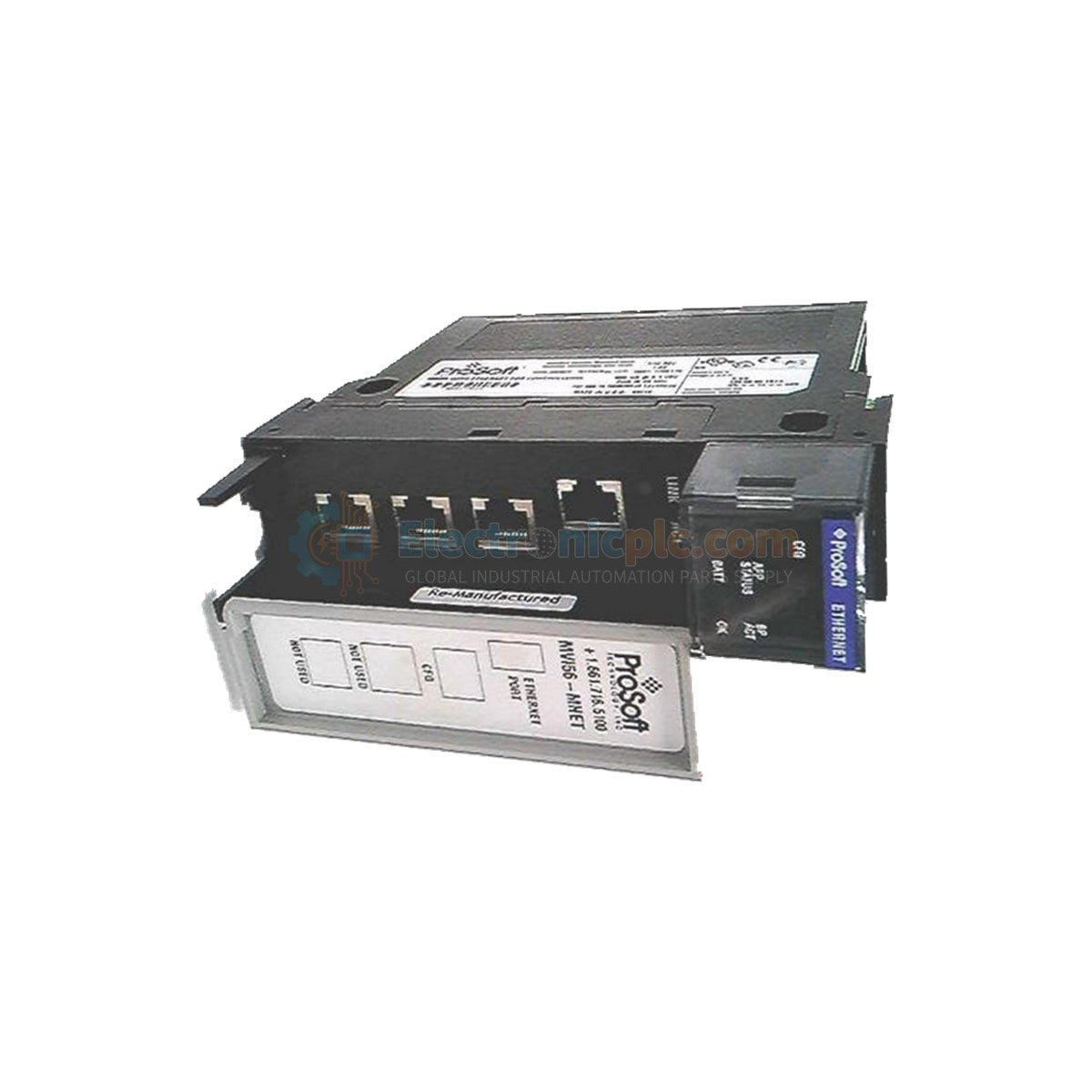

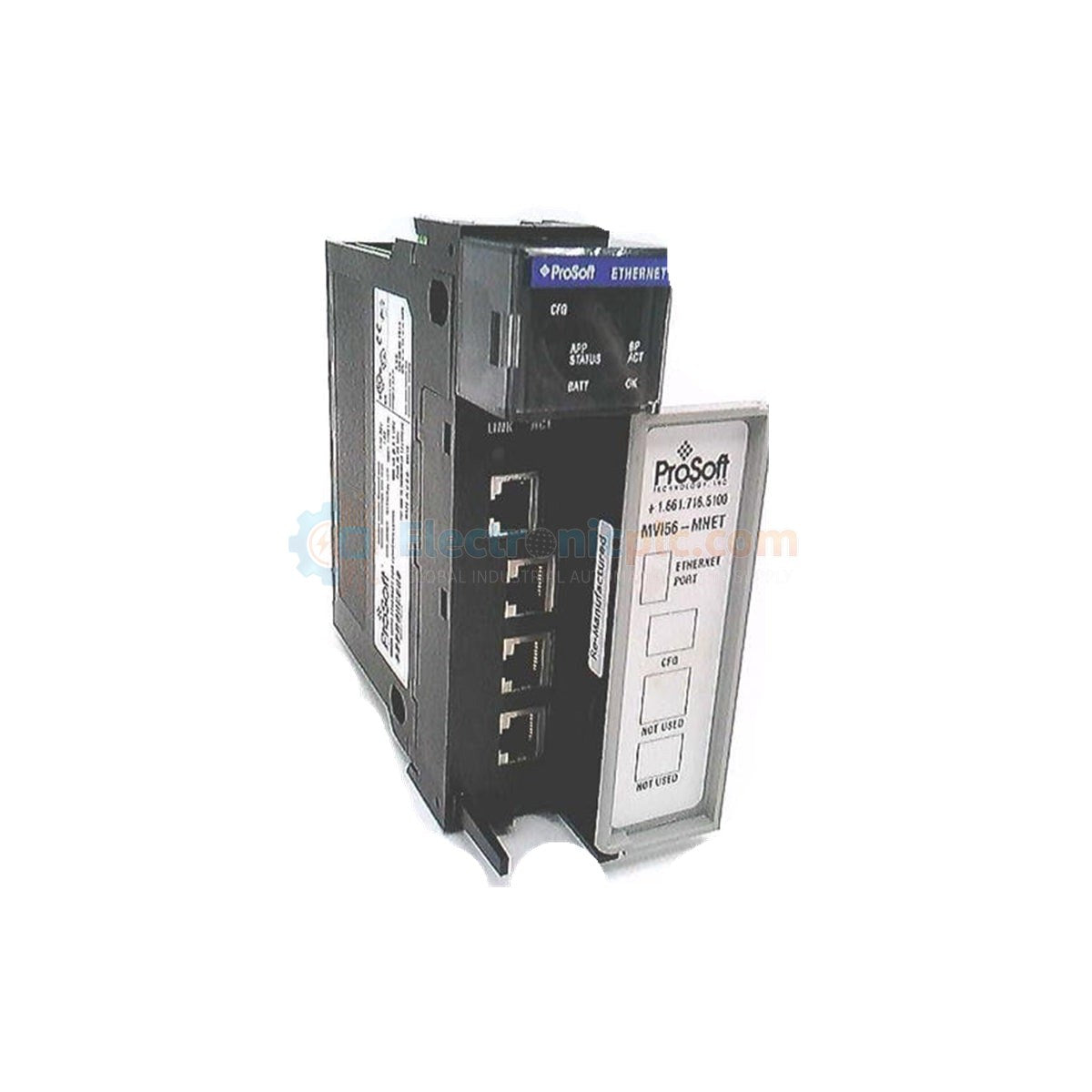

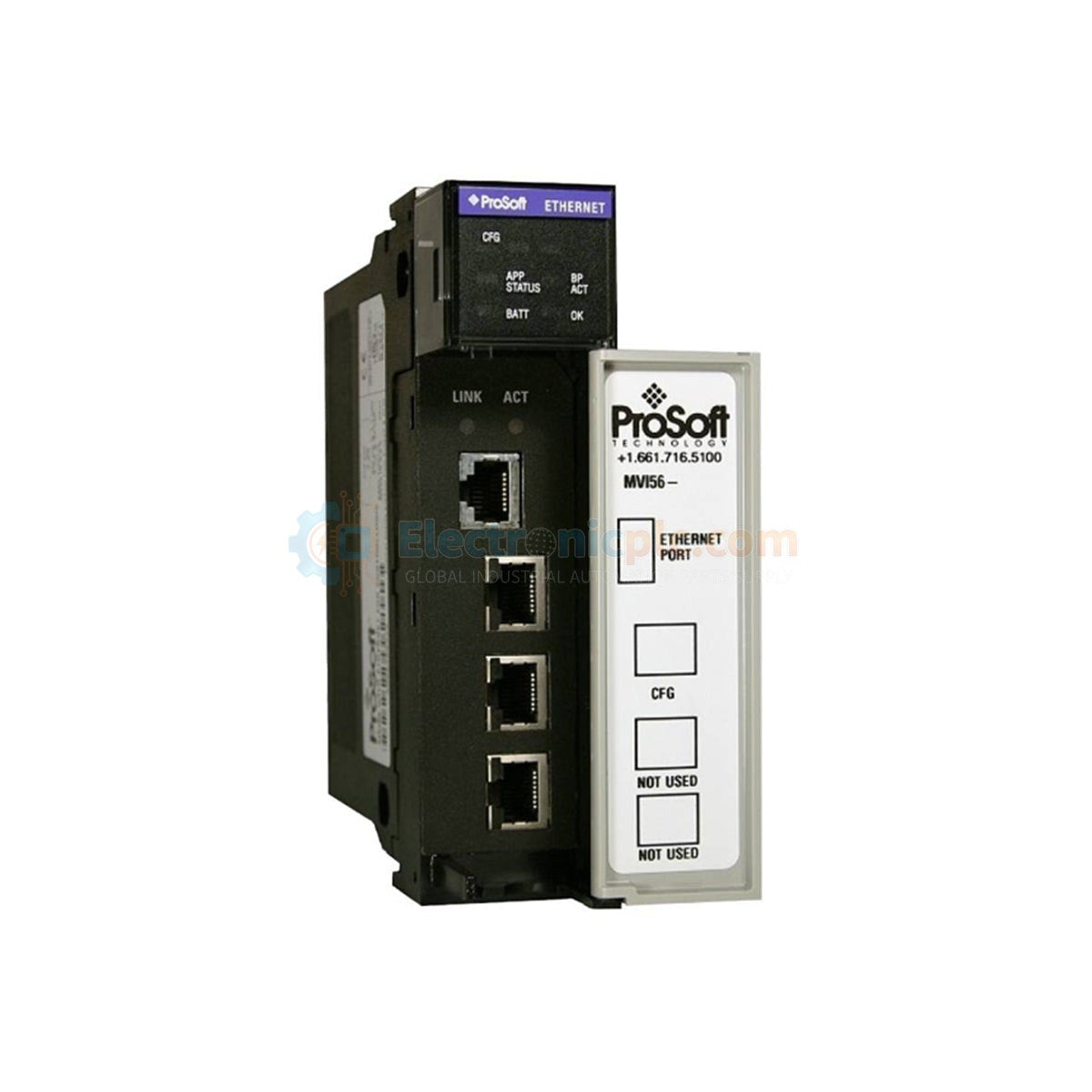

ProSoft MVI56-MNET Modbus TCP/IP Communication Module for ControlLogix

ProSoft MVI56-MNET Modbus TCP/IP Communication Module for ControlLogix

Description

The ProSoft MVI56-MNET is a high-performance network interface module designed specifically for Rockwell Automation ControlLogix processors. This module enables seamless integration between ControlLogix systems and Modbus TCP/IP-compatible devices, acting as...

25 people are viewing this right now

Availability: Low stock: 9 left

SKU: MVI56-MNET
Vendor: ProSoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI56-MNET is a high-performance network interface module designed specifically for Rockwell Automation ControlLogix processors. This module enables seamless integration between ControlLogix systems and Modbus TCP/IP-compatible devices, acting as a bridge to facilitate data exchange in industrial automation environments. It supports both Client and Server modes, providing flexibility for various network architectures.

Features

  • Designed for seamless integration with Allen-Bradley ControlLogix backplanes.
  • Supports Modbus TCP/IP protocol for robust industrial communication.
  • Configurable as a Modbus TCP/IP Client or Server.
  • Includes one RJ45 Ethernet port for network communication and one RJ45 serial port for local configuration.
  • Facilitates data transfer between ControlLogix processors and third-party Modbus devices.

Applications

The MVI56-MNET is widely utilized in industrial control systems where Allen-Bradley PLCs must communicate with external Modbus-enabled hardware, such as variable frequency drives (VFDs), power meters, remote I/O, or other third-party controllers. It is commonly found in oil and gas, water/wastewater, and manufacturing process control applications.

Technical Specifications

Product Model MVI56-MNET
Manufacturer ProSoft
Protocol Modbus TCP/IP
Compatibility Allen-Bradley ControlLogix
Ethernet Port 1 x RJ45 (Modbus)
Configuration Port 1 x RJ45 (Serial)
Tariff Code 8537101190

Installation Guidelines

  • Ensure the ControlLogix rack is powered down before inserting or removing the MVI56-MNET module.
  • Slide the module into an available slot in the ControlLogix chassis and secure it using the top and bottom locking tabs.
  • Use shielded twisted-pair Ethernet cabling for the Modbus TCP/IP connection to minimize electromagnetic interference (EMI).
  • Connect the configuration cable to the serial port for initial setup and parameter configuration via ProSoft Configuration Builder.
  • Verify that the module status LEDs indicate successful backplane communication and network link activity after power-up.

FAQ

Does the MVI56-MNET require external power?

No, the module is powered directly through the ControlLogix backplane once properly seated in the chassis.

Can this module act as both a Client and a Server?

Yes, the MVI56-MNET is capable of operating as a Modbus TCP/IP Client, Server, or both simultaneously, depending on the configuration.
