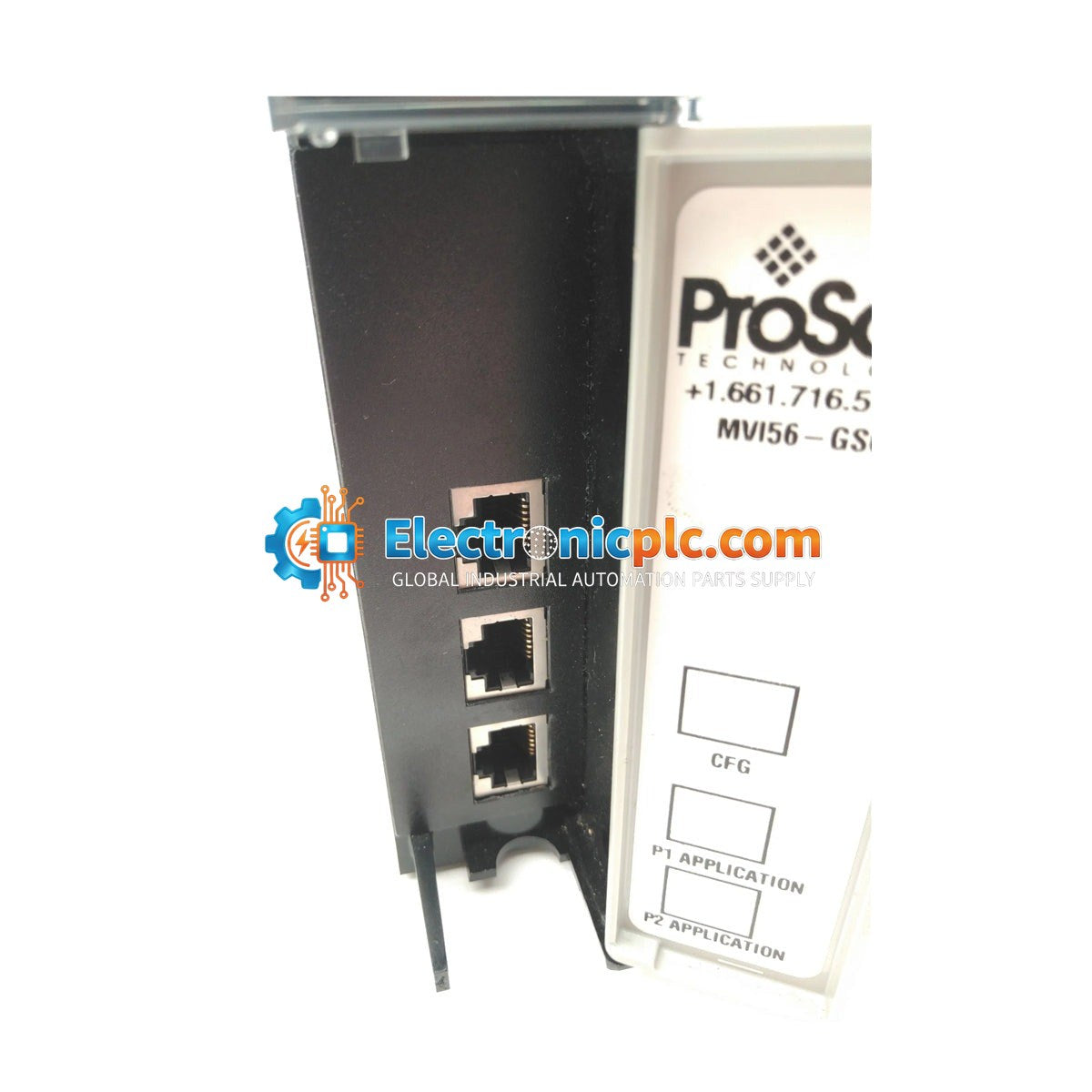

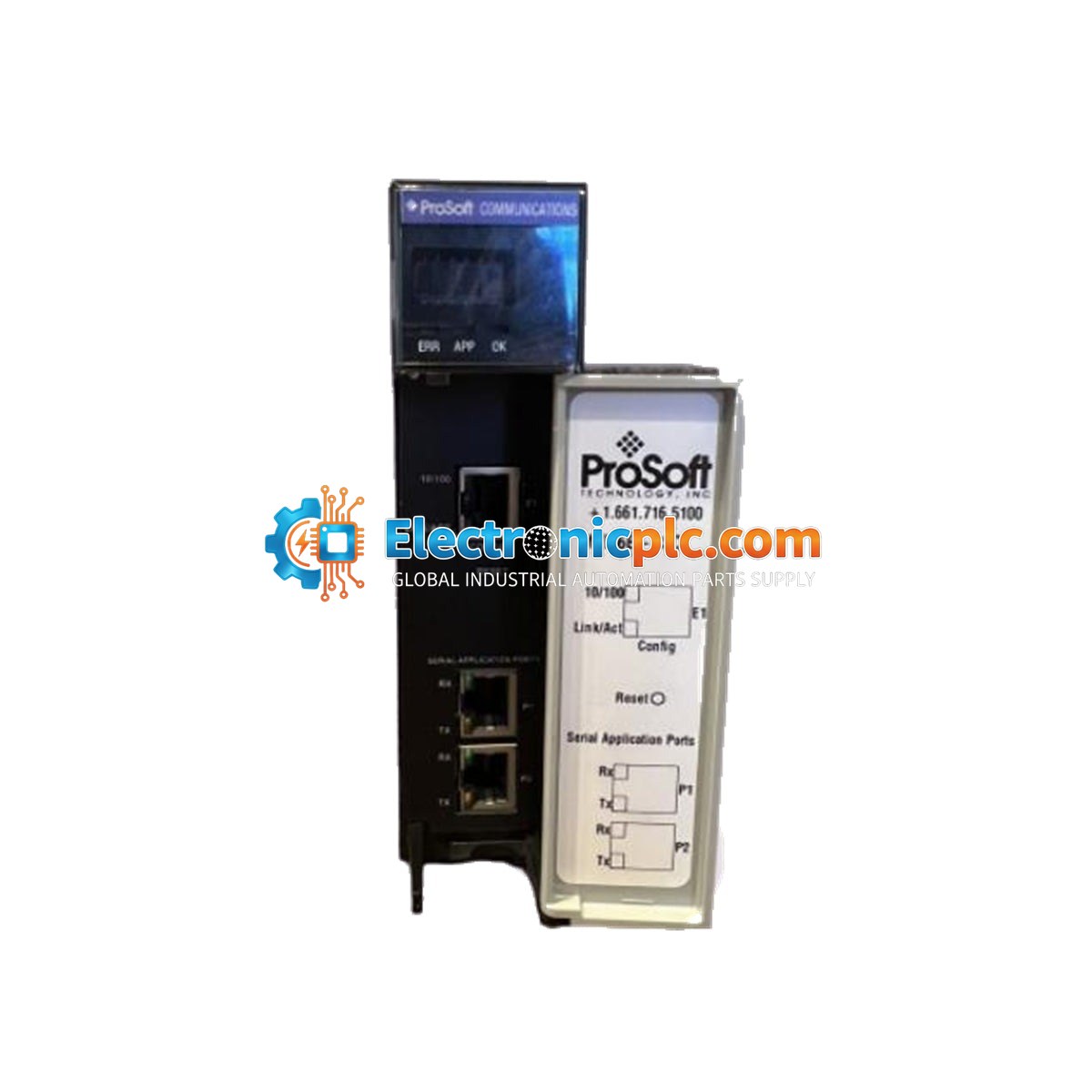

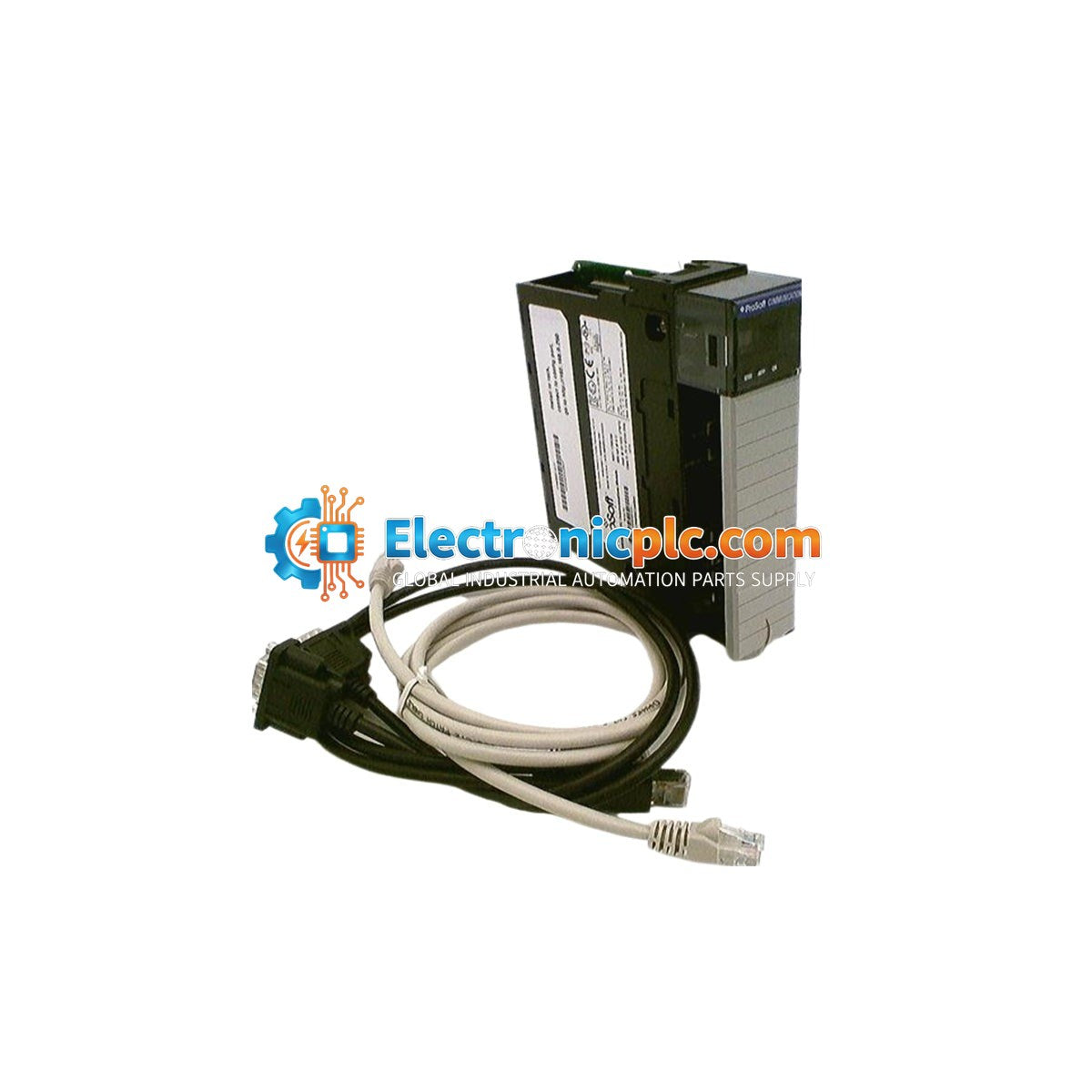

ProSoft MVI56E-GSC Generic ASCII Serial Communication Module for ControlLogix

ProSoft MVI56E-GSC Generic ASCII Serial Communication Module for ControlLogix

Description

The ProSoft MVI56E-GSC is a high-performance Generic ASCII Serial Communication Module designed specifically for the Rockwell Automation ControlLogix platform. As an enhanced 'E' series module, it functions as a specialized...

16 people are viewing this right now

Availability: Low stock: 9 left

SKU: MVI56E-GSC
Vendor: Prosoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI56E-GSC is a high-performance Generic ASCII Serial Communication Module designed specifically for the Rockwell Automation ControlLogix platform. As an enhanced 'E' series module, it functions as a specialized gateway that allows ControlLogix processors to interface with a variety of peripheral ASCII devices, including barcode scanners, weigh scales, and industrial printers. By offloading complex serial timing and string manipulation tasks from the main PLC processor, the MVI56E-GSC optimizes system performance and simplifies integration in demanding industrial environments.

Features

  • Dual independent serial ports supporting RS-232, RS-422, or RS-485 configurations.
  • Integrated Ethernet port for advanced diagnostics, configuration, and remote web-based monitoring.
  • Supports high-speed data transfer via Add-On Instructions (AOI) or standard ladder logic.
  • Internal database for efficient data exchange across the ControlLogix backplane.
  • Robust hardware design providing deterministic performance in high-EMI environments.

Applications

The MVI56E-GSC is widely utilized in automated material handling, food and beverage packaging lines, and water treatment facilities where seamless integration of serial-based field devices into a ControlLogix architecture is required.

Technical Specifications

Model MVI56E-GSC
Brand ProSoft Technology
Platform ControlLogix
Serial Ports 2 x RS-232/422/485 (Hardware Selectable)
Baud Rates 110 to 115.2K baud
Backplane Current (5 VDC) 800 mA
Backplane Current (24 VDC) 3 mA
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the ControlLogix rack is powered down before inserting or removing the module.
  • Slide the module into any available single-slot position in the ControlLogix chassis and secure the locking tab.
  • Use shielded communication cables for serial connections to minimize interference in industrial environments.
  • Ensure proper grounding of the chassis and cable shields to prevent ground loops.
  • Verify hardware-selectable port settings (RS-232/422/485) match the requirements of the connected field device before applying power.

FAQ

What is the primary function of the MVI56E-GSC?

The module acts as a bridge between the ControlLogix backplane and serial ASCII devices, allowing the PLC to read from and write to devices like barcode scanners and scales without requiring complex serial handling logic in the main processor.

Does this module support remote configuration?

Yes, the MVI56E-GSC features an integrated Ethernet port that supports remote configuration and diagnostics via a web browser.
