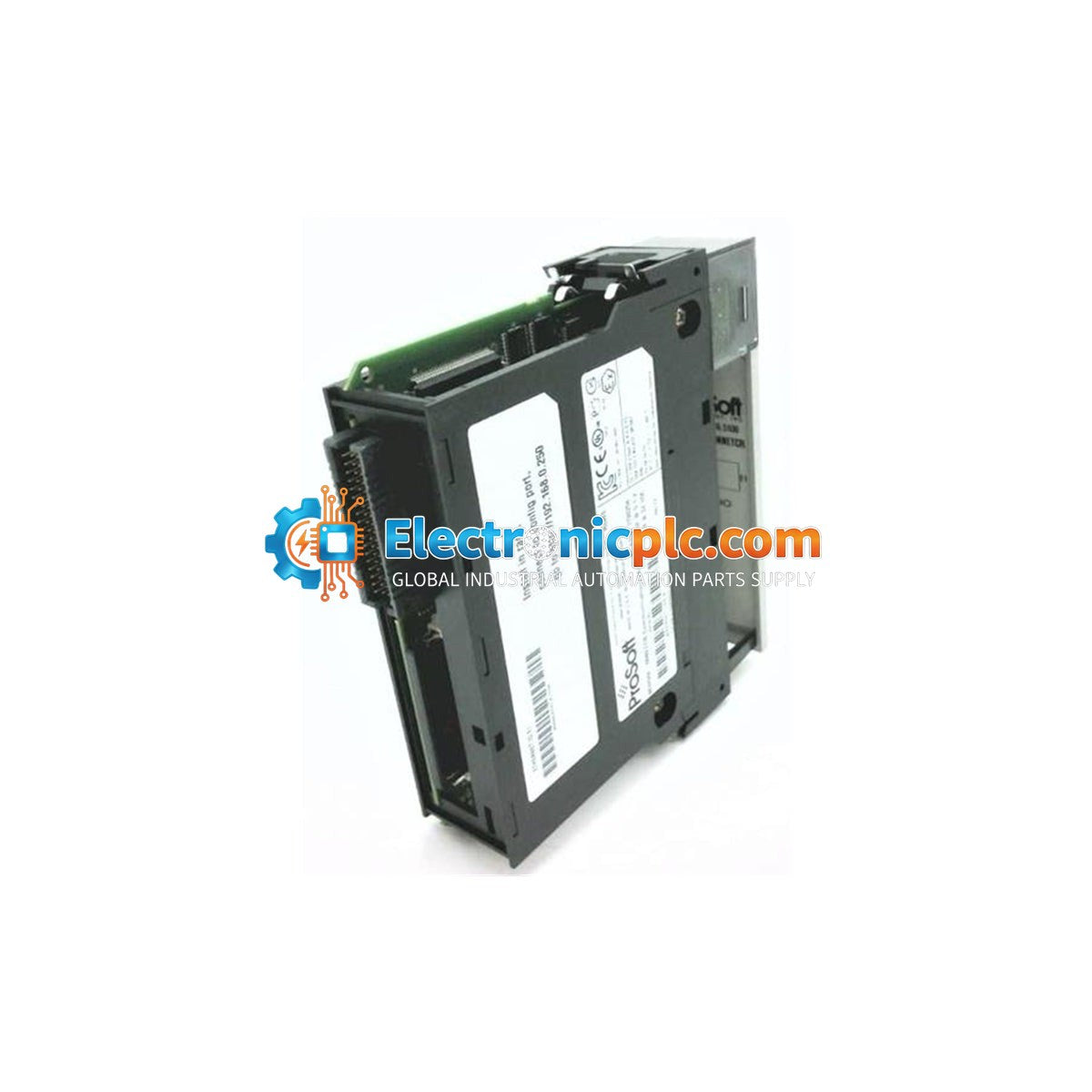

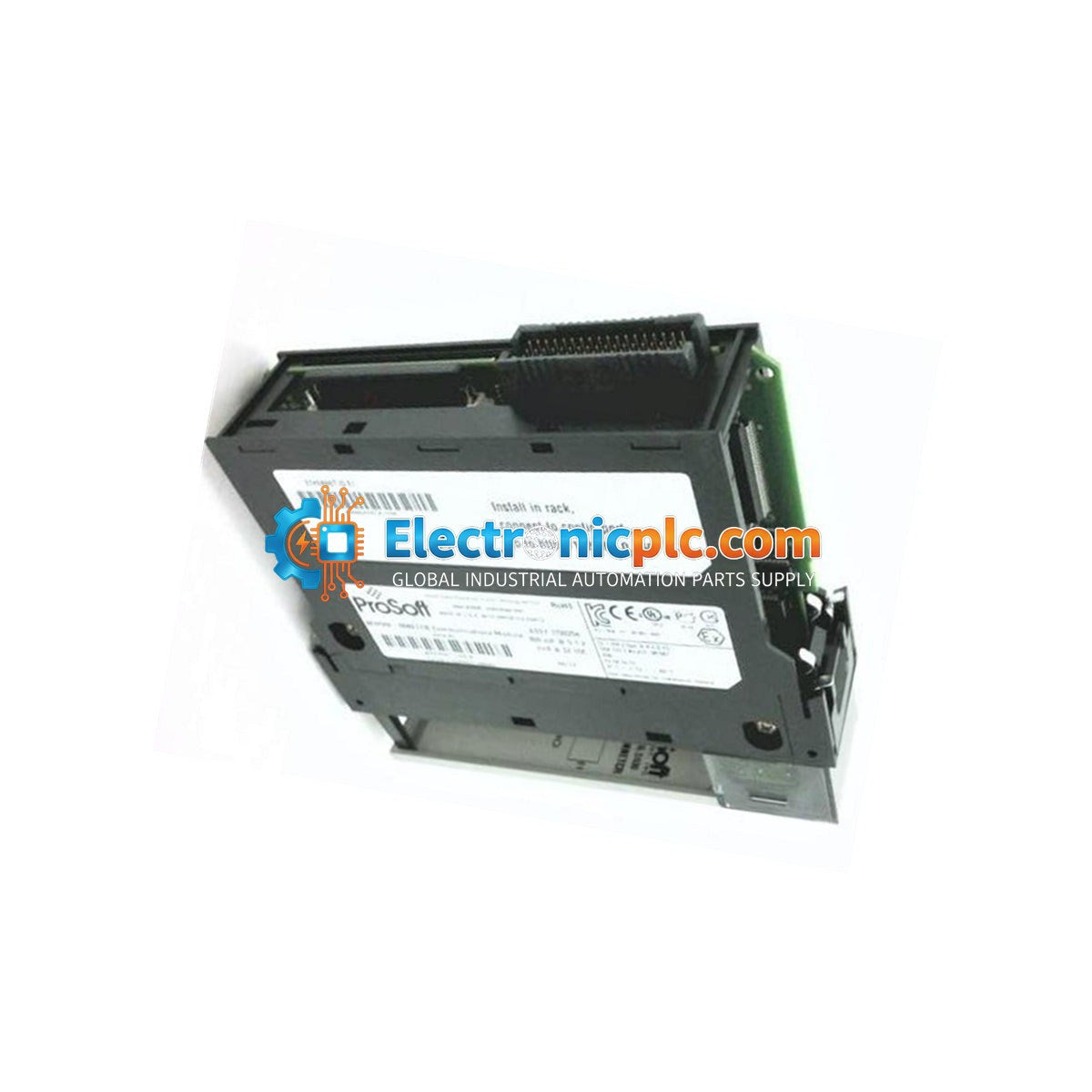

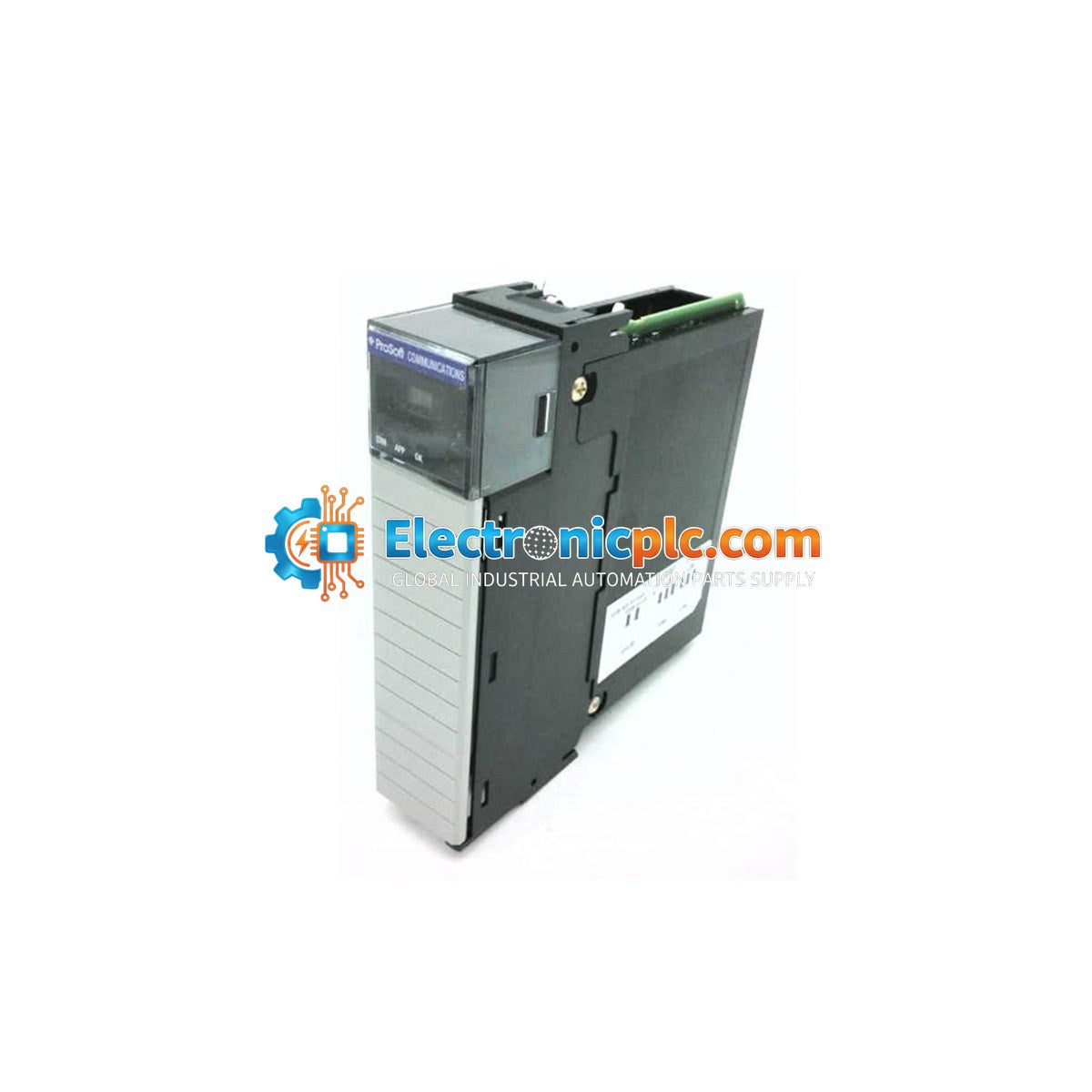

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with...

25 people are viewing this right now

Availability: Low stock: 5 left

SKU: MVI56E-MNETCR
Vendor: Prosoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with up to 30 simultaneous client connections and 20 server connections over an Ethernet network. The 'CR' designation signifies a reduced data block version, specifically optimized for high-speed I/O data exchange. It is a critical component for bridging high-level controllers with field devices such as power meters, variable frequency drives, and remote I/O in power generation, water treatment, and large-scale manufacturing environments.

Features

  • Supports 30 Client and 20 Server connections for robust Modbus TCP/IP communication.
  • Optimized 100-word reduced data block interface to minimize backplane traffic.
  • Integrated web server for remote configuration, module monitoring, and diagnostics.
  • Native support for Studio 5000 Add-On Instructions (AOI) for rapid deployment.
  • 10/100 Mbps RJ45 Ethernet port for high-speed network connectivity.
  • Compatible with standard ControlLogix chassis backplane power.

Applications

This module is widely used in industrial automation for connecting ControlLogix systems to third-party Modbus TCP/IP devices. Common applications include data acquisition from power monitoring equipment, integration of variable frequency drives (VFDs), and interfacing with remote I/O stations in SCADA-managed architectures.

Technical Specifications

Model MVI56E-MNETCR
Module Type Modbus TCP/IP Enhanced Network Interface (Reduced Block)
Backplane Current 800 mA @ 5 VDC; 3 mA @ 24 VDC
Ethernet Port 1 x RJ45 10/100 Base-T
Modbus Connections 30 Client, 20 Server
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5% to 95% (non-condensing)
Configuration Web interface or ProSoft Configuration Builder (PCB)

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • Seat the module firmly into the designated slot in the ControlLogix rack and secure the top and bottom retaining screws.
  • Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Does this module require special software for configuration?

The MVI56E-MNETCR can be configured via its integrated web server or using the ProSoft Configuration Builder (PCB) software. It also supports Add-On Instructions (AOI) within the Studio 5000 environment for simplified integration.

What does the CR suffix indicate?

The 'CR' suffix indicates that the module uses a reduced data block interface (100 words), which is specifically optimized for high-speed I/O data exchange and reduced backplane loading.
