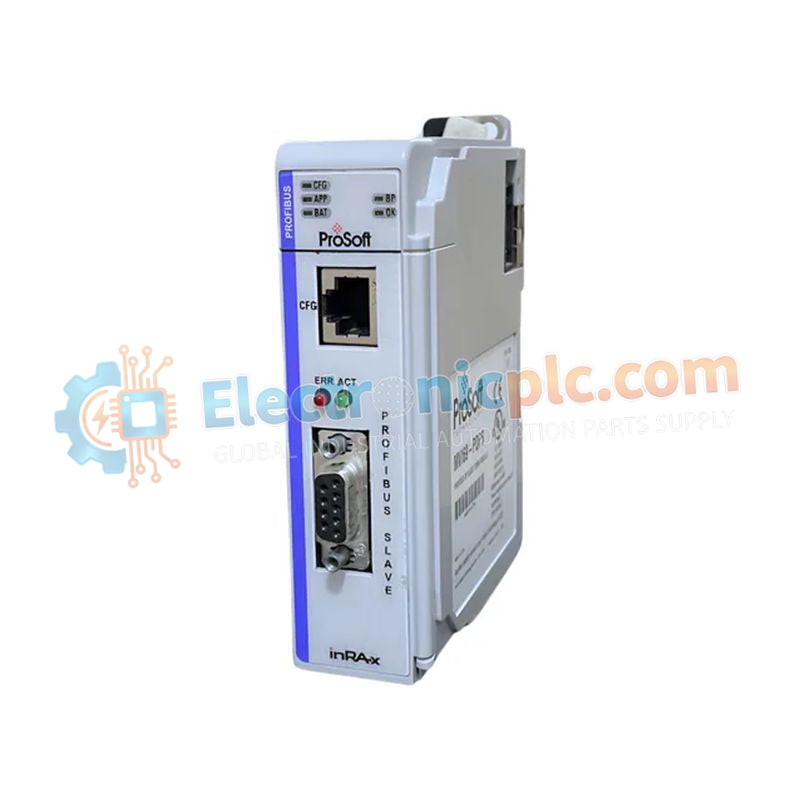

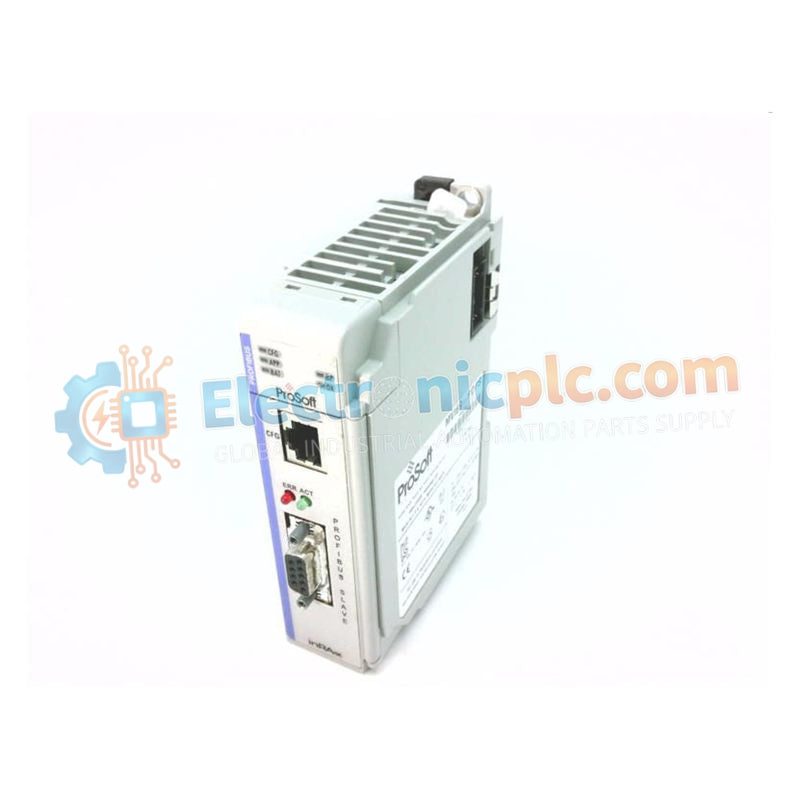

ProSoft MVI69-PDPS Communication Module

ProSoft MVI69-PDPS Communication Module

Product Description

The MVI69-PDPS is a high-performance Profibus DP communication gateway for Rockwell Automation CompactLogix systems. Acting as a Profibus DP Slave, it enables a CompactLogix controller to appear as a standard...

26 people are viewing this right now

Availability: Low stock: 99 left

SKU: MVI69-PDPS
Vendor: PROSOFT
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The MVI69-PDPS is a high-performance Profibus DP communication gateway for Rockwell Automation CompactLogix systems. Acting as a Profibus DP Slave, it enables a CompactLogix controller to appear as a standard node on an existing Profibus network, allowing deterministic, high-speed data exchange with a Profibus DP Master.

The module autonomously handles the Profibus protocol, reducing the CPU load on the CompactLogix processor and ensuring reliable integration in hybrid automation environments.

Technical Specifications

Parameter Specification
Model Number MVI69-PDPS
Protocol Support Profibus DP-V0 Slave
Backplane Compatibility CompactLogix 1769 L2, L3, L4 systems
Power Requirement 800 mA max at 5 VDC (backplane powered)
Communication Speed Auto-baud: 9.6 kbps to 12 Mbps
Internal Data Mapping 400 registers (16-bit words)
Configuration Port RJ45 (RS-232) via DB-9M adapter cable
Diagnostic LEDs Power, Module Status, Application Health, Serial Activity/Error
GSD File Provided for Profibus Master integration
Operating Temperature 0°C to 60°C (32°F to 140°F)
Physical Weight 0.5 kg

Industrial Application Scenarios

The MVI69-PDPS is commonly used to integrate CompactLogix systems with Profibus DP networks in:

  • Automotive assembly lines

  • Food and beverage packaging systems

  • Water and wastewater treatment plants

It allows local CompactLogix-based skids or machinery to interface seamlessly with plant-wide Profibus infrastructures without requiring major system redesign.

Frequently Asked Questions

Does this module require a separate power supply?
No. The MVI69-PDPS draws power from the CompactLogix 1769 backplane. Ensure the backplane power supply can provide 800 mA for the module.

How is the Profibus address assigned?
The slave address can be configured via the ProSoft Configuration Builder (PCB) software through the CFG port or, in some versions, dynamically through PLC ladder logic.
