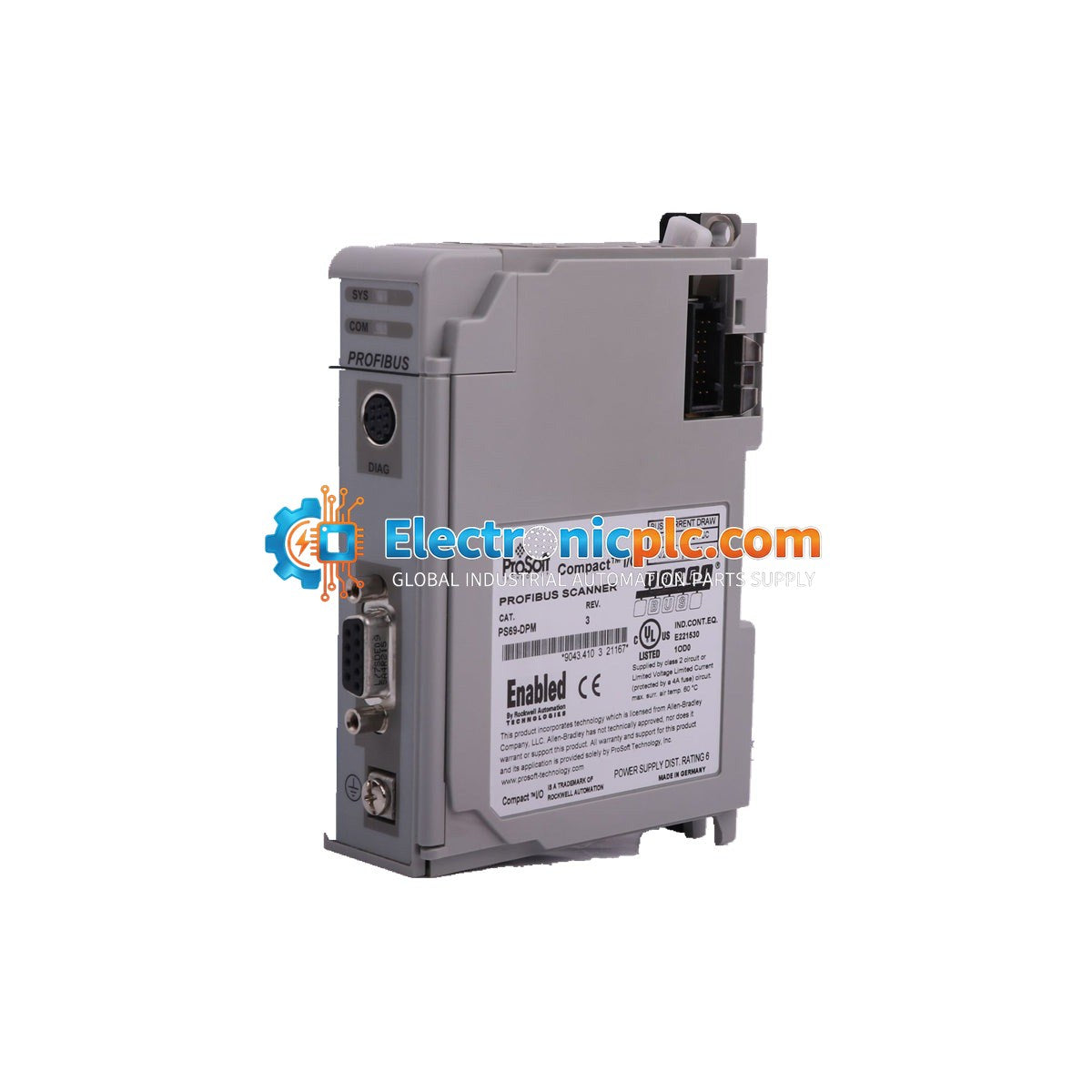

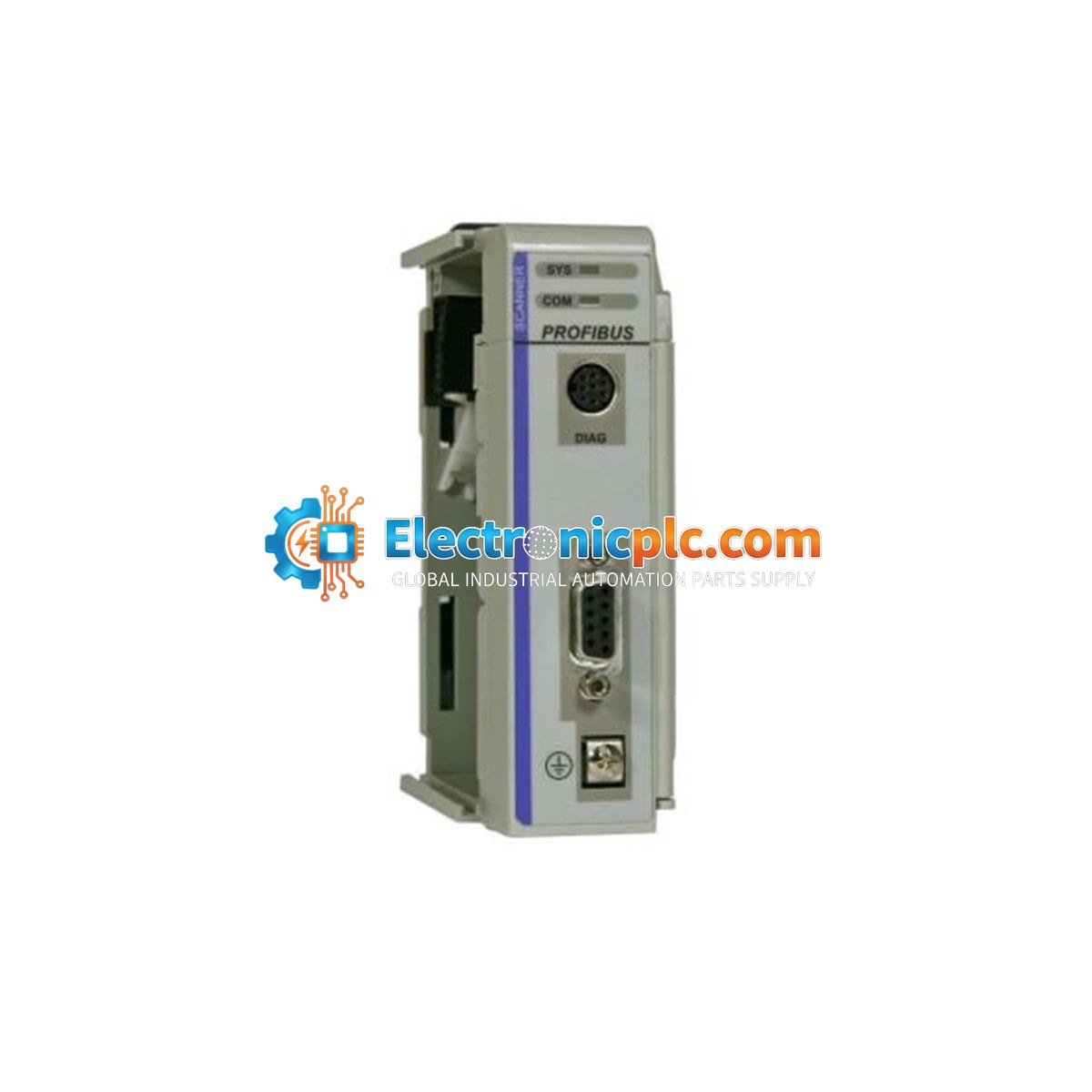

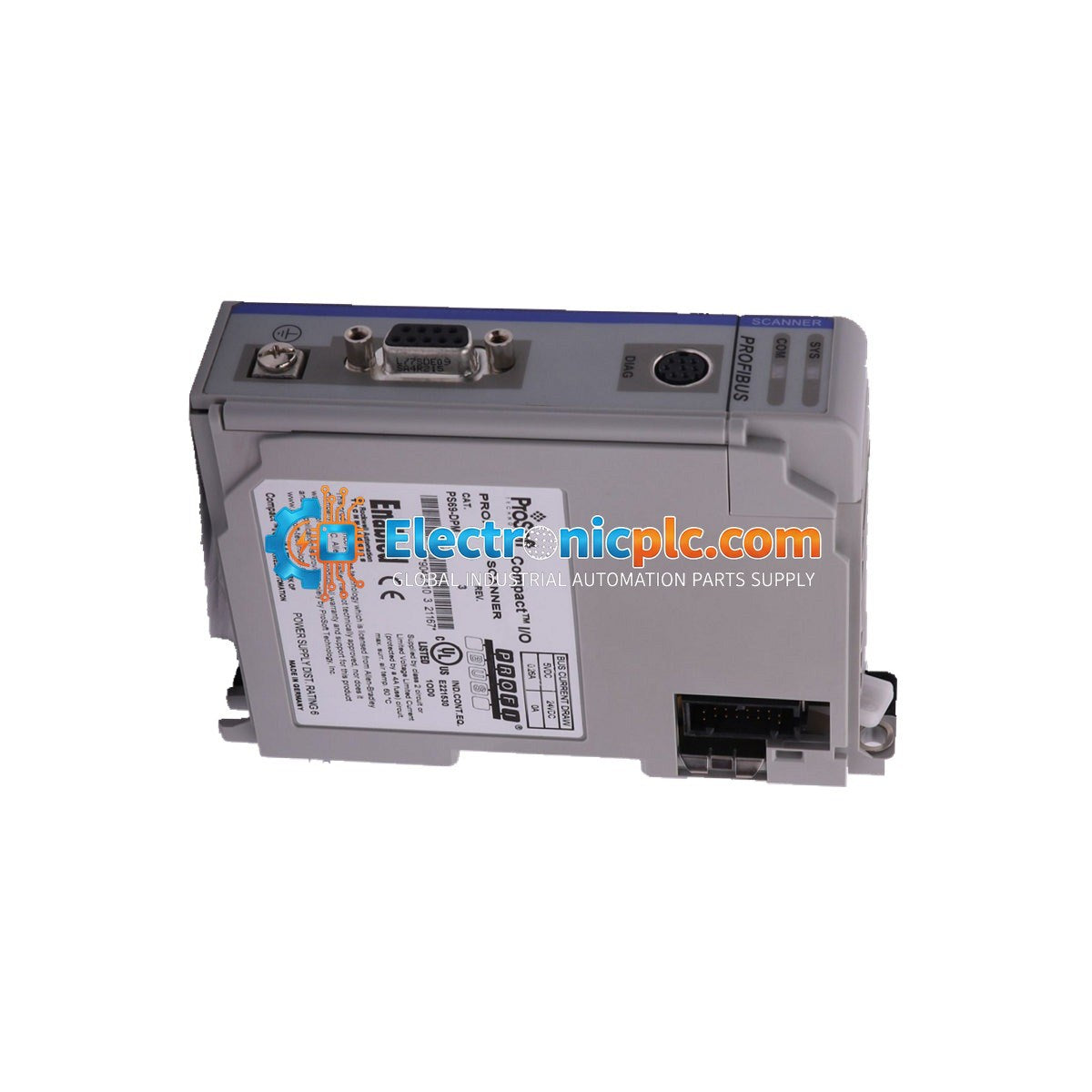

ProSoft PS69-DPM PROFIBUS DPV1 Master Communication Module

ProSoft PS69-DPM PROFIBUS DPV1 Master Communication Module

Description

The ProSoft PS69-DPM is a high-performance communication module designed to function as a PROFIBUS DPV1 Master. This module is engineered for seamless integration with Rockwell Automation CompactLogix platforms, enabling efficient...

27 people are viewing this right now

Availability: Low stock: 5 left

SKU: PS69-DPM
Vendor: ProSoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft PS69-DPM is a high-performance communication module designed to function as a PROFIBUS DPV1 Master. This module is engineered for seamless integration with Rockwell Automation CompactLogix platforms, enabling efficient data exchange between the PLC and PROFIBUS-enabled field devices. It serves as a bridge for complex automation architectures requiring reliable fieldbus communication.

Features

  • Compatible with Rockwell Automation CompactLogix systems.
  • Supports up to 125 PROFIBUS slaves.
  • Handles up to 244 bytes of I/O data per slave.
  • Supports DPV1 acyclic communication for advanced device diagnostics and configuration.
  • Provides up to 480 bytes of output data and 408 bytes of input data.
  • Includes 88 bytes of dedicated status data for system monitoring.

Applications

The PS69-DPM is typically utilized in industrial automation environments where CompactLogix controllers must interface with third-party drives, sensors, or remote I/O stations operating on the PROFIBUS network. It is widely used in manufacturing, process control, and material handling applications.

Technical Specifications

Product Model PS69-DPM
Communication Protocol PROFIBUS DPV1 Master
Max. Slaves 125
Max. Input Data 408 Bytes
Max. Output Data 480 Bytes
Max. I/O per Slave 244 Bytes
Status Data 88 Bytes
Manufacturer ProSoft

Installation Guidelines

  • Ensure the CompactLogix backplane is powered down before installing or removing the module.
  • Verify that the module is firmly seated in the chassis slot to ensure proper electrical contact.
  • Use shielded PROFIBUS-rated cable for all field connections to minimize EMI interference.
  • Maintain proper grounding practices for the control cabinet to protect against electrical noise.
  • Configure the module parameters via the appropriate Rockwell Automation software environment before commissioning.
  • Handle with care using ESD-safe procedures to prevent damage to internal circuitry.

FAQ

What is the primary function of the PS69-DPM?

The PS69-DPM acts as a PROFIBUS DPV1 Master, allowing a CompactLogix PLC to communicate with and control up to 125 PROFIBUS slave devices.

Is this module compatible with all CompactLogix controllers?

The PS69-DPM is designed for the CompactLogix platform; however, users should verify specific firmware and backplane compatibility requirements in the official ProSoft user manual for their specific controller revision.
