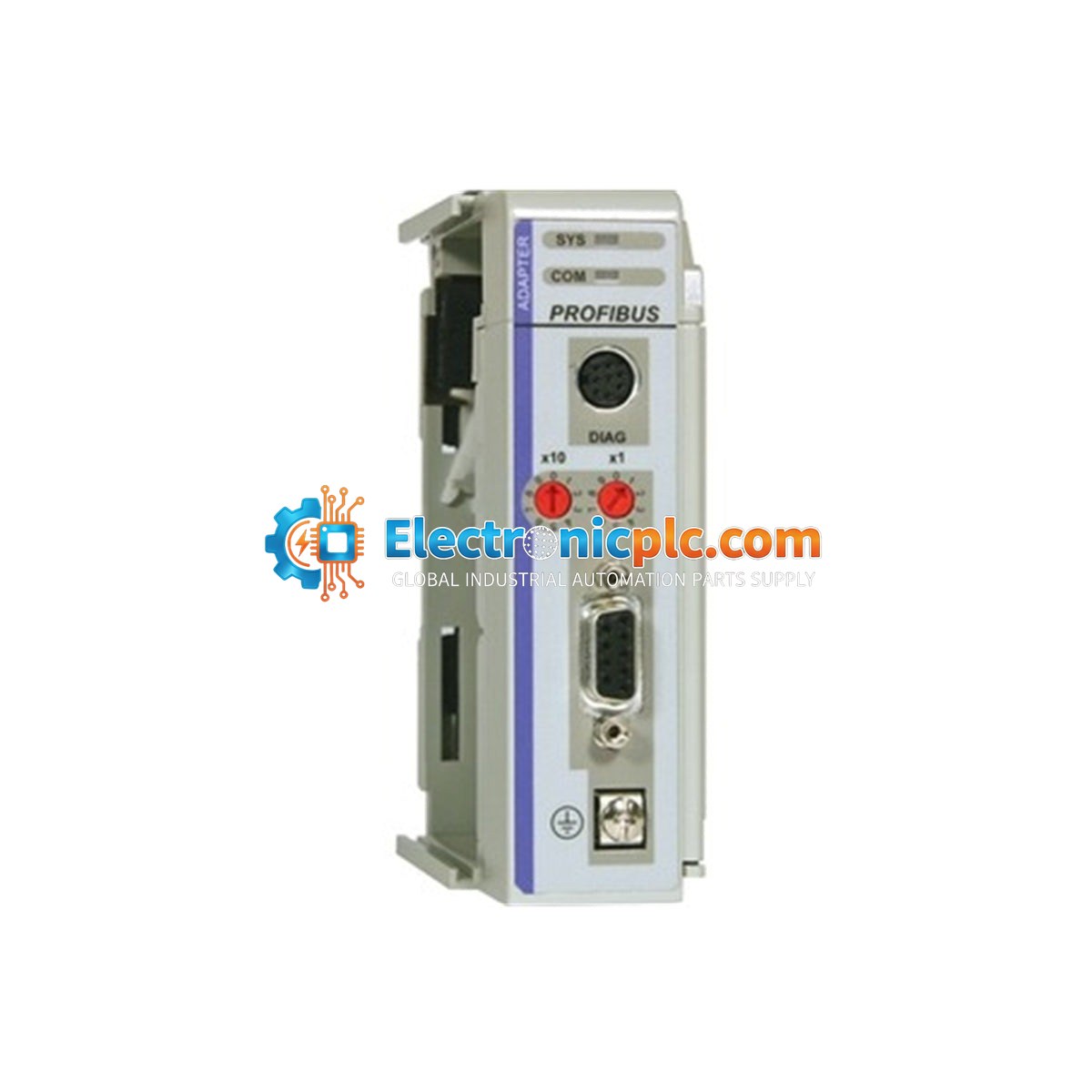

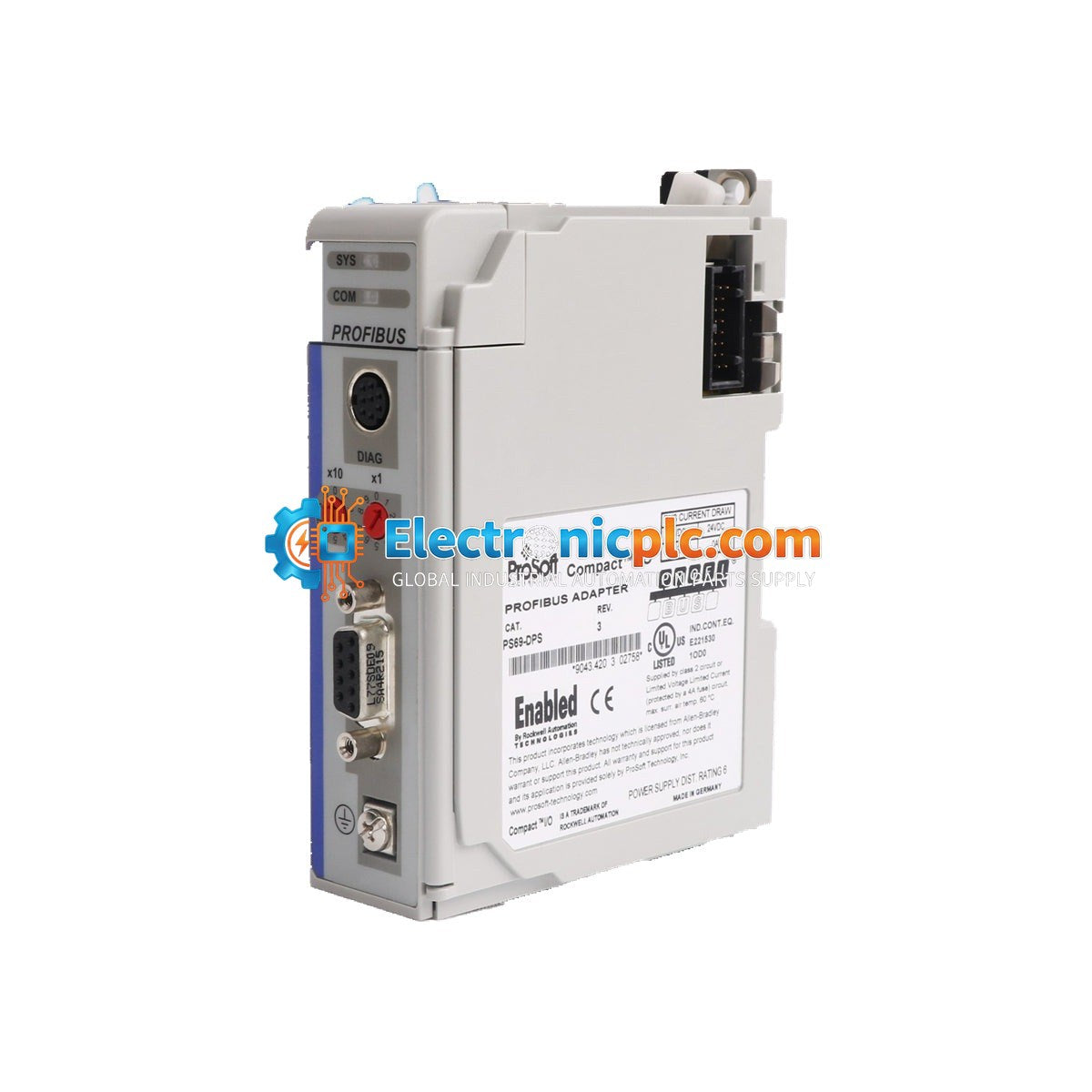

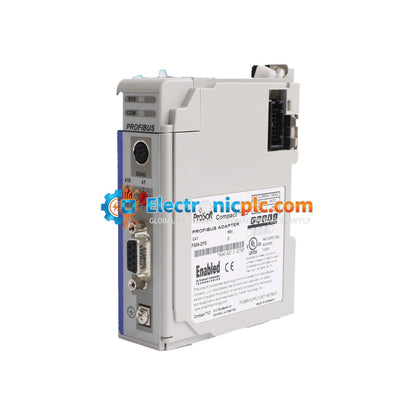

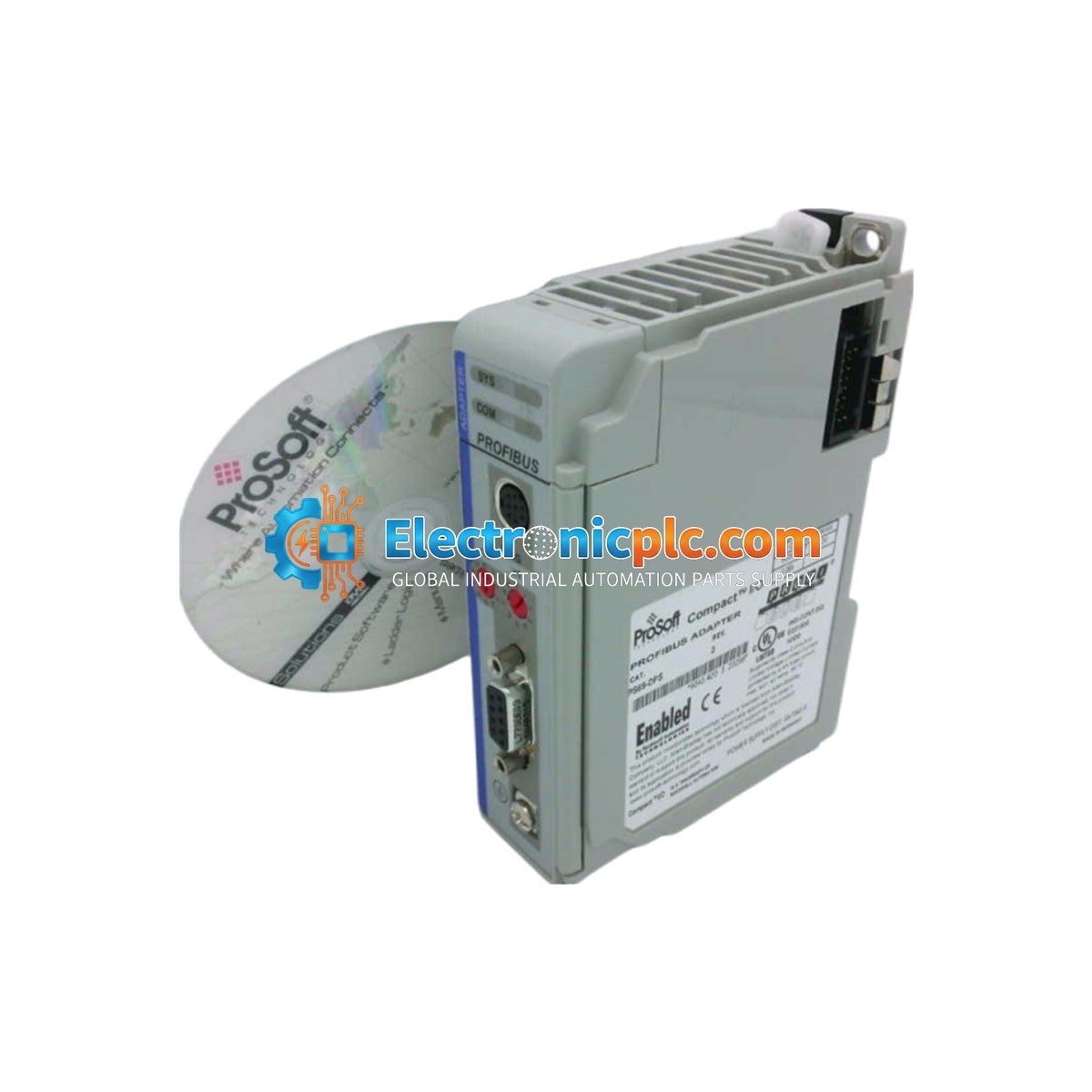

ProSoft PS69-DPS Profibus DPV1 Slave Communication Module

ProSoft PS69-DPS Profibus DPV1 Slave Communication Module

Description

The ProSoft PS69-DPS is a high-performance communication module designed to provide Profibus DPV1 Slave connectivity for Rockwell Automation CompactLogix or MicroLogix 1769 backplane systems. This module enables seamless data exchange...

20 people are viewing this right now

Availability: Low stock: 9 left

SKU: PS69-DPS
Vendor: ProSoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft PS69-DPS is a high-performance communication module designed to provide Profibus DPV1 Slave connectivity for Rockwell Automation CompactLogix or MicroLogix 1769 backplane systems. This module enables seamless data exchange between the PLC and a Profibus network, acting as a slave unit to a Profibus master controller.

Features

  • Supports Profibus DPV1 Slave communication protocols.
  • Integrated ASPC2 communication controller for reliable data transfer.
  • High-speed communication capabilities up to 12 Mbps.
  • Designed for single-slot installation on 1769 backplanes.
  • RS-485 physical layer interface.
  • Low power consumption: 260 mA at +5 VDC.

Applications

The PS69-DPS is ideal for industrial automation environments requiring integration between legacy or third-party Profibus networks and Allen-Bradley 1769-based control systems. Common applications include machine-to-machine communication, distributed I/O integration, and factory floor data acquisition.

Technical Specifications

Product Model PS69-DPS
Communication Protocol Profibus DPV1 Slave
Physical Interface RS-485
Maximum Data Rate 12 Mbps
Power Requirements 260 mA at +5 VDC
Backplane Compatibility 1769 CompactLogix / MicroLogix
Weight 0.16 kg

Installation Guidelines

  • Ensure the PLC backplane is powered down before inserting or removing the module to prevent electrical damage.
  • Slide the module into an available slot on the 1769 backplane and secure it using the integrated locking mechanism.
  • Use shielded twisted-pair cabling for RS-485 connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the Profibus cable shield at the master end to maintain signal integrity.
  • Verify that the Profibus address and baud rate settings match the network configuration before commissioning.

FAQ

Is the PS69-DPS compatible with all 1769 backplanes?
Yes, the module is designed specifically for the 1769 backplane architecture used in CompactLogix and MicroLogix controllers.

Does this module support DPV1 features?
Yes, the PS69-DPS supports Profibus DPV1 functionality, allowing for acyclic data exchange in addition to standard cyclic I/O.
