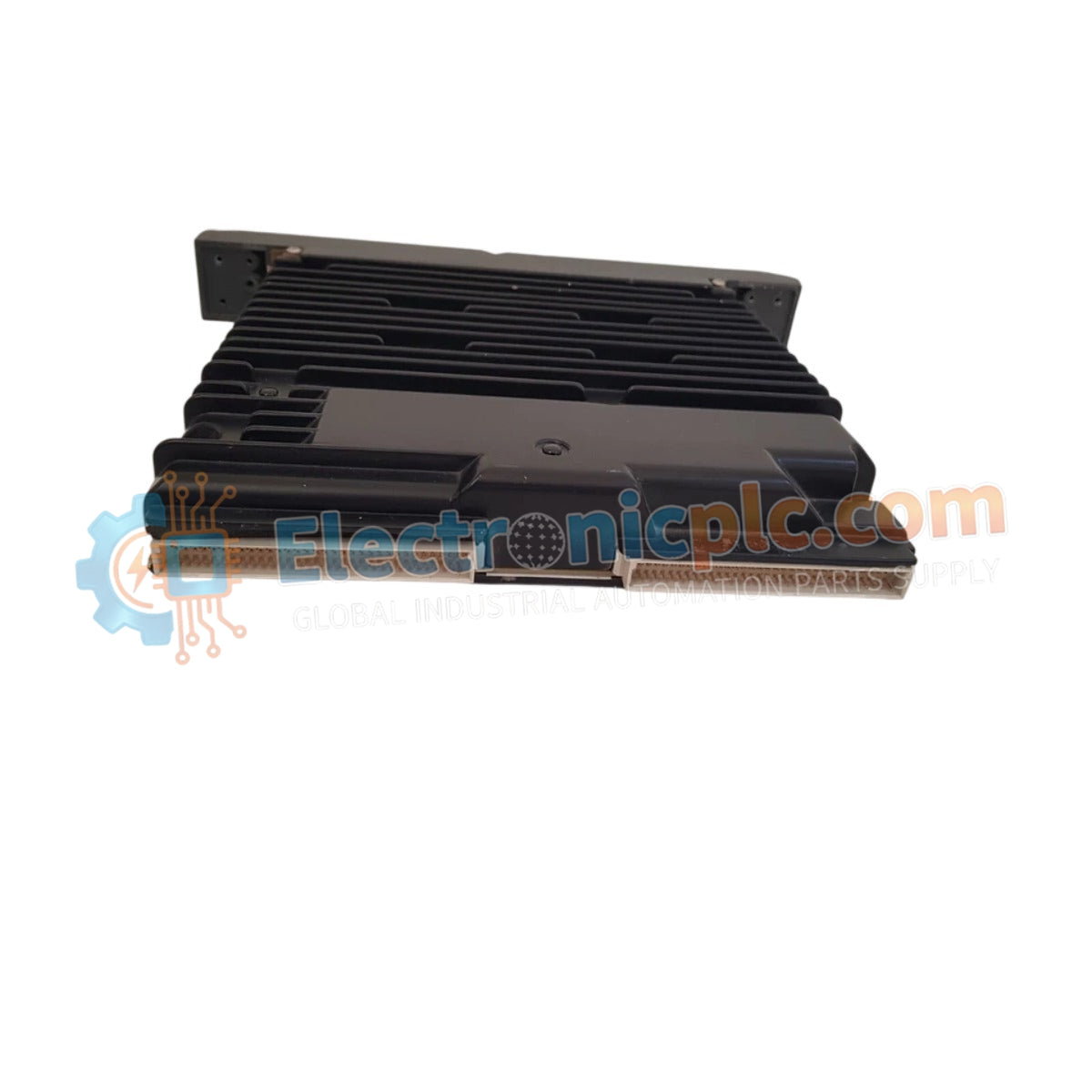

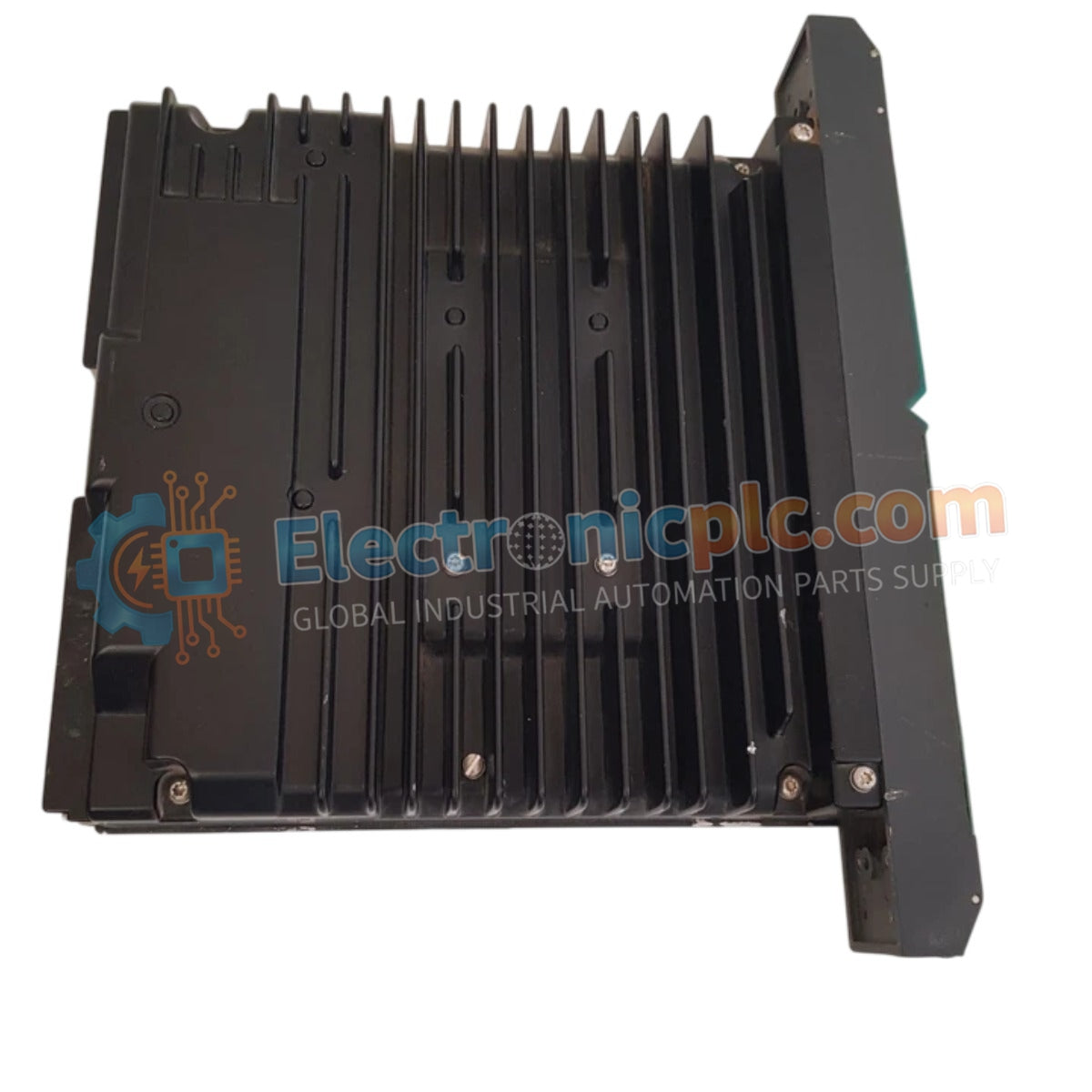

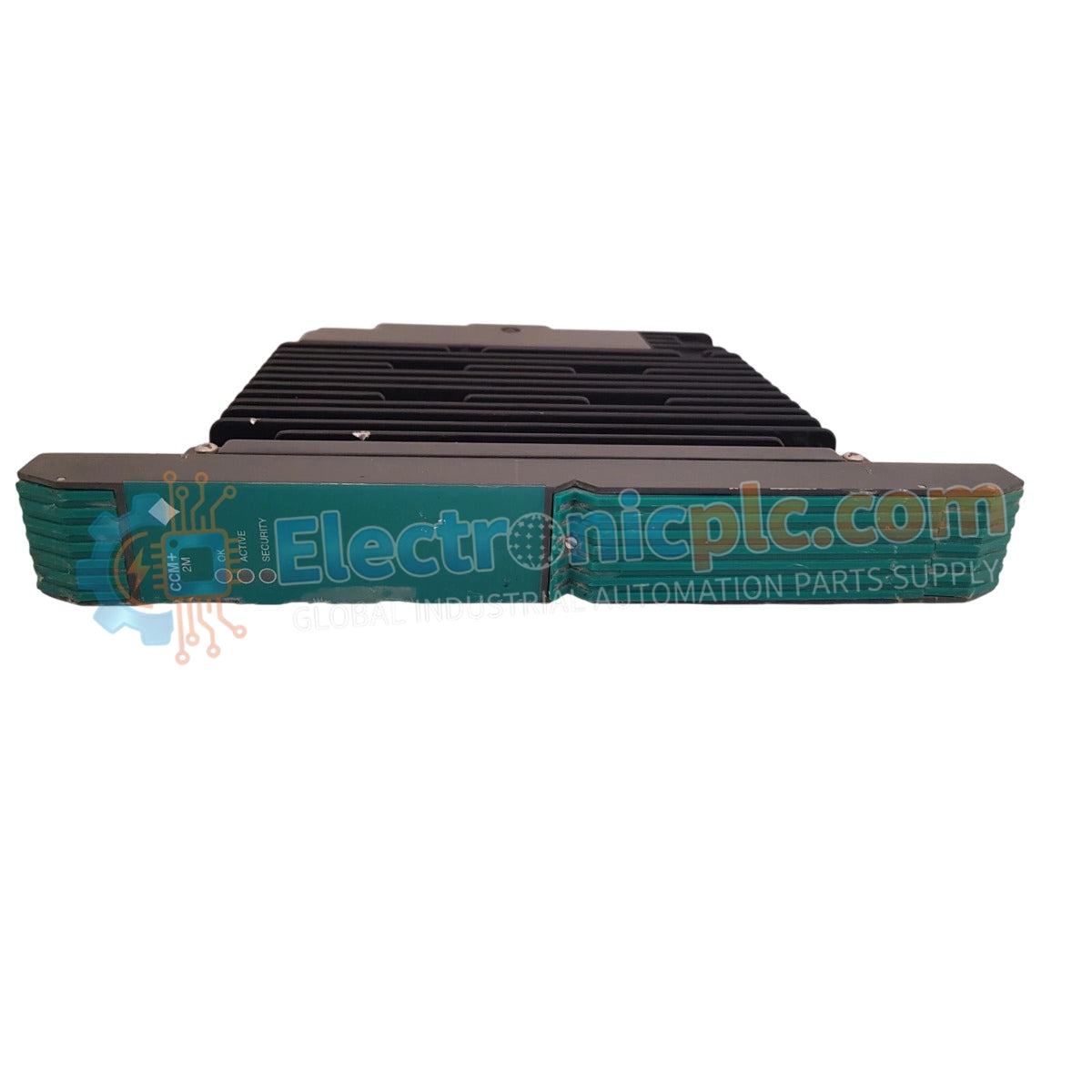

Configured for high-integrity logic execution in distributed control system platforms, the YOKOGAWA PSCCM22AAN (PSCCM22AAN Critical Control Module) provides direct physical signal processing and process loop management. This hardware component serves as the core computational module utilized to execute critical process control functions across Yokogawa control system architectures.

Hardware Specifications

Process Control and System Integrity

The PSCCM22AAN is engineered to handle safety-critical operations, requiring robust internal error checking and diagnostic protocols. In control system configurations, the module manages analog and digital I/O streams with high determinism. To ensure stable operation, the unit employs sophisticated signal conditioning to interface with 4-20 mA HART loop protocol devices, minimizing process variability. Channel-to-channel isolation is integrated to mitigate common-mode interference, ensuring that critical control signals remain protected from transients originating in the field network.

Frequently Asked Questions (FAQ)

Q: Can the PSCCM22AAN be integrated into non-redundant system configurations?

A: Yes, the module supports both standalone and redundant configurations. In redundant setups, ensure that the PSCCM22AAN firmware versions are synchronized across the primary and standby modules to prevent state-synchronization errors.

Q: What are the primary diagnostic indicators for this module?

A: The module features front-panel status LEDs that report system health, communication link status, and internal hardware faults. Consult the technical manual for the specific blink codes to diagnose power, bus, or logic execution errors.

Field Installation Guidelines

• Backplane Insertion: Ensure the backplane connectors are clear of debris prior to installation. Align the PSCCM22AAN carefully within the card cage rails and secure it using the integrated locking mechanisms to ensure a reliable connection to the system bus.
• Grounding Requirements: Connect the module's dedicated chassis ground to the cabinet's protective earth (PE) bus. A stable reference potential is mandatory for the module to perform effective electromagnetic interference (EMI) filtering.
• Thermal Management: The module dissipates heat generated by its high-speed processing circuits. Maintain a minimum of 50 mm clearance above and below the module to allow for passive airflow, and ensure cabinet cooling fans are operational.
• Cable Strain Relief: Use cable management bars at the rear of the rack to secure all incoming signal and power cables. This prevents mechanical strain from being transferred to the terminal connectors, which could lead to intermittent signal faults or pin fatigue.
