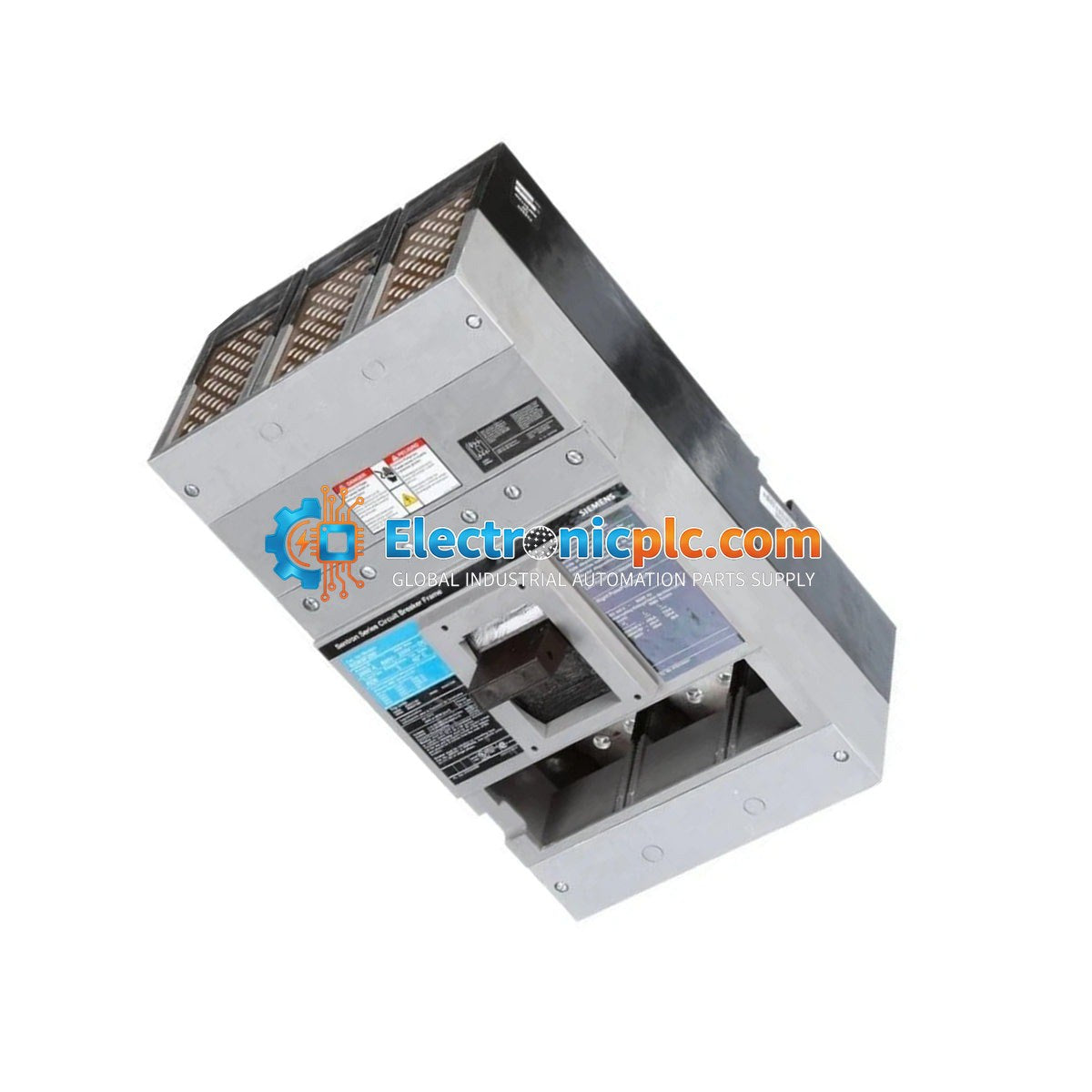

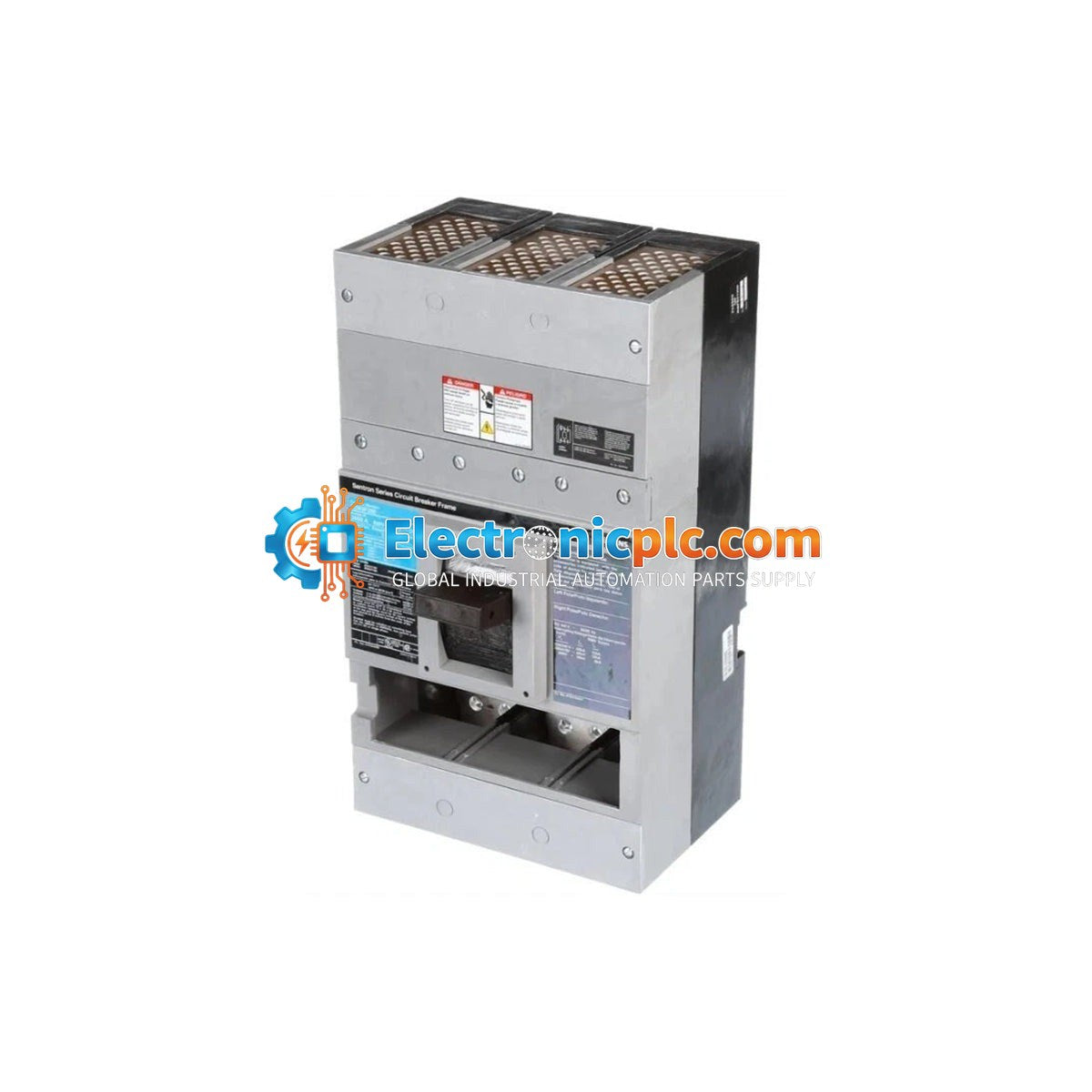

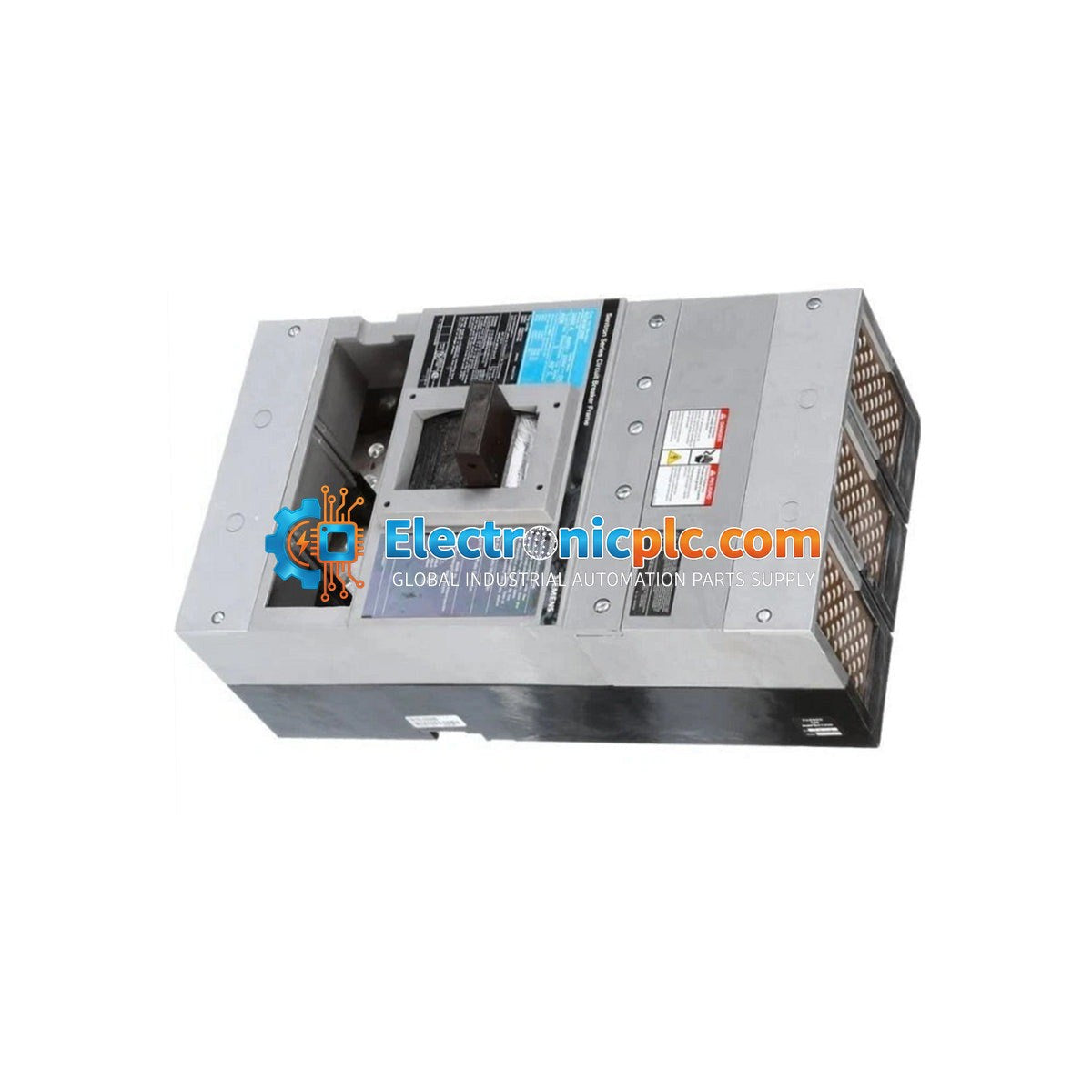

Siemens RD63F200 Frame for RD6 3-Pole 600V 2000A

Siemens RD63F200 Frame for RD6 3-Pole 600V 2000A

Description

The Siemens RD63F200 is a structural frame component designed for the RD6 series circuit breaker systems. This frame supports a 3-pole configuration rated for 600V and 2000A, providing the necessary...

19 people are viewing this right now

Availability: Low stock: 4 left

SKU: RD63F200
Vendor: Siemens
Category: Circuit Breaker Frame
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens RD63F200 is a structural frame component designed for the RD6 series circuit breaker systems. This frame supports a 3-pole configuration rated for 600V and 2000A, providing the necessary housing and mounting interface for high-capacity industrial power distribution applications.

Features

  • Designed specifically for Siemens RD6 series circuit breakers
  • 3-pole configuration for standard industrial power distribution
  • Rated for 600V and 2000A service
  • Robust construction for secure mounting and alignment of internal breaker components

Applications

This frame is intended for use in heavy-duty electrical switchgear, distribution panels, and power management systems where high-amperage protection is required. It serves as the primary mounting chassis for the RD6 circuit breaker assembly.

Technical Specifications

Model RD63F200
Manufacturer Siemens
Poles 3
Voltage Rating 600V
Current Rating 2000A
Tariff Code 8536200020

Installation Guidelines

  • Ensure the installation environment is free from excessive vibration and moisture.
  • Verify that the mounting surface is capable of supporting the weight of the frame and the associated circuit breaker assembly.
  • Power must be disconnected from the entire distribution system before attempting to install or replace the frame.
  • Ensure proper alignment of the busbar connections to prevent overheating or arcing during operation.
  • Use appropriate torque settings for all mounting bolts as specified in the primary Siemens RD6 technical manual.

FAQ

What is the primary function of the RD63F200?
The RD63F200 acts as the structural frame for a 3-pole, 2000A Siemens RD6 circuit breaker, providing the mechanical support and alignment required for the breaker to function within a switchgear cabinet.

Is this frame compatible with other series?
No, this frame is specifically engineered for the RD6 series. It is not intended for use with other Siemens breaker lines.
