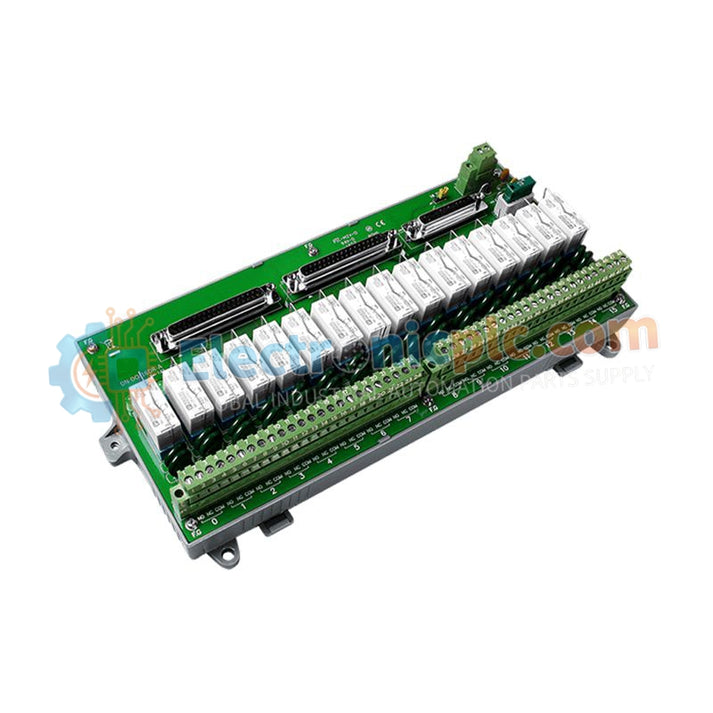

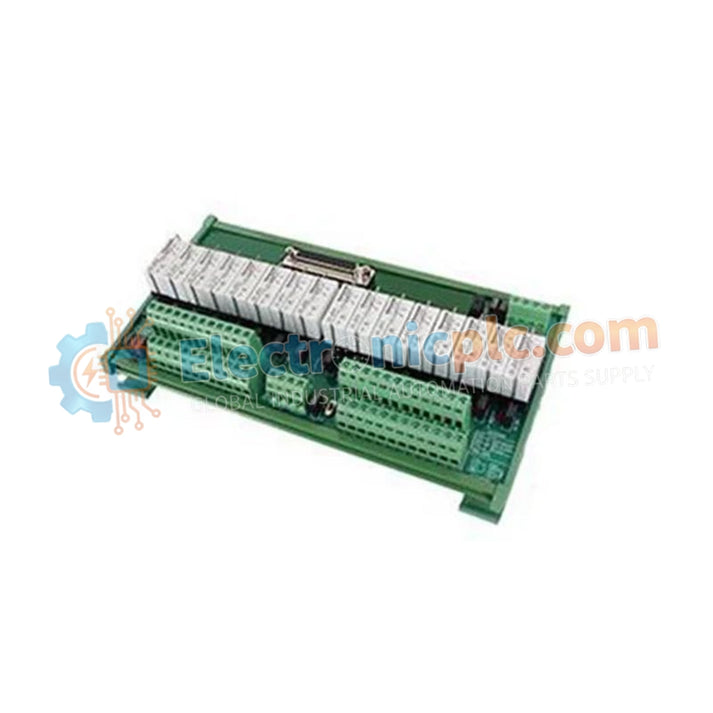

The Honeywell FS-16DI-RL serves as a high-performance relay input terminal board designed for robust signal conditioning in industrial control environments. This module provides 16 isolated channels that convert field-side signals...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell FS-16DI-RL serves as a high-performance relay input terminal board designed for robust signal conditioning in industrial control environments. This module provides 16 isolated channels that convert field-side signals into a format compatible with the central processing logic. It ensures superior electrical separation between hazardous field voltages and sensitive control electronics, protecting the system from surges and electrical noise.
| Specification | Details |
|---|---|
| Model | FS-16DI-RL |
| Condition | 100% Brand New and Original |
| Input Channels | 16 isolated channels |
| Input Voltage | 24V DC nominal (10-30V DC range) |
| Contact Rating | 250V AC, 2A resistive load |
| Isolation Rating | 1500V AC (channel-to-channel and channel-to-ground) |
| Response Time | 5ms (on/off) |
| Current Rating | 0.5A continuous, 1A inrush (10ms) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 200mm x 120mm x 40mm |
| Weight | 0.6 kg |
Superior Galvanic Isolation: The 1500V AC isolation rating prevents ground loops and protects the control system from high-voltage transients, ensuring long-term hardware survival in electrically noisy plants.
Rapid Signal Processing: With a response time of only 5ms, this board facilitates near-instantaneous data acquisition for time-critical safety and control loops.
Rugged Input Range: The flexible input voltage window (10-30V DC) accommodates fluctuations in the power supply without compromising signal accuracy or module stability.
Maintenance-Friendly Design: The 200mm x 120mm footprint allows for straightforward installation into standard control cabinets, while the clear channel separation simplifies wiring and circuit tracing for site technicians.
Can I use this board for switching AC loads?
Yes, the relay contacts support up to 250V AC with a 2A resistive load, making it suitable for a variety of field-side signaling and switching tasks.
What is the primary benefit of the isolated channels?
Isolation ensures that a fault or surge on one specific channel does not propagate to other channels or the main controller, maintaining the integrity of the overall safety system.
Is this product a surplus or used unit?
We offer this FS-16DI-RL as 100% brand new original equipment. It ships in factory packaging with all original certifications and documentation.
How does the unit handle high inrush currents?
The board withstands inrush currents up to 1A for 10ms, allowing it to interface reliably with inductive loads that exhibit high initial power demands.
