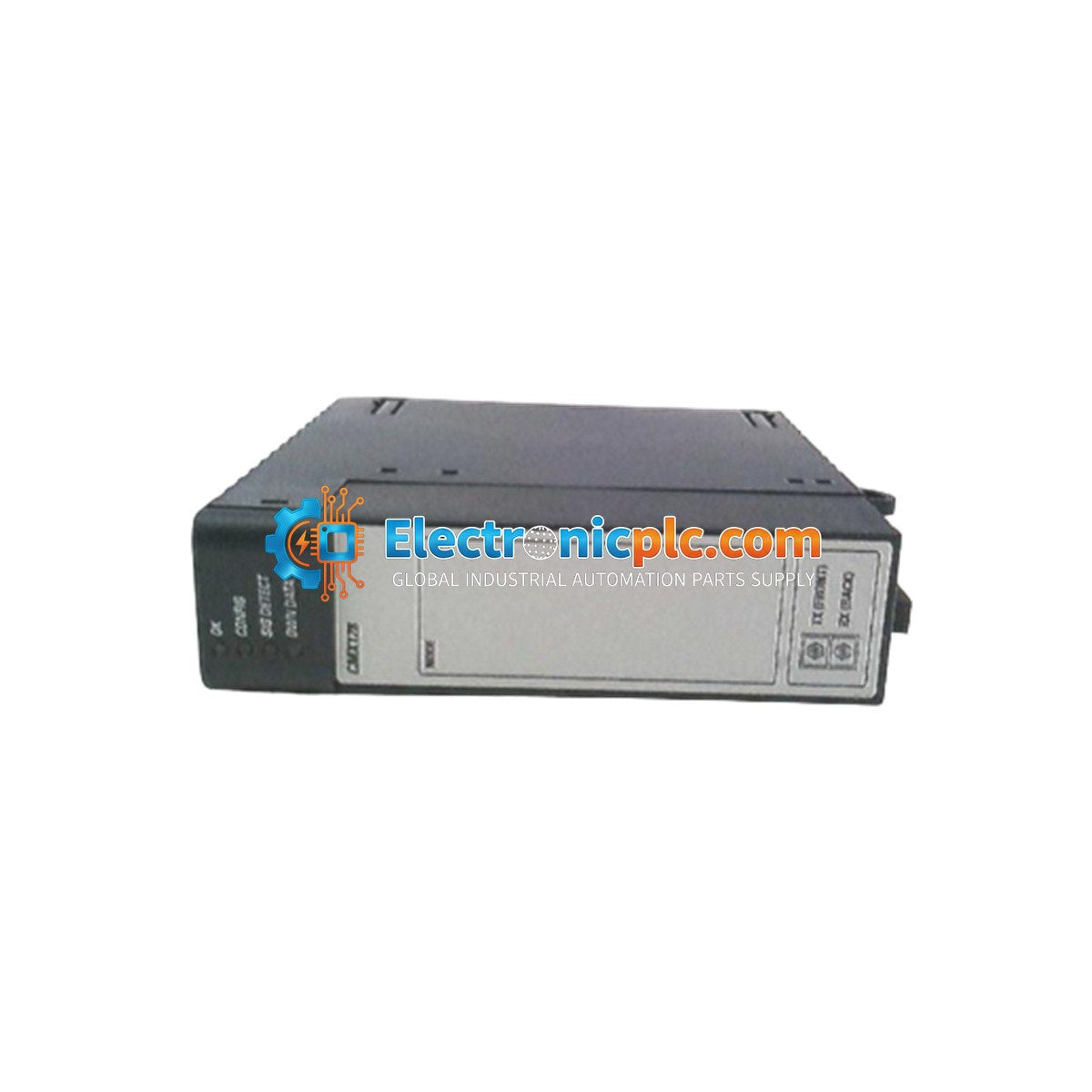

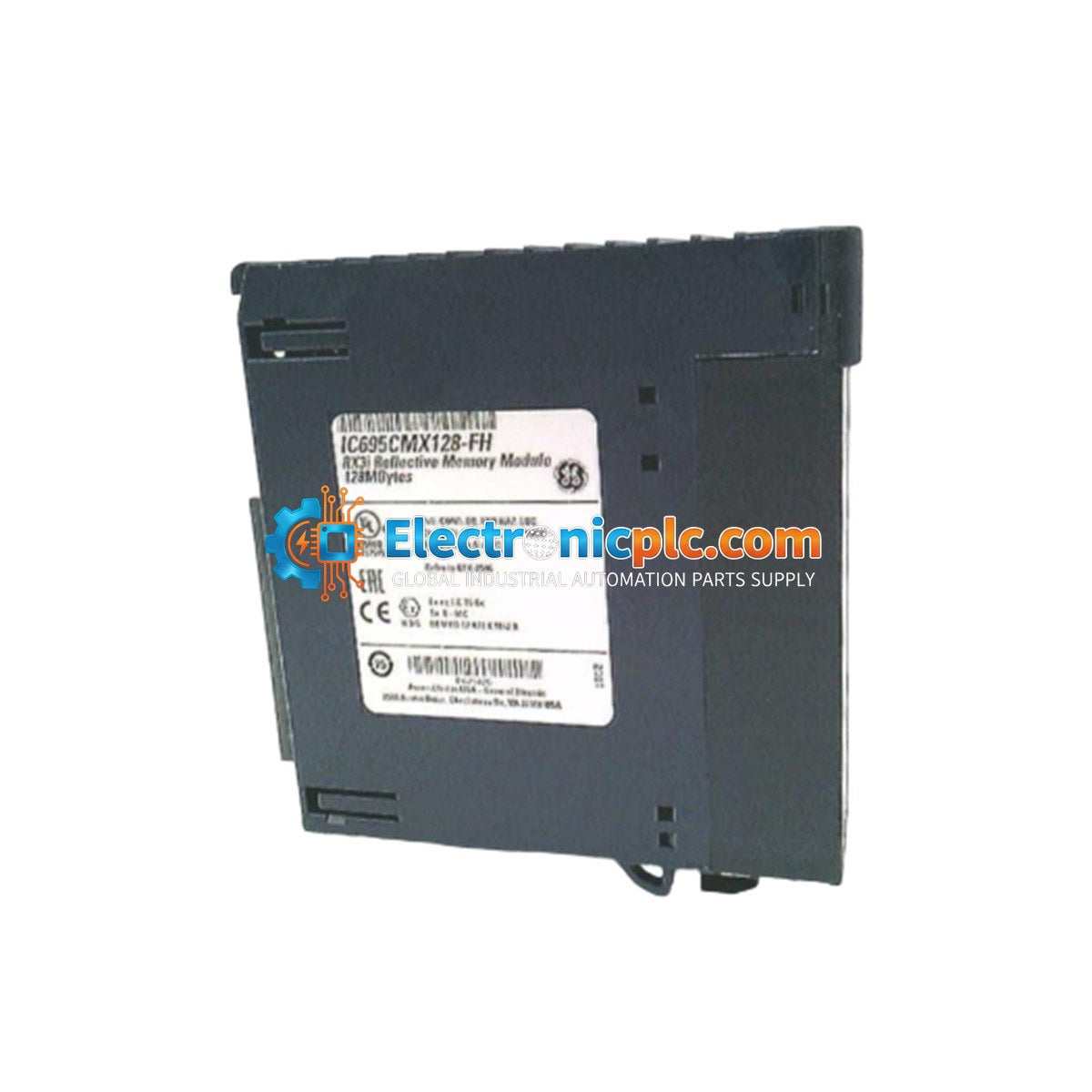

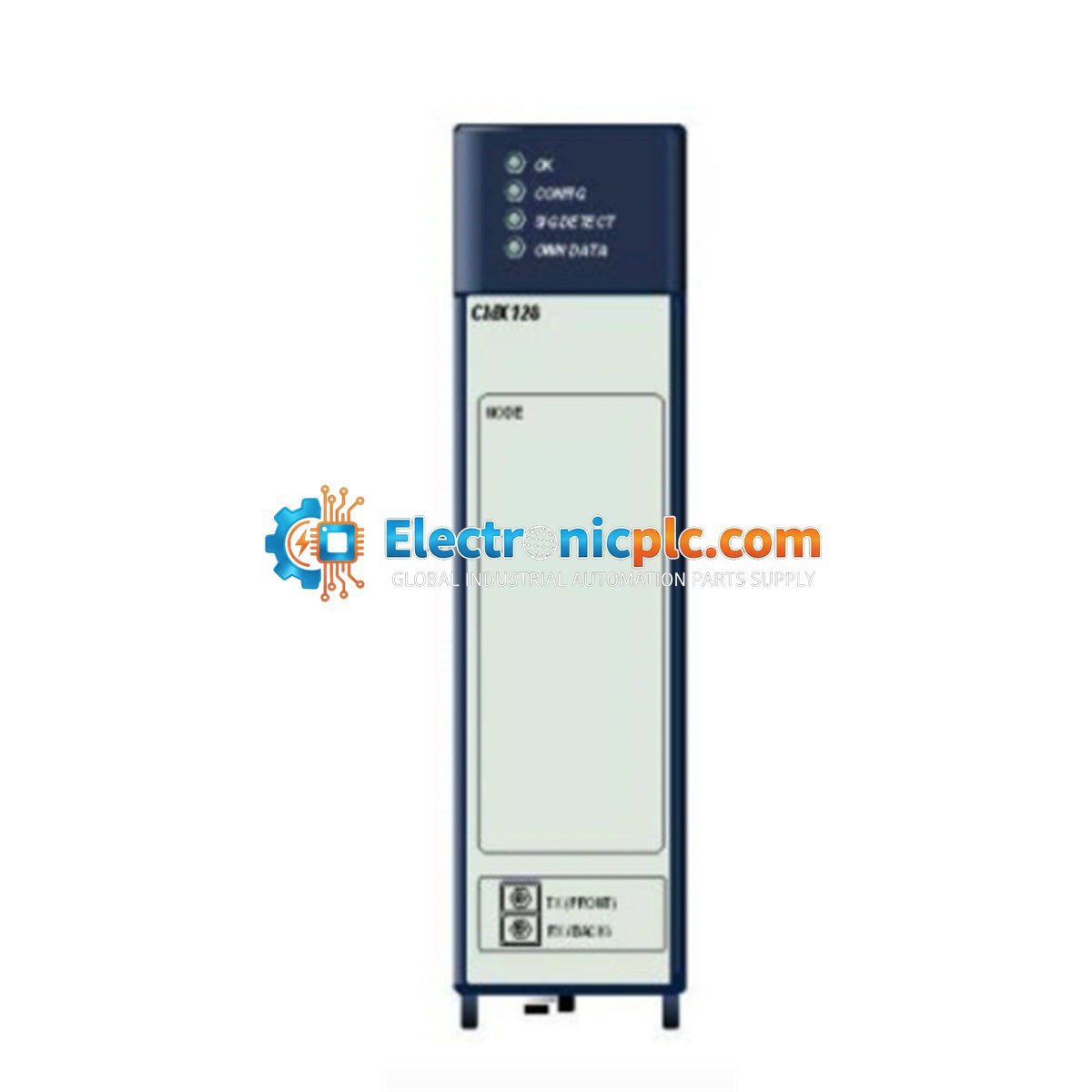

General Electric IC695CMX128 PACSystems RX3i Control Memory Xchange Module

General Electric IC695CMX128 PACSystems RX3i Control Memory Xchange Module

Description

The General Electric IC695CMX128 is a Control Memory Xchange module designed for the PACSystems RX3i platform. This module serves as a high-speed, deterministic data-sharing interface, allowing for seamless communication across...

24 people are viewing this right now

Availability: Low stock: 7 left

SKU: DS3800HISA1A1A
Vendor: General Electric
Category: Control Memory Xchange Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC695CMX128 is a Control Memory Xchange module designed for the PACSystems RX3i platform. This module serves as a high-speed, deterministic data-sharing interface, allowing for seamless communication across a reflective memory network. It provides 128 Mbytes of user-shared memory, enabling rapid data synchronization between PLCs, industrial computers, and other compatible devices. When utilized in an RX3i Hot Standby CPU Redundancy system, it functions as a dedicated link between CPUs to ensure high-availability control.

Features

  • 128 Mbytes of high-speed SDRAM user-shared memory with parity.
  • High-speed reflective memory network support with a bus speed of 2.1 Gbits/sec.
  • Compatible with the 5565 family of reflective memory devices.
  • Supports up to 256 nodes on a single reflective memory network.
  • Single-slot module design for efficient rack space utilization in the RX3i backplane.
  • Automatic data updates across all network nodes whenever a write operation occurs.

Applications

  • Automotive assembly and manufacturing lines.
  • Power generation and distribution control systems.
  • Chemical and pharmaceutical processing facilities.
  • Oil and gas refinery automation.
  • High-availability redundancy systems requiring rapid CPU synchronization.

Technical Specifications

Model IC695CMX128
User Memory 128 MB SDRAM
Bus Speed 2.1 Gbits/sec
Network Transfer Rate 43 Mbyte/s to 174 Mbytes/s
Packet Size 4 to 68 bytes (dynamic)
Power Requirements 253 mA at +5V DC; 660 mA at +3.3V DC
Form Factor Single Slot

Installation Guidelines

  • Power Down: Always disconnect power from the RX3i rack before installing or removing the module to prevent electrical damage.
  • Handling: Use proper ESD (Electrostatic Discharge) precautions when handling the module.
  • Mounting: Ensure the module is fully seated in the backplane slot and secured using the integrated locking mechanism.
  • Enclosure: To comply with EN 55011 and FCC Class A standards, the module must be installed within a properly grounded metal enclosure to mitigate radio frequency (RF) interference.
  • Cabling: Ensure fiber-optic connections are clean and properly routed to avoid signal attenuation or mechanical stress.

FAQs

What is the IC695CMX128 module?

It is a Control Memory Xchange module for the RX3i series, used to provide deterministic, high-speed data sharing among PLCs and other computing devices via a fiber-optic, reflective memory network.

How much memory does the IC695CMX128 have?

The module possesses 128 Mbytes of reflective memory with parity.

What is the maximum number of modules supported in a rack?

A single RX3i main rack supports a maximum of 6 modules.

How many nodes can be on the network?

A reflective memory network using this module can contain up to 256 nodes.
