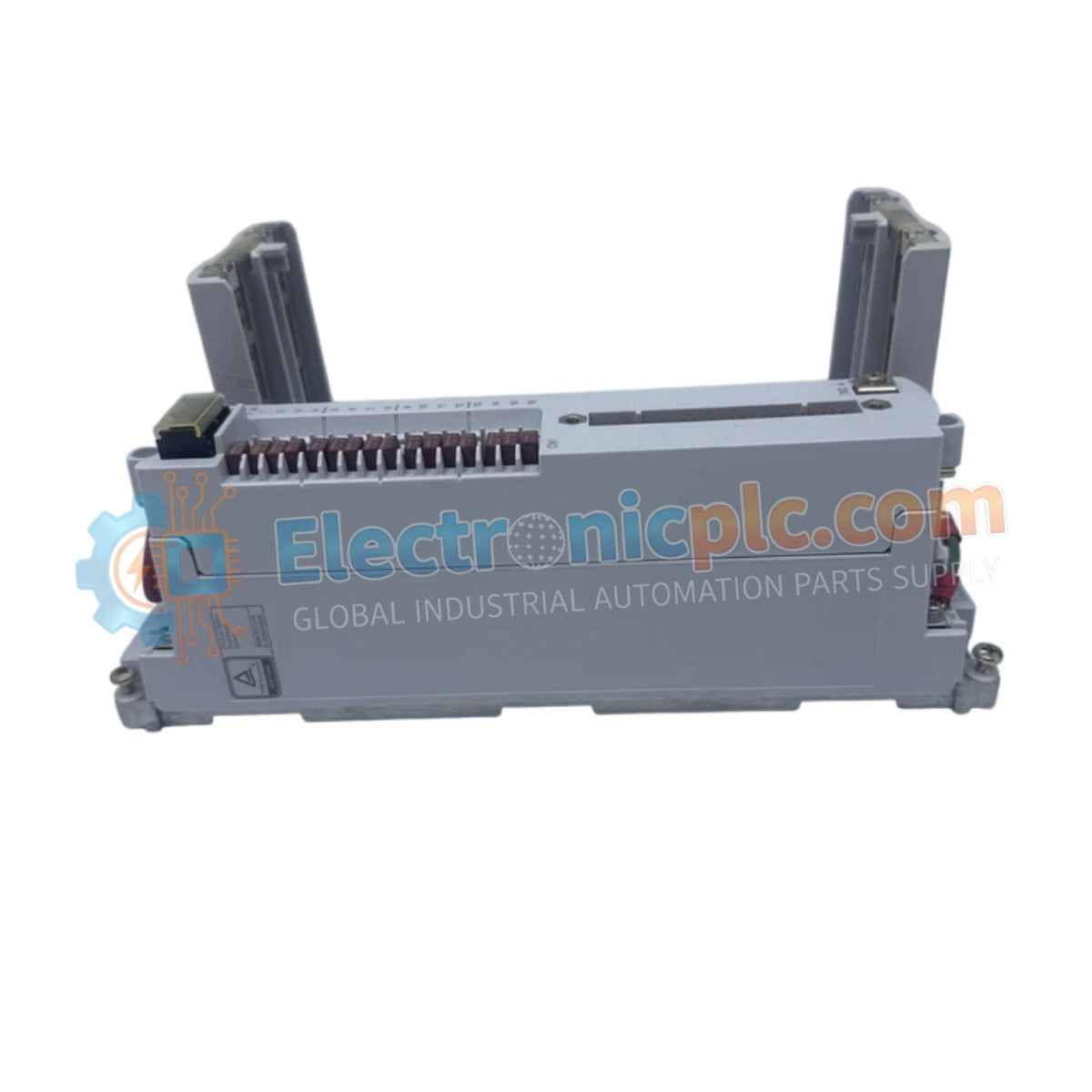

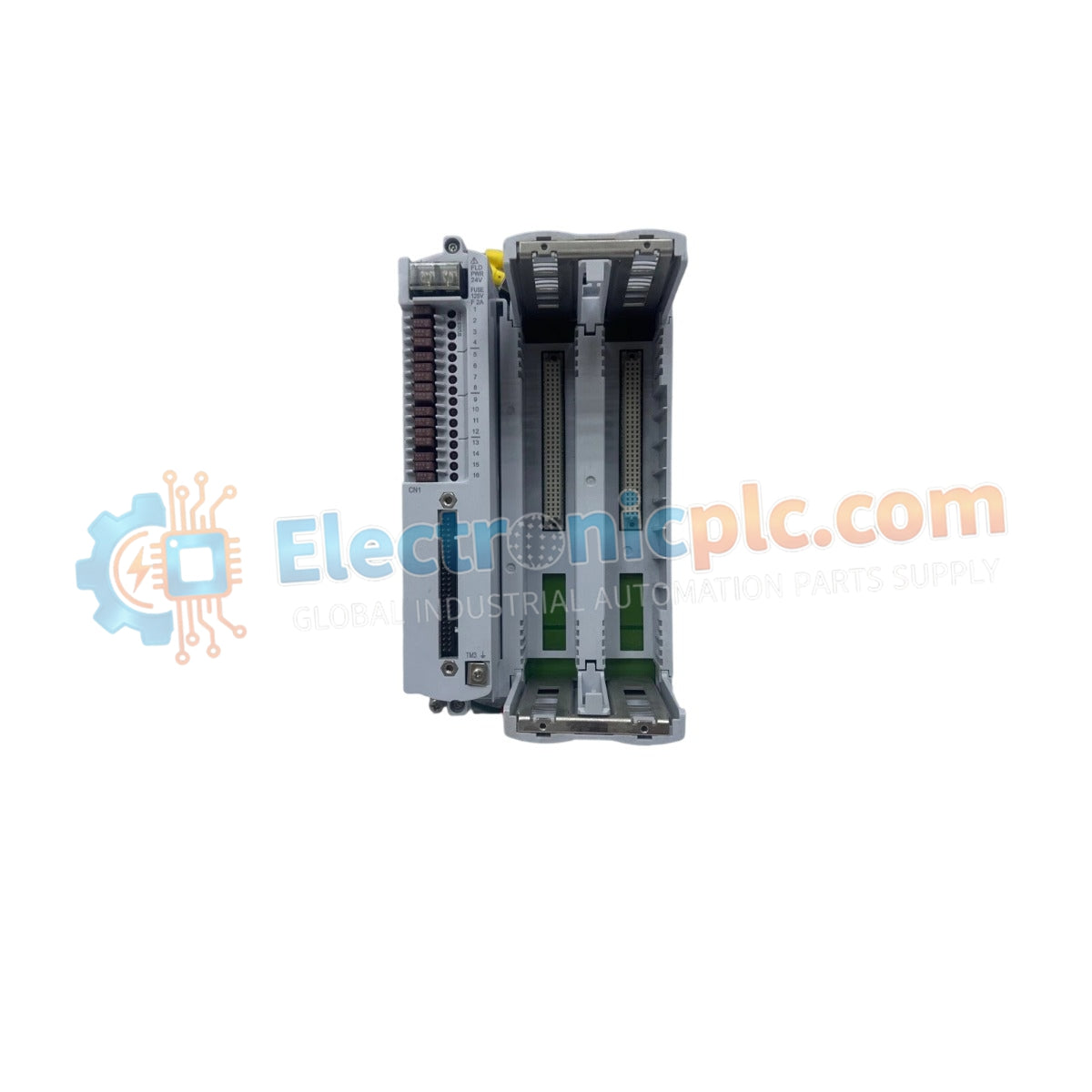

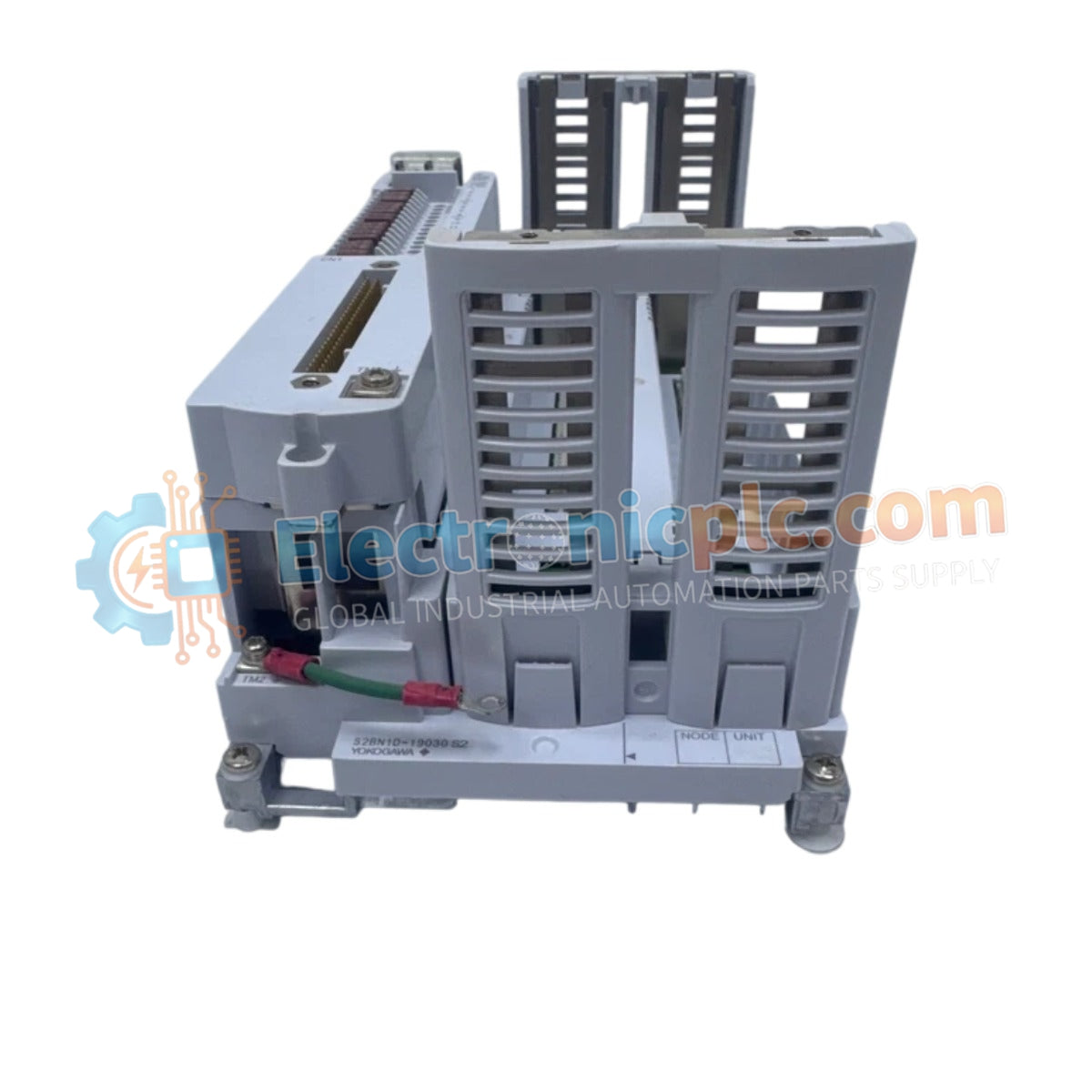

Configured for high-integrity field signal termination within ProSafe-RS safety instrumented system (SIS) platforms, the YOKOGAWA S2BN1D-19030 (S2BN1D Terminal Base Plate) provides direct physical signal transition and backplane power distribution. This hardware component functions as the primary interface interface utilized to execute secure I/O connectivity for both single and redundant safety controller configurations.

Suffix Breakdown & Model Matrix

Hardware Specifications

SIS Signal Integrity and Redundancy

The S2BN1D-19030 is engineered for safety-critical applications, supporting the 2oo3 architecture and redundant module placement required for SIL3-rated control loops. The base plate manages the galvanic isolation between field signal circuits and the internal safety bus, ensuring that transient faults in field wiring do not propagate to the safety processor. Through the integrated F-SB bus interface, the base plate ensures high-speed, synchronized data exchange across all 16 channels.

Frequently Asked Questions (FAQ)

Q: Can the S2BN1D base plate support mixed single and redundant I/O modules?

A: Yes, the base plate is architected for flexibility; however, you must ensure the installed I/O modules and the system configuration software are correctly mapped for the chosen redundant or single-channel mode to avoid module-not-found diagnostic errors.

Q: Is the M3 screw terminal sufficient for the entire base plate grounding?

A: The M3 screw provides the reference ground for the terminal block circuitry. For safety-critical installations, it is mandatory to connect this terminal to a low-impedance safety ground bus using the shortest possible path to maintain compliance with electromagnetic compatibility standards.

Field Installation Guidelines

• Mounting Stability: For wall-mounted installations, use four M4 screws to secure the base plate to a flat, rigid surface. If utilizing DIN rail mounting, ensure the rail is securely fastened to the cabinet backplane to prevent mechanical resonance during operation.
• Termination Torque: When using pressure or spring clamp terminals, verify the wire insertion depth. For pressure clamps, apply torque as recommended by the terminal block standards (typically 0.5 to 0.8 Nm) to ensure a gas-tight electrical connection.
• Cable Routing: Maintain strict separation between the F-SB bus cables and field signal wiring. Use separate cable ducts for power, communication, and analog input signals to prevent crosstalk and transient interference.
• Safety Precautions: Before connecting or disconnecting the S2KPB10 power supply cable, ensure the field power source is de-energized. Always verify the insulation resistance (minimum 100 MOhm) after performing any major wiring changes to ensure no short circuits exist between signal channels and the chassis ground.
