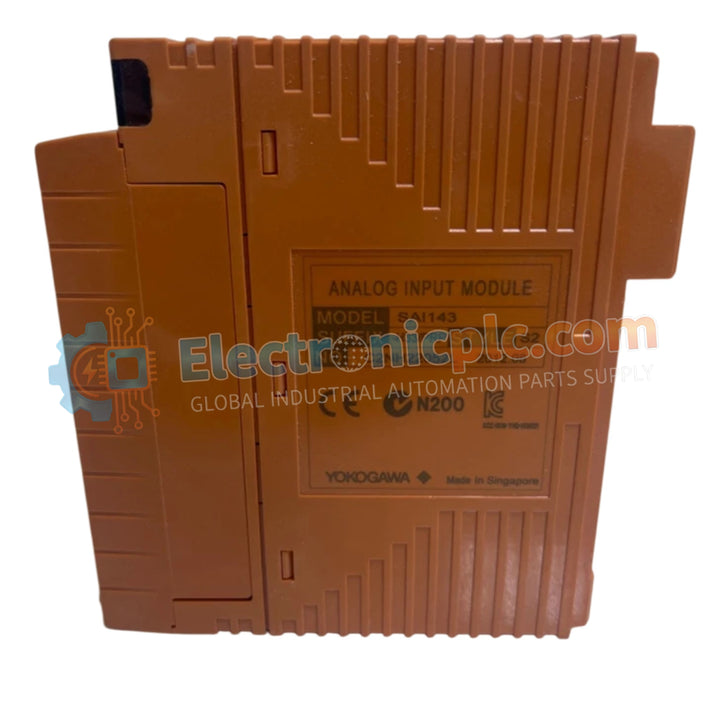

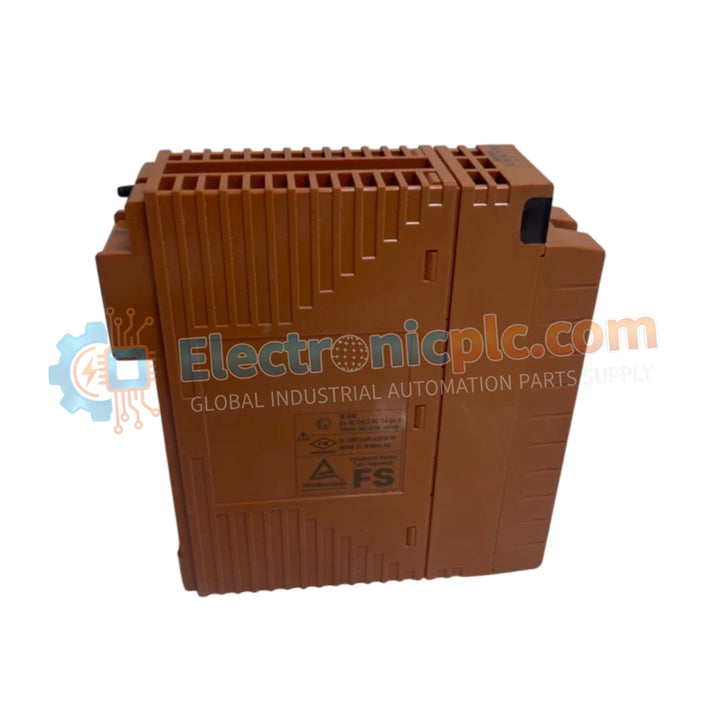

The Yokogawa SAI143-H33 S2 serves as the primary SAI143-H33 Analog Input Module utilized to execute high-density signal acquisition across distributed control system platforms.
| Parameter | Specification |
|---|---|
| Model | SAI143-H33 S2 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.4 kg |
| Dimensions | 2.5 cm x 12.7 cm x 12.7 cm |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | 24 VDC, 0.15 A max |
| Signal Channels | 16-channel analog input |
The module handles process signals through dedicated analog-to-digital conversion circuits coupled with standard 4-20 mA HART loop protocol support. Channel-to-channel isolation prevents electrical ground loops and common-mode transient interference between independent sensor loops. Internal multiplexing stages sequence input signals into the controller backplane while maintaining specified update rates and measurement accuracy across operational temperature ranges.
Q: Does the SAI143-H33 S2 support online hot-swapping during active operation?
A: Hot-swapping is restricted unless node redundancy architecture or specific system maintenance modes are engaged to prevent backplane communication disruption.
Q: How is field transmitter power supplied through this module?
A: Field transmitters are powered via internal loop supply circuits or external power sources depending on the configured marshalling and barrier arrangement.
Mount the module into the designated slot of the node unit, verifying pin alignment before securing locking mechanisms. Connect field signal wiring to the terminal block using twisted-pair shielded cables to mitigate electromagnetic interference. Ground the cable shield drain wire exclusively at the cabinet landing bar to maintain signal integrity.
