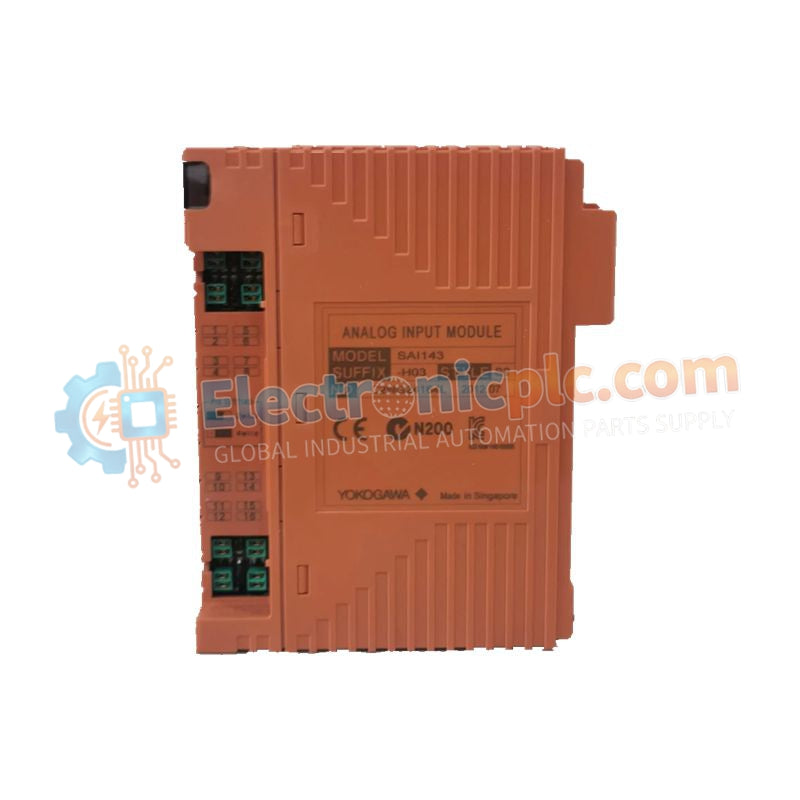

The Yokogawa SAI143-S03/K4A00 is a specialized high-precision Analog Input Module engineered for integration into the ProSafe-RS safety instrumented system (SIS). It is designed to reliably acquire and digitize analog signals from field transmitters, ensuring the strict data integrity required for safety-critical process control.

Hardware Specifications

Safety-Critical Architecture and Signal Isolation

The SAI143-S03/K4A00 module provides galvanic isolation of 1.5 kV AC between field-side inputs and the internal system bus. This isolation is vital in SIS environments to prevent common-mode noise and protect against transient voltage surges that could otherwise jeopardize logic integrity. The module also features a robust transmitter power supply, capable of delivering between 16.15 V (at 20 mA) and 26.4 V (at 0 mA), ensuring that field instruments remain operational even under load.

Frequently Asked Questions

Q: What is the significance of the K4A00 suffix code?

A: The K4A00 suffix typically denotes a specific configuration of terminal interface compatibility and/or environmental coating options optimized for integration with Yokogawa's standardized wiring accessories in ProSafe-RS cabinets.

Q: How should I handle the input impedance change during power-off?

A: The high input impedance ($\ge 500 \text{ k}\Omega$) when powered off is a safety design feature. It prevents the module from drawing current from field loops during maintenance. Ensure that diagnostic systems do not flag this impedance change as an open-circuit fault if you are performing hot-swap maintenance.

Field Installation Guidelines

• Terminal Interface: The module supports flexible connection methods, including pressure clamp terminals, MIL cables, or dedicated signal cables. Ensure the chosen method matches the system design documentation to avoid connectivity issues.
• Backplane Seating: Given the 0.3 kg weight and safety-critical nature, ensure the module is fully seated on the backplane. Use the locking tabs to prevent mechanical vibration from causing intermittent signal loss.
• Environmental Management: While the module is robust, the temperature drift of $\pm 16 \text{ }\mu\text{A}/10^\circ\text{C}$ means that maintaining stable ambient cabinet temperatures is essential for high-precision safety logic.
• Wiring Protection: Use shielded twisted-pair cabling and ground the shields at the cabinet entry to minimize the influence of electromagnetic interference on the sensitive 4–20 mA loops.
