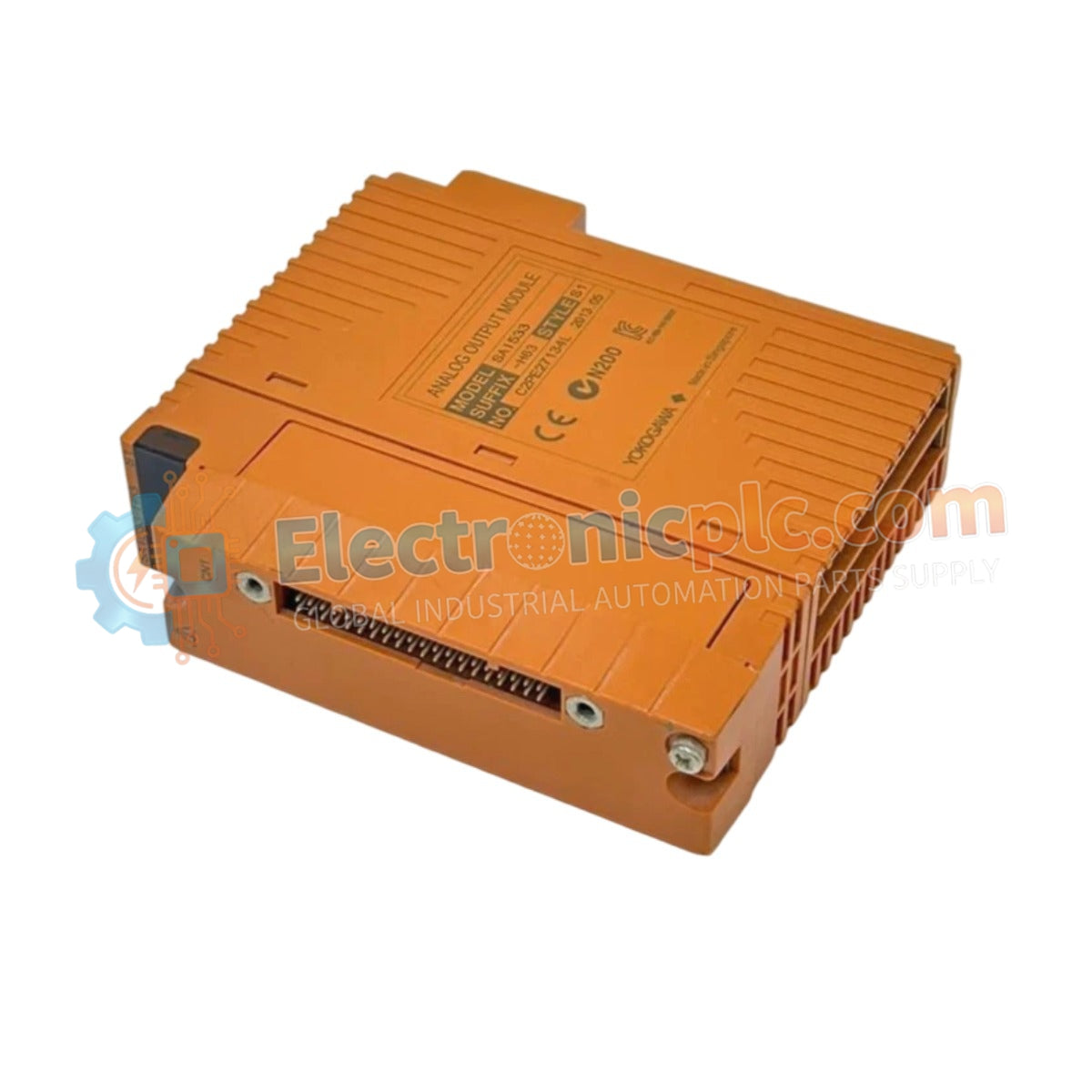

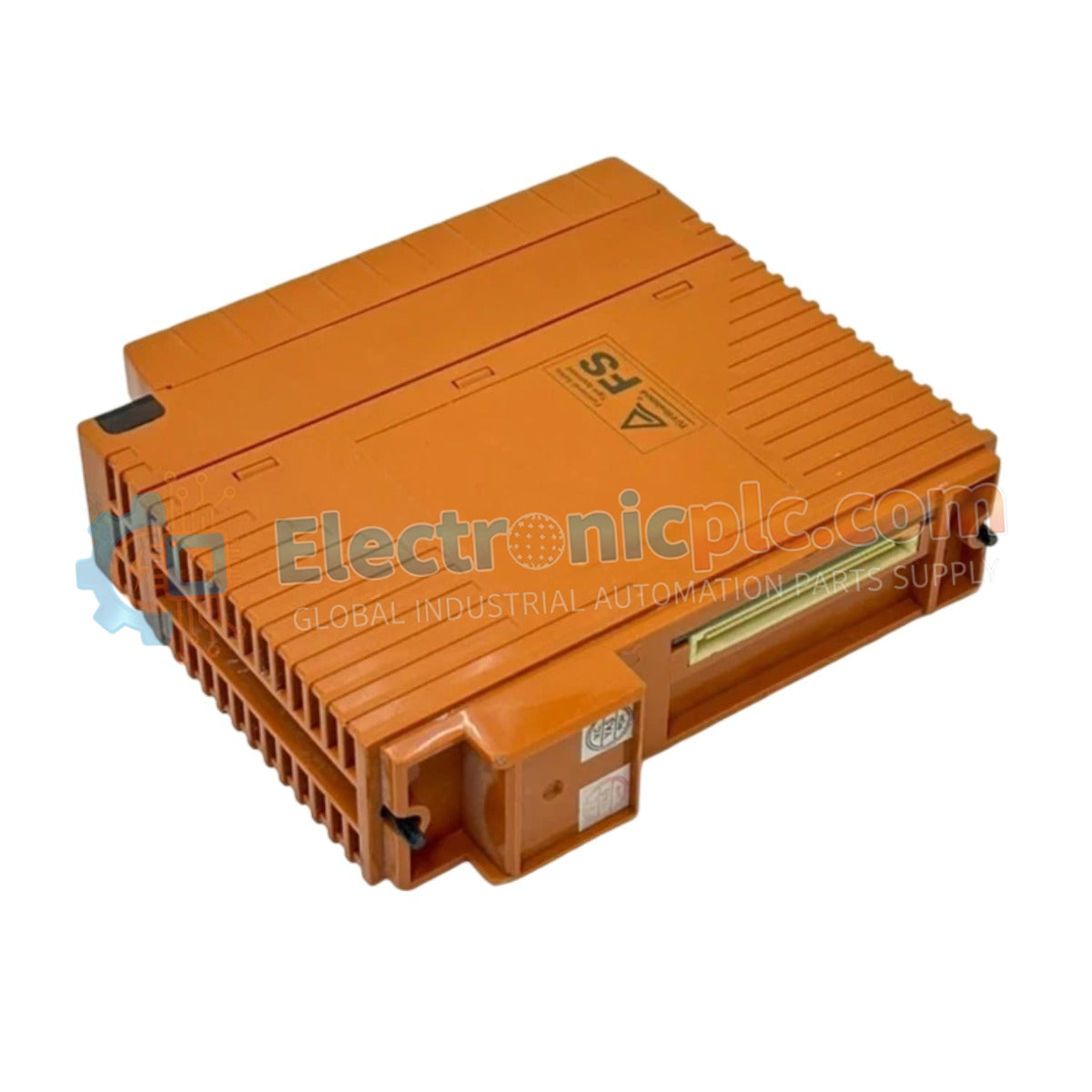

The Yokogawa SAI533-H63 is a specialized current output module designed for precision analog signal transmission within industrial automation and control systems. It provides reliable conversion of digital control values into high-resolution analog signals for field instrumentation.

Hardware Specifications

Industrial Control and Signal Connectivity

The SAI533-H63 module architecture is optimized for driving 4-20 mA control loops with high accuracy and low signal jitter. By leveraging high-speed backplane communication, the module ensures that setpoints calculated by the host controller are translated into field currents with deterministic latency. Its design incorporates robust isolation between the control system backplane and the output channel loop, protecting the host equipment from potential electrical disturbances on the field side.

Frequently Asked Questions

Q: Does the SAI533-H63 require external loop power for the connected instruments?

A: The module is typically configured to support loop-powered field devices. Please refer to your specific control loop schematic to confirm if the module provides the necessary excitation voltage or if an external power supply is required for the specific field instrument.

Q: Is this module compatible with HART communication protocols?

A: The SAI533 series is designed primarily for standard analog signal transmission. If your application requires overlaid HART communication for instrument diagnostics, verify the specific hardware revision of your module, as not all versions support HART frequency modulation.

Field Installation Guidelines

• Mechanical Installation: Mount the module into the designated base unit slot. Ensure the rear connector is fully seated to maintain a high-integrity connection with the system bus. Fasten the locking screws to prevent displacement from vibration.
• Grounding Protocols: Connect the module’s frame ground terminal to the common cabinet protective earth (PE) bus. This is essential for maintaining electromagnetic compatibility (EMC) and ensuring the safety of the current output loops.
• Wiring Practices: Use shielded twisted-pair (STP) cabling for all field output wiring. Terminate cable shields at the cabinet entrance to mitigate the risk of high-frequency noise injection, which can negatively impact the precision of the output current.
• Environmental Considerations: Install the module in an environment maintained between 0 and 55 deg C. Ensure that the module has adequate airflow to prevent heat accumulation, which can cause drift in analog output accuracy over time.
