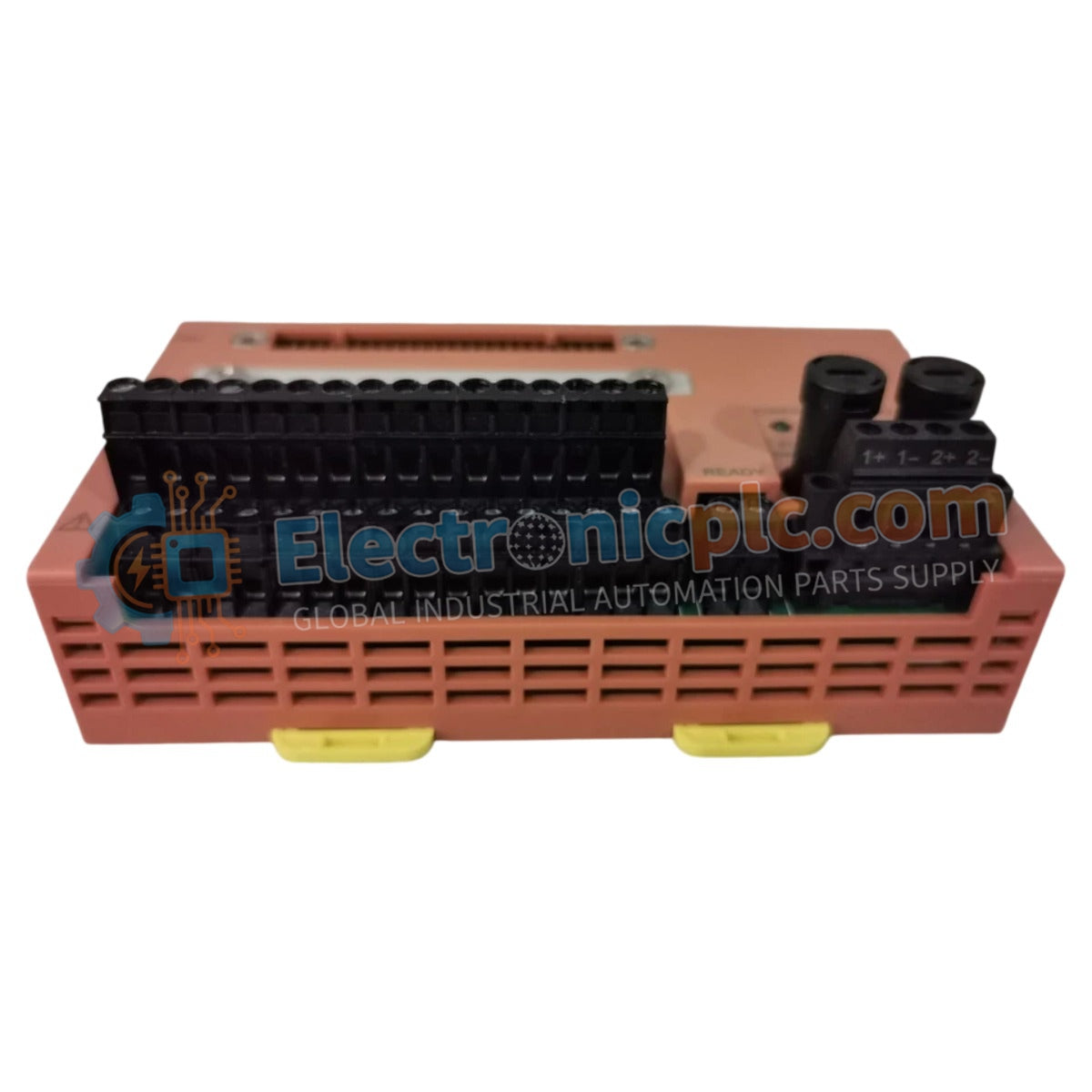

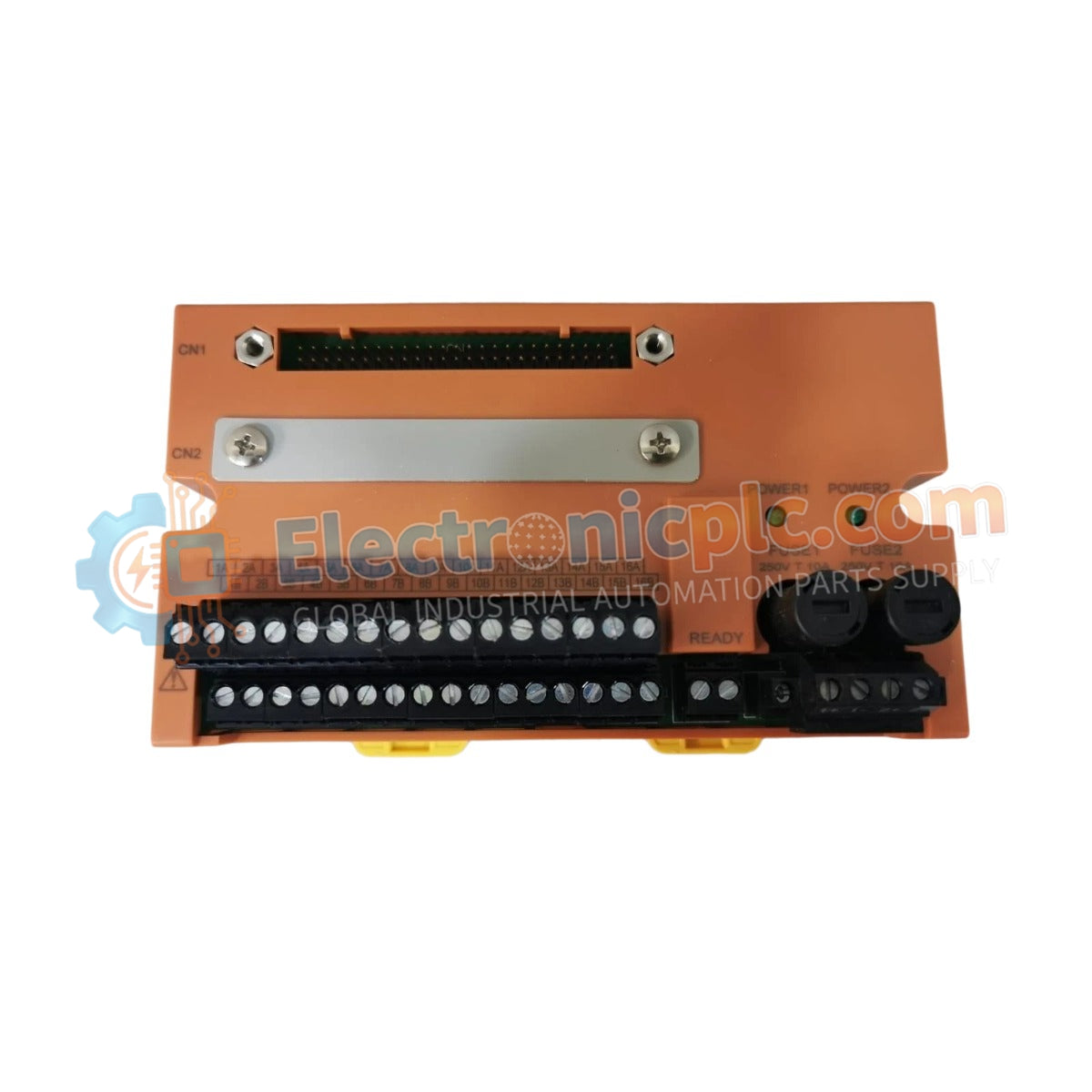

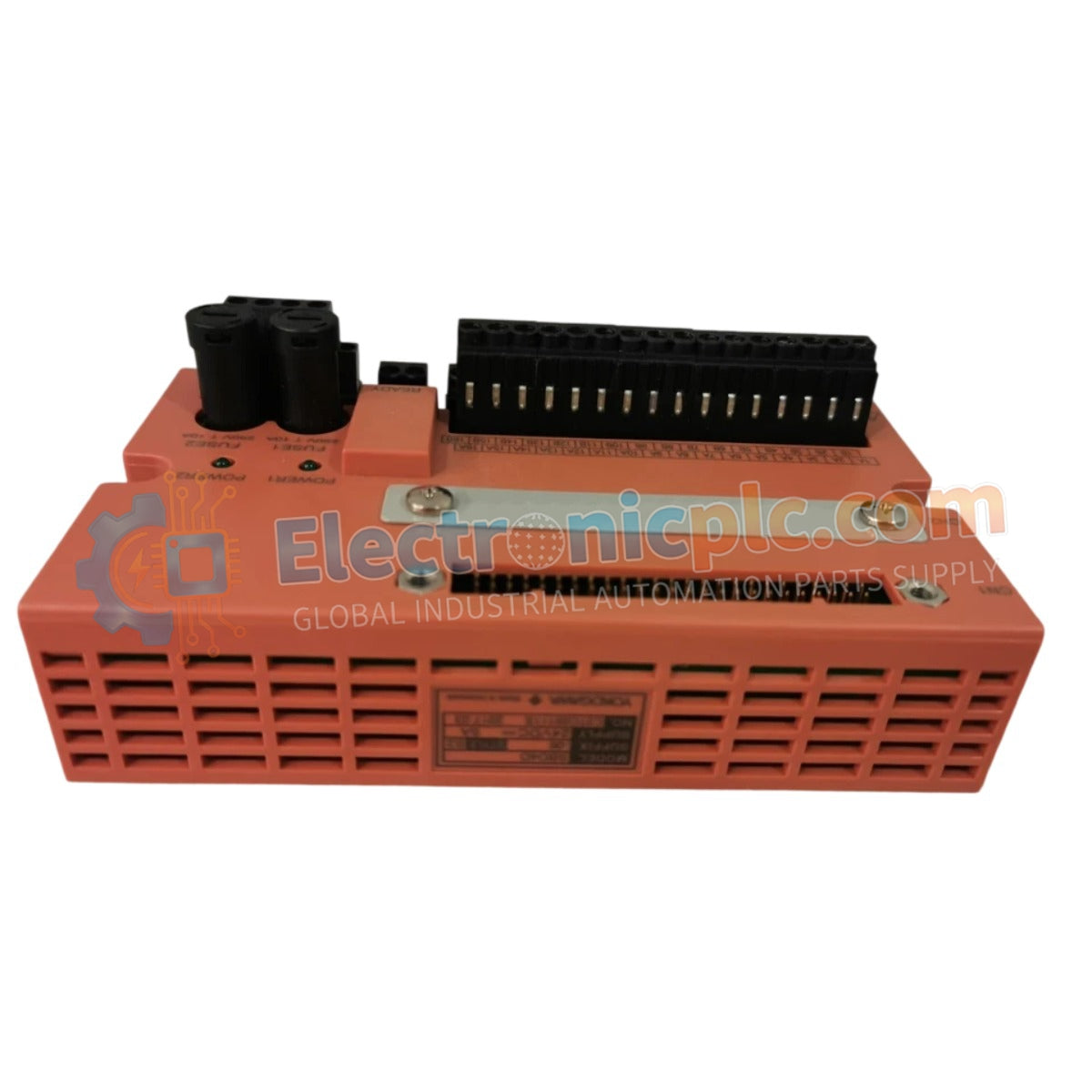

Engineered for reliable signal termination in safety-instrumented systems, the Yokogawa SBD4D-06 (SBD4D-06) Digital Terminal Board provides direct physical electrical execution for interconnecting 16-channel digital I/O loops within the SDV144/SDV541 platform architecture.

Suffix Breakdown & Model Matrix

• SBD4D: Base model designation for digital signal terminal boards.
• -06: Specifies the inclusion of ISA Standard G3-rated conformal coating for corrosive resistance, with no integrated explosion-proof classification.

Hardware Specifications

Functional Architecture and Reliability

The SBD4D-06 is designed as a bridge between high-speed digital field signals and safety-critical I/O modules. It supports both single and dual-redundant wiring configurations, allowing for high-availability loop topologies. The board is finished with an ISA G3-rated coating, ensuring that the circuitry remains protected against degradation in harsh industrial atmospheres characterized by high humidity or airborne corrosive contaminants.

Frequently Asked Questions

Q: Can the SBD4D-06 be utilized in hazardous area locations?

A: No, the "06" suffix indicates that while it is robust against environmental corrosion, it does not carry an explosion-proof certification. Installation in hazardous zones requires a certified enclosure or the use of associated intrinsic safety barriers.

Q: Is the terminal board hot-swappable during system operation?

A: While terminal boards are generally passive components, physical replacement or maintenance requires adhering to site-specific safety interlock procedures, as disconnecting active signal loops can trigger system-level alarms or safety shutdowns in an SDV (Safety Distributed System) environment.

Field Installation Guidelines

• Secure the board onto a standard 35mm DIN rail, ensuring the locking clip is fully engaged to prevent movement in high-vibration cabinets.
• Use appropriate ferrules for all field wiring to ensure a stable, low-resistance connection at the screw terminals.
• When configuring for dual-redundant signals, ensure that both signal paths are correctly identified and documented to prevent cross-wiring during troubleshooting.
• Maintain a clearance distance from power distribution blocks to avoid inductive coupling, which can cause false state triggering in high-sensitivity digital input loops.
