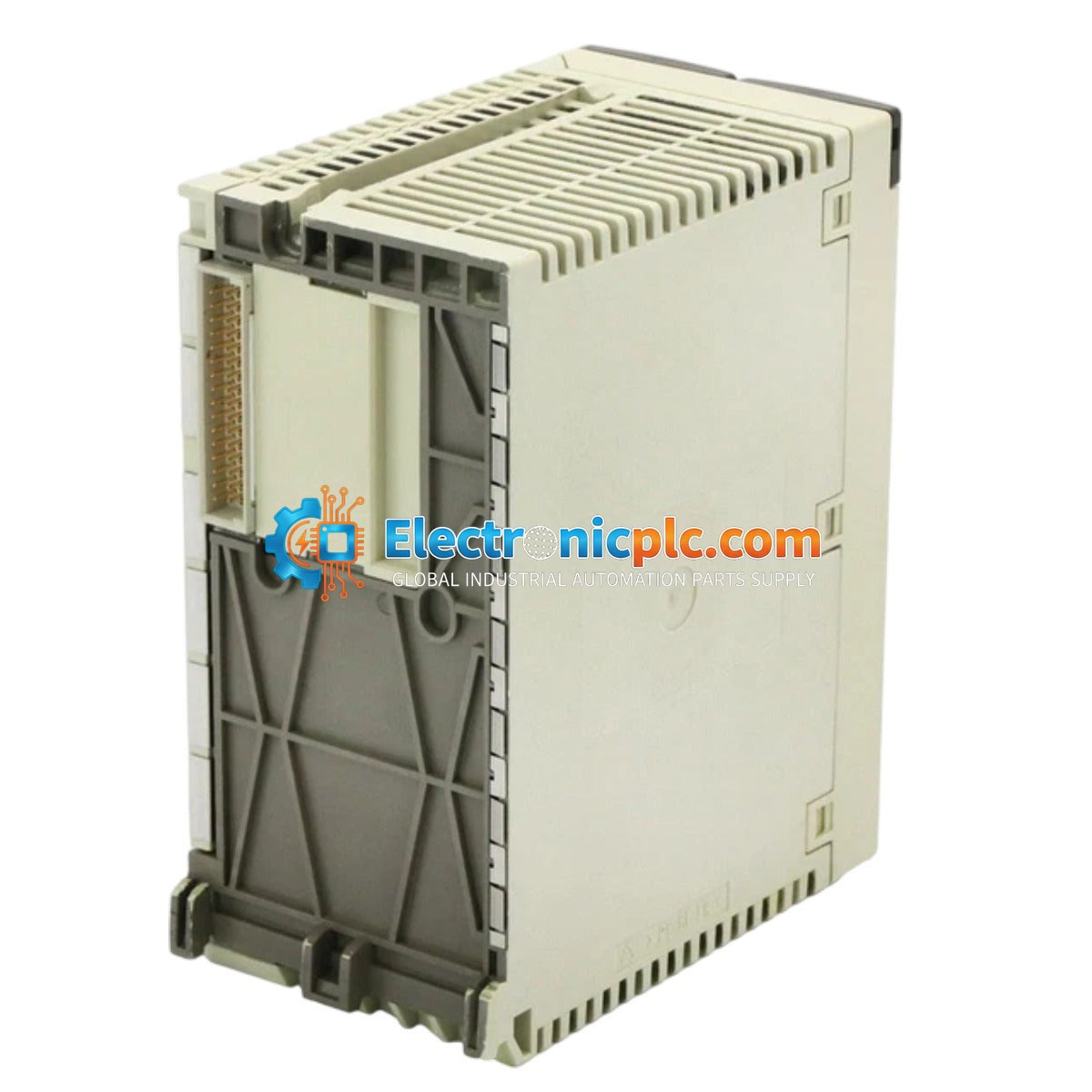

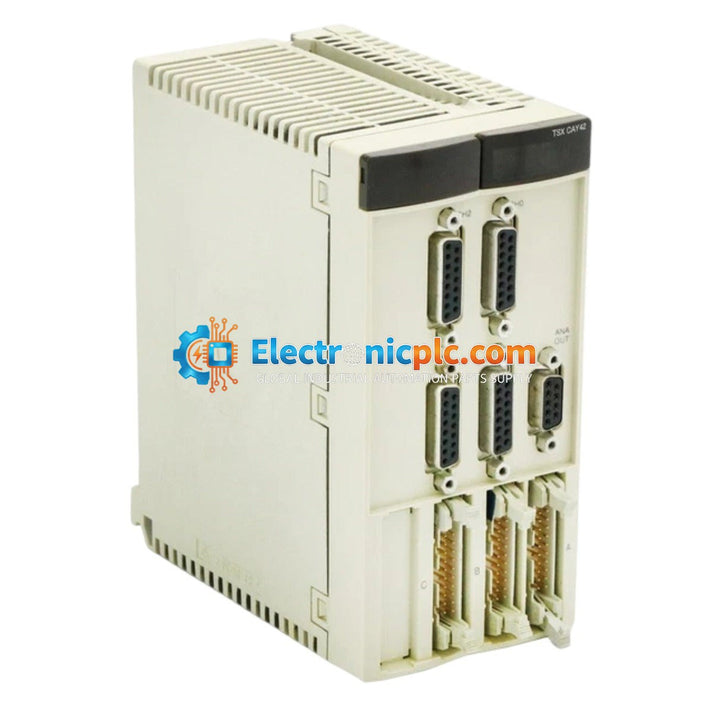

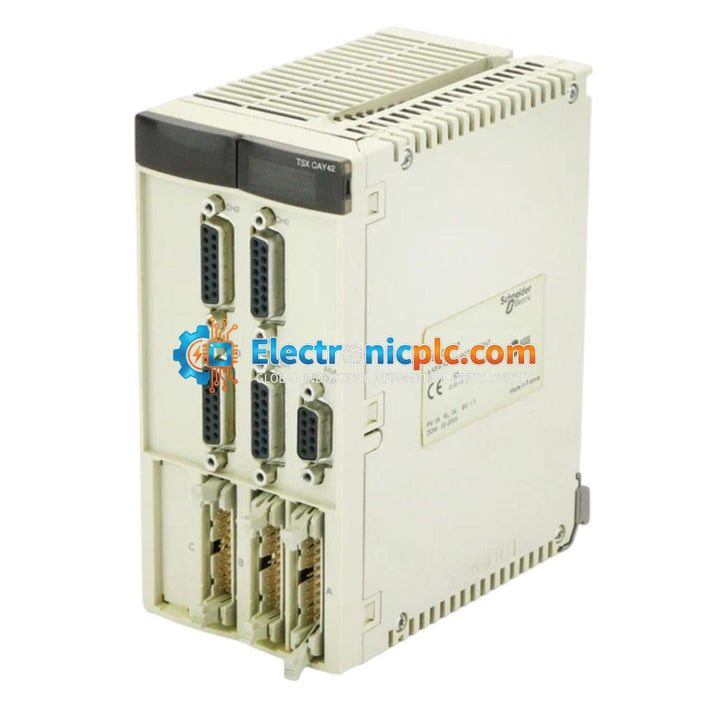

Schneider Electric TSXCAY42C Modicon Premium Motion Control Module

Schneider Electric TSXCAY42C Modicon Premium Motion Control Module

Description

The Schneider Electric TSXCAY42C is a high-performance motion control module designed for the Modicon Premium automation platform. This module provides precise control for up to 4 axes of servomotors, enabling...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: TSXCAY42C
Vendor: Schneider
Category: Motion Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric TSXCAY42C is a high-performance motion control module designed for the Modicon Premium automation platform. This module provides precise control for up to 4 axes of servomotors, enabling complex motion profiles in industrial automation environments. It is engineered to deliver reliable performance with a cycle time range of 8 ms to 10 s, supporting demanding motion control requirements.

Features

  • Supports control for up to 4 independent axes.
  • Designed for seamless integration with the Modicon Premium PLC range.
  • Optimized for high-precision servomotor management.
  • Configurable cycle times ranging from 8 ms to 10 s.
  • Robust construction suitable for industrial control cabinet environments.

Applications

The TSXCAY42C is intended for use in automated manufacturing systems requiring multi-axis synchronization, including packaging machinery, material handling equipment, and complex assembly lines utilizing the Modicon Premium architecture.

Technical Specifications

Model TSXCAY42C
Brand Schneider Electric
Product Range Modicon Premium
Control Axes 4
Cycle Time 8 ms to 10 s
Weight 0.88 kg

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the backplane connector and secured with the integrated locking mechanism.
  • Use shielded cables for all motion control I/O to minimize electromagnetic interference (EMI).
  • Route signal cables away from high-voltage power lines and motor drive cabling.
  • Ensure adequate ventilation within the control cabinet to maintain operating temperatures within specified limits.
  • Handle with standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

Is the TSXCAY42C still in production?

This module is classified as a phase-out product. It remains a reliable solution for maintenance and expansion of existing Modicon Premium installations, but users should consult current lifecycle status for long-term project planning.

What system is this module compatible with?

The TSXCAY42C is specifically designed for the Schneider Electric Modicon Premium series PLC platform.
