Description

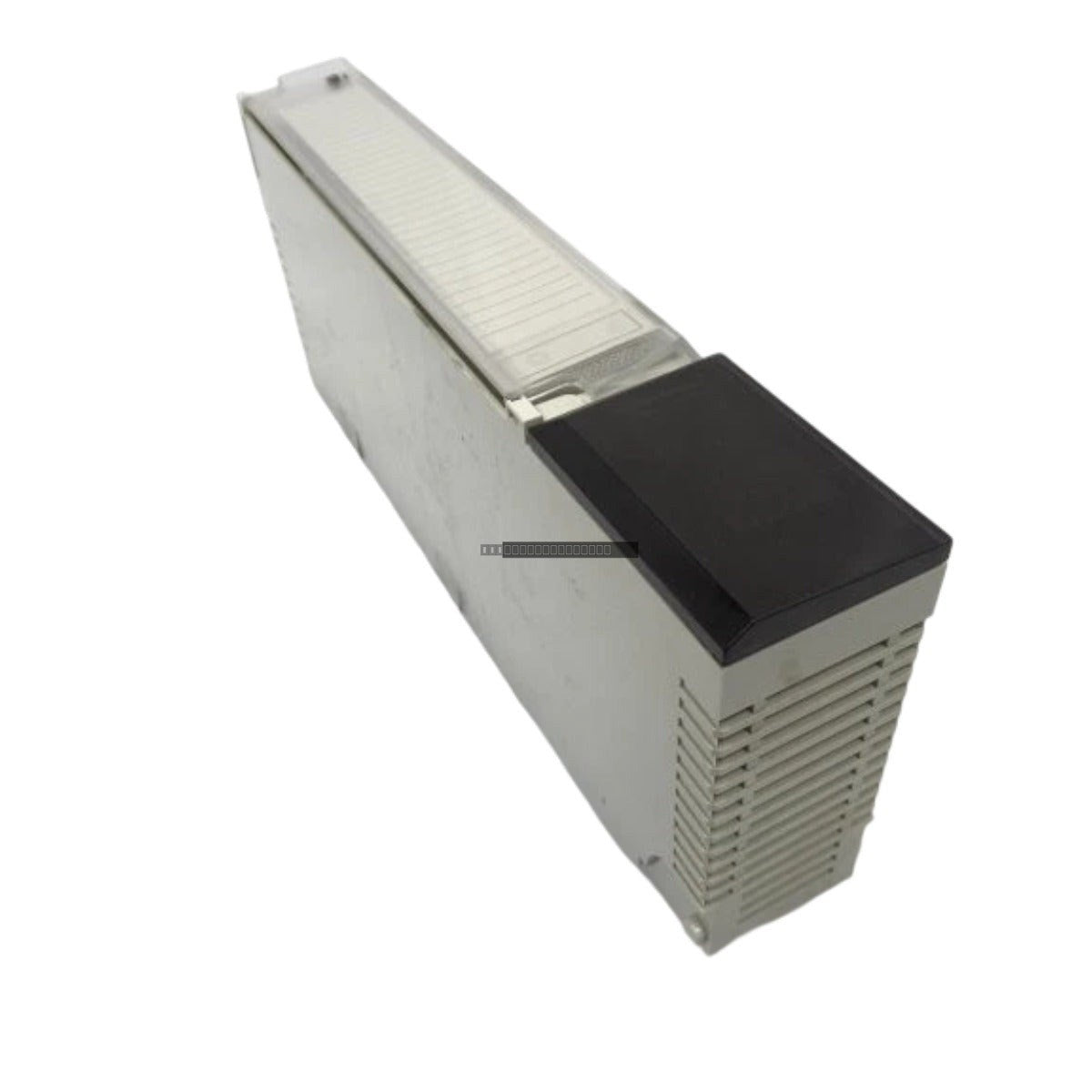

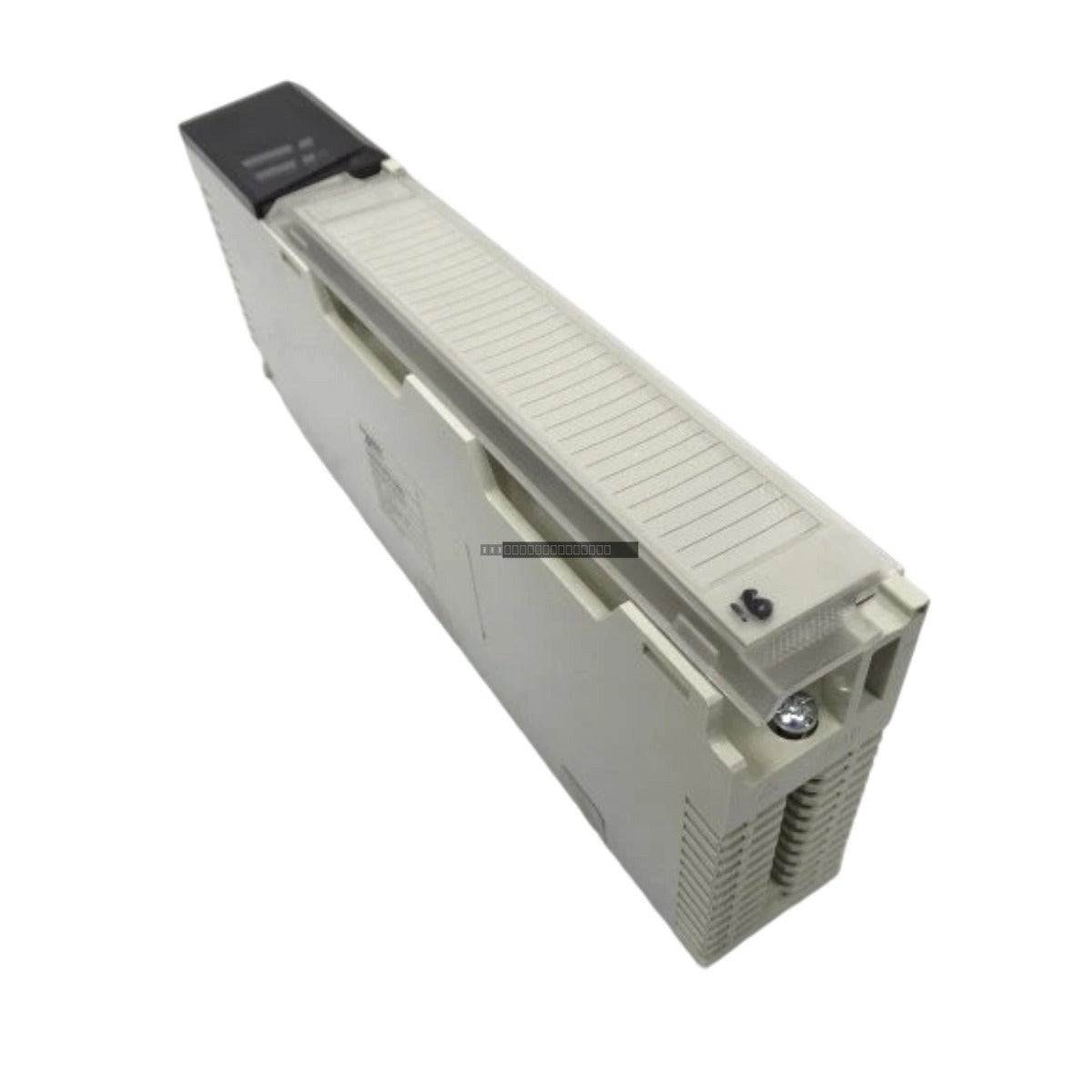

The Schneider Electric 140XCP51000 is a blank module designed for use within the Modicon Quantum automation platform. This component serves as a filler module to occupy unused slots in a Quantum backplane, ensuring proper airflow management, physical protection of the backplane connectors, and maintaining the structural integrity of the rack assembly. The unit includes a front door for a clean, uniform finish across the PLC rack.

Features

• Compatible with standard Modicon Quantum backplanes
• Integrated front door for aesthetic consistency and protection
• Simple mechanical installation into vacant rack slots
• Provides physical isolation for unused backplane segments

Applications

This blank module is intended for use in industrial control systems where the Modicon Quantum series is deployed. It is typically utilized during system commissioning or expansion to cover empty slots, preventing the ingress of dust or debris into the backplane and maintaining the required environmental integrity of the control cabinet.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is managed according to site safety protocols before performing any hardware installation.
• Align the module with the guide rails of the empty slot in the Quantum backplane.
• Slide the module into the slot until it is fully seated and flush with the adjacent modules.
• Close the integrated door to secure the module and complete the rack face profile.
• Handle with care to avoid bending the module housing or damaging the front door hinge mechanism.

FAQ

What is the purpose of the 140XCP51000 module?

This is a blank filler module used to cover empty slots in a Modicon Quantum rack. It helps maintain proper airflow and protects the backplane from contaminants.

Does this module require any electrical configuration?

No, the 140XCP51000 is a passive mechanical component and does not require any electrical wiring, software configuration, or address assignment.
