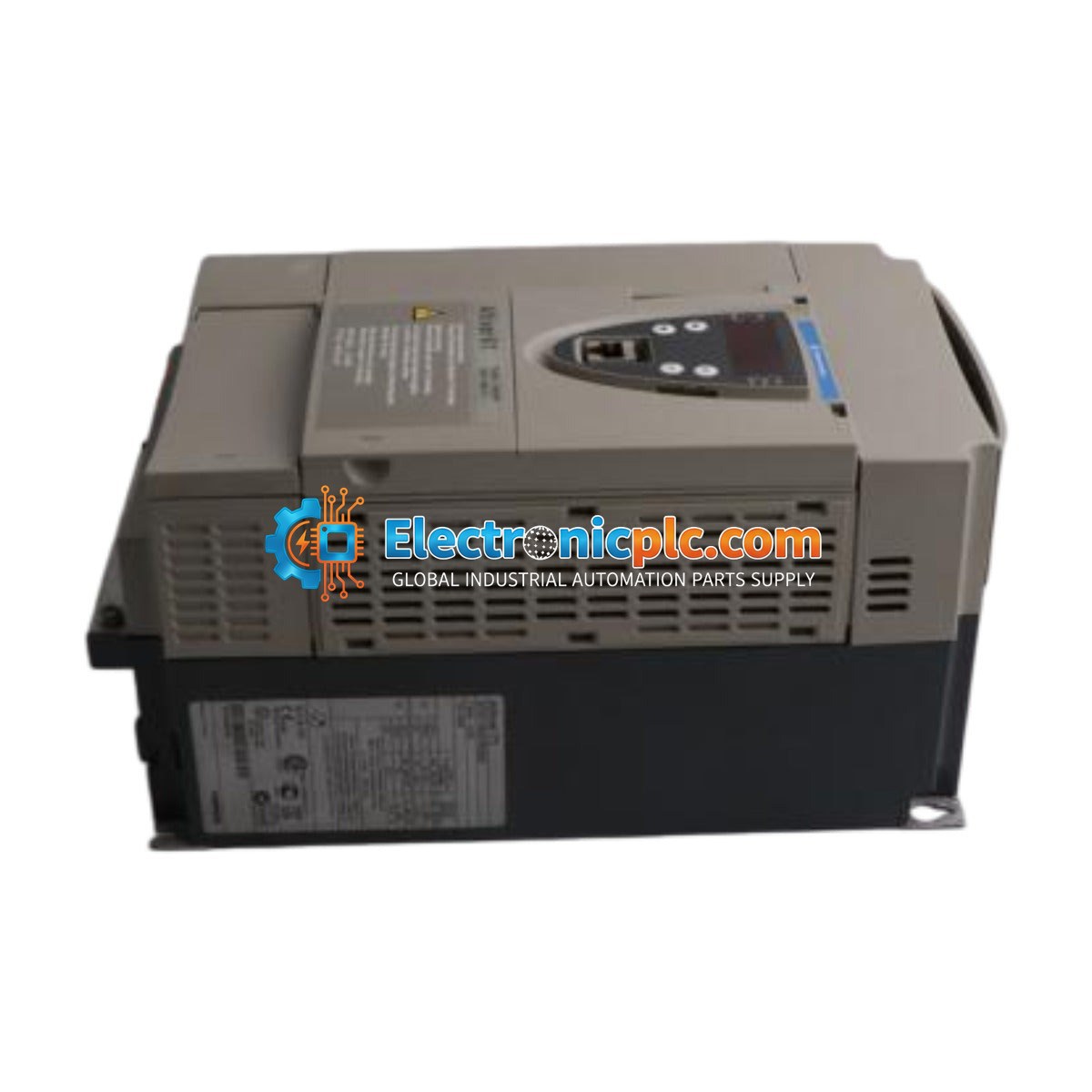

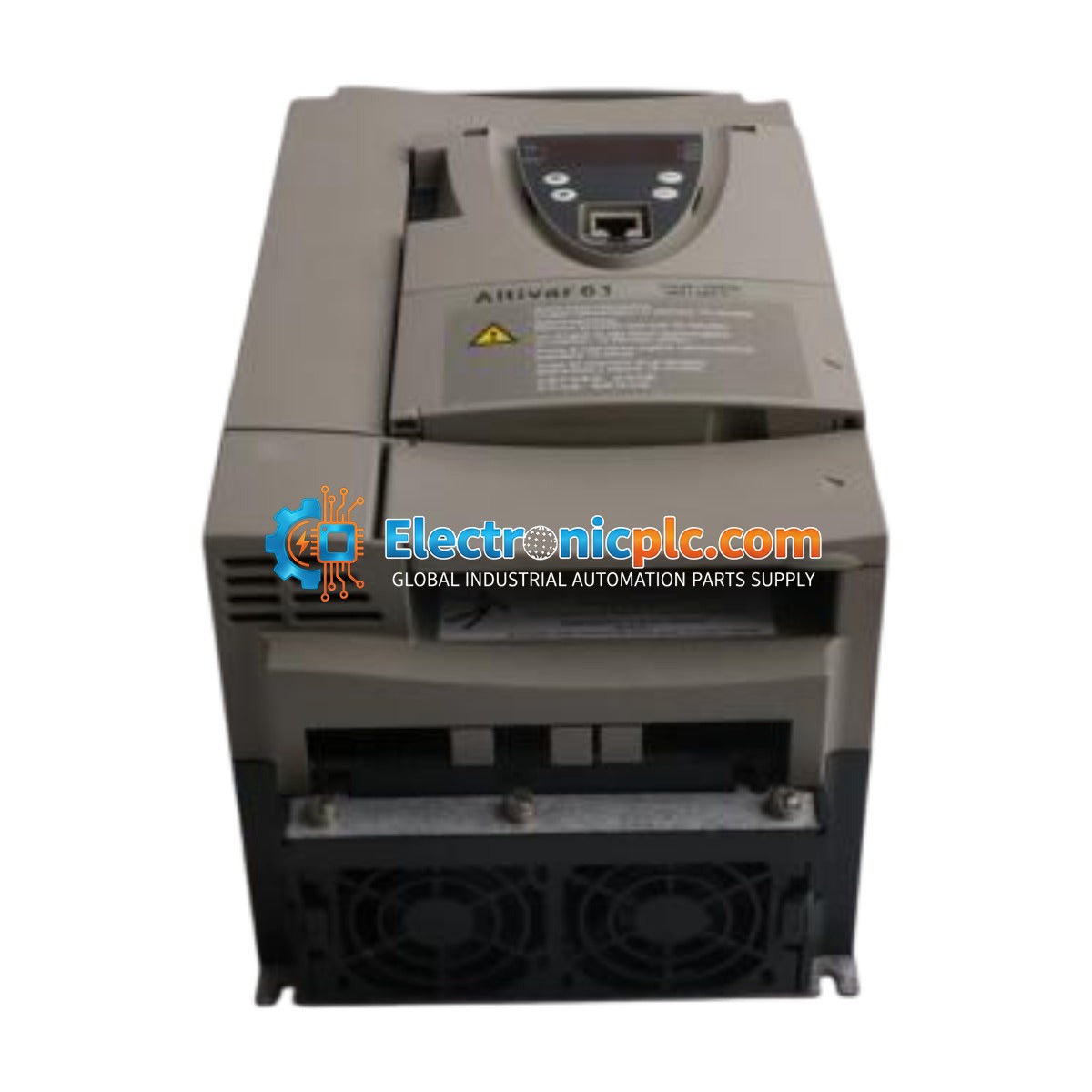

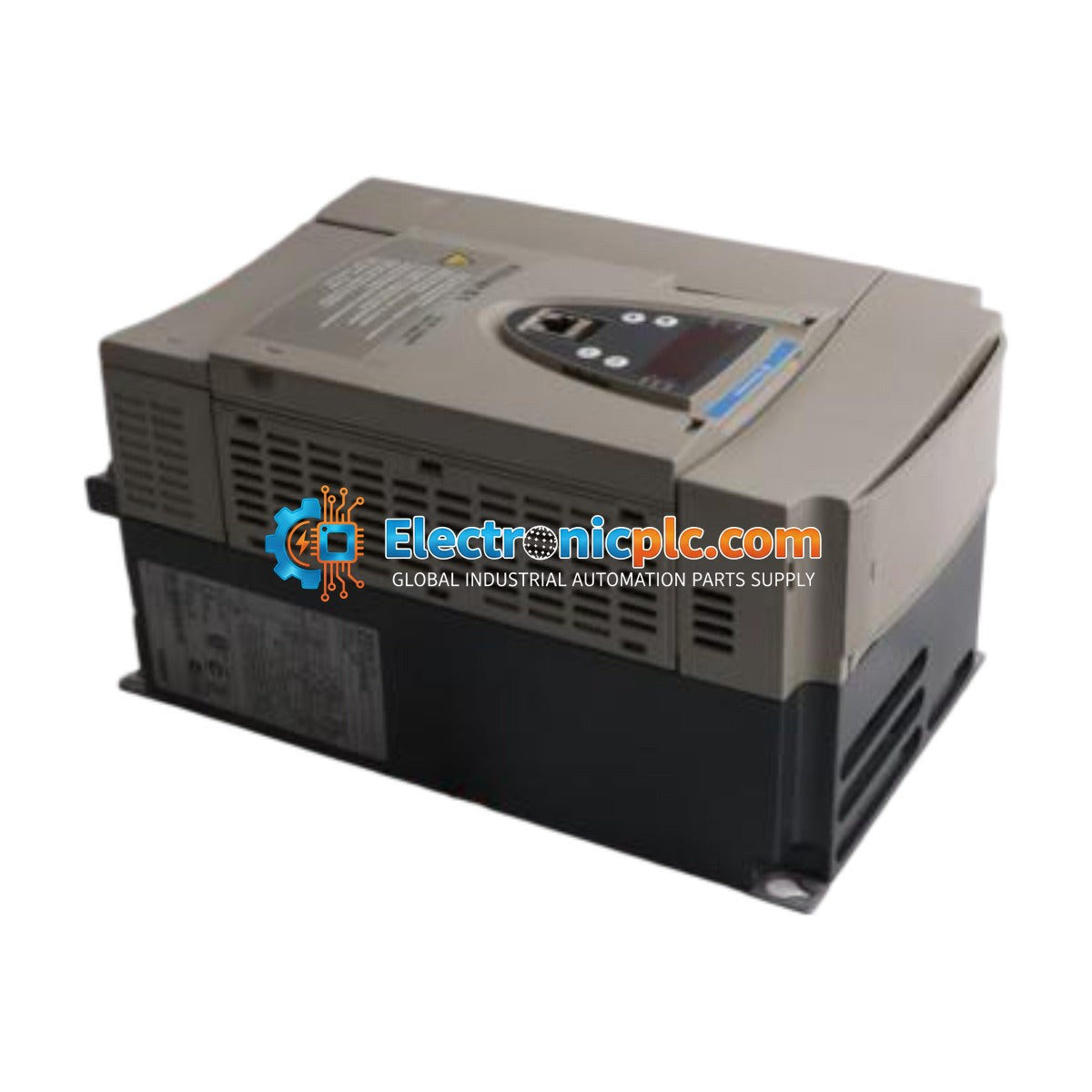

Schneider Altivar 61 ATV61HD37N4 Variable Speed Drive

Schneider Altivar 61 ATV61HD37N4 Variable Speed Drive

Description

The Schneider Altivar 61 ATV61HD37N4 is a high-performance variable speed drive (VSD) designed for three-phase asynchronous motors. Engineered for industrial fluid management, this drive is widely utilized in HVAC, pumping,...

21 people are viewing this right now

Availability: Low stock: 9 left

SKU: ATV61HD37N4
Vendor: Schneider
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Altivar 61 ATV61HD37N4 is a high-performance variable speed drive (VSD) designed for three-phase asynchronous motors. Engineered for industrial fluid management, this drive is widely utilized in HVAC, pumping, and ventilation applications across sectors such as oil and gas, power generation, and mining. It features advanced motor control algorithms to optimize energy efficiency while reducing mechanical stress on drive trains, thereby extending the lifespan of connected equipment.

Features

  • Supports motor power ratings of 37 kW (50 hp) for normal duty and 30 kW (40 hp) for heavy duty.
  • Integrated Class A EMC filters for conducted and radiated interference suppression.
  • Supports multiple control profiles including V/f (2-point, 5-point, or quadratic) and flux vector control.
  • Built-in Modbus and CANopen communication protocols with expansion capabilities for Profibus DP, DeviceNet, and Ethernet/IP.
  • Comprehensive protection suite including thermal monitoring, surge suppression, and phase-to-phase short circuit protection.
  • Modular architecture allowing for easy integration of I/O expansion cards.

Applications

The ATV61HD37N4 is specifically optimized for applications requiring precise torque control and energy management, including centrifugal pumps, industrial fans, compressors, and HVAC air handling units.

Technical Specifications

Model ATV61HD37N4
Input Voltage 380 to 480 VAC (3-Phase)
Network Frequency 50/60 Hz
Continuous Output Current 74 A at 380 V
Transient Current 81.4 A for 60 s
Output Frequency 0.1 to 500 Hz
Operating Temperature -10 to +50 deg C (up to 60 deg C with derating)
Storage Temperature -25 to +70 deg C
Protection Rating IP 20

Installation Guidelines

  • Ensure adequate ventilation; the drive utilizes forced convection cooling and requires clearance for airflow.
  • Mount the drive vertically on a flat, vibration-free surface.
  • Use shielded cables for motor connections to comply with EMC requirements and minimize noise.
  • Verify that the line voltage matches the drive input rating (380-480 VAC) before applying power.
  • Always disconnect power and wait for the internal capacitors to discharge (refer to the status LED) before performing maintenance or wiring changes.
  • Ensure proper grounding of the drive chassis to the main plant earth bus to prevent electrical hazards.

Compliance and Certifications

The ATV61HD37N4 meets international standards including CE, UL, CSA, C-Tick, GOST, and NOM.

FAQ

Can this drive be used with Profibus? Yes, the ATV61HD37N4 supports optional communication modules, including Profibus DP, to integrate into existing industrial networks.

What is the maximum operating temperature? The drive operates between -10 and +50 deg C. Operation up to +60 deg C is possible with appropriate power derating.
