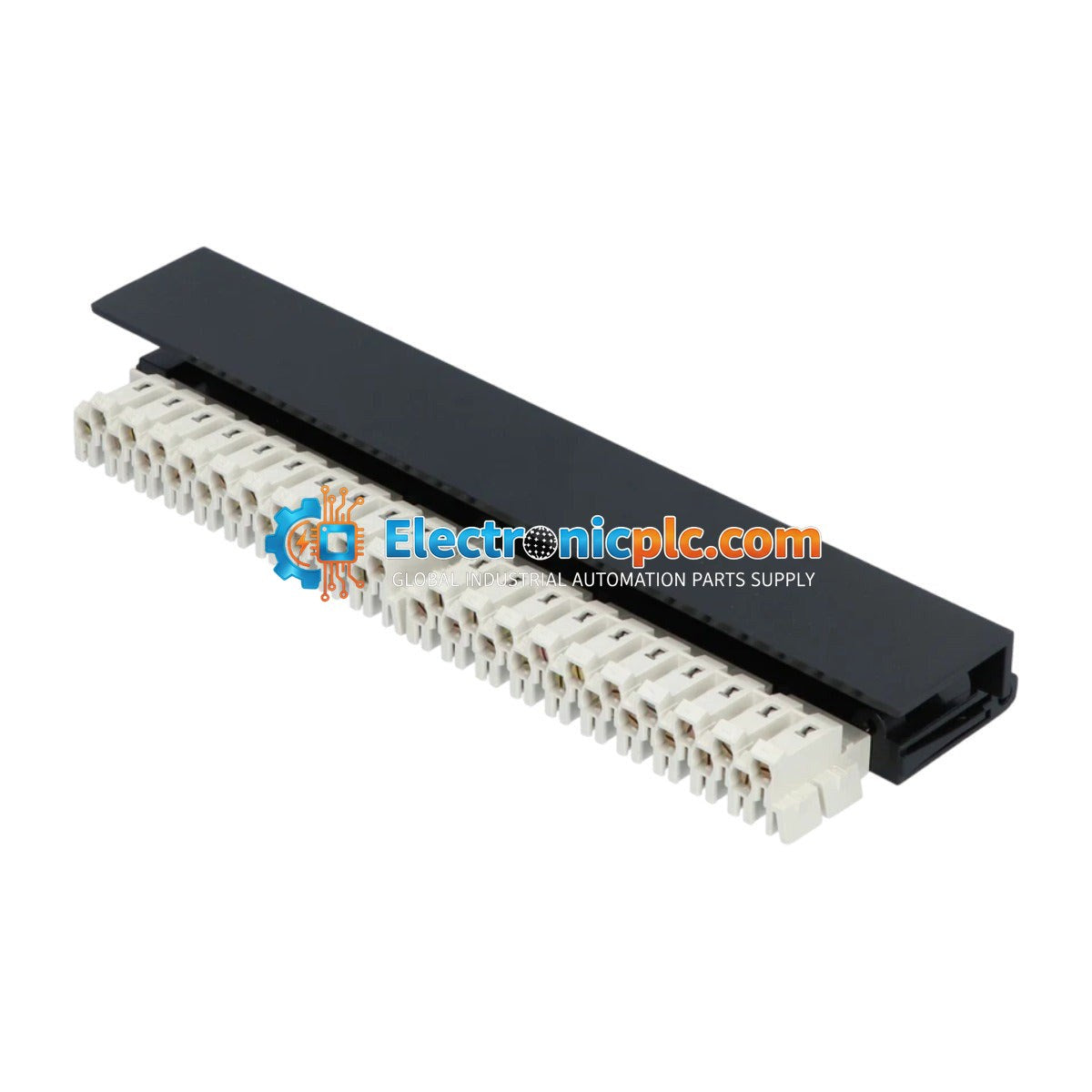

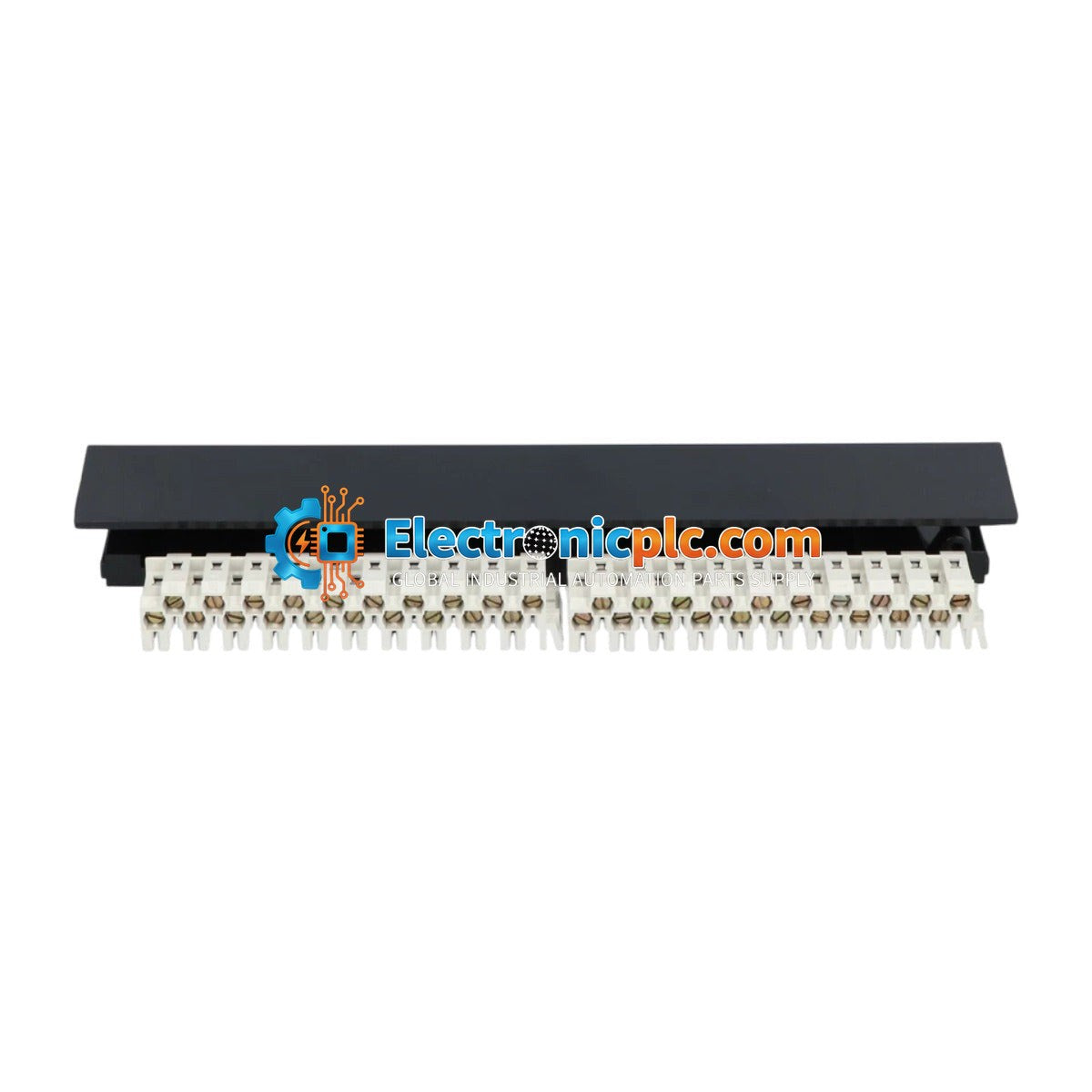

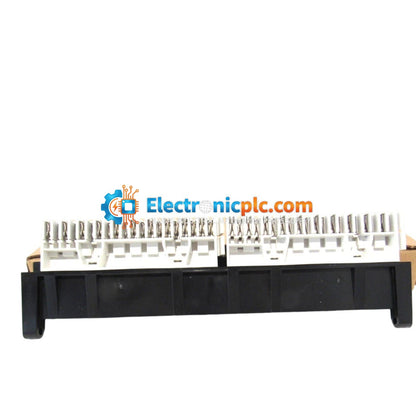

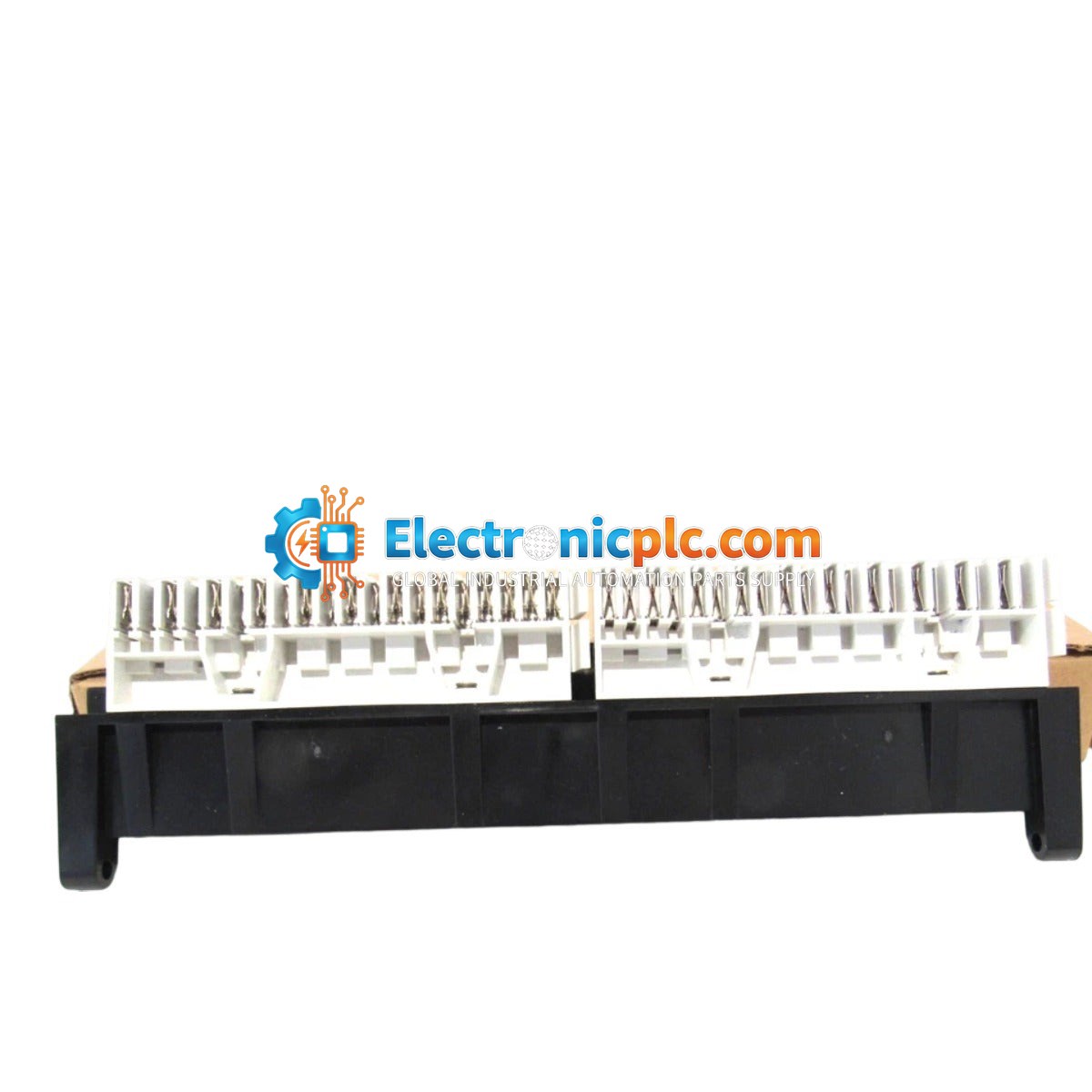

Schneider AS8535000 High/Low Density Connector

Schneider AS8535000 High/Low Density Connector

Description

The Schneider AS8535000 is a robust high/low-density connector engineered for integration within industrial automation architectures, specifically compatible with the Modicon platform. This component facilitates reliable signal and data transmission for...

27 people are viewing this right now

Availability: Low stock: 6 left

SKU: AS8535000
Vendor: Schneider
Category: Industrial Connector
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider AS8535000 is a robust high/low-density connector engineered for integration within industrial automation architectures, specifically compatible with the Modicon platform. This component facilitates reliable signal and data transmission for systems requiring up to 800 I/O points. Designed for versatility, it supports both high and low-density configurations, ensuring consistent performance in demanding industrial environments.

Features

  • Designed for seamless integration with the Modicon series platform.
  • Supports high and low-density I/O configurations.
  • Maximum system capacity of 800 I/O points.
  • Durable polycarbonate housing for industrial protection.
  • Secure screw terminal interface for reliable connectivity.

Technical Specifications

Model Schneider AS8535000
Product Type High/Low Density Connector
Product Line Modicon Series
I/O Capacity 800 I/O Points
Mounting Type DIN Rail
Housing Material Polycarbonate
Connection Interface Screw Terminal
Operating Temperature -20 degC to 70 degC
Storage Temperature -40 degC to 85 degC
Humidity Range 5% to 95% (Non-Condensing)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the connector to prevent electrical damage.
  • Mount the unit on a standard DIN rail, ensuring a secure click-in fit to maintain structural integrity.
  • Verify that all screw terminals are tightened to the recommended torque to prevent loose connections and intermittent signal loss.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified -20 degC to 70 degC range.

FAQ

What is the primary function of the AS8535000?

The AS8535000 serves as a high/low-density connector module for the Schneider Modicon series, designed to facilitate reliable I/O connectivity for up to 800 points.

Is this connector suitable for high-density applications?

Yes, the module is specifically engineered to handle both high and low-density I/O requirements within the Modicon platform.

What type of mounting does this module support?

The AS8535000 is designed for standard DIN rail mounting, allowing for efficient installation in industrial control cabinets.
