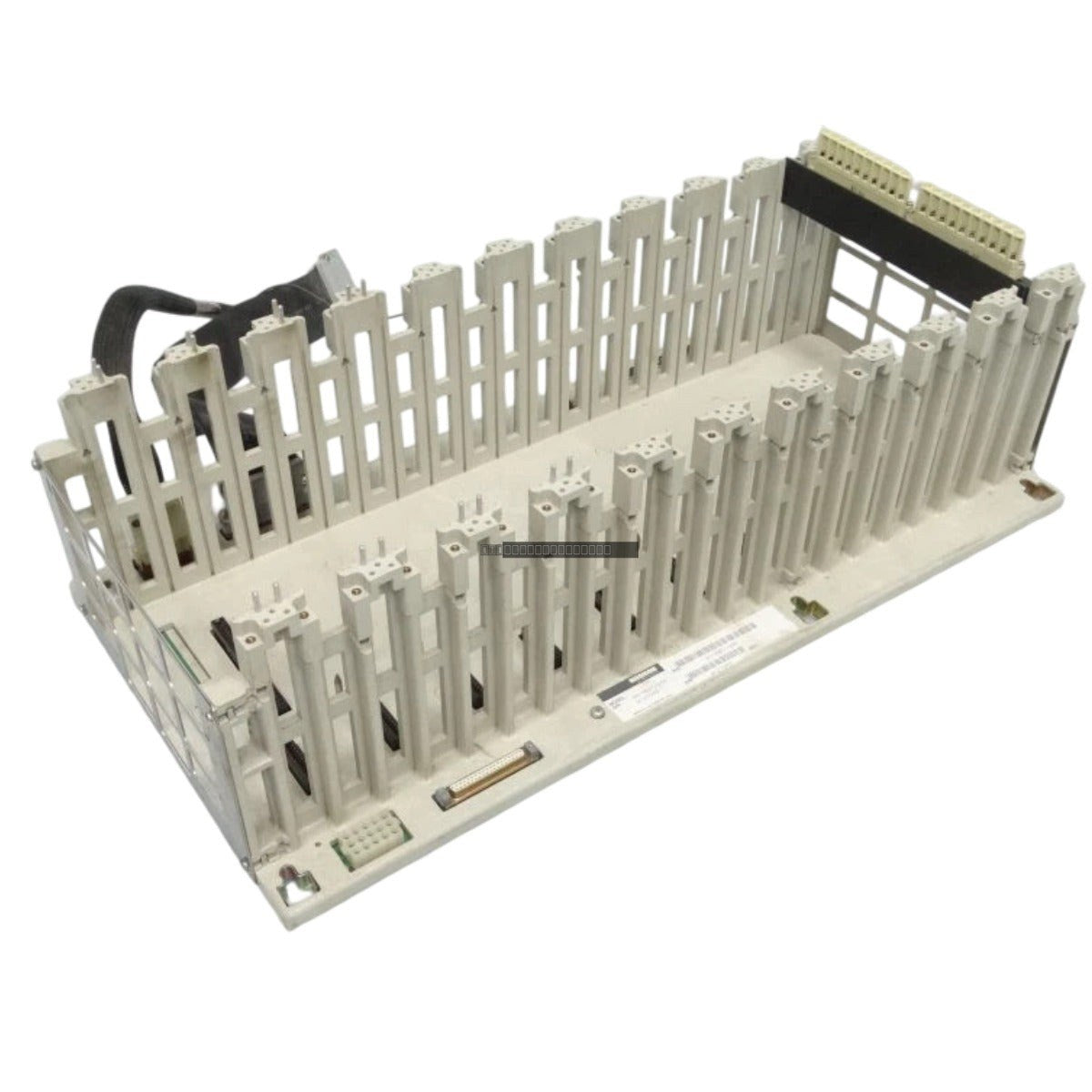

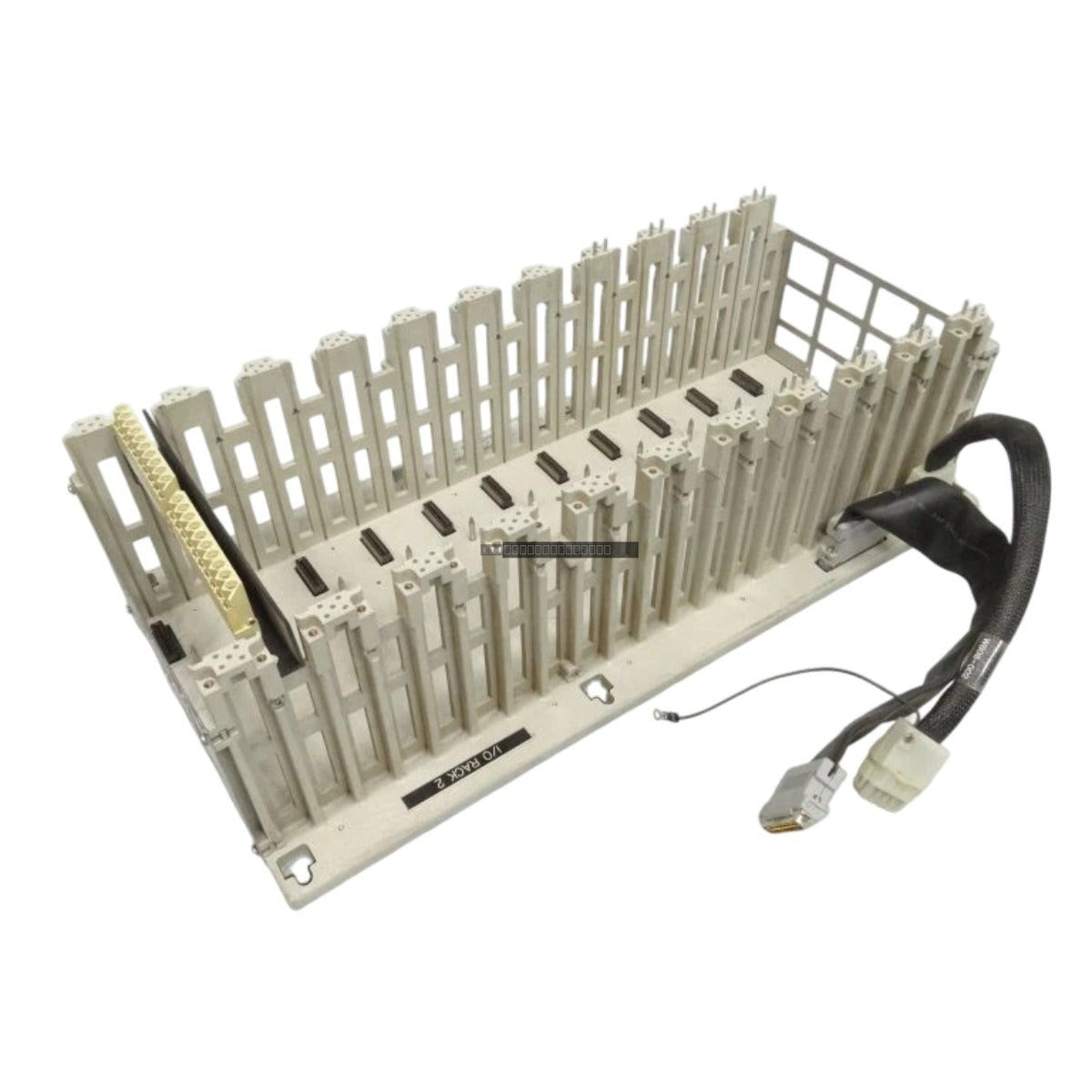

Schneider ASH827100 11-Slot Secondary Rack

Schneider ASH827100 11-Slot Secondary Rack

Description

The Schneider ASH827100 is an 11-slot secondary rack engineered for industrial automation and control system expansion. This unit provides a robust mounting platform for various modules, allowing operators to increase...

26 people are viewing this right now

Availability: Low stock: 1 left

SKU: ASH827100
Vendor: Schneider
Category: PLC Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider ASH827100 is an 11-slot secondary rack engineered for industrial automation and control system expansion. This unit provides a robust mounting platform for various modules, allowing operators to increase system capacity and I/O density without requiring a complete infrastructure overhaul. Its design focuses on reliability and seamless integration into existing control architectures.

Features

  • 11-Slot Capacity: Provides eleven dedicated slots for module installation, supporting system scalability and flexible configuration.
  • Secondary Rack Functionality: Designed specifically for system expansion, enabling the addition of extra modules to meet growing process requirements.
  • Compact Footprint: Features a 27-inch width, balancing high module density with space-efficient panel mounting.
  • Industrial-Grade Construction: Built with durable materials to ensure long-term stability and performance in demanding industrial environments.
  • Modular Installation: Engineered for straightforward mounting, facilitating efficient system setup and minimizing maintenance-related downtime.

Technical Specifications

Model ASH827100
Rack Type Secondary Rack
Number of Slots 11 Slots
Rack Width 27 inches
Construction Industrial-grade metal chassis

Installation Guidelines

  • Mounting: Ensure the rack is securely mounted to a vibration-free, grounded backplane or enclosure panel.
  • Grounding: Maintain a low-impedance ground connection to the cabinet chassis to ensure proper noise immunity and safety.
  • Environment: Install in an area with adequate airflow to prevent heat accumulation; ensure the ambient temperature remains within the rated operating range for the modules installed.
  • Handling: Use standard ESD precautions when inserting or removing modules from the rack slots to prevent damage to sensitive electronic components.
  • Power: Always disconnect power from the rack and associated modules before performing any maintenance, module replacement, or wiring adjustments.

FAQ

What is the primary function of the ASH827100?

The ASH827100 is a secondary rack used to expand the capacity of an existing Schneider industrial automation system by providing 11 additional slots for I/O or control modules.

Is this rack compatible with all modules?

This rack is designed for specific Schneider automation series. Please verify your existing module compatibility with the ASH827100 rack backplane specifications before installation.
