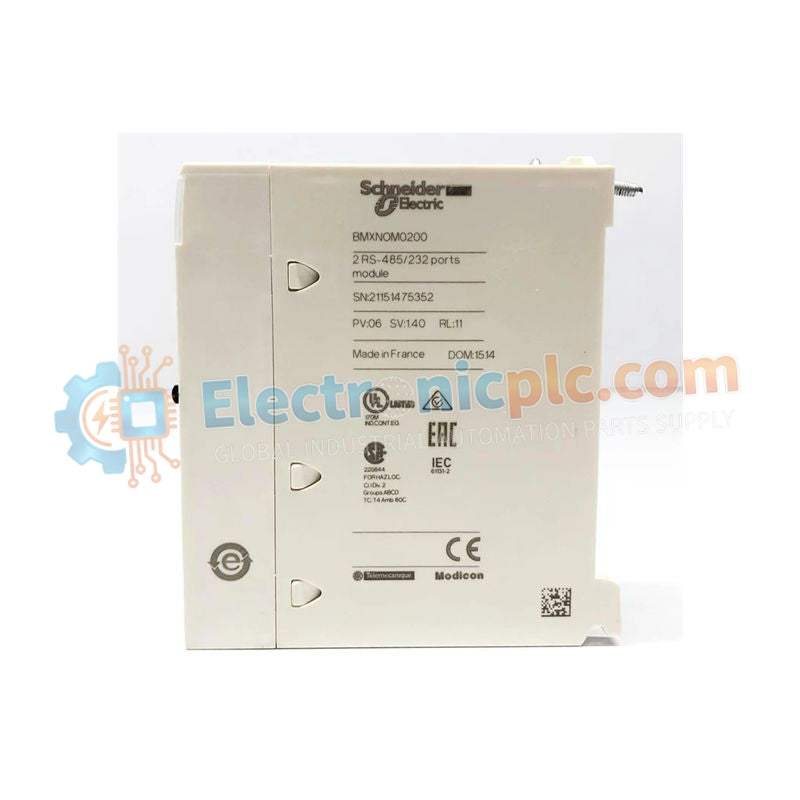

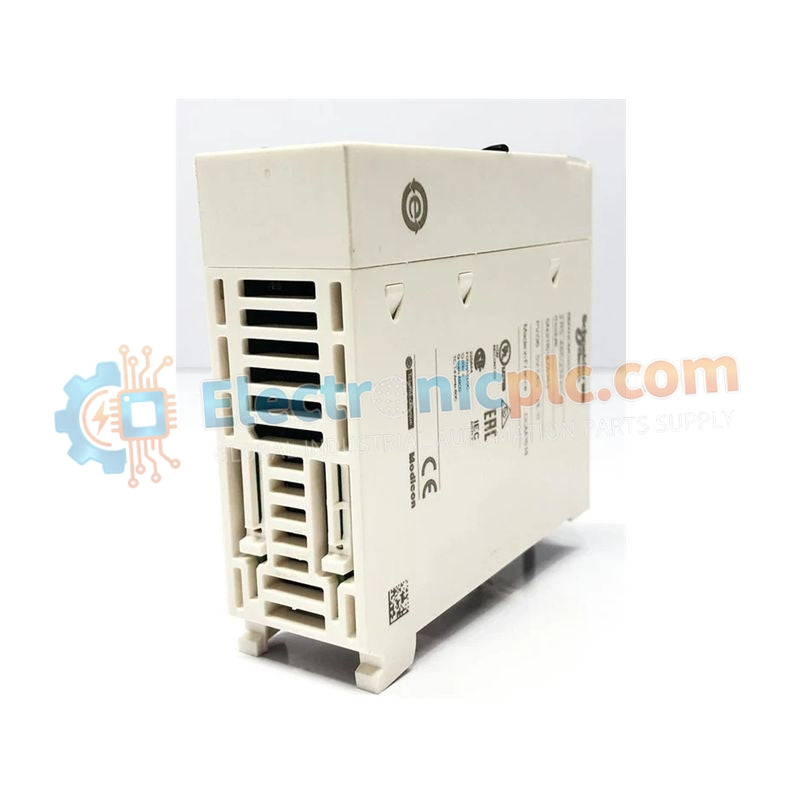

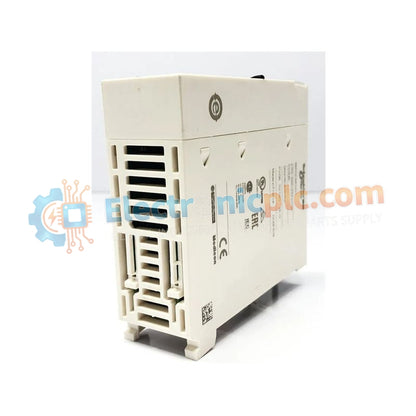

Schneider BMXNOM0200 Communication Module

Schneider BMXNOM0200 Communication Module

Product Description

The BMXNOM0200 is a dual-port serial communication module for the Schneider Electric Modicon X80 platform, compatible with Modicon M340 and Modicon M580 PAC systems.

It provides two independent serial communication ports supporting RS-232 and RS-485...

28 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXNOM0200
Vendor: Schneider
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The BMXNOM0200 is a dual-port serial communication module for the Schneider Electric Modicon X80 platform, compatible with Modicon M340 and Modicon M580 PAC systems.

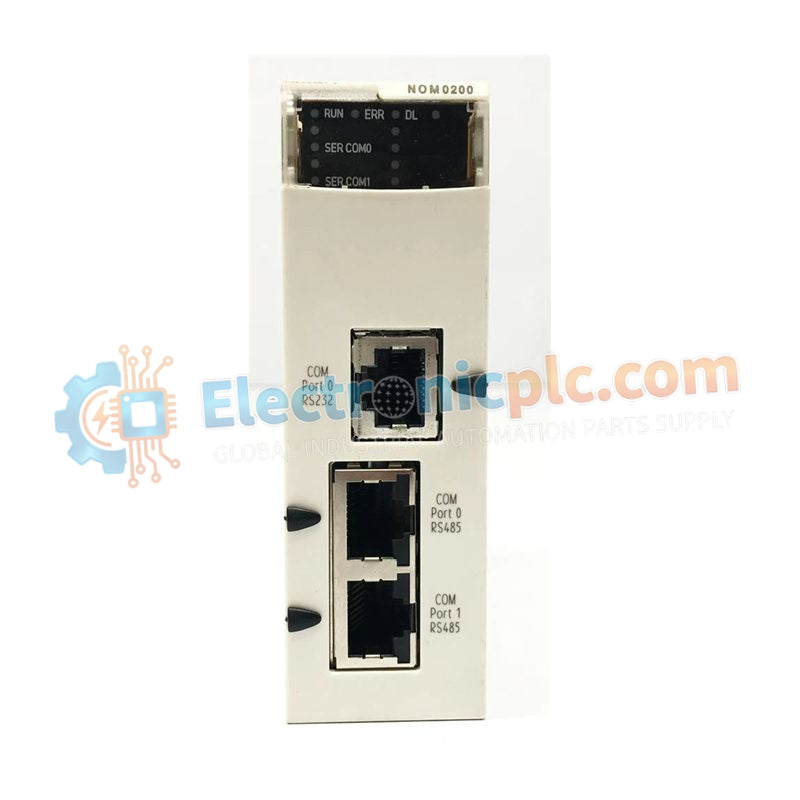

It provides two independent serial communication ports supporting RS-232 and RS-485 interfaces for connecting legacy field devices, including drives, meters, barcode scanners, and third-party instrumentation. The module supports Modbus RTU/ASCII and Character Mode protocols, enabling seamless integration of legacy automation equipment into modern control architectures.

By offloading serial communication processing from the CPU, the BMXNOM0200 helps maintain stable system cycle times even under heavy network traffic.

Detailed Technical Specifications

Parameter Specification
Model BMXNOM0200
Platform Modicon X80 / M340 / M580
Ports 2
Physical Interface RJ45 connectors
Communication Standards RS-232 / RS-485 (software selectable)
Protocols Modbus RTU, Modbus ASCII, Character Mode
Baud Rate 0.3 – 115.2 kbit/s
Flow Control DTR/DSR, RTS/CTS, None
RS-232 Cable Length ≤ 15 m
RS-485 Cable Length ≤ 1000 m
Isolation 500 V DC (ports to backplane)
Current Consumption 80 mA @ 24 V DC; 150 mA @ 3.3 V DC
Diagnostics RUN/ERR and RX/TX LEDs
Operating Temperature 0 °C to +60 °C

Applications

  • Energy management systems

  • Power distribution monitoring

  • Drive and motor control integration

  • RTU and protection relay communication

  • HMI and legacy serial device interfacing

Frequently Asked Questions

Q1: Does the module require external power?
No. The module is powered directly via the X80 backplane supply.

Q2: Can both ports operate simultaneously?
Yes. Each port is independently configurable. For example, one port can operate as a Modbus RTU Master while the other operates in ASCII character mode.
