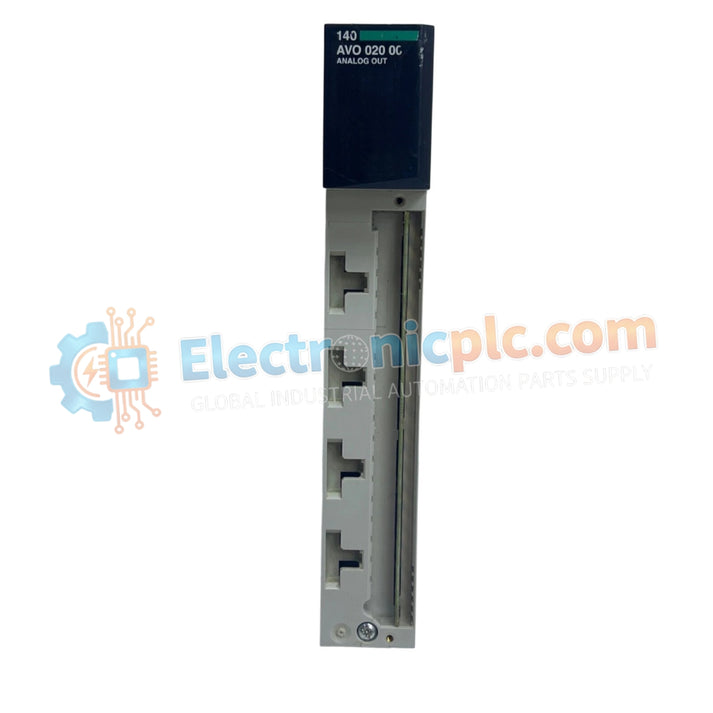

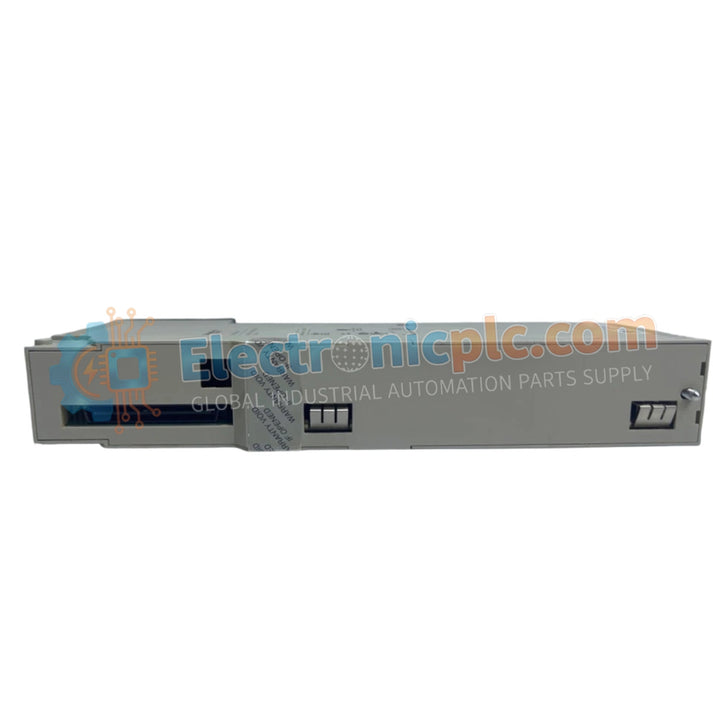

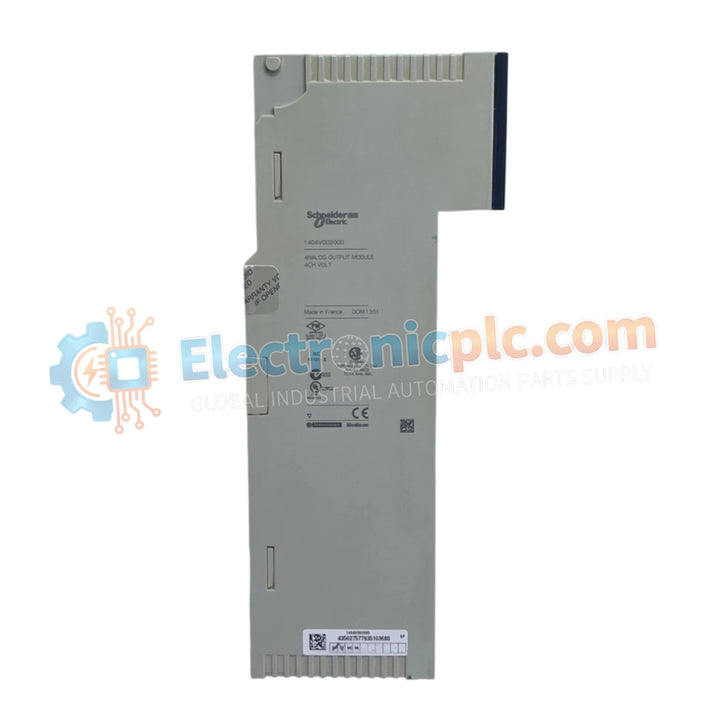

Schneider Electric 140AVO02000 Modicon Quantum Analog Output Module

Schneider Electric 140AVO02000 Modicon Quantum Analog Output Module

Product Overview

The Schneider Electric 140AVO02000 functions as a high-precision voltage output interface for the Modicon Quantum PLC system. This module provides four independent channels capable of generating stable analog...

26 people are viewing this right now

Availability: Low stock: 94 left

SKU: 140AVO02000
Vendor: Schneider
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric 140AVO02000 functions as a high-precision voltage output interface for the Modicon Quantum PLC system. This module provides four independent channels capable of generating stable analog voltage signals for controlling proportional valves, variable frequency drives (VFDs), and other industrial actuators. It converts digital commands from the CPU into accurate voltage outputs, ensuring smooth and reliable control of critical process variables.

Technical Specifications

Parameter Specification
Series Modicon Quantum
Output Channels 4 Isolated Analog Outputs
Output Range -10V to +10V, 0–10V, 1–5V (Software Configurable)
Resolution 12-bit (1 part in 4096)
Isolation 500 Vrms (channel-to-bus)
Bus Current Requirement 240 mA
Operating Temperature 0°C to 60°C (32°F to 140°F)

Engineering Advantages

High-Precision Signal Control
12-bit resolution delivers fine output granularity, ideal for precision motion control, dosing systems, and closed-loop regulation.

Flexible Voltage Ranges
Each channel can be independently configured via software, eliminating the need for external signal converters and reducing hardware complexity.

Superior Electrical Isolation
500 Vrms isolation protects the PLC backplane and CPU from voltage spikes, ground loops, and electrical noise.

Simplified Troubleshooting
Front-panel LED indicators provide immediate diagnostics for channel status and communication faults, reducing maintenance time.

FAQs

Is this module brand new?
Yes, it is supplied as 100% brand new original Schneider Electric equipment in factory packaging.

Can it output 4–20 mA signals?
No, this model is designed for voltage outputs only. Current output applications require a 140ACO series module.

Does it need an external power supply?
The module is powered via the Quantum backplane, but proper field wiring must be verified to ensure correct actuator operation.

Is the output range fixed?
No, the output range is software configurable per channel using PLC programming tools such as Unity Pro or EcoStruxure Control Expert.
