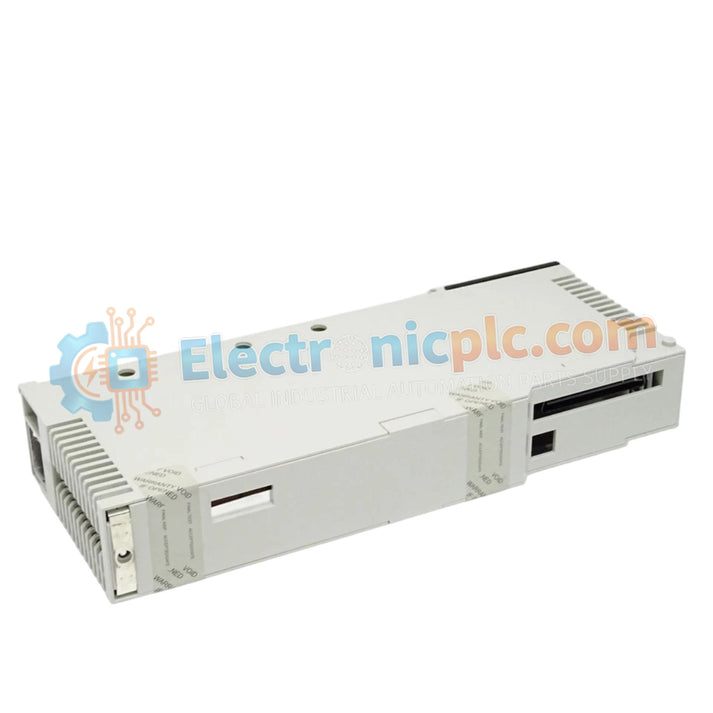

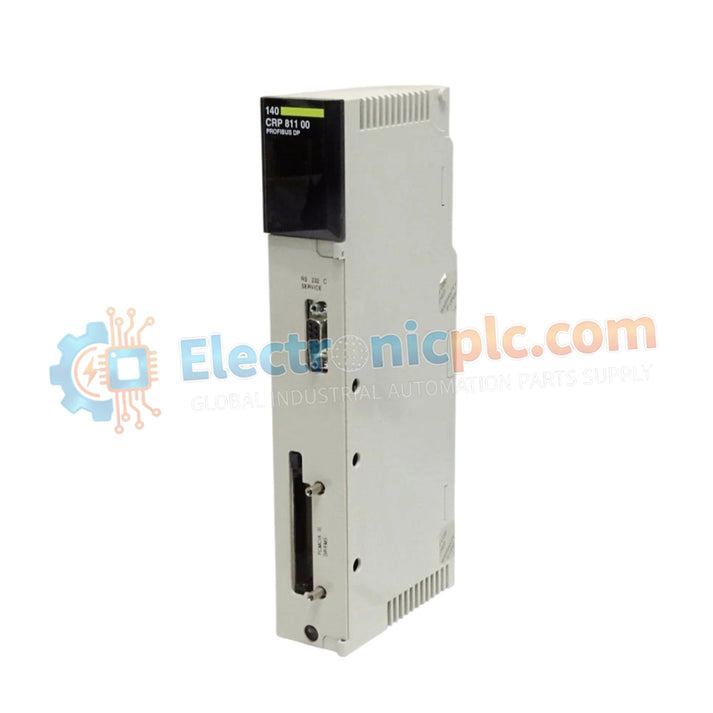

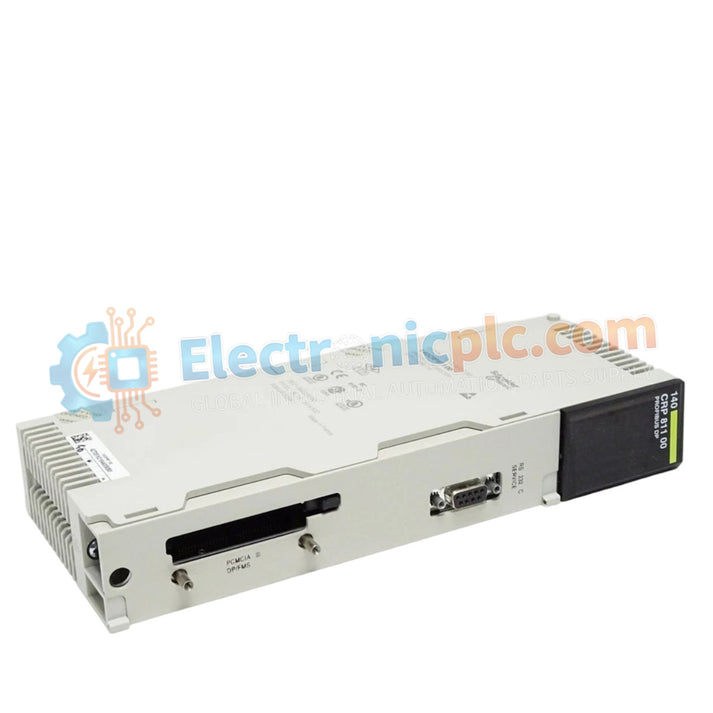

Schneider Electric 140CRP81100 Quantum Profibus DP Master Module

Schneider Electric 140CRP81100 Quantum Profibus DP Master Module

Product Overview

The Schneider Electric 140CRP81100 is a high-performance Profibus DP Master (Class 1) module for the Modicon Quantum automation platform. Acting as a “Head” module, it enables the Quantum...

27 people are viewing this right now

Availability: Low stock: 94 left

SKU: 140CRP81100
Vendor: Schneider
Category: Profibus DP Master Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric 140CRP81100 is a high-performance Profibus DP Master (Class 1) module for the Modicon Quantum automation platform. Acting as a “Head” module, it enables the Quantum PLC to control a wide range of Profibus DP slave devices such as drives, sensors, and remote I/O systems. It bridges the Quantum backplane with the fieldbus network, ensuring fast and deterministic communication across multi-vendor industrial environments.

Technical Specifications

Parameter Specification
Series Modicon Quantum
Protocol Profibus DP (Master Class 1)
Baud Rate 9.6 Kbps to 12 Mbps (Auto-detection)
Max Slave Devices Up to 125 per network
Interface Port 9-pin D-Sub (RS-485)
Bus Current Requirement 600 mA
Operating Temperature 0°C to 60°C

Engineering Advantages

Deterministic High-Speed Control
Supports full Profibus DP bandwidth up to 12 Mbps, ensuring low-latency communication for motion control and high-speed process applications.

Multi-Vendor Interoperability
Enables integration with a wide range of third-party devices using the open Profibus DP standard, reducing vendor dependency.

Seamless Network Configuration
Uses standard GSD file-based configuration within engineering software (e.g., EcoStruxure Control Expert), simplifying setup and commissioning.

Rugged Communication Interface
Shielded RS-485 connector design provides strong immunity against EMI in industrial environments with heavy electrical noise.

FAQs

Is this module brand new?
Yes, it is supplied as 100% brand new original Schneider Electric equipment in factory-sealed packaging.

Does it support Profibus PA devices?
No, this module supports Profibus DP only. Profibus PA devices require a DP/PA coupler or segment interface.

Can it operate as a Profibus slave?
No, the 140CRP81100 functions exclusively as a Master (Head) module.

Can multiple modules be used in one rack?
Yes, multiple modules can be installed, provided the rack power supply and CPU communication limits are not exceeded.
