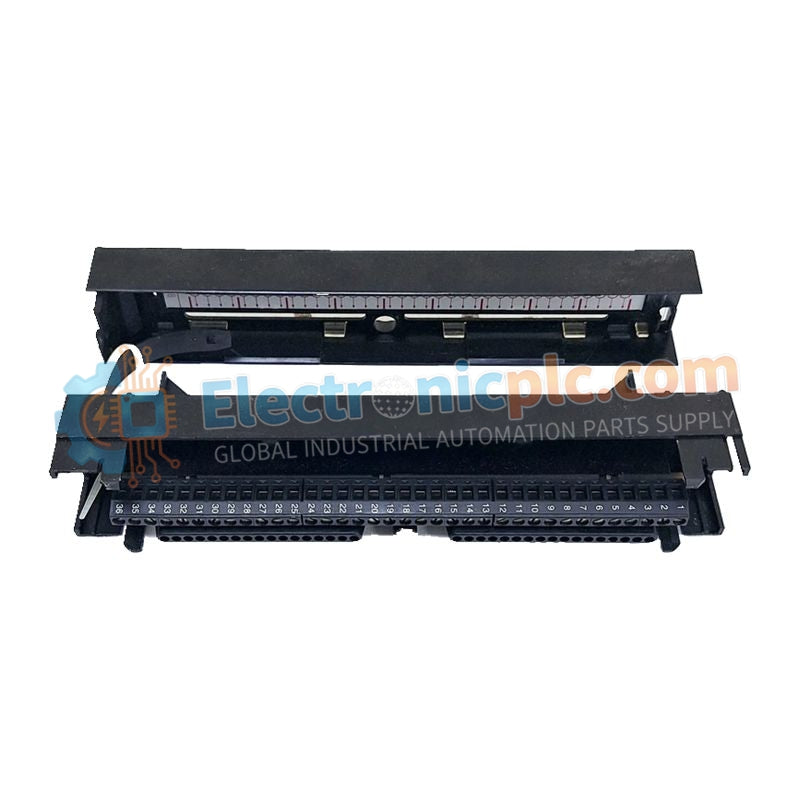

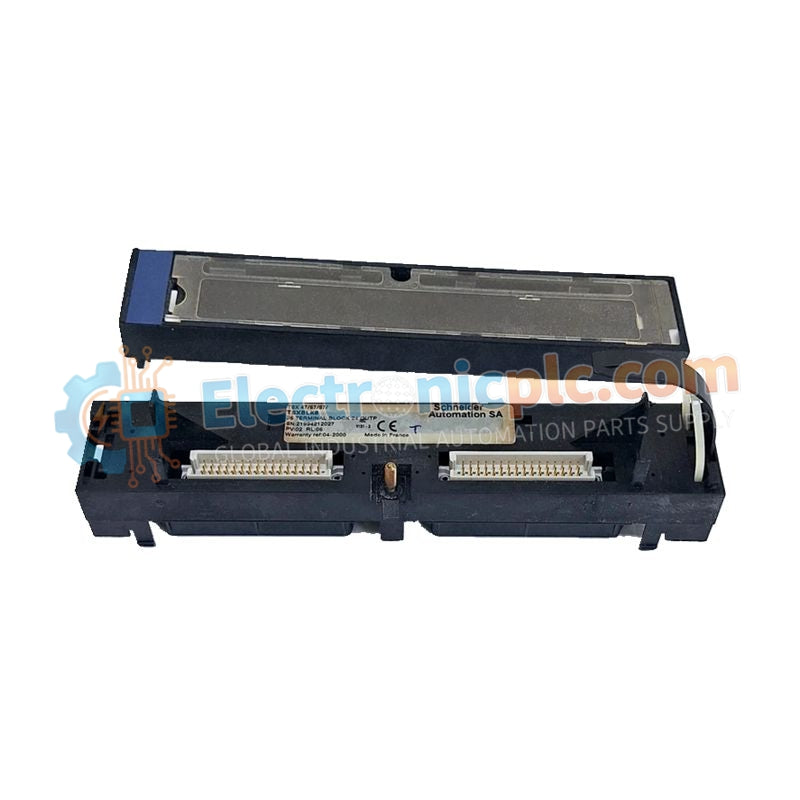

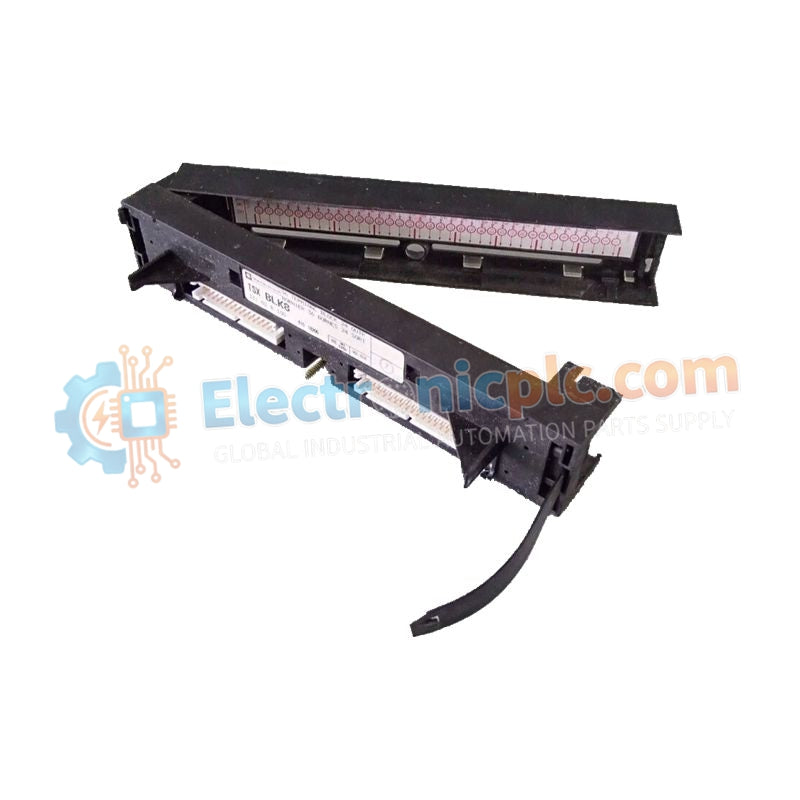

Schneider Electric Advantys Telefast TSXBLK8 Terminal Block

Schneider Electric Advantys Telefast TSXBLK8 Terminal Block

Product Description

The TSXBLK8 is a high-density wiring interface developed by Schneider Electric for the Advantys Telefast interconnection ecosystem. It is specifically designed to support Modicon TSX-series PLC architectures by providing a reliable transition point between...

28 people are viewing this right now

Availability: Low stock: 94 left

SKU: TSXBLK8
Vendor: Schneider
Category: Terminal Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The TSXBLK8 is a high-density wiring interface developed by Schneider Electric for the Advantys Telefast interconnection ecosystem. It is specifically designed to support Modicon TSX-series PLC architectures by providing a reliable transition point between field devices and PLC I/O modules.

The TSXBLK8 simplifies industrial wiring by replacing high-density ribbon cables with secure screw-terminal connections, reducing wiring errors and improving system maintainability. It is fully compatible with legacy Modicon TSX PLC platforms and is widely used in modernization projects where older control systems require reliable field-side termination solutions.

Technical Specifications

Parameter Specification
Product Family Advantys Telefast
Model Number TSXBLK8
Connection Type Screw terminal
Total Connection Points 36 points
Output Capacity 24 discrete outputs
PLC Compatibility TSX47 / TSX67 / TSX87 / TSX107
Mounting Style DIN rail or panel mount
Weight 0.11 kg

Application

The TSXBLK8 is commonly deployed in:

  • Industrial manufacturing control panels

  • Process automation systems

  • Legacy Modicon TSX PLC upgrade projects

  • Motor control and discrete signal distribution systems

The module improves wiring organization and allows technicians to quickly replace field devices while maintaining clear signal labeling and test access.

Technical FAQ

What is the primary benefit of using Telefast with TSXBLK8?
The Telefast system enables pre-wired cable harnesses to connect PLC modules directly to the TSXBLK8 terminal block, reducing manual wiring work and installation time by up to 50%.

Can TSXBLK8 handle AC and DC signals?
It is designed primarily for discrete signals. Users must ensure that voltage and current limits of the connected TSX I/O modules do not exceed the terminal block’s electrical capacity.
