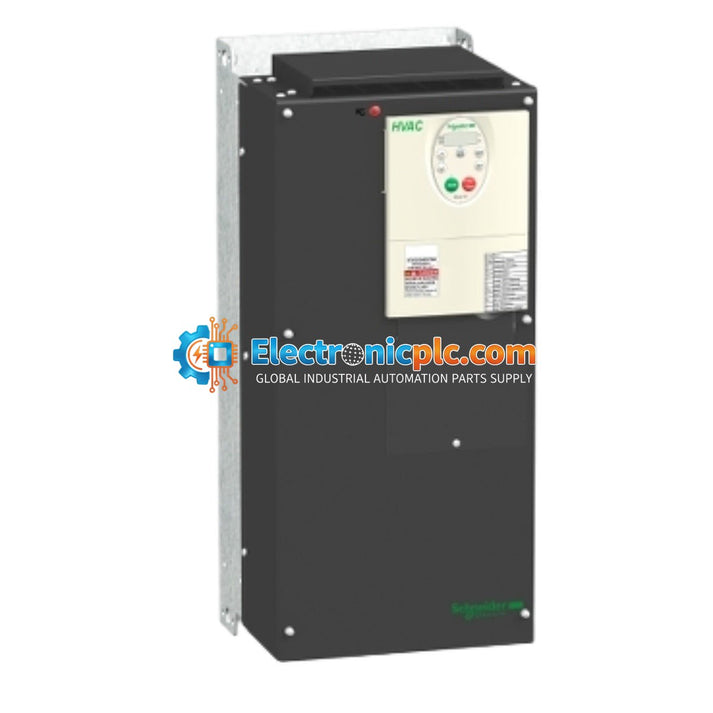

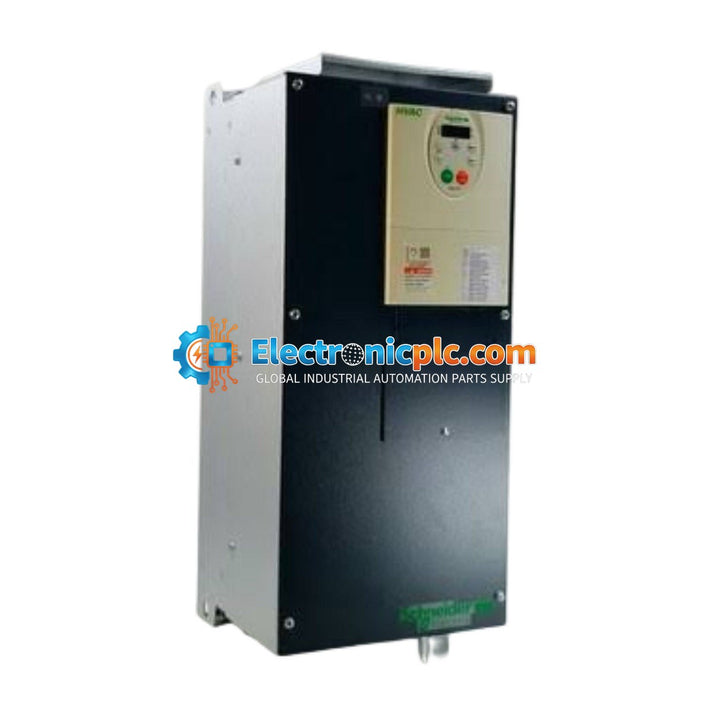

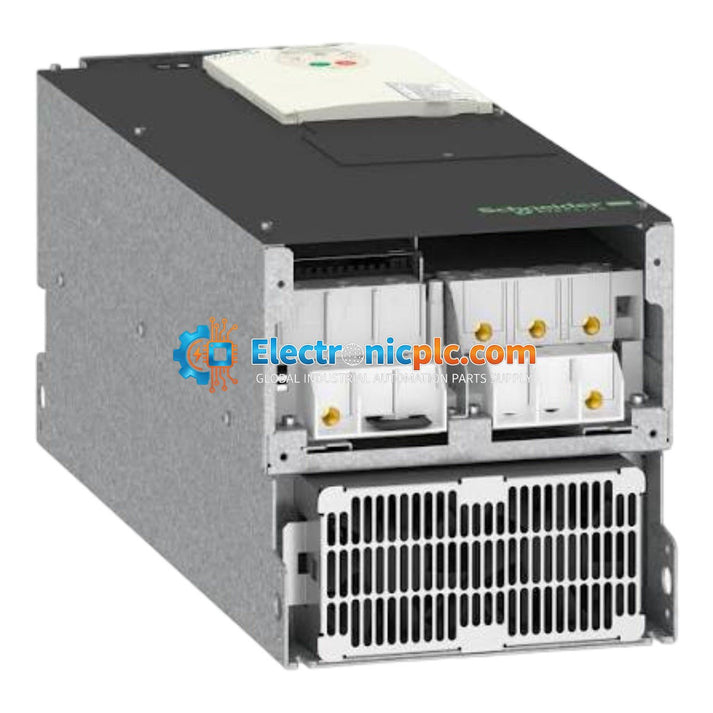

Schneider Electric ATV212HD45N4 Altivar 212 Variable Speed Drive

Schneider Electric ATV212HD45N4 Altivar 212 Variable Speed Drive

Description

The Schneider Electric ATV212HD45N4 is a high-performance variable speed drive from the Altivar 212 series, specifically engineered for the control of asynchronous motors in HVAC and building management applications. This...

25 people are viewing this right now

Availability: Low stock: 7 left

SKU: ATV212HD45N4
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric ATV212HD45N4 is a high-performance variable speed drive from the Altivar 212 series, specifically engineered for the control of asynchronous motors in HVAC and building management applications. This drive offers precise motor speed regulation and energy efficiency, supporting a power output of 45 kW (60 hp) in a robust, IP21-rated enclosure.

Features

  • Optimized for HVAC applications including pumps, fans, and compressors.
  • Integrated EMC filter for electromagnetic compatibility.
  • Wide supply voltage range (380-480V) to accommodate various industrial power grids.
  • Advanced motor control algorithms for asynchronous motor efficiency.
  • Compact design with IP21 protection rating for indoor installation.

Technical Specifications

Product Model ATV212HD45N4
Manufacturer Schneider Electric
Product Range Altivar 212
Motor Power (kW) 45 kW
Motor Power (hp) 60 hp
Supply Voltage 380...480 V (-15...10%)
Supply Voltage Limits 323...528 V
Supply Frequency 50...60 Hz
Output Frequency 0.5...200 Hz
Transient Current 103.4 A (for 60 s)
Degree of Protection IP21

Installation Guidelines

  • Ensure the drive is installed in a clean, dry, and well-ventilated environment to maintain optimal operating temperatures.
  • Maintain required clearance distances around the unit to ensure proper airflow for cooling.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure the drive is properly grounded according to local electrical codes before applying power.
  • Always disconnect the power supply and wait for the internal capacitors to discharge before performing any maintenance or wiring changes.
  • Verify that the supply voltage matches the specifications on the drive nameplate before commissioning.

FAQ

What is the primary application for the ATV212HD45N4?

This drive is specifically designed for HVAC applications, including the control of fans, pumps, and compressors in commercial and industrial buildings.

Does this unit include an EMC filter?

Yes, the ATV212HD45N4 comes with an integrated EMC filter to help meet electromagnetic compatibility standards in industrial environments.
