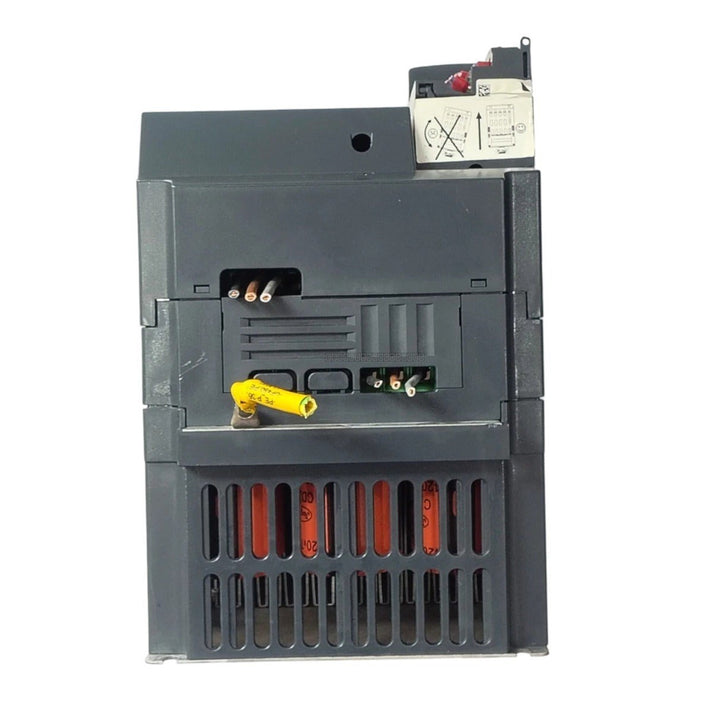

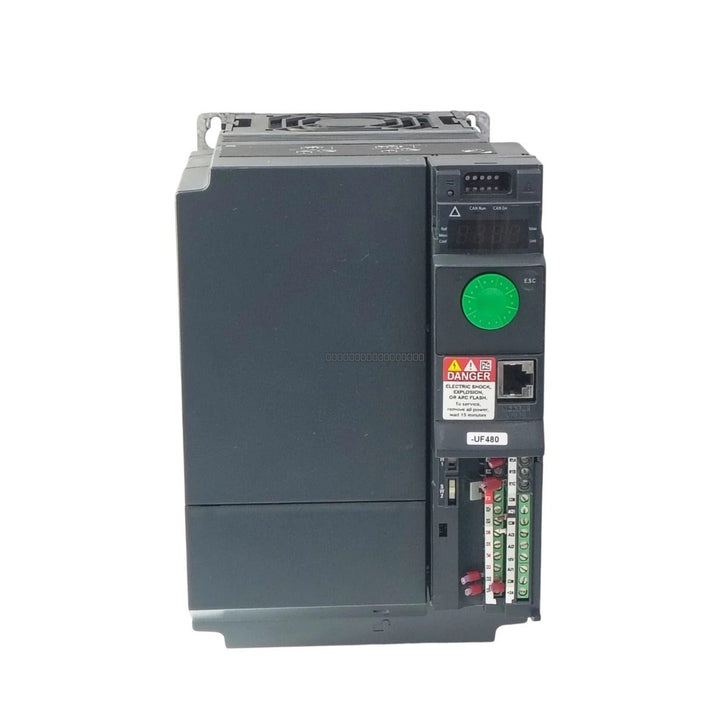

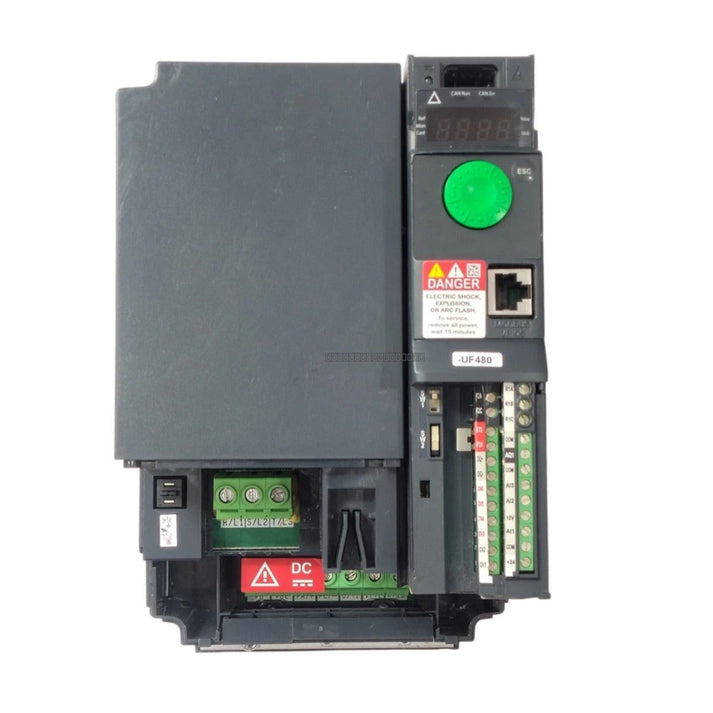

Schneider Electric ATV320U75N4B Altivar Machine Variable Speed Drive

Schneider Electric ATV320U75N4B Altivar Machine Variable Speed Drive

Description

The Schneider Electric ATV320U75N4B is a high-performance variable speed drive from the Altivar Machine ATV320 series. Designed for industrial motor control applications, this drive provides precise speed and torque regulation...

28 people are viewing this right now

Availability: In stock

SKU: ATV320U75N4B
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric ATV320U75N4B is a high-performance variable speed drive from the Altivar Machine ATV320 series. Designed for industrial motor control applications, this drive provides precise speed and torque regulation for three-phase asynchronous and synchronous motors. The book-style design is optimized for compact installation within control panels, making it suitable for a wide range of machinery and automation tasks.

Features

  • Compact book-style form factor for efficient panel space utilization.
  • Designed for 7.5kW motor power applications.
  • Supports a wide supply voltage range from 380V to 500V AC.
  • Integrated control features for complex machine automation.
  • Robust IP20 protection rating for internal cabinet mounting.

Technical Specifications

Product Model ATV320U75N4B
Product Range Altivar Machine ATV320
Power Rating 7.5kW
Output Current Max 17A
Supply Voltage 380 to 500VAC
Supply Frequency 50Hz / 60Hz
Number of Phases Three Phase
IP Rating IP20
Tariff Code 8537101190

Installation Guidelines

  • Ensure the drive is installed in a vertical position to maintain proper cooling airflow.
  • Maintain minimum clearance distances around the unit as specified in the product manual to prevent overheating.
  • Ensure the supply voltage matches the drive specifications before connection.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Verify that the drive is properly grounded to a common earth point to ensure safety and signal integrity.
  • Always disconnect power and wait for the internal capacitors to discharge before performing any wiring or maintenance.

FAQ

What is the primary application for the ATV320U75N4B?
This drive is intended for industrial machine control, including material handling, packaging, textile machinery, and pumping applications where precise speed control is required.

Does this drive support three-phase power?
Yes, the ATV320U75N4B is designed for three-phase power input and output.
