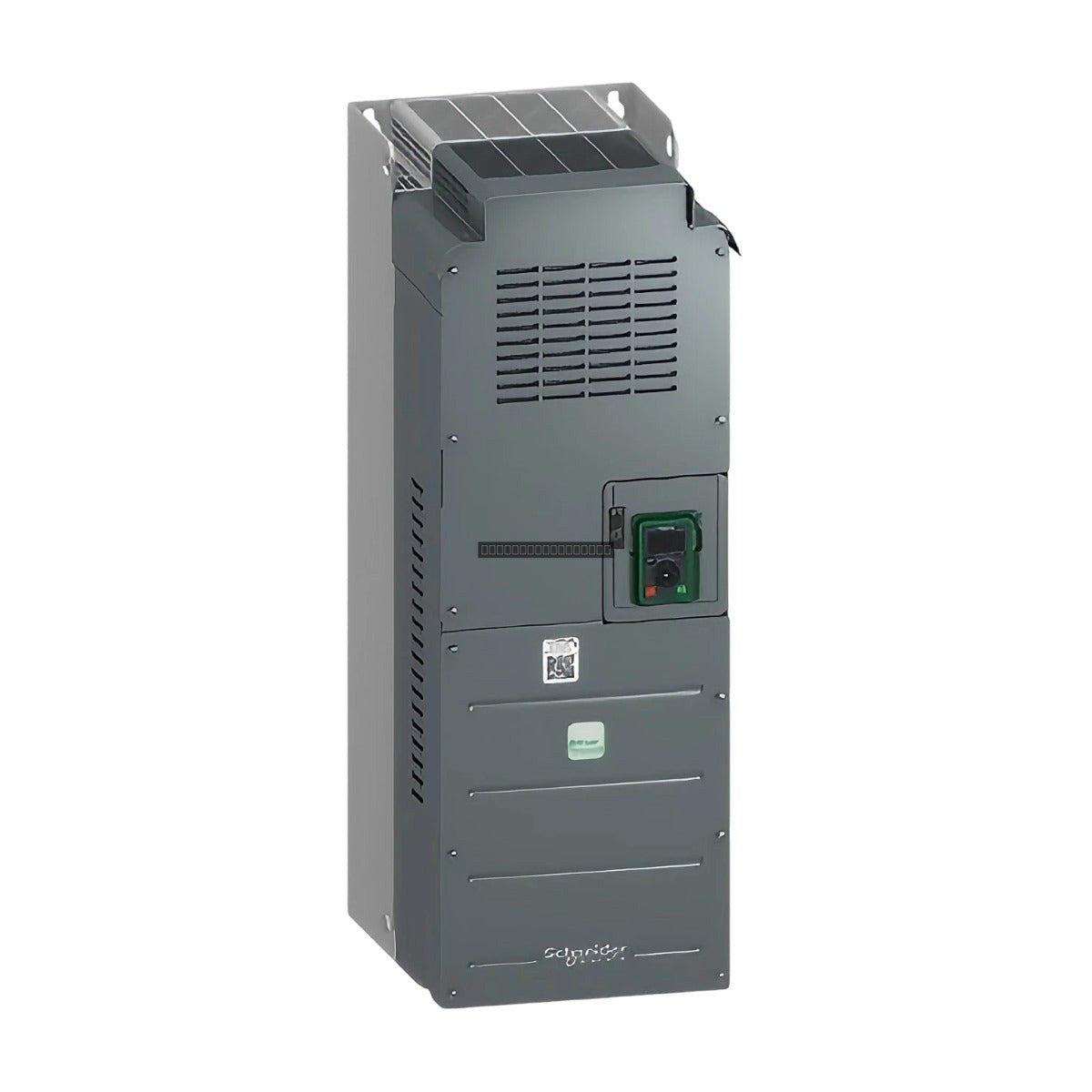

Schneider Electric ATV610C16N4 Altivar Process Variable Speed Drive

Schneider Electric ATV610C16N4 Altivar Process Variable Speed Drive

Description

The Schneider Electric Altivar Process ATV610C16N4 is a high-performance variable speed drive designed for industrial motor control applications. Part of the Easy Altivar 610 series, this drive provides reliable speed...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: ATV610C16N4
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric Altivar Process ATV610C16N4 is a high-performance variable speed drive designed for industrial motor control applications. Part of the Easy Altivar 610 series, this drive provides reliable speed and torque regulation for three-phase asynchronous motors. It is engineered to optimize energy efficiency and process control in a wide range of industrial environments, offering robust operation within a 380 to 480V power supply range.

Features

  • Designed for 3-phase motor control applications.
  • Supports a wide output frequency range from 0.1 to 500 Hz.
  • Integrated protection features for motor and drive safety.
  • Optimized for energy efficiency in industrial process environments.
  • Compact IP20-rated enclosure suitable for cabinet mounting.

Applications

This drive is suitable for various industrial sectors, including water and wastewater treatment, HVAC systems, material handling, and general machine automation where precise speed control of 3-phase induction motors is required.

Technical Specifications

Product Model ATV610C16N4
Component Name Altivar 610
Power Supply Voltage 380...480 V (- 15...10 %)
Motor Power (kW) 45 kW at 380...480 V
Motor Power (hp) 60 hp at 380...480 V
Phase 3 phases
Output Frequency 0.1...500 Hz
Nominal Switching Frequency 2.5 kHz
Degree of Protection IP20

Installation Guidelines

  • Ensure the drive is mounted in a vertical position to allow for proper heat dissipation.
  • Maintain adequate clearance around the unit for ventilation as specified in the manufacturer's manual.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure all power connections are tightened to the specified torque values to prevent overheating.
  • Always disconnect the power supply and wait for the internal capacitors to discharge before performing any maintenance or wiring tasks.
  • Verify that the supply voltage matches the drive's rated input voltage before energizing.

FAQ

What is the primary function of the ATV610C16N4?
This device is a variable speed drive used to control the speed and torque of 3-phase asynchronous motors in industrial processes.

What is the enclosure rating for this drive?
The ATV610C16N4 features an IP20 protection rating, making it suitable for installation within an electrical control cabinet.

Can this drive be used with single-phase power?
No, this specific model is designed for 3-phase power input and output.
