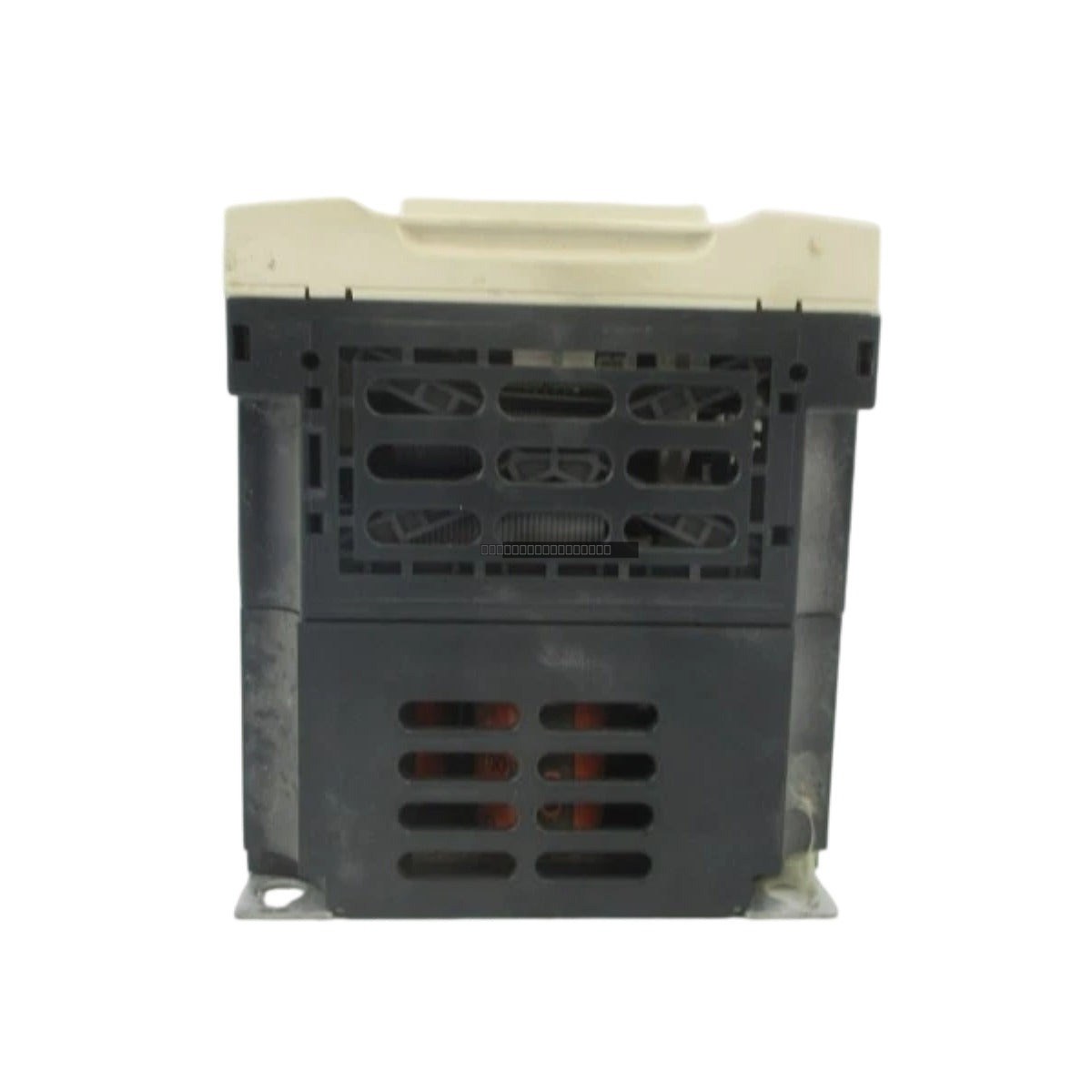

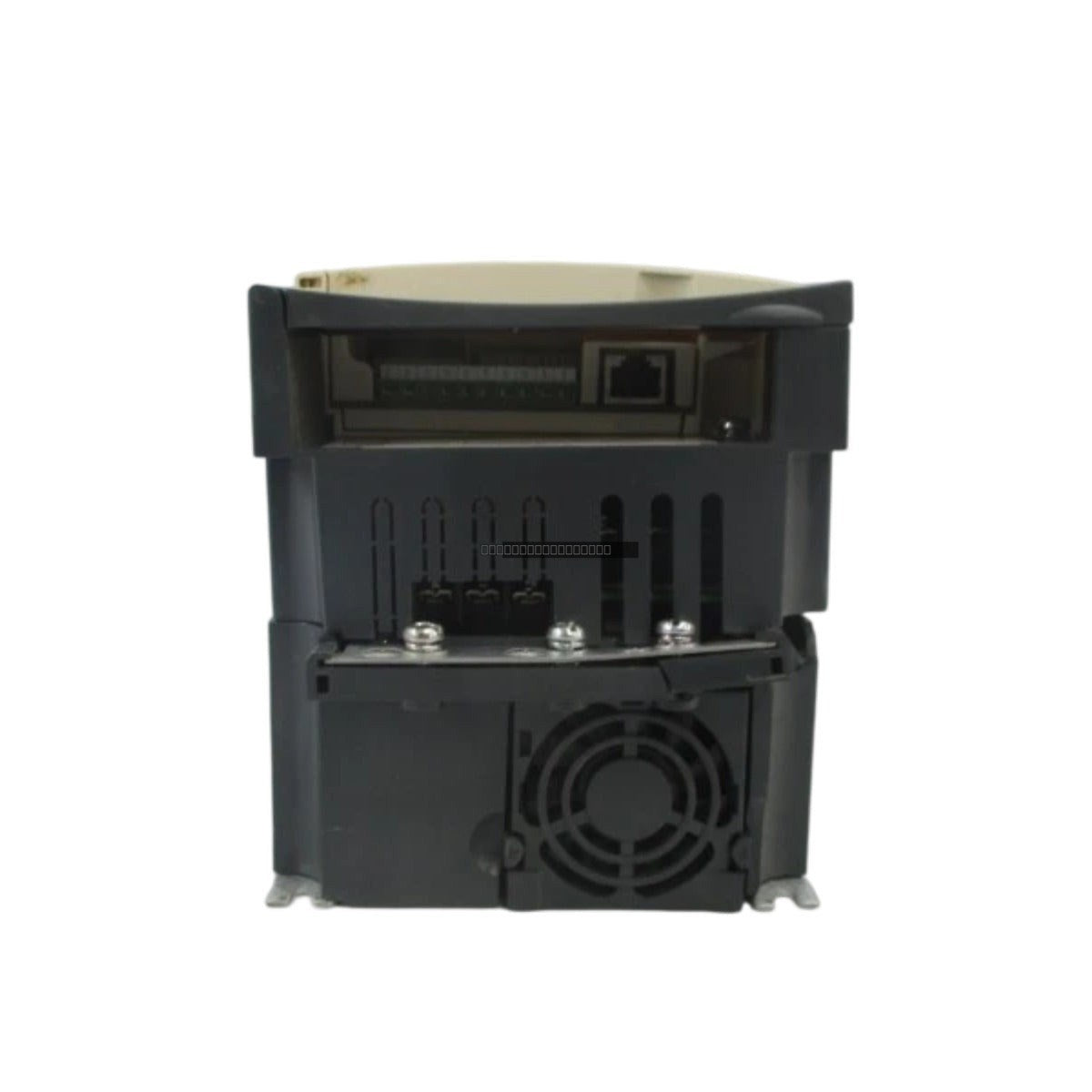

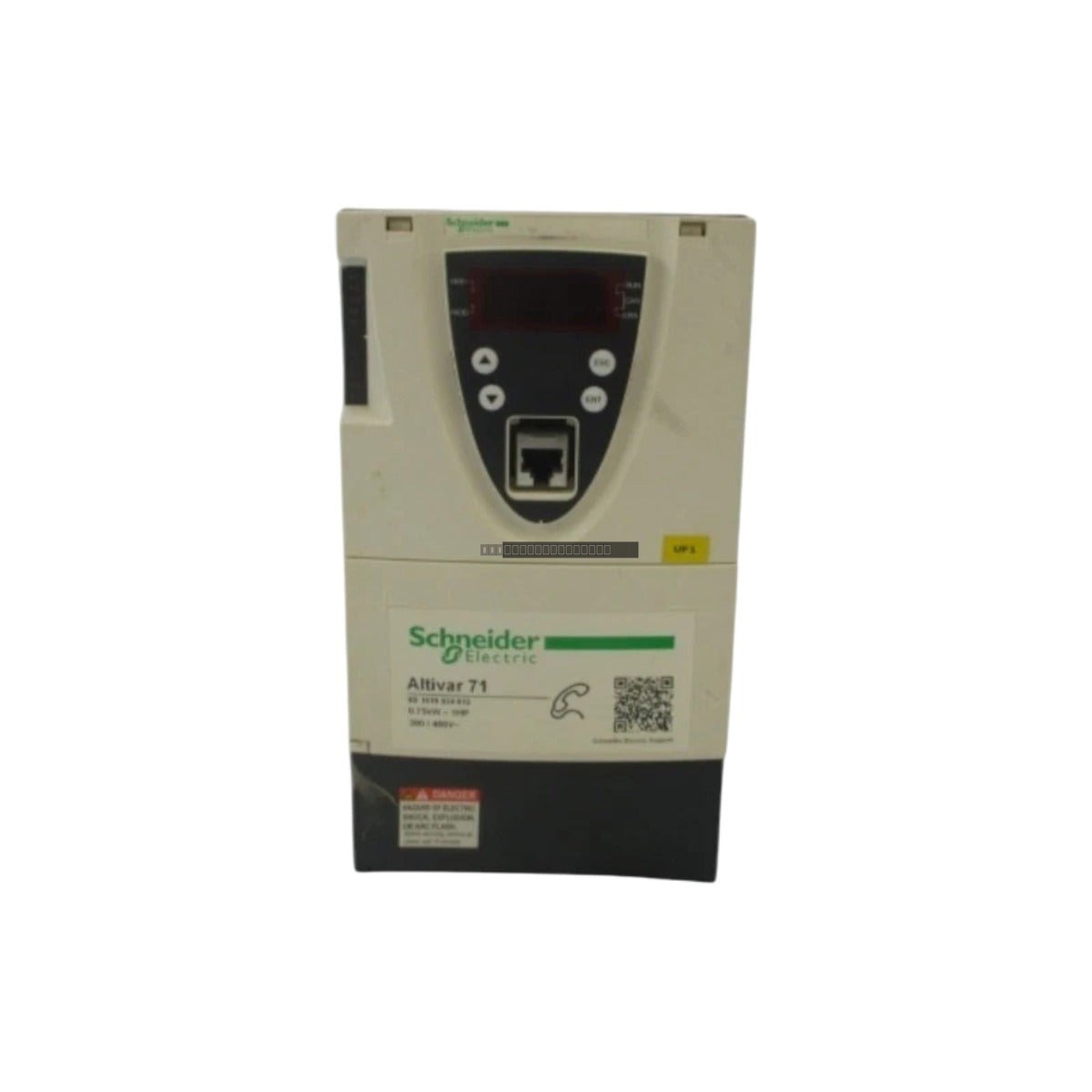

Schneider Electric ATV71H075N4Z Altivar 71 Variable Speed Drive

Schneider Electric ATV71H075N4Z Altivar 71 Variable Speed Drive

Description

The Schneider Electric ATV71H075N4Z is a high-performance variable speed drive designed for demanding industrial applications. As part of the Altivar 71 range, this unit provides precise motor control and energy...

26 people are viewing this right now

Availability: Low stock: 8 left

SKU: ATV71H075N4Z
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric ATV71H075N4Z is a high-performance variable speed drive designed for demanding industrial applications. As part of the Altivar 71 range, this unit provides precise motor control and energy efficiency for process and utility environments. This specific model is rated for 0.75 kW (1 HP) and operates within a 380-480V supply voltage range. This unit includes an integrated EMC filter for electromagnetic compatibility and is supplied without a graphic terminal.

Features

  • Power rating: 0.75 kW / 1 HP.
  • Supply voltage: 380-480V (-15% to +10%).
  • Integrated EMC filter for noise reduction.
  • Designed for complex process control and utility applications.
  • Standard version configuration.

Technical Specifications

Product Model ATV71H075N4Z
Manufacturer Schneider Electric
Product Type Variable Speed Drive
Power Rating 0.75 kW / 1 HP
Supply Voltage 380...480 V
Mains Voltage Tolerance 10%
Network Frequency Tolerance 5%
EMC Filter Integrated

Installation Guidelines

  • Ensure the drive is installed in a clean, dry, and well-ventilated environment to prevent overheating.
  • Maintain adequate clearance around the drive as specified in the installation manual to allow for proper airflow.
  • Verify that the supply voltage matches the drive's rated input range before connection.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the drive chassis to a common earth point to maintain safety and signal integrity.
  • Always disconnect power and wait for the internal capacitors to discharge before performing any wiring or maintenance.

FAQ

Does this drive include a graphic display terminal? No, this specific part number (ATV71H075N4Z) is supplied without the graphic terminal.

What is the primary application for this drive? The Altivar 71 series is engineered for complex process and utility applications requiring high-performance motor control.
