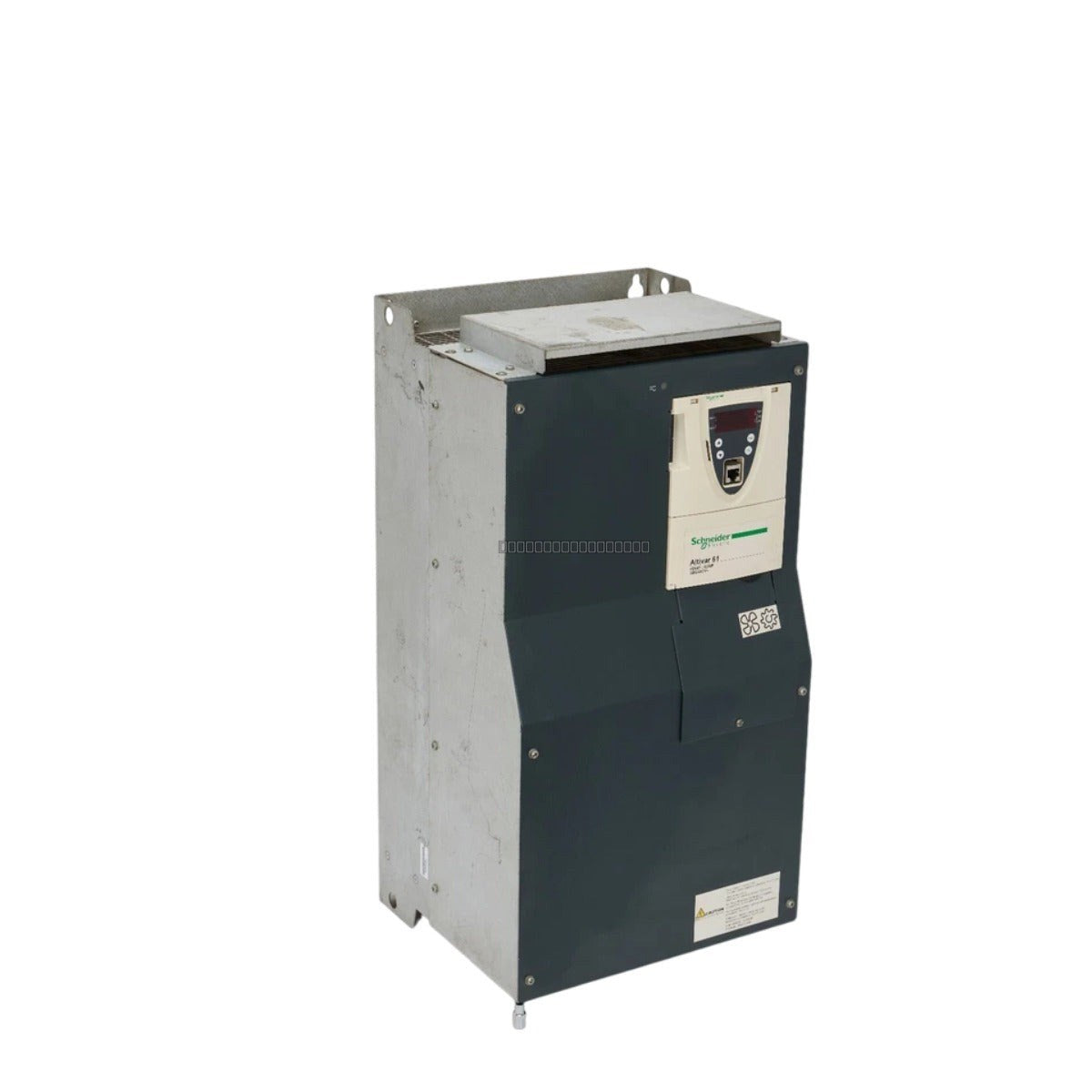

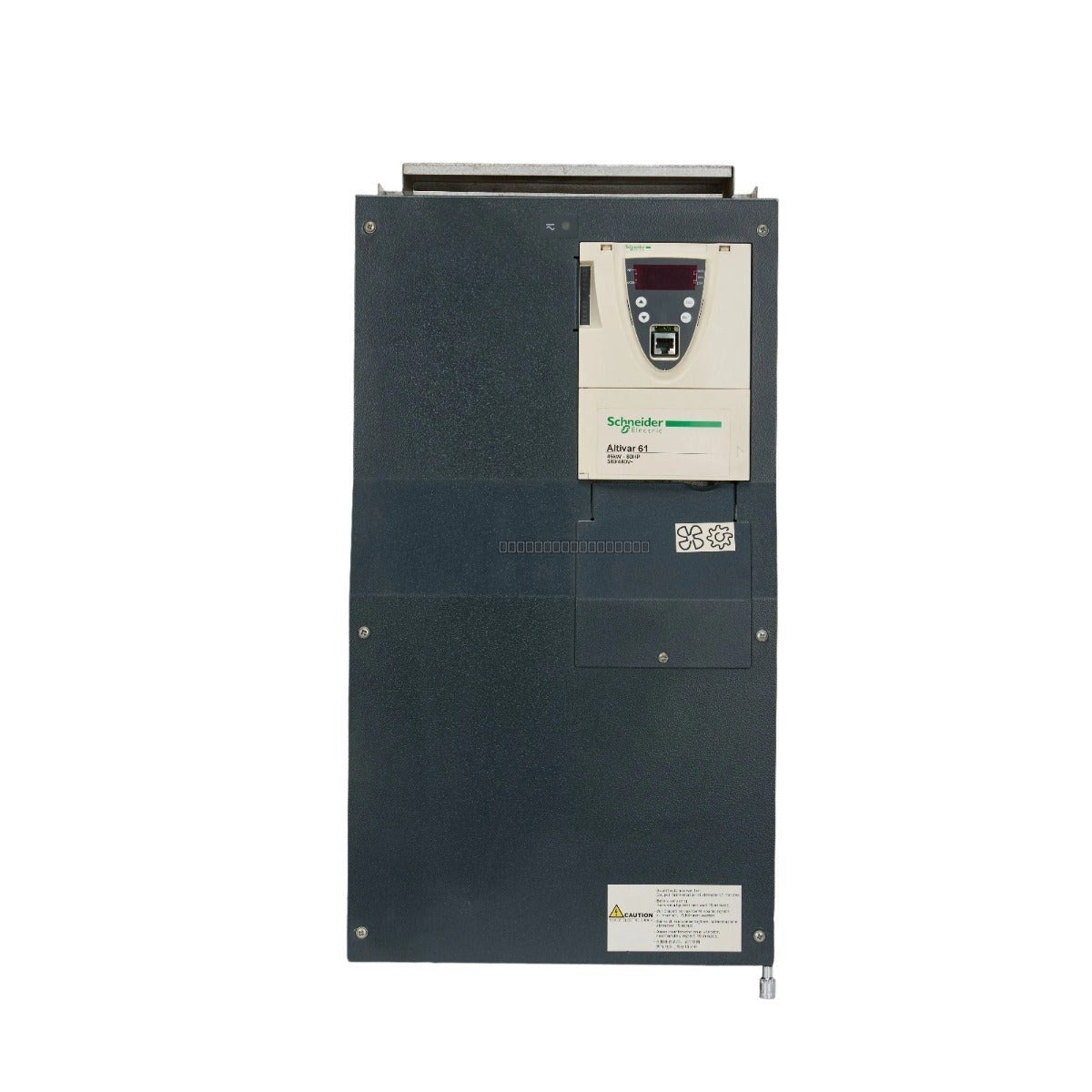

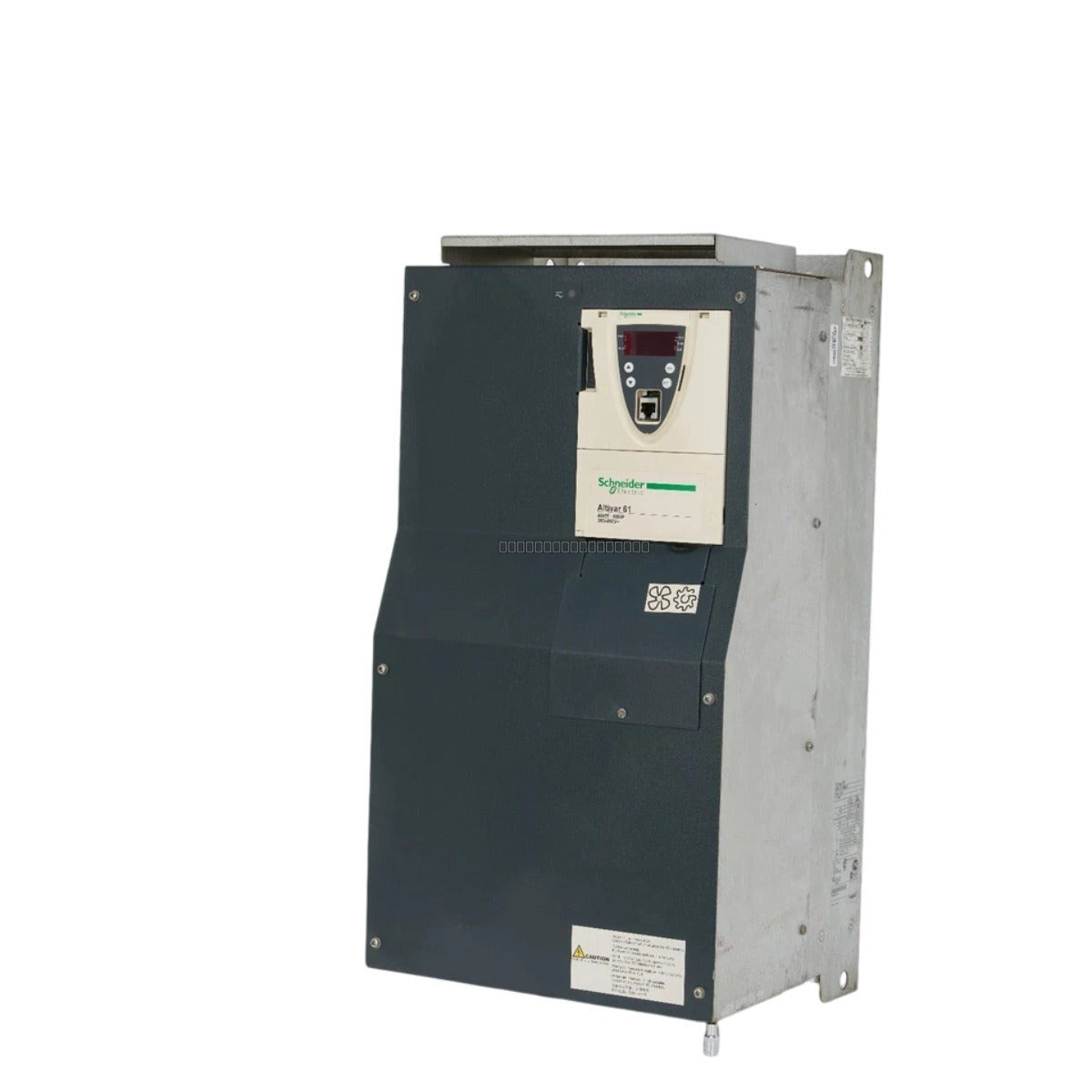

Schneider Electric ATV71HD45N4 Altivar 71 Variable Speed Drive

Schneider Electric ATV71HD45N4 Altivar 71 Variable Speed Drive

The Schneider Electric ATV71HD45N4 is a high-performance variable speed drive from the Altivar 71 series, engineered for the precise control of complex, high-power industrial machinery. This drive is designed to...

22 people are viewing this right now

Availability: Low stock: 5 left

SKU: ATV71HD45N4
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Schneider Electric ATV71HD45N4 is a high-performance variable speed drive from the Altivar 71 series, engineered for the precise control of complex, high-power industrial machinery. This drive is designed to optimize motor performance and energy efficiency in demanding three-phase applications.

Features

  • Designed for 45 kW (60 HP) motor applications.
  • Compatible with three-phase supply voltages ranging from 380V to 480V (-15% to +10%).
  • Integrated EMC filter for improved electromagnetic compatibility in industrial environments.
  • Includes a graphic terminal for intuitive configuration, monitoring, and diagnostics.
  • Optimized for complex, high-power machine control requirements.

Applications

The Altivar 71 series is suitable for a wide range of industrial processes, including material handling, pumping systems, HVAC, and complex machine automation where high torque and precise speed regulation are required.

Technical Specifications

Product Model ATV71HD45N4
Product Type Variable Speed Drive
Range Altivar 71
Motor Power (kW) 45 kW
Motor Power (HP) 60 HP
Supply Voltage 380-480 V AC (3-phase)
Manufacturer Schneider Electric

Installation Guidelines

  • Ensure the drive is mounted in a vertical position to allow for proper airflow and heat dissipation.
  • Maintain adequate clearance around the unit as specified in the product manual to prevent overheating.
  • Verify that the supply voltage matches the drive rating before applying power.
  • Use shielded cables for motor connections to minimize electromagnetic interference.
  • Ensure the drive is properly grounded to a common plant earth point to ensure safety and signal integrity.
  • Always disconnect and lock out power before performing any wiring or maintenance tasks.

FAQ

What is the primary application for the ATV71HD45N4?

This drive is specifically designed for complex, high-power industrial machines requiring advanced motor control and speed regulation.

Does this unit include a control interface?

Yes, the ATV71HD45N4 comes equipped with a graphic terminal for local control, parameter adjustment, and system monitoring.
