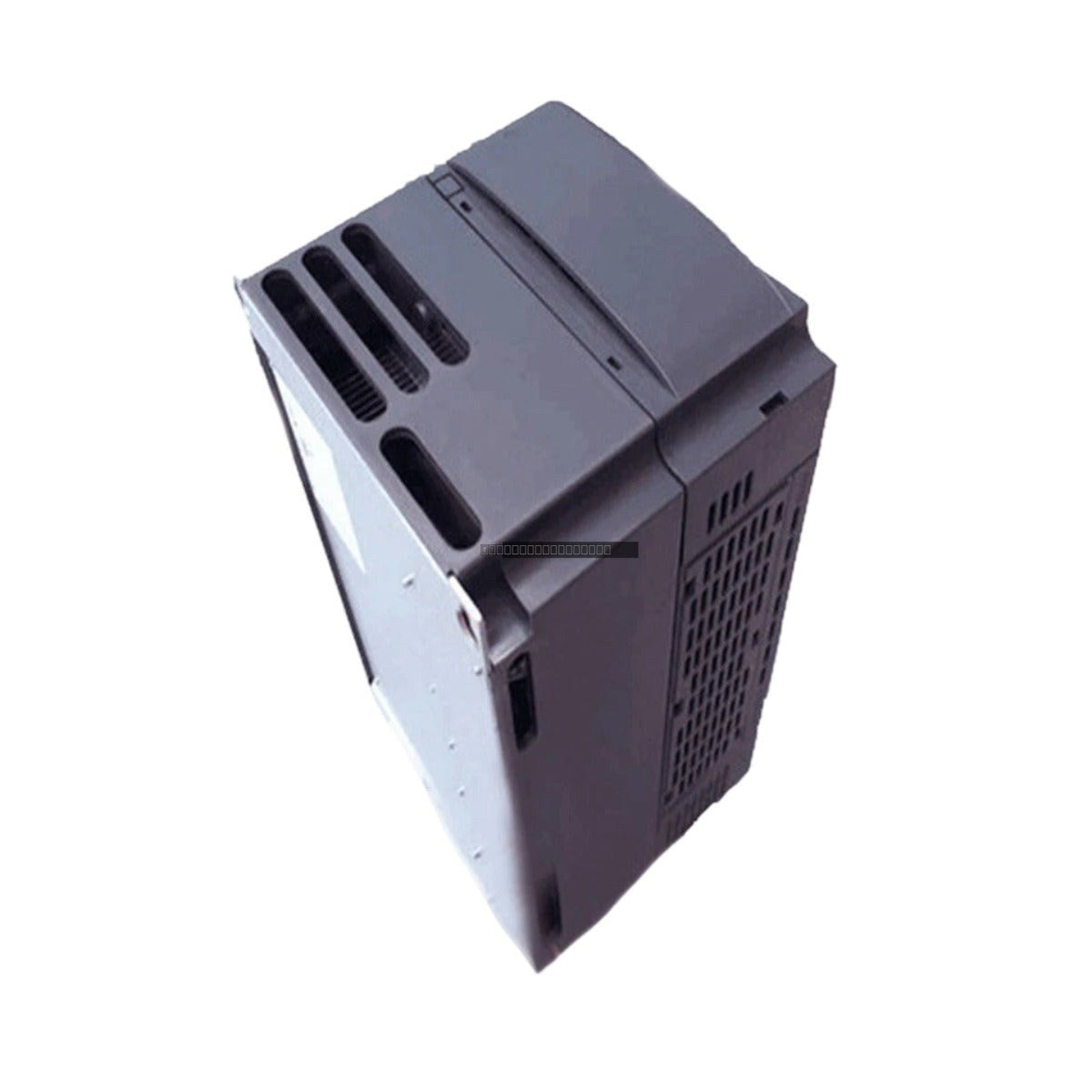

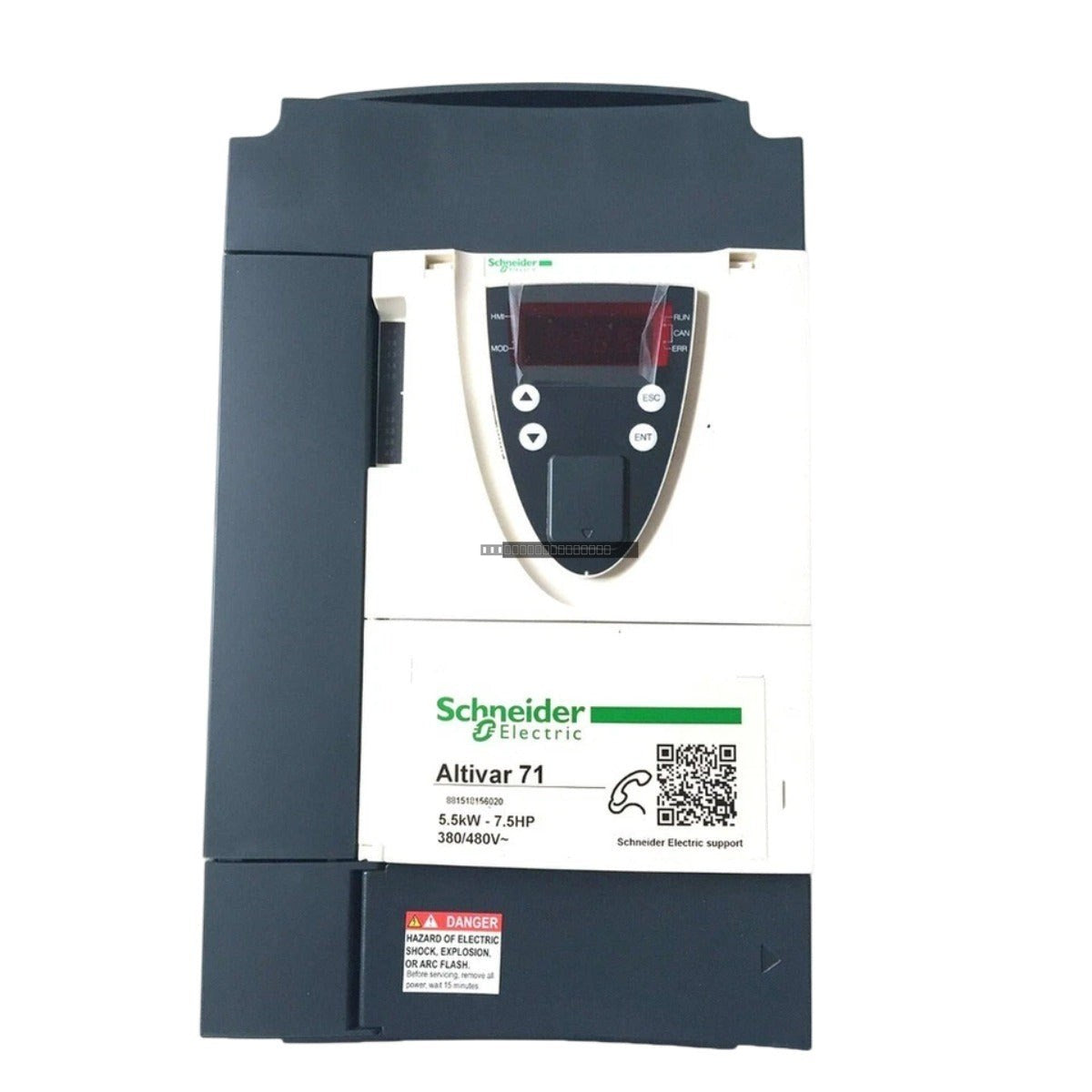

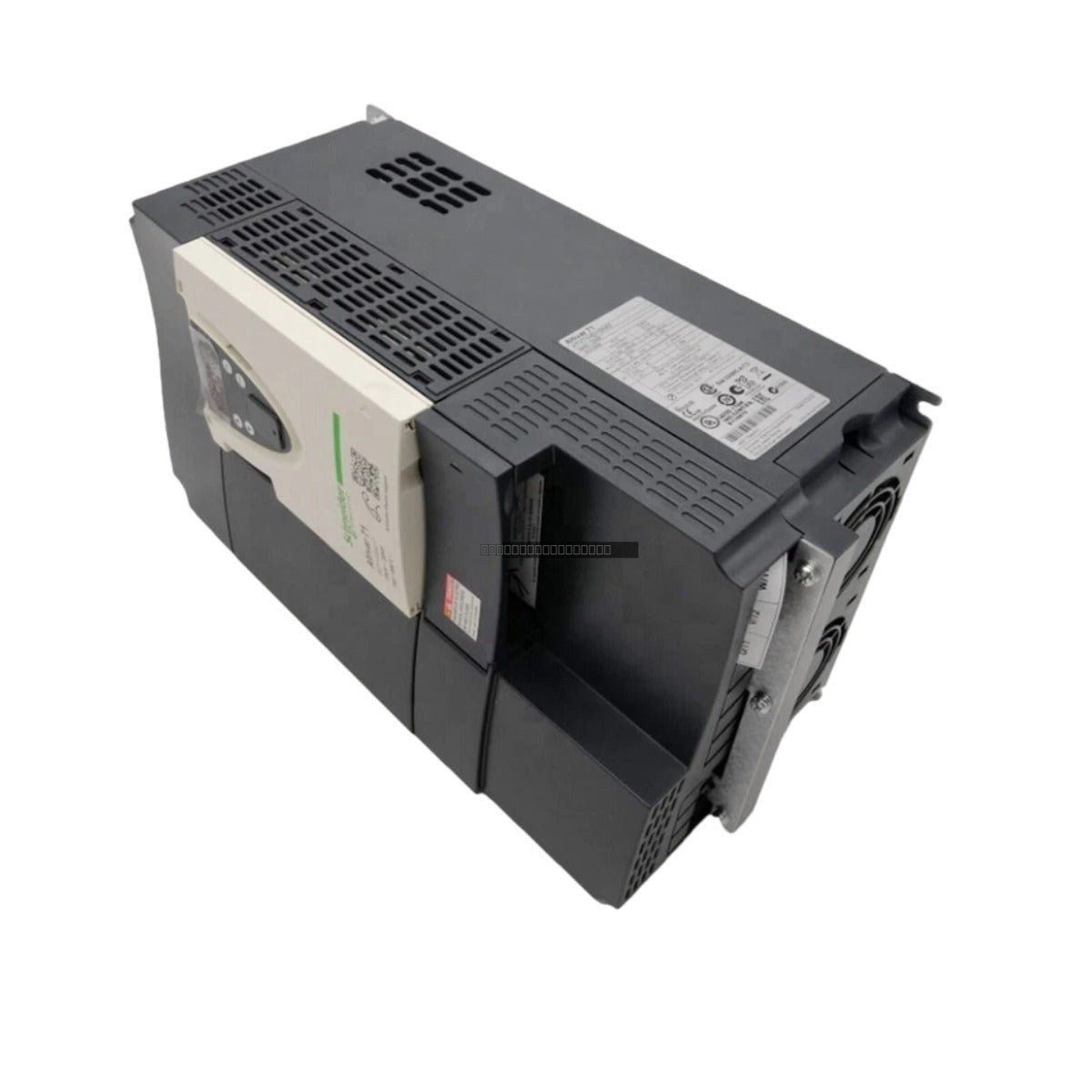

Schneider Electric ATV71HU55N4 Altivar 71 Variable Speed Drive

Schneider Electric ATV71HU55N4 Altivar 71 Variable Speed Drive

The Schneider Electric ATV71HU55N4 is a high-performance variable speed drive from the Altivar 71 series, engineered for precise motor control in demanding industrial environments. This unit is designed to manage...

17 people are viewing this right now

Availability: In stock

SKU: ATV71HU55N4
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Schneider Electric ATV71HU55N4 is a high-performance variable speed drive from the Altivar 71 series, engineered for precise motor control in demanding industrial environments. This unit is designed to manage complex applications, providing robust torque control and energy efficiency for 3-phase motor systems.

Features

  • Power rating: 22 kW (30 HP) for 3-phase applications.
  • Input voltage range: 380-480V (-15% to +10%).
  • Enclosure rating: IP20, suitable for installation within a control cabinet.
  • Integrated EMC filtering for improved electromagnetic compatibility.
  • Designed for demanding industrial processes, including pumping and ventilation machinery.
  • Note: This unit is supplied without a graphic terminal.

Applications

The Altivar 71 series is optimized for high-performance applications requiring advanced motor control, including:

  • Industrial pumping systems and fluid management.
  • HVAC and ventilation systems.
  • Material handling and conveyor systems.
  • Complex machinery requiring precise speed and torque regulation.

Technical Specifications

Model ATV71HU55N4
Series Altivar 71
Power Rating 22 kW / 30 HP
Supply Voltage 380...480 V (3-phase)
Protection Rating IP20
Tariff Code 8537101190
Weight 5.6 kg

Installation Guidelines

  • Ensure the drive is mounted vertically in a clean, dry environment within an IP20-rated enclosure or better.
  • Maintain adequate clearance around the unit to allow for proper heat dissipation and airflow.
  • Always disconnect power and wait for the internal capacitors to discharge before performing any wiring or maintenance.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the drive chassis to a common earth point to prevent ground loops and ensure safety.
  • Verify that the incoming supply voltage matches the drive's rated input range before energizing.

FAQ

Does this unit include a graphic terminal? No, the ATV71HU55N4 is supplied without a graphic terminal.

What is the primary application for this drive? This model is specifically designed for industrial pumping and ventilation machinery, though it is suitable for a wide range of variable speed motor control tasks.

What is the IP rating of this device? This drive features an IP20 protection rating, meaning it is intended for mounting inside a protective electrical cabinet.
