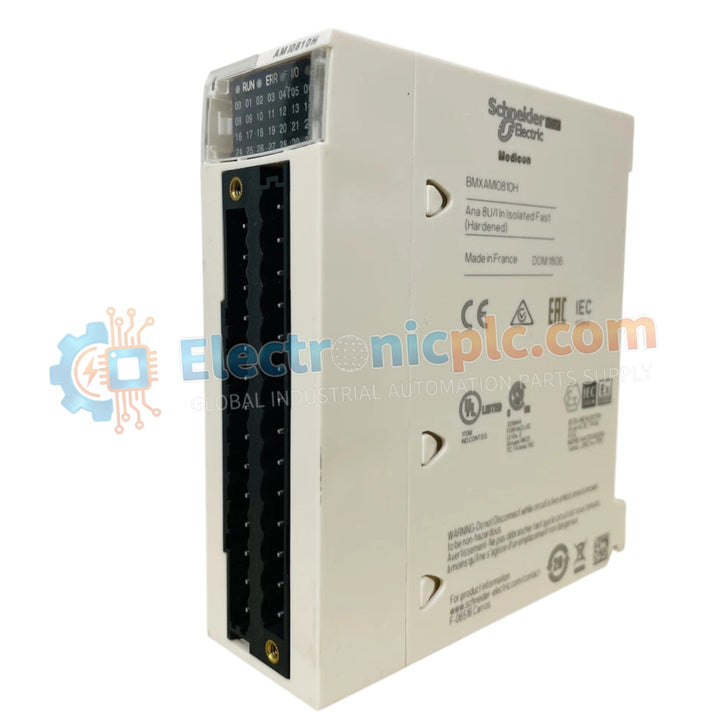

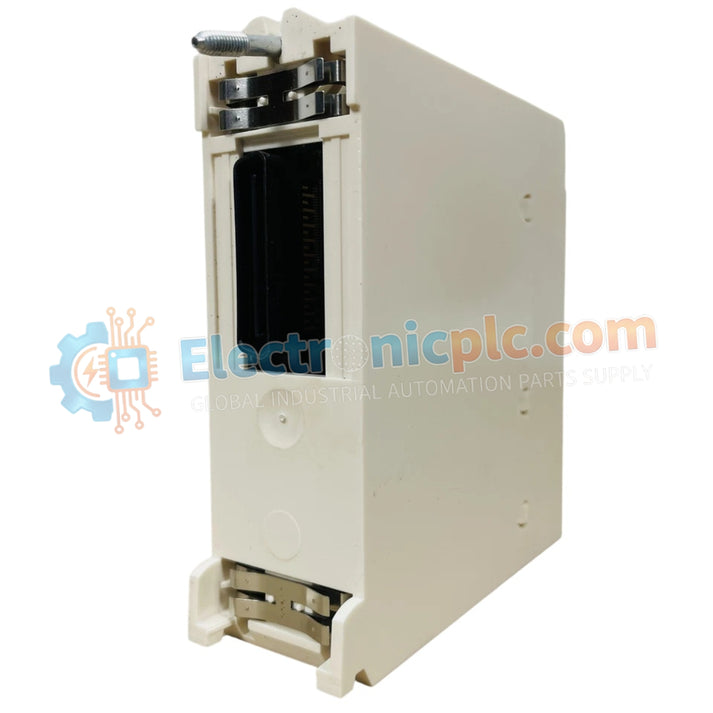

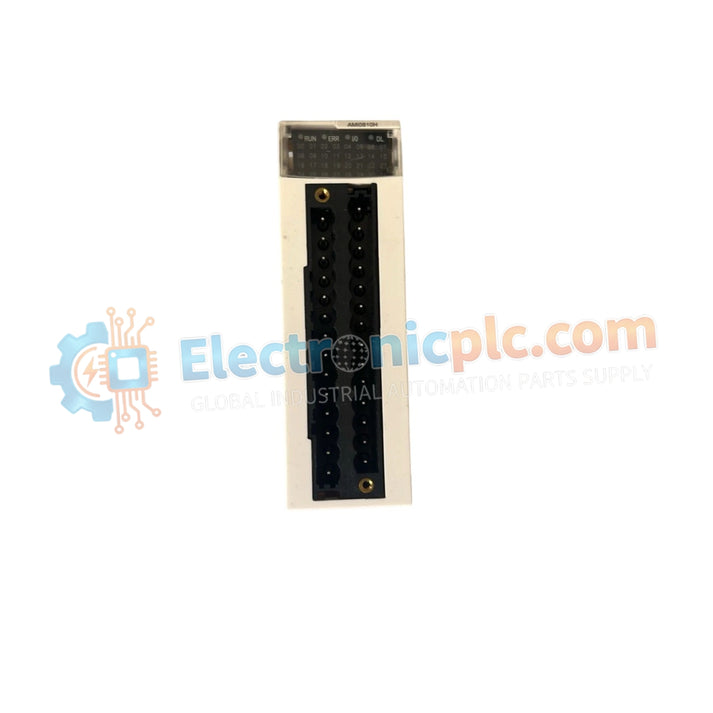

Schneider Electric BMXAMI0810H Modicon X80 Isolated Analog Input Module

Schneider Electric BMXAMI0810H Modicon X80 Isolated Analog Input Module

Product Overview

The Schneider Electric BMXAMI0810H is an 8-channel isolated analog input module for the Modicon X80 platform. It supports both voltage and current input signals with high-precision 16-bit conversion....

21 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXAMI0810H
Vendor: Schneider
Category: Isolated Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric BMXAMI0810H is an 8-channel isolated analog input module for the Modicon X80 platform. It supports both voltage and current input signals with high-precision 16-bit conversion. The ruggedized “H” version is designed for harsh industrial environments, providing reliable and accurate signal acquisition for M340 and M580 systems. We supply this unit as 100% brand new and original.

Technical Specifications

Specification Details
Analog Input Channels 8
Isolation Type Isolated between channels and bus
Input Signal Types Voltage / Current
Supported Ranges ±10V, 0–10V, 0–5V, 1–5V, ±5V, 0–20mA, 4–20mA
Connection Type 28-way connector
Conversion Resolution 16-bit
Weight 0.2 kg
Environmental Rating Ruggedized “H” version

Engineering Advantages

Excellent Noise Immunity
Channel isolation reduces electrical interference and ground loop issues.

High Measurement Accuracy
16-bit resolution enables precise monitoring of process signals.

Compact Wiring Design
Supports 8 analog channels in a compact X80 module format.

Harsh Environment Protection
Conformal coating improves resistance to humidity and corrosion.

FAQs

What is the difference between the standard and “H” version?
The “H” version includes ruggedized protection for harsh industrial environments.

Can different signal types be used at the same time?
Yes, each channel can be configured independently.

Does it require an external power supply?
The module is powered by the backplane, but field transmitters may require external 24V DC power.

Is the terminal block included?
The terminal block is typically sold separately.
