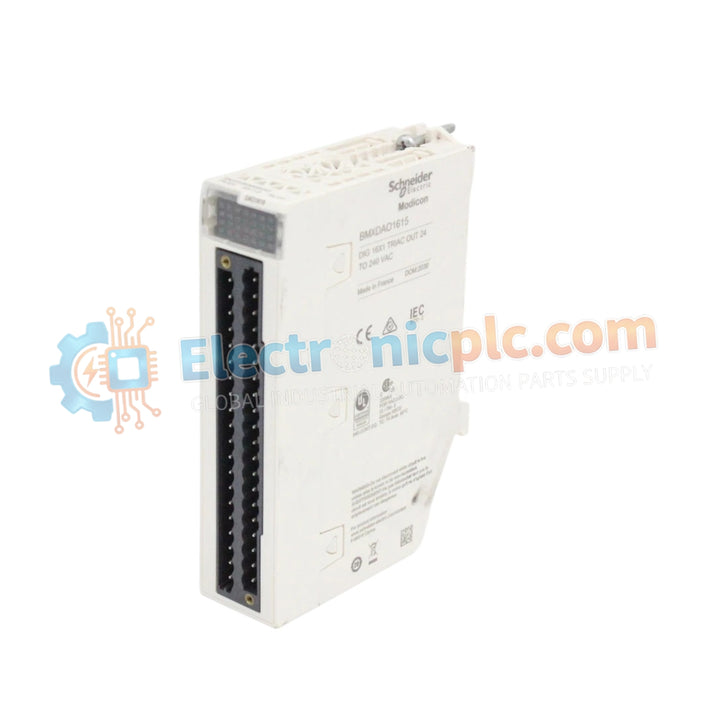

Schneider Electric BMXDAO1615 Modicon X80 Discrete Output Module

Schneider Electric BMXDAO1615 Modicon X80 Discrete Output Module

Product Overview

The BMXDAO1615 is a high-performance discrete output module for the Schneider Electric Modicon X80 platform, compatible with M340 and M580 systems. It provides 16 Triac outputs for switching...

25 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXDAO1615
Vendor: Schneider
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The BMXDAO1615 is a high-performance discrete output module for the Schneider Electric Modicon X80 platform, compatible with M340 and M580 systems. It provides 16 Triac outputs for switching AC loads such as solenoids, contactors, and small motors. Designed for industrial applications, it supports reliable solid-state AC switching. We supply this unit as 100% Brand New and Original.

Technical Specifications

Specification Details
Manufacturer Schneider Electric
Product Line Modicon X80
Model Number BMXDAO1615
Discrete Outputs 16
Output Type Triac
Output Voltage 24–240 V AC
Voltage Range 20–264 V AC
Output Current 3 A
Frequency 50/60 Hz
Standards EN/IEC 61131-2
Net Weight 0.264 kg

Engineering Advantages

High AC Load Capability

Supports up to 3 A per channel, suitable for many direct AC switching applications.

Solid-State Reliability

Triac design eliminates mechanical wear, arcing, and improves service life.

Wide Voltage Compatibility

Operates across 24–240 V AC, supporting global industrial standards.

Modular X80 Integration

Fully compatible with M340 and M580 architectures via the X80 I/O system.

Built-in Diagnostics

Provides output and fault status feedback for easier maintenance and troubleshooting.

FAQs

Can it switch DC loads?

No, it is designed only for AC loads. Use transistor output modules for DC applications.

Is it compatible with M580 systems?

Yes, it is fully compatible with both M340 and M580 platforms.

What terminal block is required?

A 20-way removable terminal block (screw, spring, or cage type depending on installation).

Is the product brand new?

Yes, it is supplied as 100% Brand New and Original in factory-sealed packaging.
