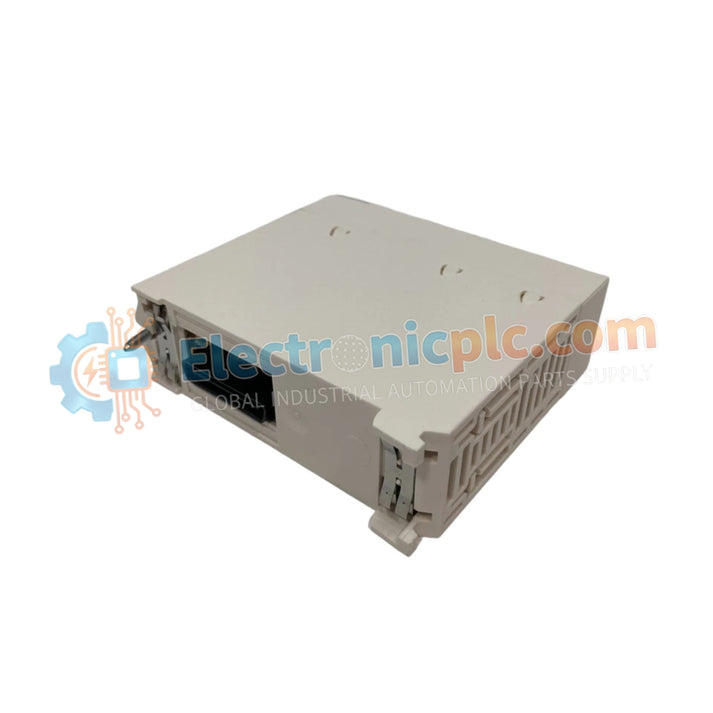

Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module

Schneider Electric BMXDDI1602H Modicon X80 Discrete Input Module

Product Overview

The Schneider Electric Schneider Electric BMXDDI1602H is a hardened discrete input module for the Modicon X80 platform. It provides 16 isolated 24V DC input channels for connecting pushbuttons,...

29 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXDDI1602H
Vendor: Schneider
Category: Discrete Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

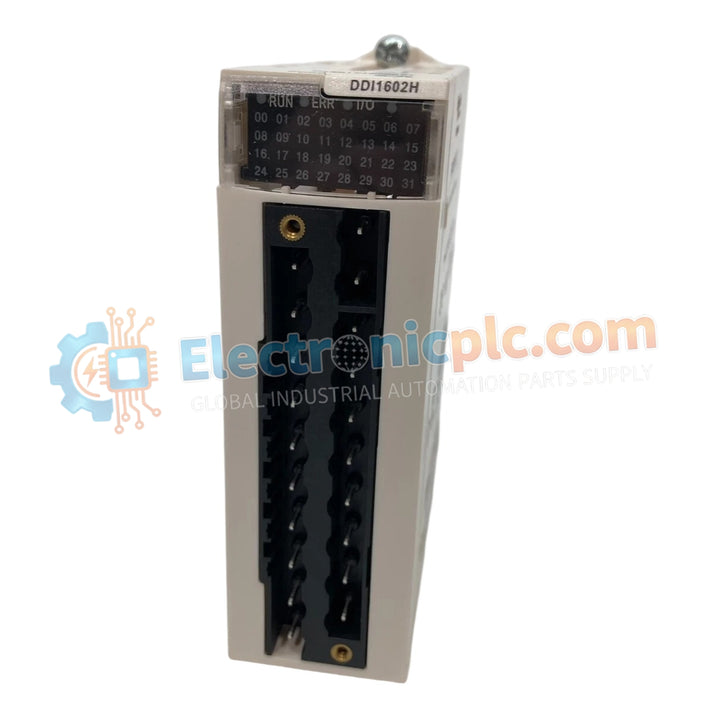

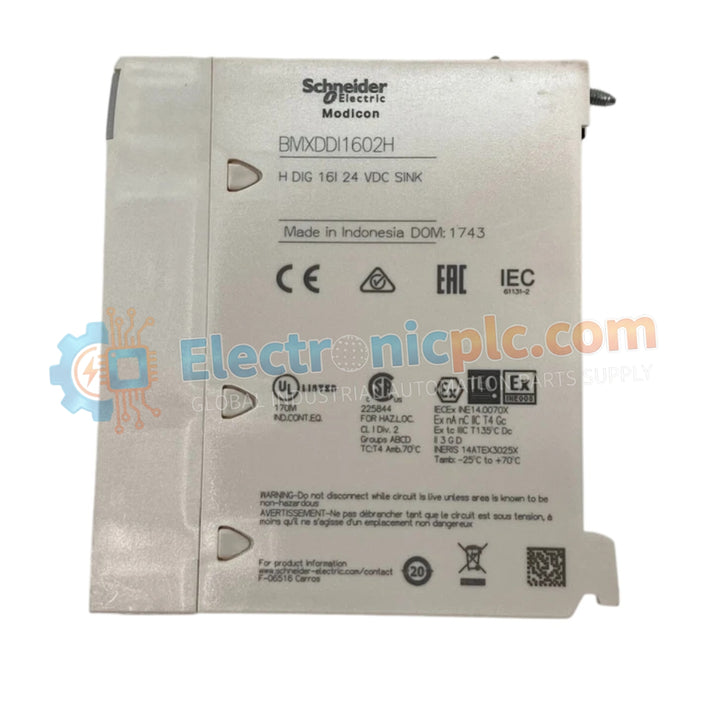

The Schneider Electric Schneider Electric BMXDDI1602H is a hardened discrete input module for the Modicon X80 platform. It provides 16 isolated 24V DC input channels for connecting pushbuttons, proximity sensors, and limit switches in demanding industrial environments. The ruggedized “H” version features enhanced environmental protection for reliable operation in harsh conditions. We supply this unit as 100% Brand New original equipment.

Technical Specifications

Parameter Specification
Product Type Discrete Input Module
Platform Modicon X80
Input Channels 16 Isolated Inputs
Voltage Rating 24V DC
Input Type Current Sink (Logic Positive)
Input Current 3.5 mA
Sensor Compatibility 2-wire / 3-wire Proximity Sensors
Isolation 1500 Vrms
Environmental Rating Hardened (“H”)
Weight 0.45 kg

Engineering Advantages

Hardened Industrial Design

Conformal coating and enhanced protection improve resistance to humidity, corrosion, and vibration.

Flexible Sensor Support

Compatible with both 2-wire and 3-wire proximity sensors without additional signal conditioning.

Enhanced Electrical Protection

1500 Vrms isolation protects the PLC backplane from surges and ground loop interference.

Low Power Consumption

Efficient 3.5 mA input current reduces rack power loading and heat generation.

FAQs

What is the difference between BMXDDI1602 and BMXDDI1602H?

The “H” version includes hardened environmental protection for harsh industrial conditions.

Does this module support source logic?

No, it uses sink input logic and requires sourcing field devices providing 24V DC signals.

Which terminal block is required?

Compatible terminal blocks include the BMXFTB2000 or BMXFTB2010, typically sold separately.
