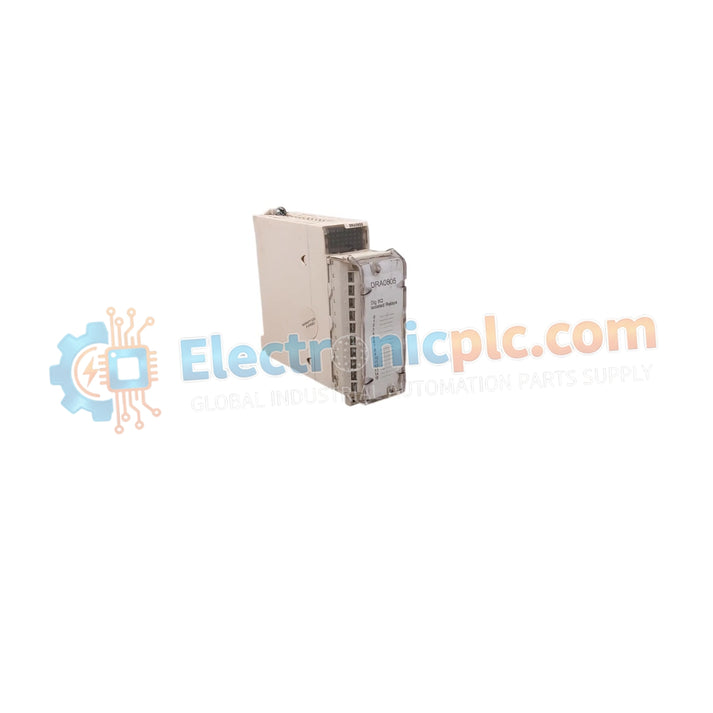

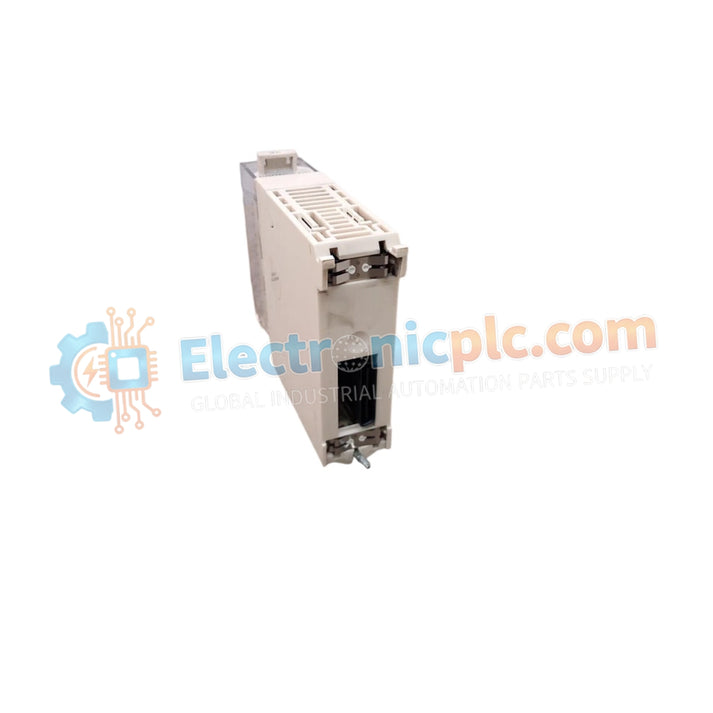

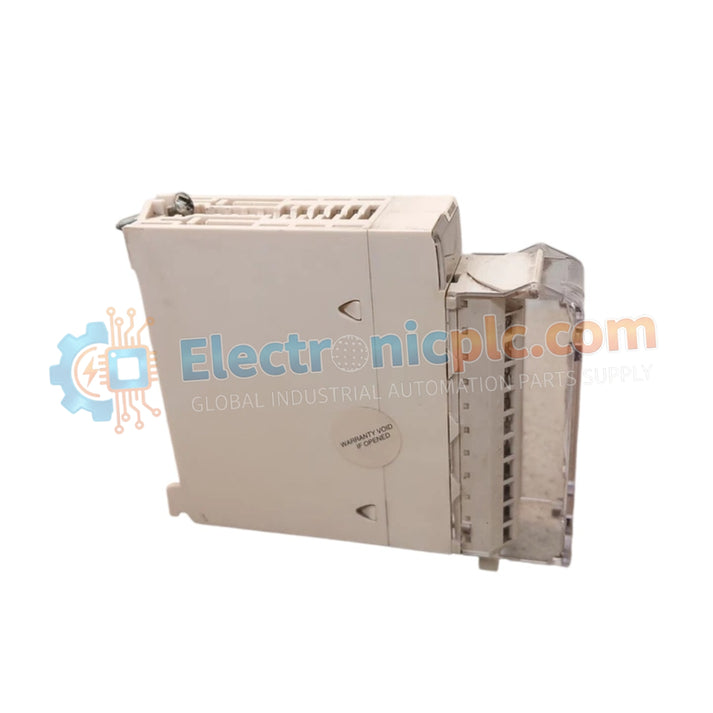

Schneider Electric BMXDRA0805 Modicon X80 Relay Output Module

Schneider Electric BMXDRA0805 Modicon X80 Relay Output Module

Product Overview

The BMXDRA0805 is a versatile relay output module for the Schneider Electric Modicon X80 platform, compatible with both M340 and M580 PLC systems. It provides 8 relay outputs...

27 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXDRA0805
Vendor: Schneider
Category: Relay Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The BMXDRA0805 is a versatile relay output module for the Schneider Electric Modicon X80 platform, compatible with both M340 and M580 PLC systems. It provides 8 relay outputs capable of switching AC and DC loads, making it suitable for controlling a wide range of industrial devices. We supply this unit as 100% Brand New and Original for safe and reliable automation performance.

Technical Specifications

Specification Details
Manufacturer Schneider Electric
Product Line Modicon X80
Model Number BMXDRA0805
Output Type Relay (Normally Open)
Channels 8
Voltage Compatibility 24 V DC / 24–240 V AC
Max Current per Channel 2 A
Isolation Channel-to-ground isolated
Response Time < 10 ms
Net Weight 0.145 kg

Engineering Advantages

Multi-Voltage Switching

Supports both AC and DC loads up to 240V AC, enabling flexible industrial control.

Strong Electrical Isolation

Protects PLC systems from field-side surges and electrical noise.

Compact X80 Design

Slim module form factor increases rack density in control cabinets.

Reliable Inductive Load Handling

Relay contacts provide robust switching for inductive devices such as motors and solenoids.

Easy Diagnostics

LED indicators provide clear status feedback for each output channel.

FAQs

Is the BMXDRA0805 compatible with M580 systems?

Yes, it is fully compatible with both Modicon M340 and M580 platforms via the X80 I/O architecture.

Is the product brand new?

Yes, it is supplied as 100% Brand New and Original in factory-sealed packaging.

What is the maximum load per channel?

Each relay supports up to 2 A per channel. Higher loads require external contactors.

What terminal block is required?

A 20-way removable terminal block is required, with screw, spring, or cage clamp options depending on system design.
