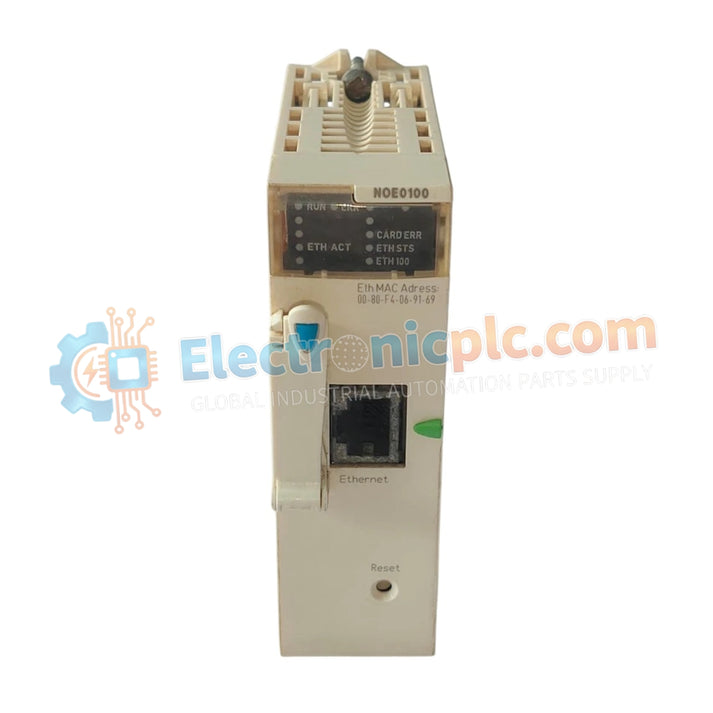

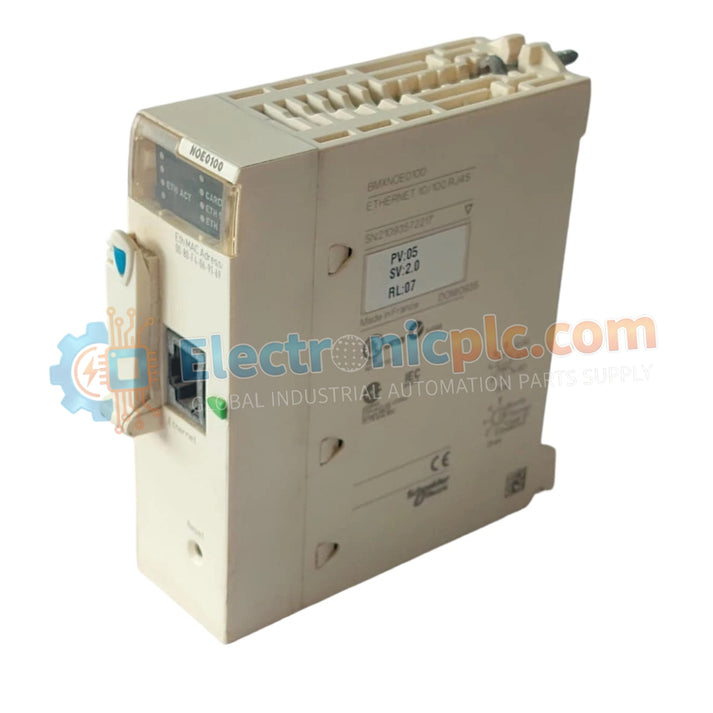

Schneider Electric BMXNOE0100 Modicon M340 Ethernet Network Module

Schneider Electric BMXNOE0100 Modicon M340 Ethernet Network Module

Product Overview

The Schneider Electric BMXNOE0100 is an Ethernet communication module for the Modicon M340 platform. It enables Modbus TCP/IP connectivity, allowing the PLC to exchange data with HMIs, SCADA...

26 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXNOE0100
Vendor: Schneider
Category: Ethernet Network Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric BMXNOE0100 is an Ethernet communication module for the Modicon M340 platform. It enables Modbus TCP/IP connectivity, allowing the PLC to exchange data with HMIs, SCADA systems, and distributed I/O devices over industrial Ethernet networks. The module also supports web-based diagnostics and device management. We supply this unit as 100% brand new and original, including a flash memory card for advanced functions.

Technical Specifications

Specification Details
Communication Protocol Modbus TCP/IP
Ethernet Port 1 × RJ45 (10/100 Mbps)
Memory Support BMXRWSC016M Flash Card (16 MB)
Power Consumption 90 mA at 24 VDC
Services I/O Scanning, FDR, Global Data
Network Management SNMP
Web Services Web server, rack viewer, data editor
Weight 0.2 kg

Engineering Advantages

Fast Network Integration
Enables high-speed Modbus TCP/IP communication with minimal configuration.

Reduced Downtime
FDR (Fast Device Replacement) allows automatic reconfiguration of replacement devices.

Remote Diagnostics
Built-in web server provides real-time monitoring and system diagnostics via browser.

Efficient Network Control
I/O scanning and bandwidth management optimize communication performance.

FAQs

What is the flash card used for?
It stores web pages, configuration data, and enables advanced web/FDR functions.

Can it be used in M580 systems?
Yes, but typically as an additional Ethernet interface in X80 racks.

How is the IP address configured?
Via Device IP Config utility or Unity Pro / Control Expert software.

Does it support EtherNet/IP?
No, it supports Modbus TCP/IP only. For EtherNet/IP, a different module is required.
