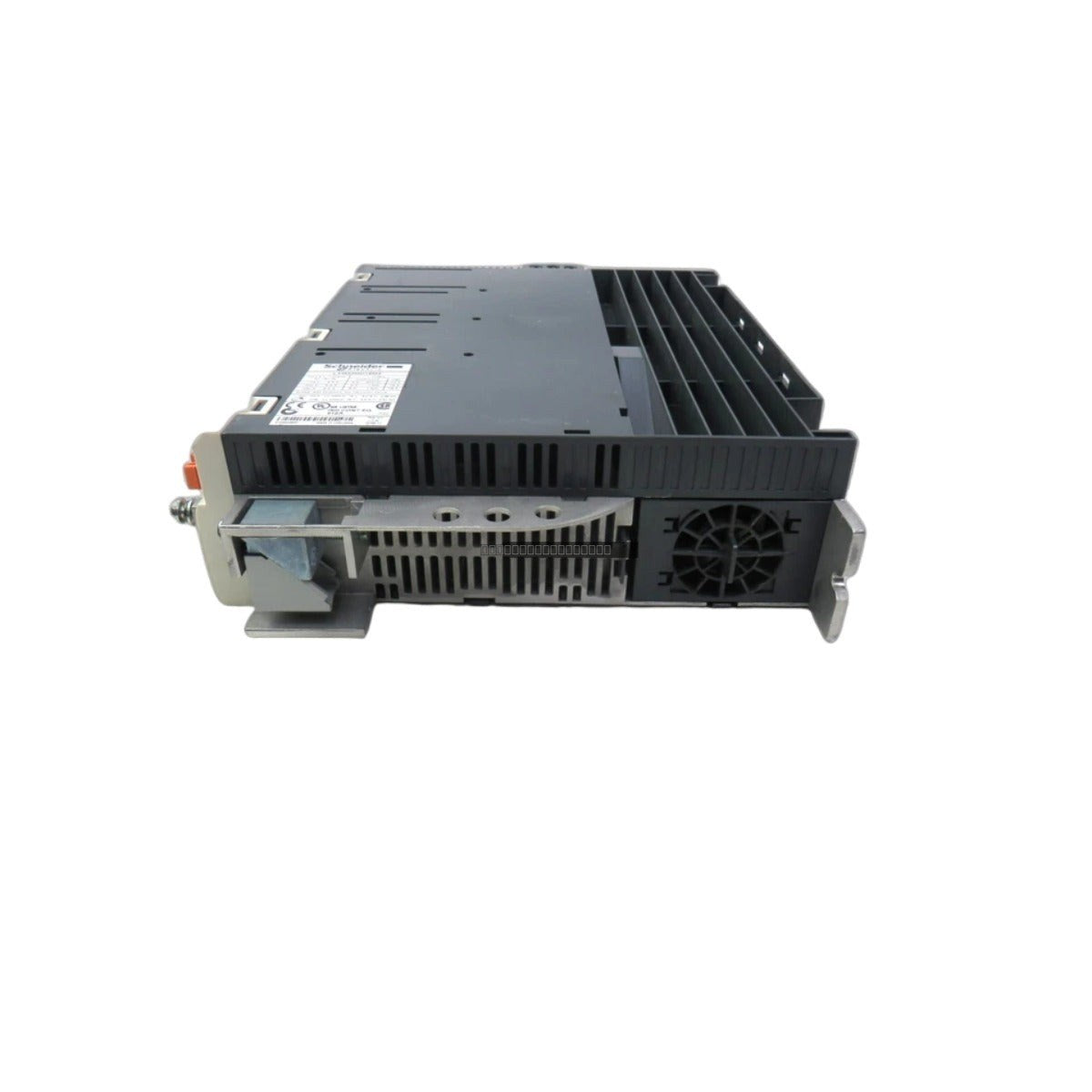

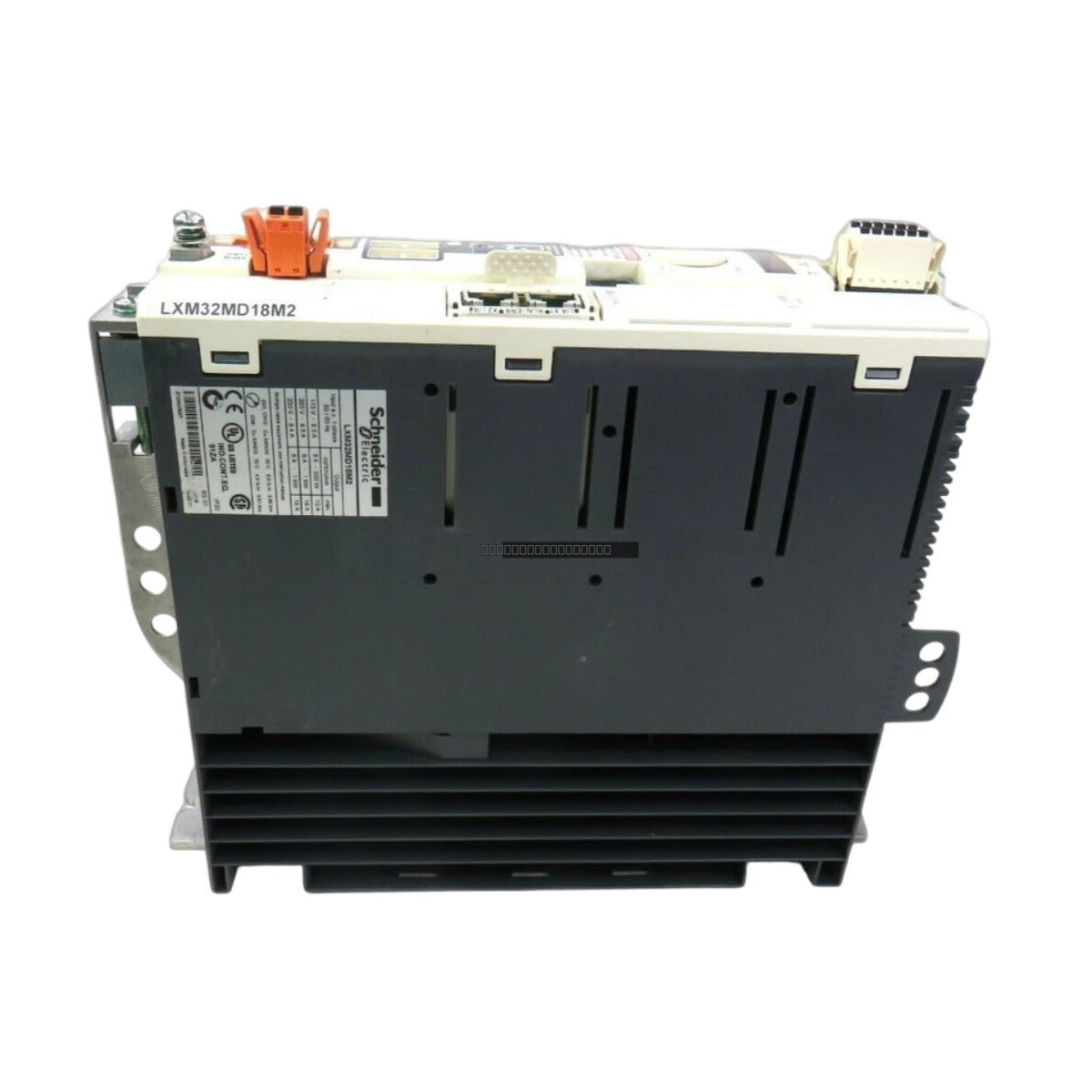

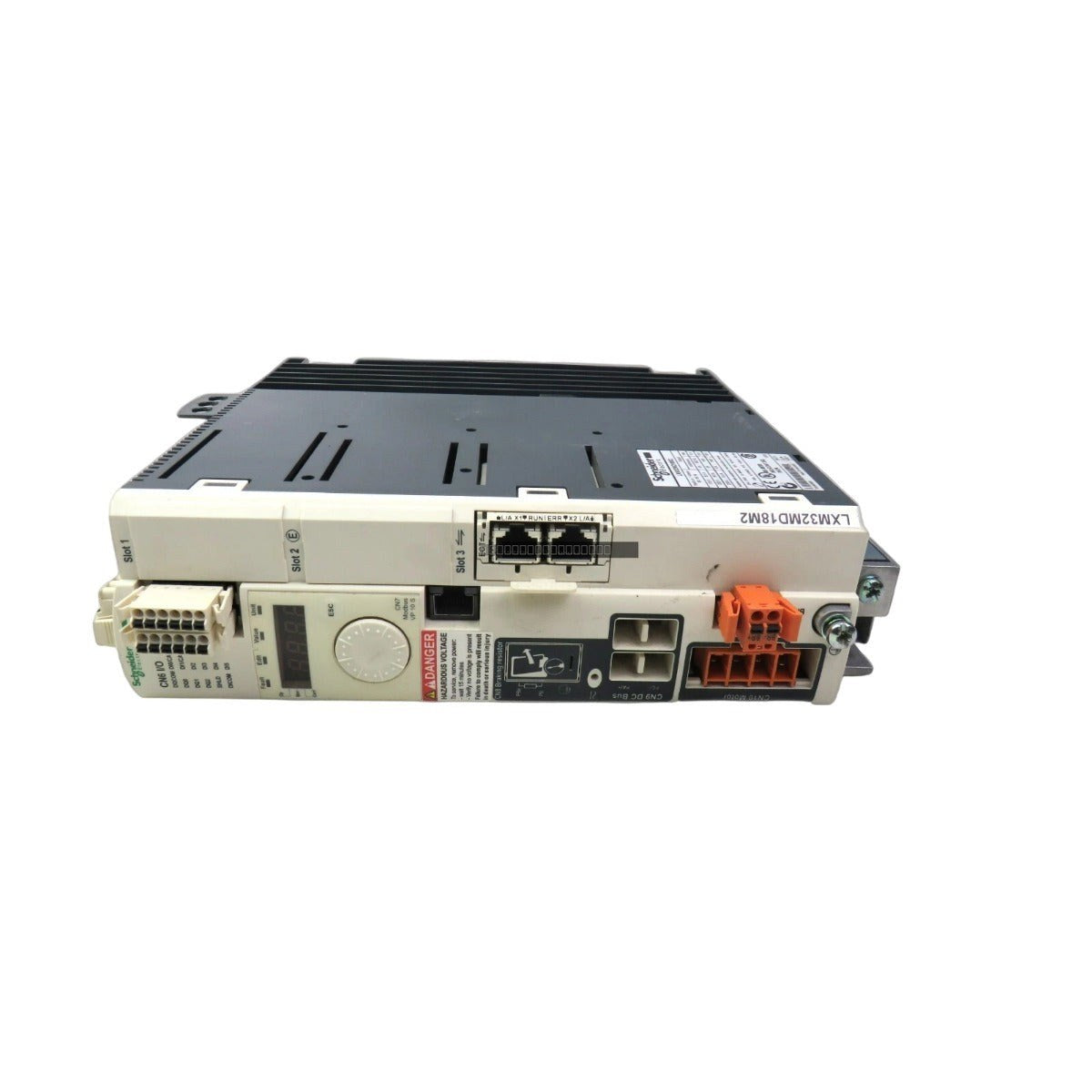

Schneider Electric LXM32MD18M2 Lexium 32 Motion Servo Drive

Schneider Electric LXM32MD18M2 Lexium 32 Motion Servo Drive

Description

The Schneider Electric LXM32MD18M2 is a high-performance motion servo drive belonging to the Lexium 32 series. Designed for precision motion control applications, this drive supports single-phase power supply inputs and...

23 people are viewing this right now

Availability: Low stock: 4 left

SKU: LXM32MD18M2
Vendor: Schneider Electric
Category: Motion Servo Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric LXM32MD18M2 is a high-performance motion servo drive belonging to the Lexium 32 series. Designed for precision motion control applications, this drive supports single-phase power supply inputs and is engineered to manage motors within the 0.5 kW to 1 kW power range. It provides reliable torque and speed control for demanding industrial automation tasks.

Features

  • Designed for the Lexium 32 product range, ensuring compatibility with standard Schneider motion architectures.
  • Supports single-phase supply voltage ranging from 115V to 230V.
  • Continuous output current of 6A at a switching frequency of 8 kHz.
  • Compact form factor suitable for control cabinet integration.
  • Integrated motion control capabilities for high-precision positioning and velocity regulation.

Technical Specifications

Model LXM32MD18M2
Product Range Lexium 32
Device Short Name LXM32M
Supply Voltage 115 to 230 V (Single Phase)
Supply Voltage Limits 85 to 132 V / 170 to 264 V
Network Frequency 47.5 to 63 Hz
Continuous Output Current 6 A at 8 kHz
Switching Frequency 8 kHz
Weight 1.72 kg

Installation Guidelines

  • Ensure the drive is mounted in a vertical position within a clean, ventilated control cabinet to prevent overheating.
  • Maintain adequate clearance around the unit to allow for proper airflow and heat dissipation.
  • Use shielded motor cables and ensure proper grounding of the drive chassis to minimize electromagnetic interference (EMI).
  • Verify that the supply voltage matches the specified input range before applying power.
  • Always disconnect power and allow sufficient time for internal capacitors to discharge before performing any wiring or maintenance.

FAQ

What is the primary application for the LXM32MD18M2?

This drive is primarily used for motion control in industrial machinery, such as packaging equipment, material handling systems, and assembly lines requiring precise motor speed and position control.

Is this drive compatible with three-phase power?

No, the LXM32MD18M2 is specifically designed for single-phase power supply configurations within the specified voltage limits.
