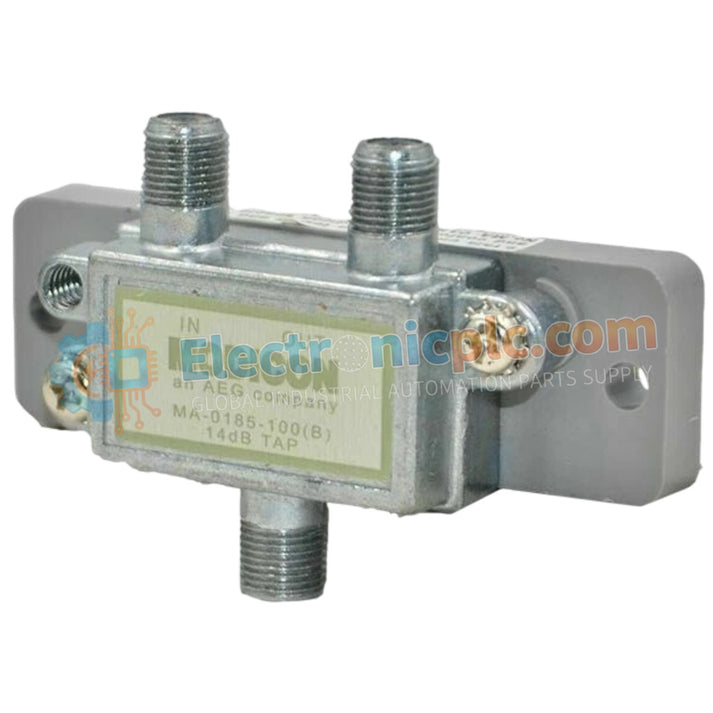

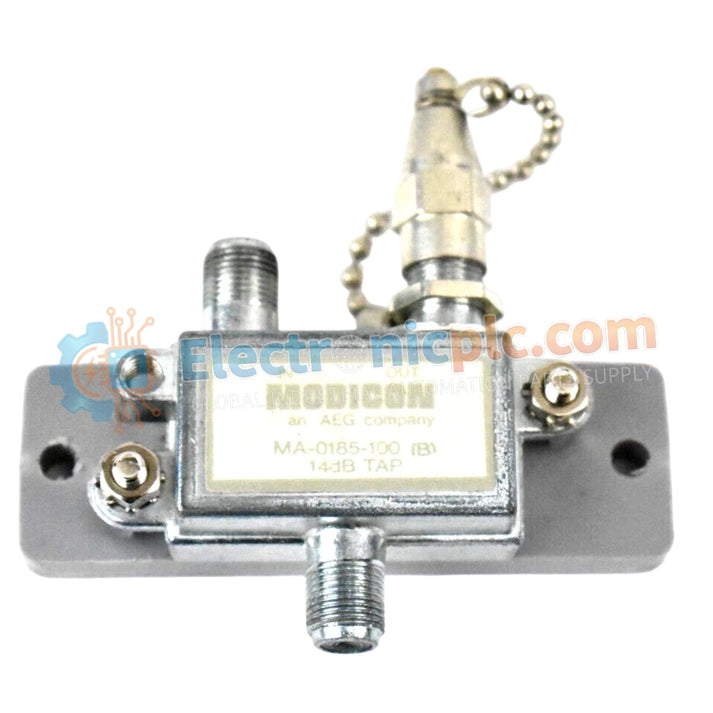

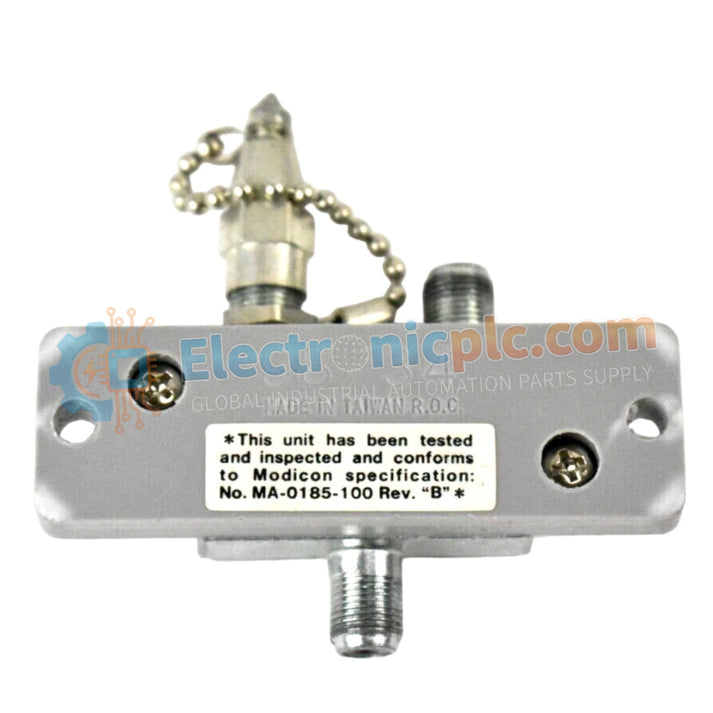

Schneider Electric MA-0185-100 Modicon Coaxial Line Tap

Schneider Electric MA-0185-100 Modicon Coaxial Line Tap

Product Overview

The Schneider Electric Schneider Electric MA-0185-100 functions as a critical interface component within legacy Modicon coaxial cable systems. This Line Tap facilitates the connection between the main trunk...

20 people are viewing this right now

Availability: Low stock: 94 left

SKU: MA-0185-100
Vendor: Schneider
Category: Coaxial Line Tap
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric Schneider Electric MA-0185-100 functions as a critical interface component within legacy Modicon coaxial cable systems. This Line Tap facilitates the connection between the main trunk cable and individual drop cables, ensuring high-frequency signal propagation with minimal insertion loss. We offer this unit as 100% Brand New original stock to maintain the precise impedance matching required for industrial network stability.

Technical Specifications

Parameter Specification
Function Coaxial Line Tap / Signal Splitting
Compatibility Schneider Electric / Modicon Coax Cable Systems
Dimensions 18 cm × 8.7 cm × 3.5 cm
Net Weight 1.18 kg
Housing Material Shielded Industrial Polymer / Metal Alloy
Connectivity High-retention coaxial ports

Engineering Advantages

Maintain Signal Integrity

The MA-0185-100 utilizes precision-engineered internal circuitry to match network impedance. This prevents signal reflections that cause data corruption in high-speed industrial environments.

Streamline Trunk Deployment

The compact 18 cm housing allows for easy integration into cable trays and tight conduit boxes. Engineers can tap into the main communication line without disrupting the entire network physical layer.

Resist Electromagnetic Interference (EMI)

The shielded construction blocks external noise from variable frequency drives (VFDs) and heavy machinery. This protection ensures the PAC (Programmable Automation Controller) receives clean data packets.

Simplified Mechanical Installation

The lightweight 0.1 kg design places minimal strain on the cable infrastructure. Standard mounting points secure the tap firmly, preventing connection fatigue caused by industrial vibration.

FAQs

Can I use the MA-0185-100 with standard RG-6 coaxial cables?

This unit specifically supports industrial-grade coaxial systems used by Schneider/Modicon networks. Always verify cable impedance (typically 75 or 93 ohms depending on the specific Modicon series) before installation.

Does this tap require an external power source?

No, the MA-0185-100 operates as a passive component. It distributes signal energy directly from the trunk line without requiring additional DC power.

How does this unit handle environmental stress?

The French-manufactured housing withstands the humidity and temperature fluctuations common in factory floor environments. The high-retention ports prevent accidental disconnection during routine maintenance or equipment shifts.
