Description

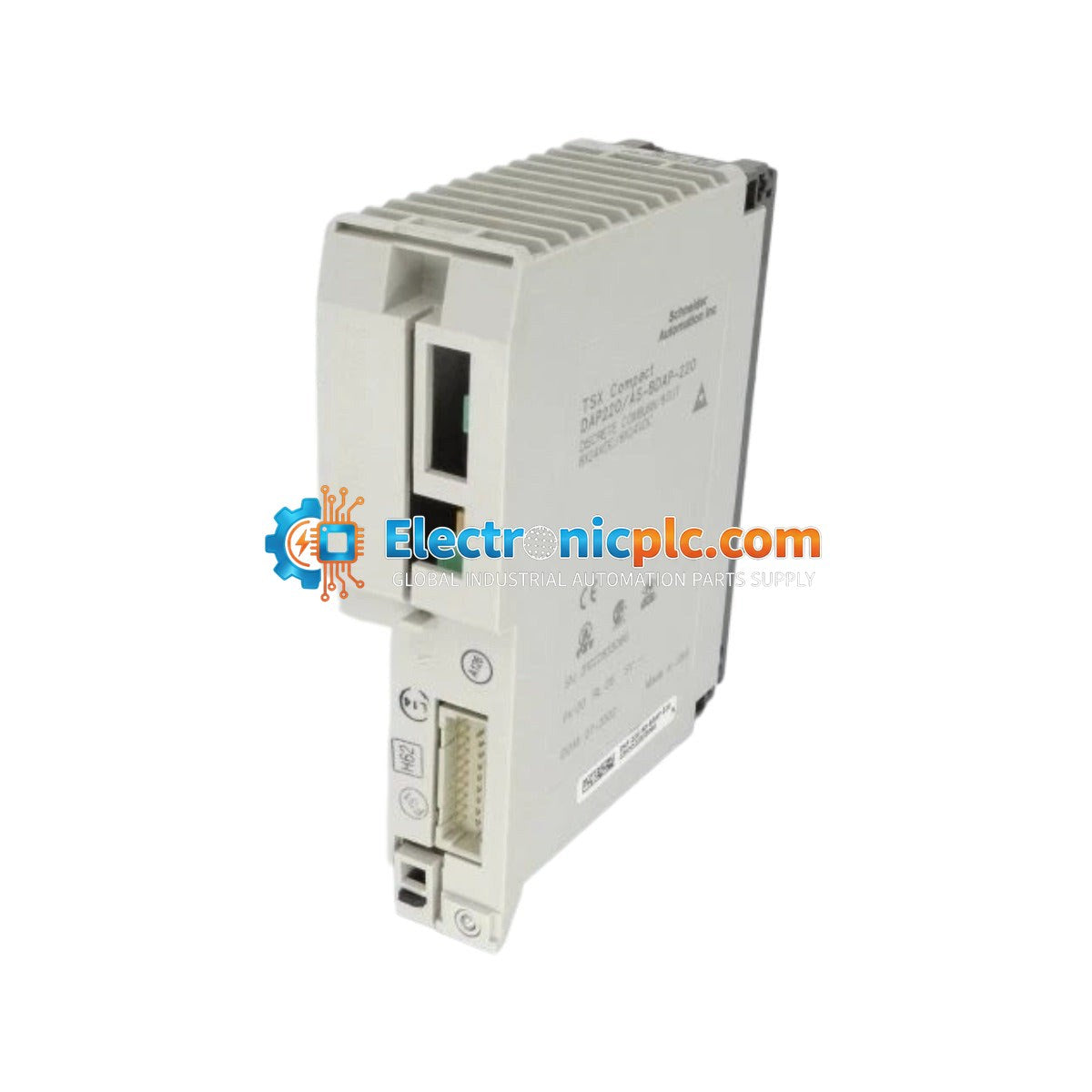

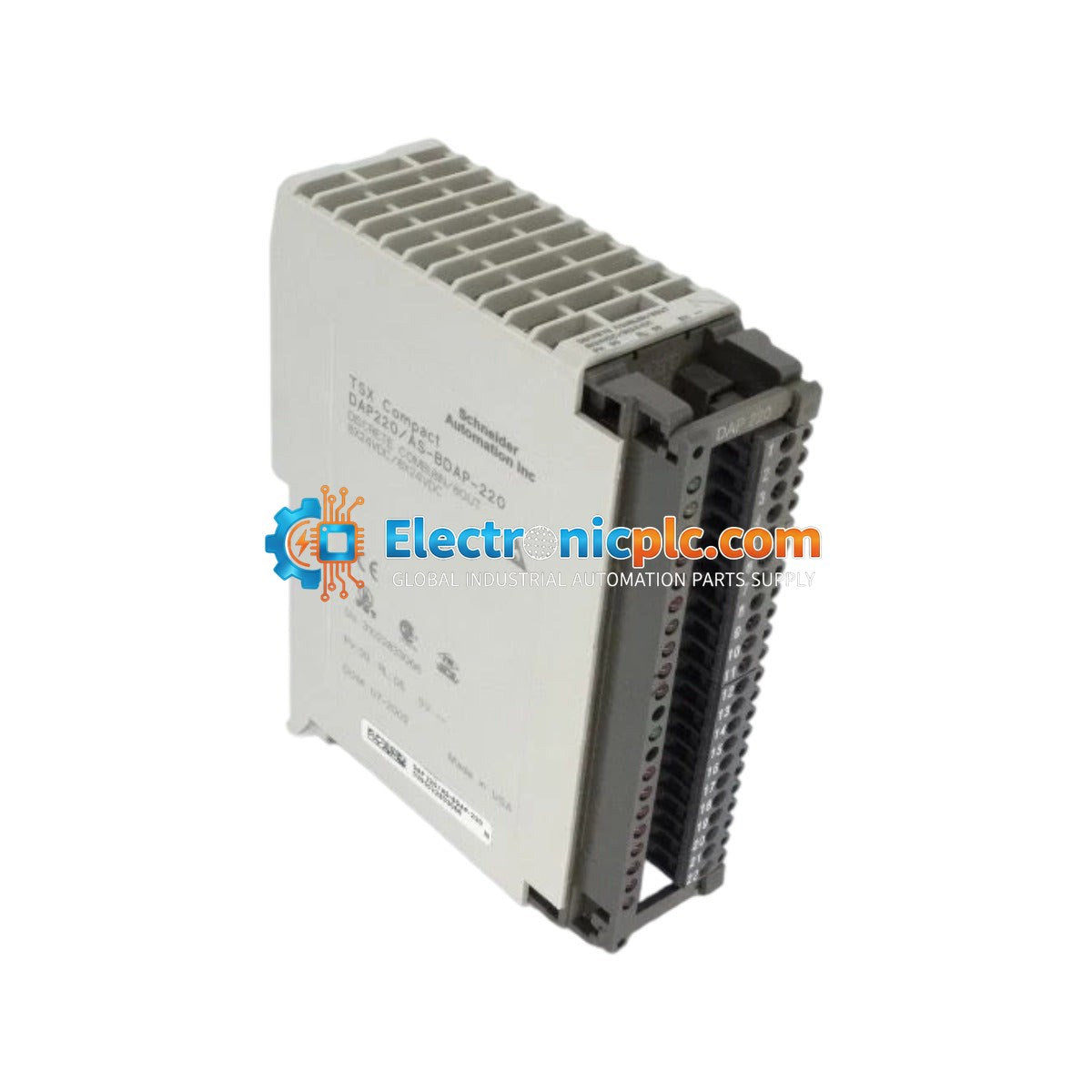

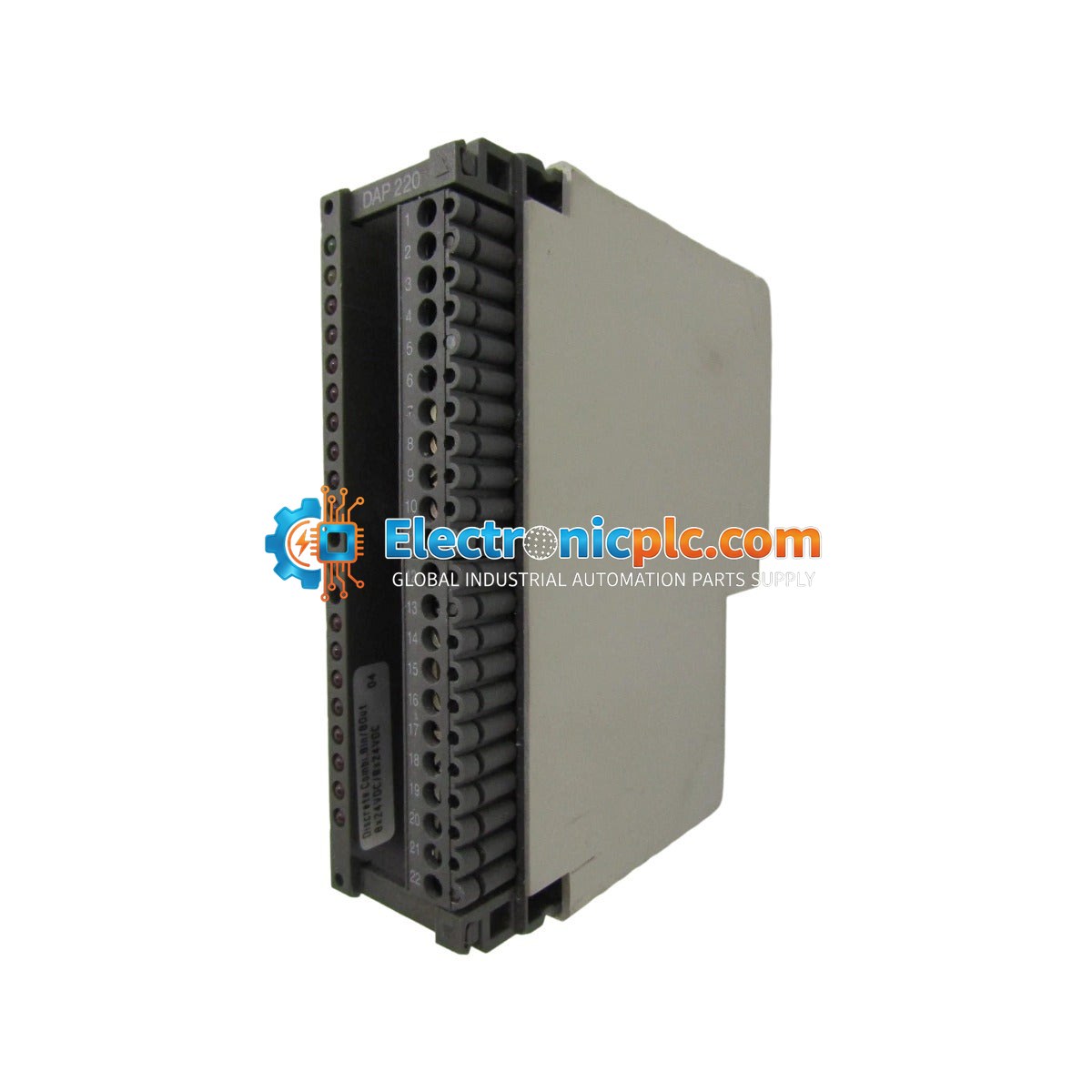

The AS-BDAP-220 (ASBDAP220) is a high-density mixed discrete input/output interface module designed for the legacy Schneider Electric Modicon A120 automation series. This unit integrates 8 discrete input channels and 8 discrete output channels into a single, compact chassis, operating at a nominal 24 V DC rating. It is engineered to manage point-to-point digital signaling, position sensor tracking, and valve actuator control in demanding industrial environments, including petroleum refining, power generation, and mining facilities. By consolidating I/O functions, this module optimizes backplane space, reduces data latency, and provides robust electrical isolation to protect core processor components from field-side faults.

Features

• 8 isolated digital inputs compliant with IEC 61131-2 Type 1 standards.
• 8 short-circuit protected solid-state transistor outputs (source configuration).
• Hardware low-pass filtering on input channels to mitigate contact bounce.
• 1500 V AC galvanic isolation between the Modicon A120 bus and field wiring.
• Integrated LED status matrix for backplane activity, system errors, and individual I/O channel monitoring.
• Positive logic configuration for both inputs and outputs.

Applications

This module is typically deployed in process control systems requiring compact, reliable digital I/O for:

• Valve and actuator control sequences.
• Proximity and limit switch monitoring.
• Digital status feedback for motor control centers.
• General-purpose discrete automation in harsh industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the Modicon A120 rack power is disconnected before installing or removing the module to prevent electrical damage.
• Mount the module securely in the designated rack slot, ensuring the backplane connector is properly seated.
• Use shielded cabling for field I/O to minimize EMI interference, especially in high-noise environments.
• Verify that field power supplies are within the 19.2 to 30 V DC range before energizing.
• Ensure adequate ventilation around the module to maintain operating temperatures within the 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connectors.

FAQ

What is the primary function of the ASBDAP220 module?

The ASBDAP220 is a mixed I/O module for the Modicon A120 series, providing 8 inputs and 8 outputs to interface field devices like sensors and actuators with the PLC backplane.

Does this module require external power?

Yes, the module requires a 24 V DC supply for the field-side I/O circuits, while the internal logic is powered via the backplane bus.

What type of outputs does this module feature?

It features 8 solid-state transistor outputs configured as source (positive logic) with electronic short-circuit protection and automatic reset.
