Description

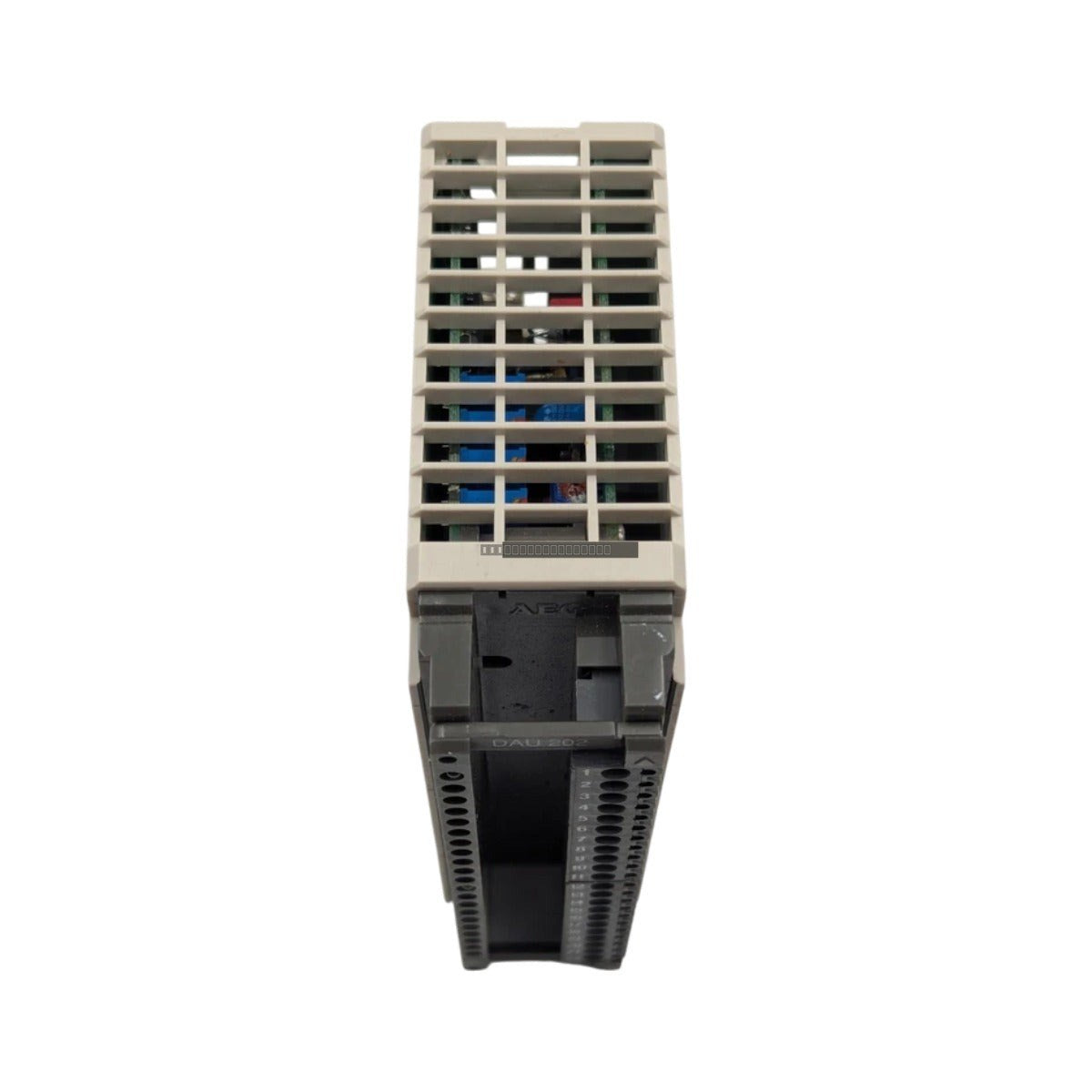

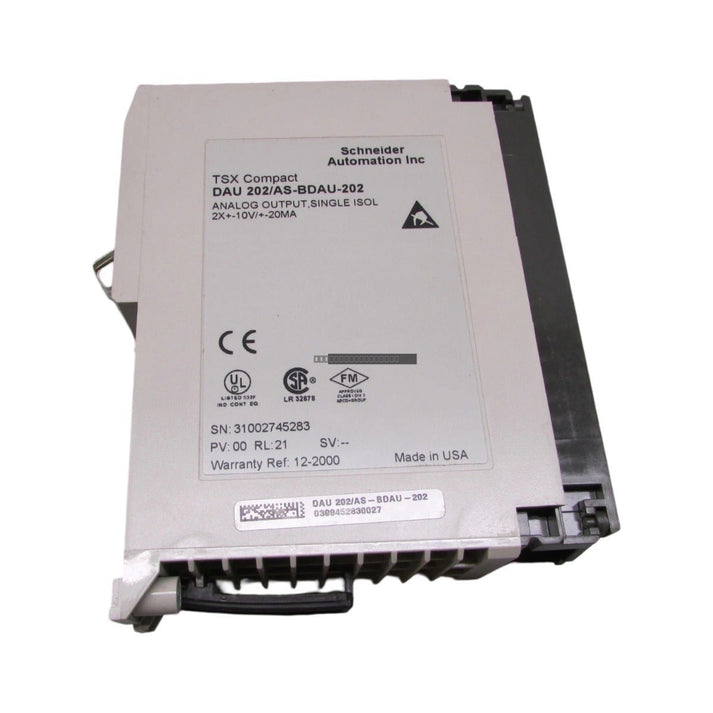

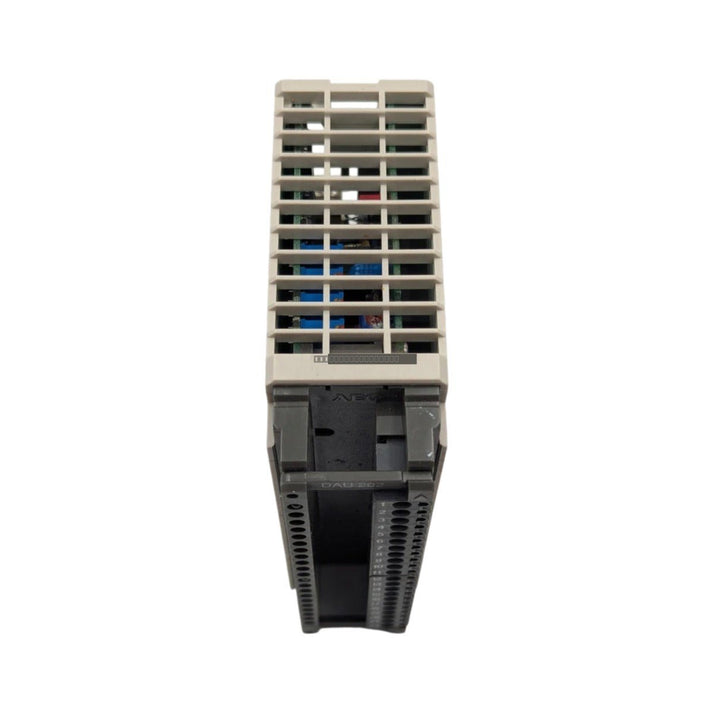

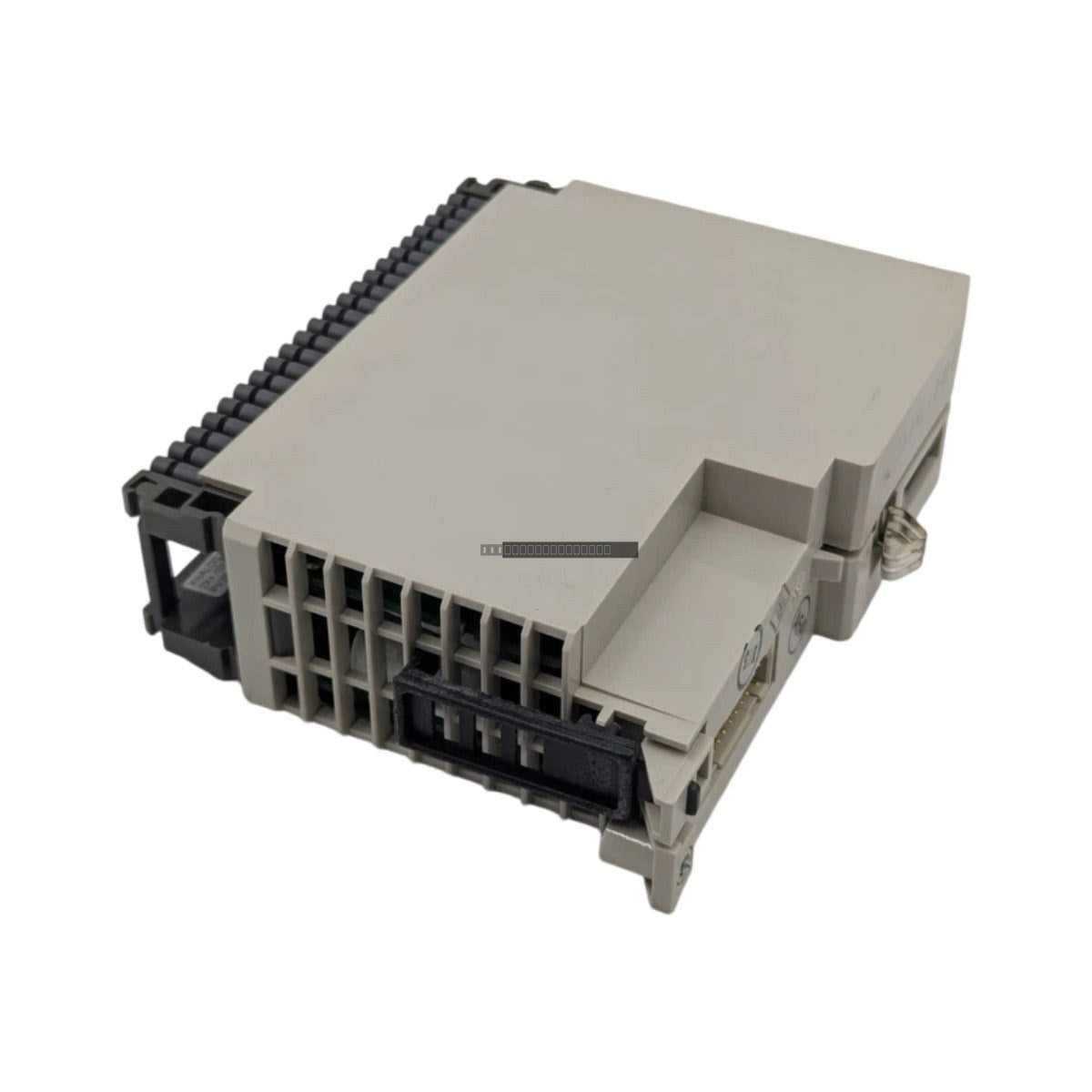

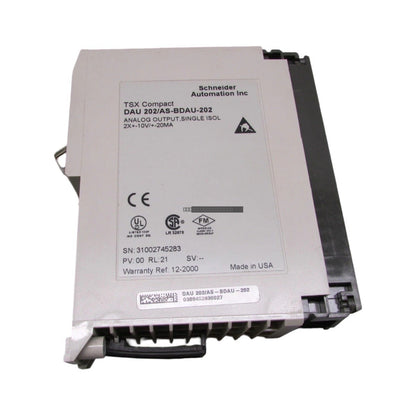

The Schneider Electric ASBDAU202 is a high-performance, dual-channel analog output module engineered for the Modicon A120 programmable logic controller series. This module facilitates precise digital-to-analog signal conversion, enabling the control of industrial actuators, variable frequency drives, and proportional valves. Designed for demanding environments such as power generation and industrial manufacturing, the ASBDAU202 ensures reliable signal transmission through robust galvanic isolation and high-accuracy internal circuitry.

Features

• Dual-channel architecture for independent signal control.
• Configurable output ranges supporting both +/- 10 VDC voltage and +/- 20 mA current signals.
• 12-bit resolution for high-precision process control.
• Integrated galvanic isolation (500 VDC) between field loops and backplane logic to prevent ground fault propagation.
• Front-panel status indicators for real-time diagnostic monitoring of loop integrity.
• Low-drift operational amplifier design for long-term signal stability.

Applications

This module is primarily utilized in industrial automation systems requiring precise analog regulation, including:

• Control of proportional valves and hydraulic actuators.
• Speed reference signal generation for variable frequency drives (VFDs).
• Process variable monitoring and control in continuous manufacturing lines.
• Positioning systems for industrial machinery.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module from the rack.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
• Verify that field wiring is properly shielded and routed away from high-voltage power lines to minimize EMI interference.
• Ensure the module is fully seated in the backplane connector to maintain reliable communication with the CPU.
• Check that the terminal block connections are secure and that wire gauges are appropriate for the signal load.

FAQ

Q: Can the ASBDAU202 be configured for both voltage and current outputs simultaneously?
A: Yes, the module supports independent configuration of its two channels for either voltage or current modes, allowing for flexible application requirements.

Q: What is the primary purpose of the galvanic isolation on this module?
A: The 500 VDC galvanic isolation protects the central backplane logic from electrical surges, common-mode noise, and ground faults originating in the field wiring.
