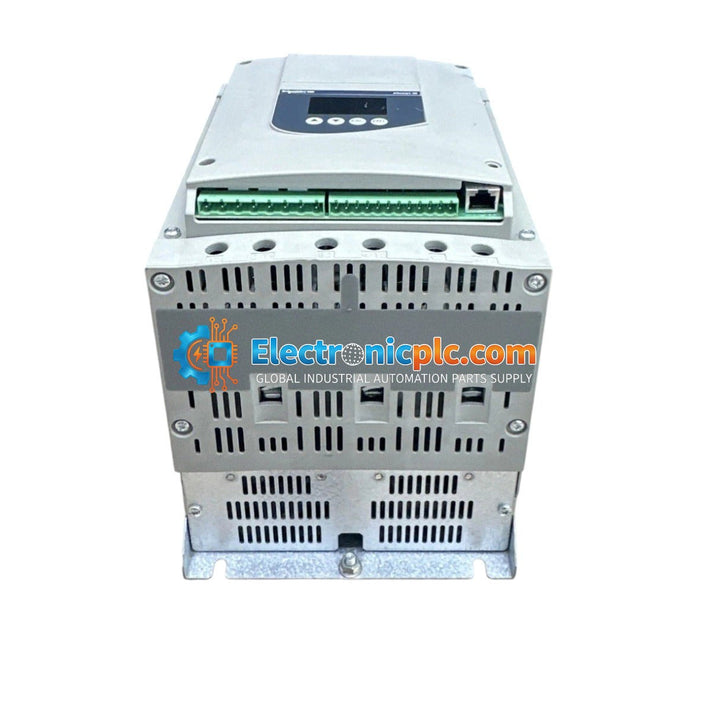

Schneider Electric Altistart 48 ATS48C21Q Soft Starter

Schneider Electric Altistart 48 ATS48C21Q Soft Starter

Description

The Schneider Electric Altistart 48 ATS48C21Q is a high-performance soft starter designed for the control and protection of three-phase asynchronous motors. Engineered for heavy-duty industrial applications, this unit provides smooth...

15 people are viewing this right now

Availability: Low stock: 4 left

SKU: ATS48C21Q
Vendor: Schneider Electric
Category: Soft Starter
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric Altistart 48 ATS48C21Q is a high-performance soft starter designed for the control and protection of three-phase asynchronous motors. Engineered for heavy-duty industrial applications, this unit provides smooth starting and stopping sequences, effectively reducing mechanical stress on equipment and minimizing current surges during motor startup. It is widely utilized in applications such as pumps, fans, compressors, and conveyors to enhance system longevity and operational efficiency.

Features

  • Advanced torque control system for smooth acceleration and deceleration.
  • Integrated protection functions for the motor, the starter, and the driven machine.
  • Supports a wide range of power supply voltages from 230 V to 415 V.
  • Designed for heavy-duty industrial environments requiring reliable motor management.
  • Configurable discrete inputs for flexible control integration.

Applications

  • Centrifugal and piston pumps.
  • Industrial fans and ventilation systems.
  • Compressors and refrigeration units.
  • Conveyor belts and material handling equipment.

Technical Specifications

Product Model ATS48C21Q
Device Type Soft Starter
Supply Voltage Range 230...415 V (-15% to +10%)
Voltage Limits 195...456 V
Frequency Range 50...60 Hz (-5% to +5%)
Frequency Limits 47.5...63 Hz
Discrete Input Voltage 24 V (up to 30 V)
Manufacturer Schneider Electric

Installation Guidelines

  • Ensure the device is mounted in a vertical position to allow for proper heat dissipation.
  • Maintain adequate clearance around the unit to facilitate airflow and prevent overheating.
  • Use shielded cables for control signals to minimize electromagnetic interference (EMI).
  • Verify that the supply voltage matches the specifications before applying power.
  • Always disconnect the main power supply before performing any wiring or maintenance on the terminal blocks.
  • Ensure proper grounding of the chassis to a common earth point to maintain electrical safety.

FAQ

What is the primary function of the ATS48C21Q?

The ATS48C21Q acts as a soft starter to limit the starting current and torque of three-phase asynchronous motors, preventing mechanical shock and electrical stress on the power distribution network.

Can this soft starter be used for pump applications?

Yes, the Altistart 48 series is specifically designed to handle the torque requirements of pumps, providing smooth transitions that reduce water hammer effects in piping systems.
