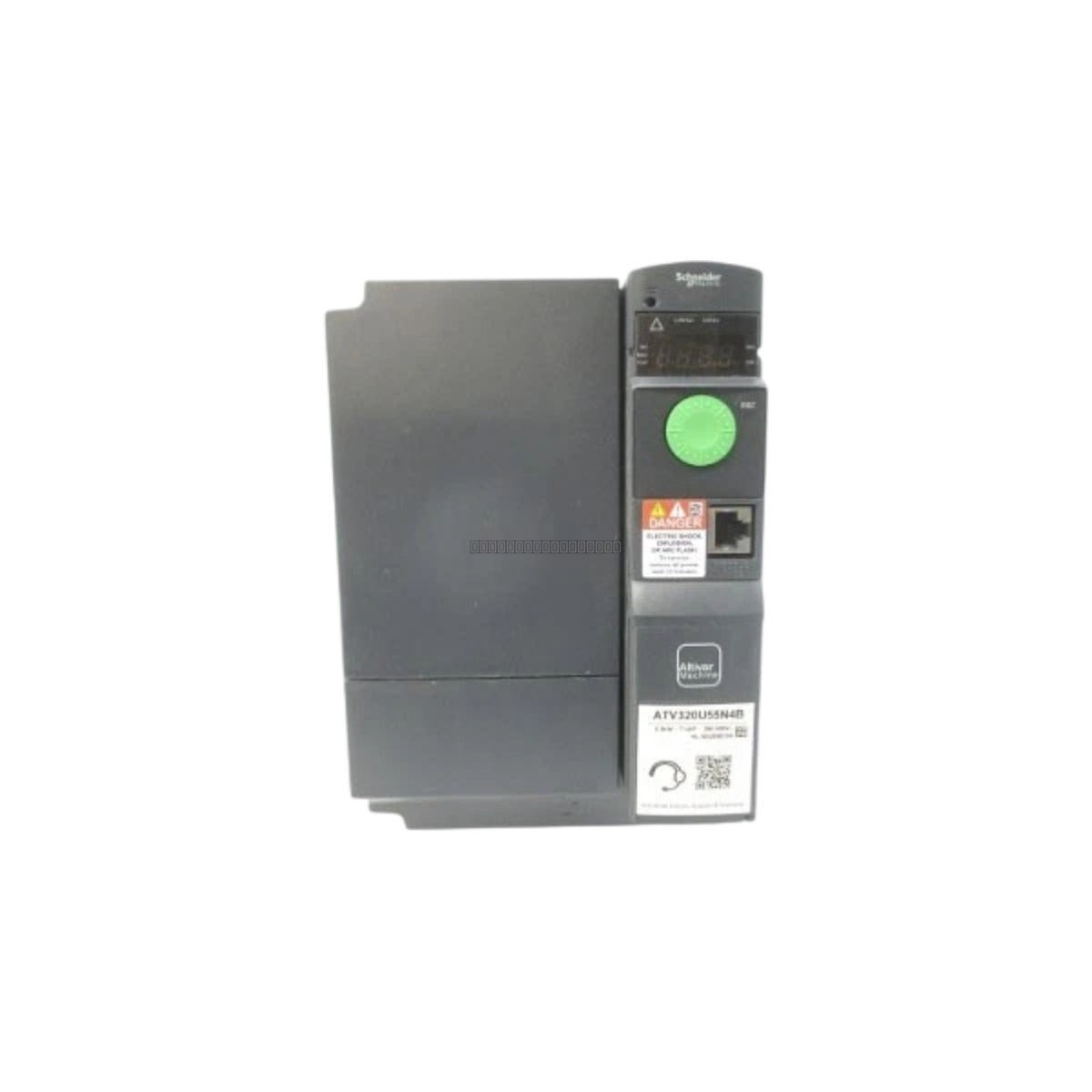

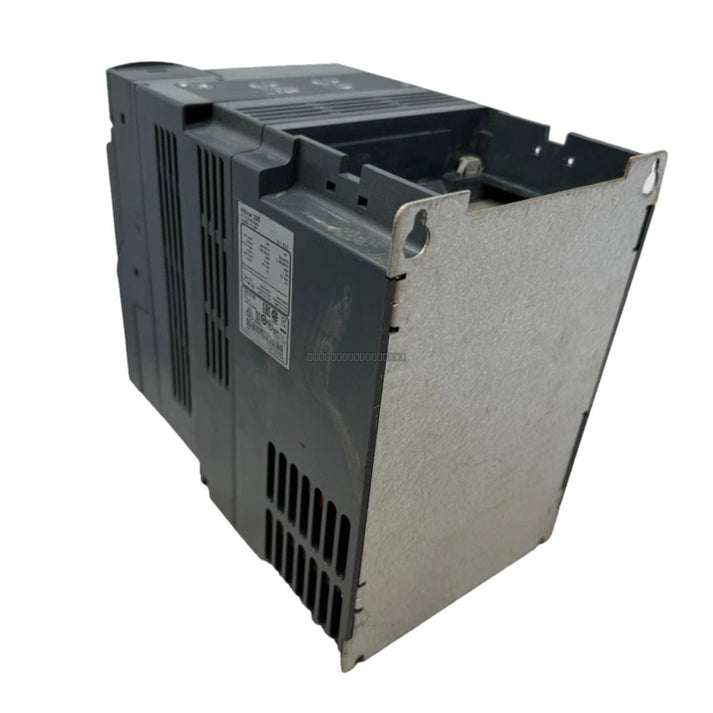

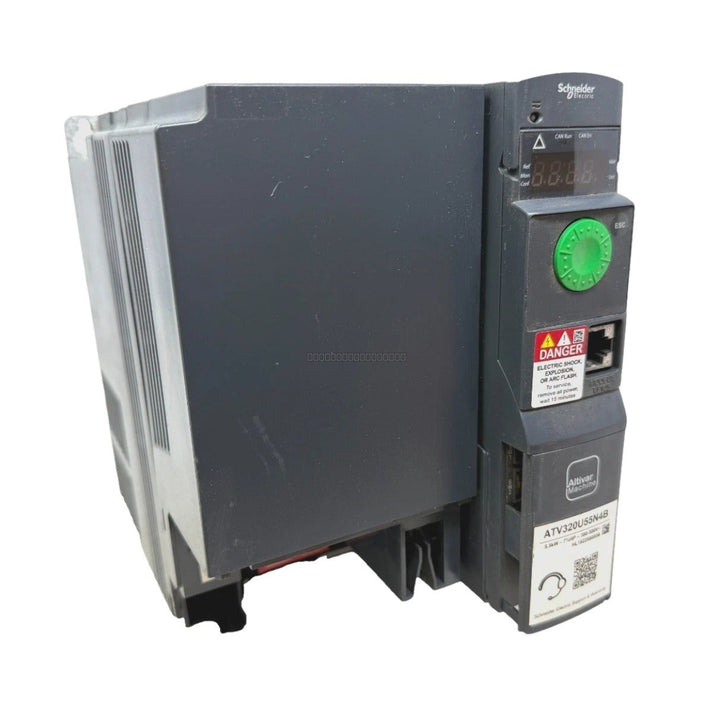

Schneider Electric ATV320U55N4B Altivar Machine Variable Speed Drive

Schneider Electric ATV320U55N4B Altivar Machine Variable Speed Drive

Description

The Schneider Electric ATV320U55N4B is a high-performance variable speed drive from the Altivar Machine ATV320 range. Designed specifically for the control of complex industrial machines, this drive offers robust motor...

26 people are viewing this right now

Availability: Low stock: 4 left

SKU: ATV320U55N4B
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric ATV320U55N4B is a high-performance variable speed drive from the Altivar Machine ATV320 range. Designed specifically for the control of complex industrial machines, this drive offers robust motor management in a compact book-style format suitable for wall-mounted installations. It provides reliable speed and torque control for demanding applications requiring precise motor regulation.

Features

  • Designed for complex machine applications
  • Compact book-style form factor for efficient panel space utilization
  • Integrated communication support for Modbus serial and CANopen protocols
  • Supports heavy-duty motor power ratings up to 5.5 kW
  • Wide supply voltage range of 380 to 500 V

Technical Specifications

Product Model ATV320U55N4B
Product Range Altivar Machine ATV320
Motor Power (Heavy Duty) 5.5 kW
Rated Supply Voltage 380...500 V (-15...10%)
Nominal Output Current 14.3 A
Maximum Input Current 20.7 A
Maximum Output Frequency 0.599 kHz
Nominal Switching Frequency 4 kHz
Mounting Mode Wall mount
Communication Protocols Modbus serial, CANopen

Installation Guidelines

  • Ensure the drive is mounted in a vertical position to allow for proper airflow and cooling.
  • Maintain adequate clearance around the unit as specified in the installation manual to prevent overheating.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure all grounding connections are secure and follow local electrical codes to prevent ground loops.
  • Always disconnect the power supply and wait for the internal capacitors to discharge before performing any wiring or maintenance.
  • Verify that the supply voltage matches the drive's rated input range before applying power.

FAQ

What is the primary application for the ATV320U55N4B?

This drive is engineered for complex machines, providing versatile motor control for various industrial automation tasks requiring variable speed and torque.

Does this drive support network communication?

Yes, the ATV320U55N4B features integrated communication ports for both Modbus serial and CANopen protocols, allowing for seamless integration into existing control architectures.

What is the mounting configuration for this drive?

This model features a book-style format and is designed for wall-mounted installation within an industrial enclosure.
