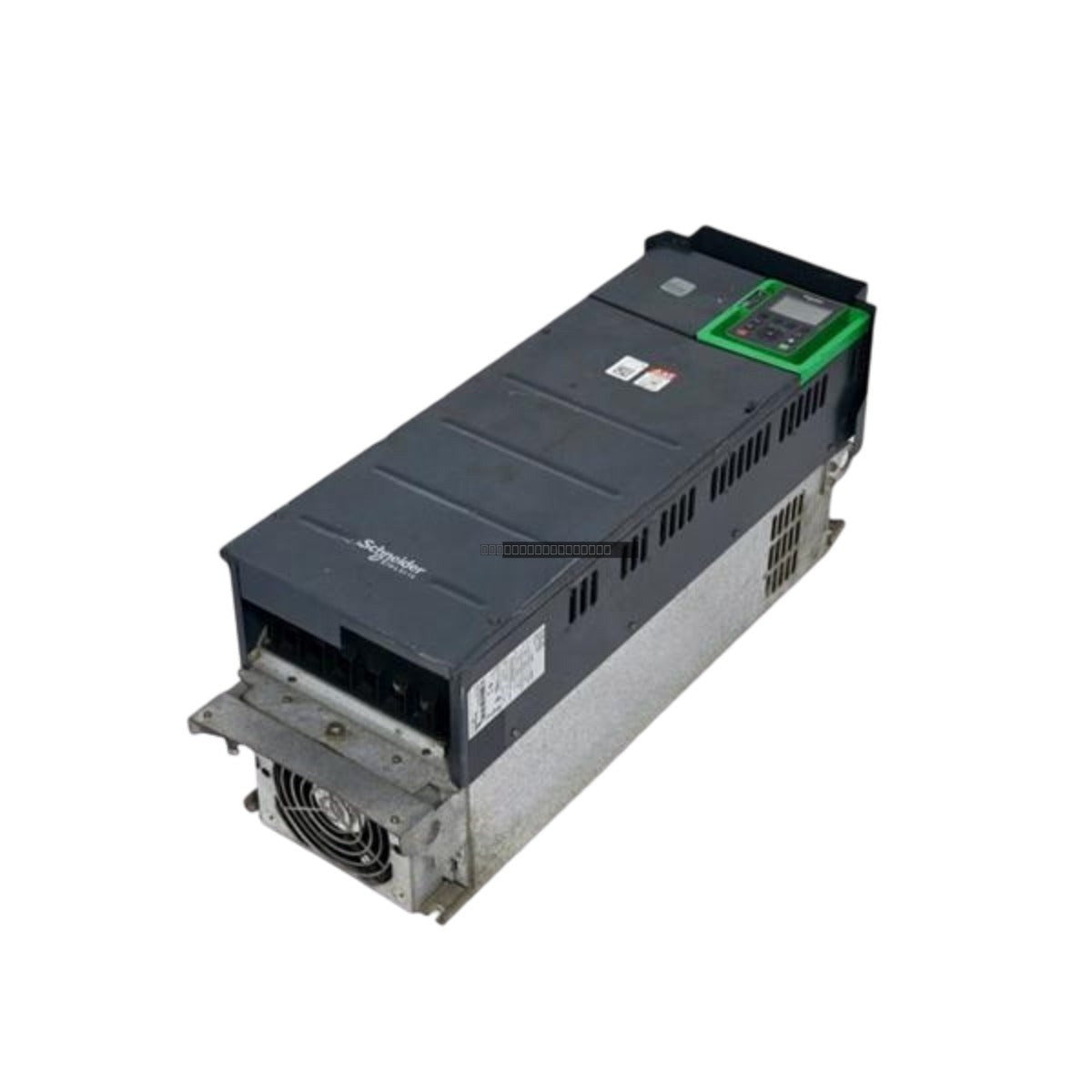

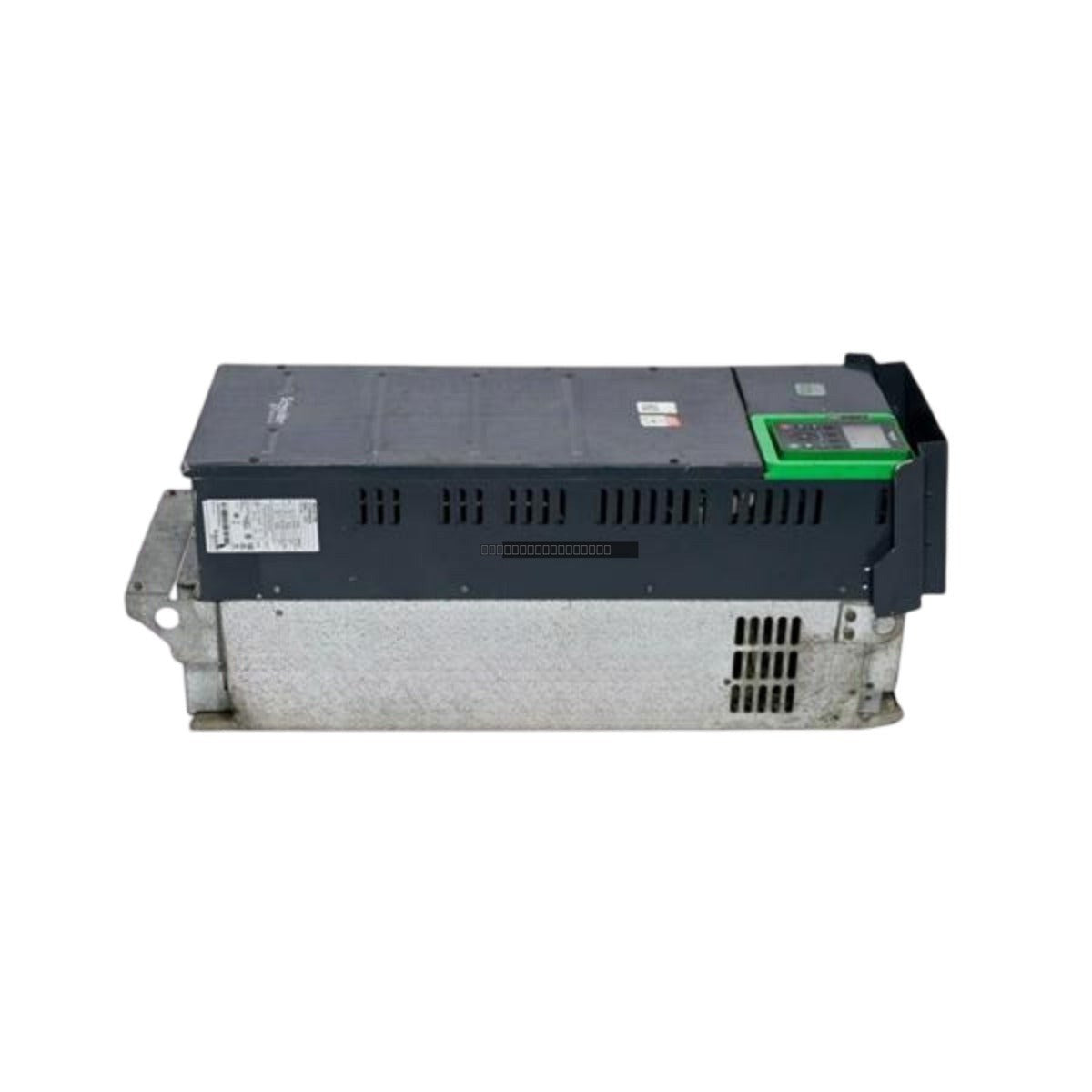

Schneider Electric ATV610D30N4 Easy Altivar 610 Variable Speed Drive

Schneider Electric ATV610D30N4 Easy Altivar 610 Variable Speed Drive

Description

The Schneider Electric ATV610D30N4 is a high-performance variable speed drive from the Easy Altivar 610 series. Designed for industrial motor control applications, this drive provides reliable speed regulation and energy...

24 people are viewing this right now

Availability: Low stock: 7 left

SKU: ATV610D30N4
Vendor: Schneider Electric
Category: Variable Speed Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Schneider Electric ATV610D30N4 is a high-performance variable speed drive from the Easy Altivar 610 series. Designed for industrial motor control applications, this drive provides reliable speed regulation and energy efficiency for 3-phase electrical systems. It features a standard design optimized for forced convection cooling, ensuring stable operation in demanding environments.

Features

  • Supports 3-phase supply voltage ranging from 380 V to 460 V.
  • Integrated Modbus serial communication protocol for seamless system integration.
  • Offers 16 preset speeds for flexible process control.
  • Adjustable switching frequency between 2 kHz and 12 kHz, with a nominal setting of 4 kHz.
  • Wide output frequency range from 0.1 Hz to 500 Hz.

Technical Specifications

Product Model ATV610D30N4
Product Range Easy Altivar 610
Supply Frequency 50 to 60 Hz (+/- 5%)
Number of Phases 3-phase
Rated Supply Voltage 380 to 460 V (-15% to +10%)
Output Frequency 0.1 to 500 Hz
Nominal Switching Frequency 4 kHz
Communication Protocol Modbus Serial

Installation Guidelines

  • Ensure the drive is mounted vertically on a flat, non-flammable surface to maintain proper airflow for the forced convection cooling system.
  • Maintain adequate clearance around the unit to prevent overheating.
  • Verify that the supply voltage matches the rated input range of 380-460V before applying power.
  • Use shielded cables for communication and control signals to minimize EMI interference.
  • Always disconnect the main power supply and wait for the internal capacitors to discharge before performing any wiring or maintenance.
  • Ensure proper grounding of the drive chassis to a common plant earth point to ensure safety and signal integrity.

FAQ

What is the primary application for the ATV610D30N4?

This variable speed drive is designed for controlling the speed and torque of 3-phase induction motors in various industrial processes, such as pumps, fans, and conveyors, where precise speed control is required.

Does this drive support communication with other devices?

Yes, the ATV610D30N4 includes a built-in Modbus serial communication port, allowing it to be integrated into larger automation networks for remote monitoring and control.
