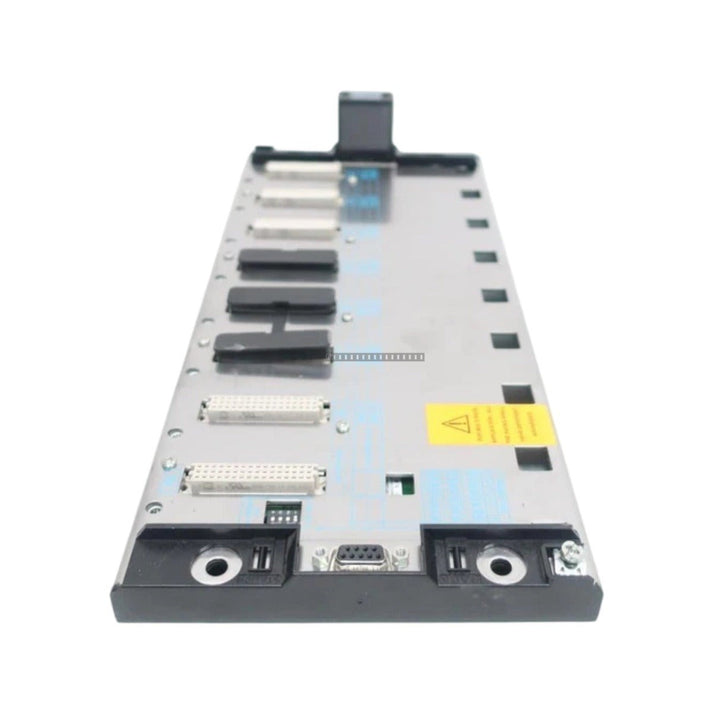

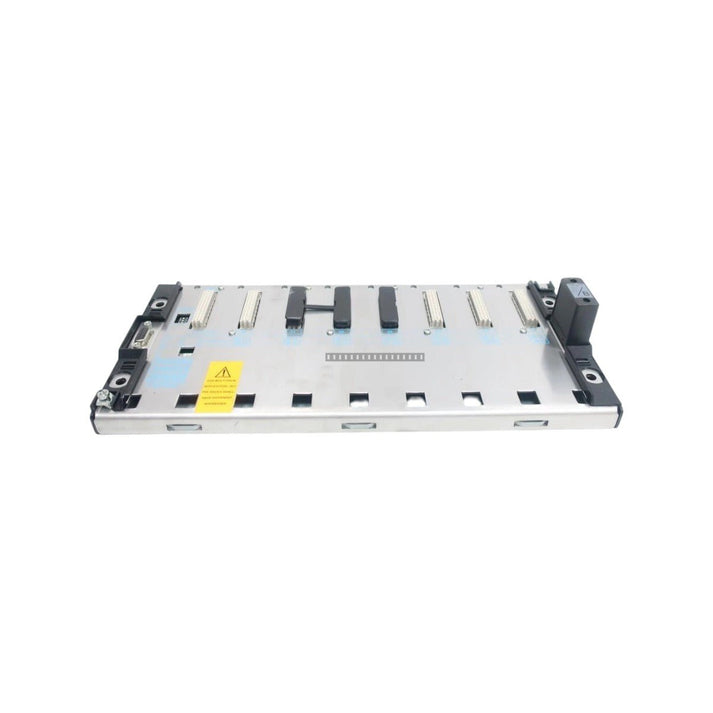

Schneider Electric TSXRKY8EX Modicon Premium 8-Slot Extension Rack Base

Schneider Electric TSXRKY8EX Modicon Premium 8-Slot Extension Rack Base

Description

The TSXRKY8EX is an 8-slot rugged expansion rack base designed for the Schneider Electric Modicon Premium automation platform. This chassis facilitates the physical and logical scaling of PLC systems by...

25 people are viewing this right now

Availability: Low stock: 8 left

SKU: TSXRKY8EX
Vendor: Schneider
Category: PLC Expansion Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The TSXRKY8EX is an 8-slot rugged expansion rack base designed for the Schneider Electric Modicon Premium automation platform. This chassis facilitates the physical and logical scaling of PLC systems by providing a stable backplane for high-density I/O and communication modules. It is engineered for demanding industrial environments, including chemical processing, petroleum refining, and power generation, ensuring reliable signal integrity and reduced system downtime.

Features

  • Supports up to 8 standard Modicon Premium functional modules.
  • Integrated passive backplane with high-speed bus communication.
  • Dedicated 9-pin female connector for TSXBusX high-speed network extension.
  • Onboard rotary hex switch for rack address configuration.
  • Robust metallic chassis with integrated M6 copper grounding studs for enhanced EMC.
  • Flexible mounting options including direct panel screw fixation or 35 mm DIN rail.

Applications

This expansion rack is suitable for distributed I/O architectures in large-scale automation systems. It is commonly deployed in thermal power stations, mining extraction grids, and complex manufacturing lines where modular scalability and high-availability communication are critical.

Technical Specifications

Model TSXRKY8EX
Slots 8
Bus Type Modicon Premium Backplane Bus
Interface 1 x 9-pin female TSXBusX
Max Expansion Racks 3 bases per segment
Operating Temp 0 to 60 deg C
Storage Temp -25 to 70 deg C
Humidity 10% to 95% (non-condensing)
Power Consumption 1.8 W (passive)
Protection IP20
Standards CE, UL 508, CSA C22.2, IEC 61131-2

Installation Guidelines

  • Ensure the rack is mounted on a flat, vibration-resistant surface or a properly secured 35 mm DIN rail.
  • Always power down the system before installing or removing any modules from the rack slots.
  • Connect the M6 grounding studs to a low-impedance earth ground to minimize electromagnetic interference.
  • Maintain proper ventilation clearance around the rack to ensure operating temperatures remain within the 0 to 60 deg C range.
  • Verify the rotary address switch is set correctly for the specific rack segment before powering up the bus.

FAQ

Can this rack be used as a standalone base? No, the TSXRKY8EX is designed as an extension rack base and requires connection to a primary processor rack or another upstream expansion chassis via the TSXBusX link.

How many expansion racks can I add? The system architecture supports up to 3 expansion bases per segment.
